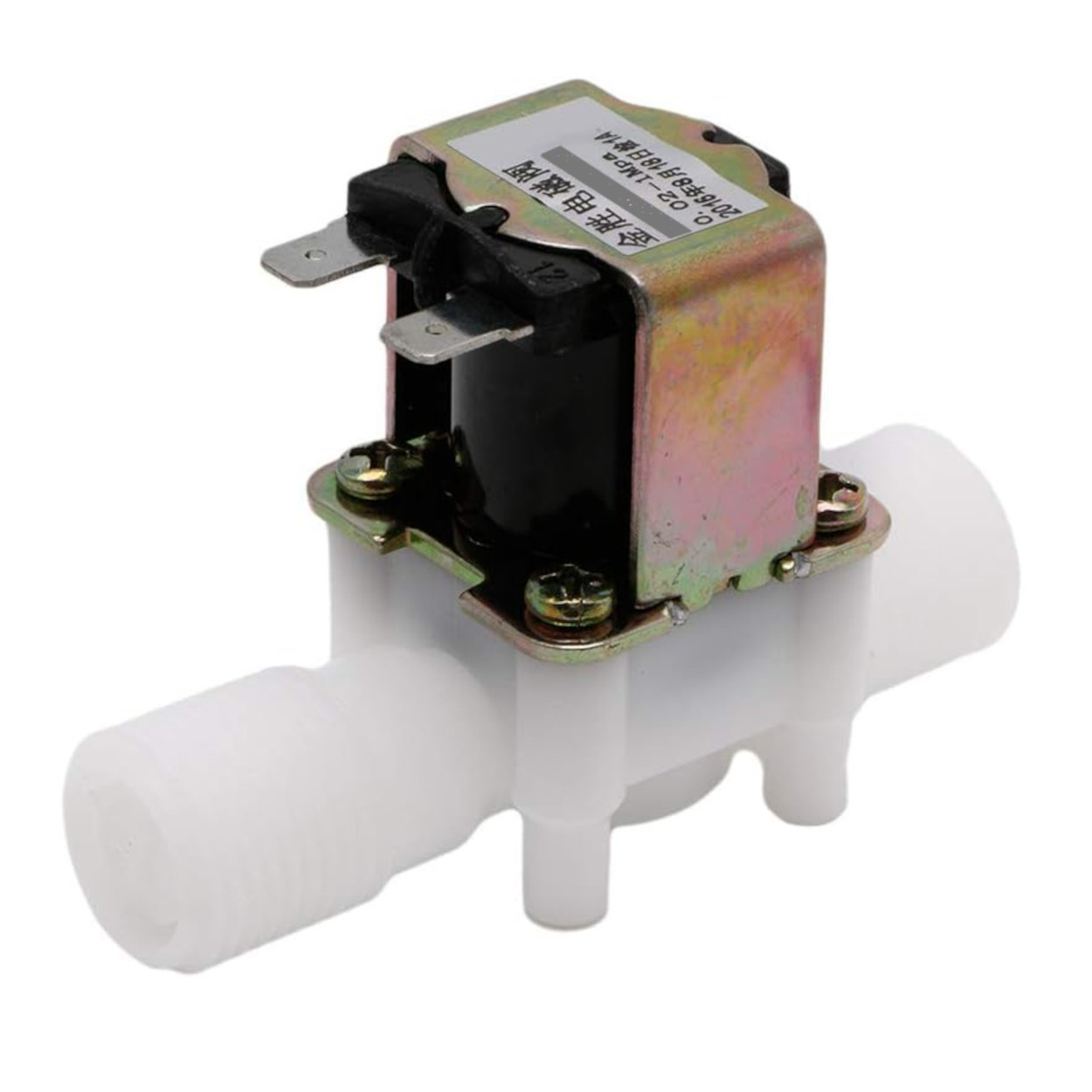

Solenoid Valve 12V DC 0.5 inch (1/2") - Electric Water Flow Control Switch (Normally Closed)

Specifications

• Operating Voltage: 12V DC

• Current Consumption: ~400mA to 600mA (at 12V)

• Valve Type: Normally Closed (NC) - Water stops when power is cut.

• Port Size: 1/2 inch (0.5") External Thread (Standard G1/2)

• Working Pressure: 0.02 Mpa – 0.8 Mpa (Requires pressure to open; NOT for zero-pressure gravity feed).

• Flow Character: Unidirectional

• Response Time: < 0.15 sec (Open), < 0.3 sec (Close)

• Fluid Medium: Water / Low-viscosity non-corrosive fluids (0-60°C)

• Filter: Integrated stainless steel mesh on the inlet.

Key Applications & Projects

• Smart Garden Irrigation: Interface with an ESP8266 and a soil moisture sensor to water plants only when dry.

• Touchless Faucets: Use an IR proximity sensor to trigger the valve for hygiene-focused projects.

• Pet Water Dispensers: Create a scheduled fresh water refill system for dogs or cats.

• Hydroponics Management: Control nutrient solution flow in automated growing setups.

Unlock New Capabilities (Project Evolution)

• Prerequisite: You've likely blinked an LED or spun a small motor with an Arduino.

• The Upgrade: This valve introduces you to Fluid Control. You aren't just moving electrons anymore; you are moving physical matter (water).

• Effort Level: Intermediate. Requires understanding of transistor/relay drivers and external power supplies (12V is higher than the Arduino's 5V).

Virtual Technician: Wiring & Safety Guide ⚠️

• Driver Required: This valve draws ~500mA, which will destroy an Arduino/ESP32 GPIO pin instantly.

  • Use a TIP120 Transistor, IRF540 MOSFET, or a 5V Relay Module.

• Flyback Diode: If using a transistor/MOSFET, you MUST connect a diode (1N4007) across the valve terminals (Cathode to +12V, Anode to Drain/Collector) to absorb voltage spikes.

• Power Supply: Do not power this from the Arduino's "Vin" or "5V" pin. Use a separate 12V 1A+ Power Adapter. Share the Ground (GND) between the 12V source and the Arduino.

Accessories

• Included: 1 x Solenoid Valve 12V DC 0.5 inch (1/2")

• Required (Sold Separately):

  • 1-Channel Relay Module (5V or 12V)

  • 1/2" Female Threaded Pipe Connectors

  • Teflon Tape (for leak-proof sealing)

  • Waterproof Junction Box

Frequently Asked Questions (FAQ)

1. Can I power this directly from an Arduino pin?

   • NO. The 500mA draw will burn out the Arduino pin (rated for 20mA). You need a driver (Relay/Transistor).

2. Will water flow if I just pour it in (Gravity Feed)?

   • No. This is a pilot-assisted valve. It needs a minimum pressure (~3 PSI or mains pressure) to lift the diaphragm. It will trickle or leak at zero pressure.

3. Does polarity matter for the two pins?

   • No, the solenoid coil is non-polarized. You can connect +12V and GND to either terminal.

4. Can I use a 9V battery?

   • A standard 9V battery has very low capacity. It might open the valve a few times but will die quickly. Use a 12V adapter or 3S LiPo.

5. Is it waterproof?

   • The mechanical body handles water, but the electrical tabs are exposed. Do not submerge the valve or let rain short the contacts.

6. Can I control the flow rate (PWM)?

   • No. Solenoid valves are designed for ON/OFF. Rapid PWM will just cause the valve to chatter and overheat.

7. What happens if I run it at 24V?

   • It will open very fast but overheat rapidly and likely burn the coil within minutes.

8. Can I keep it ON for 24 hours?

   • Not recommended. The coil will get very hot. For long-duration "ON" states, consider a Motorized Ball Valve instead.

9. Why is it leaking?

   • Check flow direction. The arrow on the bottom must point towards the outlet. Backward installation causes leaks.

10. Can I use this for drinking water?

    • It is industrial plastic. For potable water, look for "Food Grade" certified valves.

11. Does it work with air/gas?

    • It acts as a valve, but the seals are designed for water viscosity. Air might leak slowly.

    • Probots™ Tech-Bridge ????‍????: We recommend specific pneumatic valves for air projects to ensure airtight seals.

12. What thread size do I need for pipes?

    • Standard 1/2" BSP or NPT plumbing fittings found in hardware stores will fit.

13. Why does it hum/buzz?

    • A slight hum is normal for solenoids. If it's loud, check if the input voltage is sagging below 10V.

14. Can I use a 12V Lead-Acid battery?

    • Yes, lead-acid batteries are excellent power sources for these valves.

15. How hot does it get?

    • Up to 50-60°C after continuous operation is normal.

16. Is there a manual override switch?

    • No, it can only be opened electrically.

17. Can I use this for oil?

    • Only if the oil is low viscosity (like water). Thick oil will clog the pilot hole.

18. Do I need a check valve before it?

    • The valve blocks backflow when closed, but a dedicated check valve is safer if back-pressure is high.

19. What size tubing fits directly?

    • None. You need a "1/2 inch Female to X mm Barb" adapter to connect flexible tubing.

20. Is the filter cleanable?

    • Yes, the metal mesh on the inlet pulls out for cleaning.
