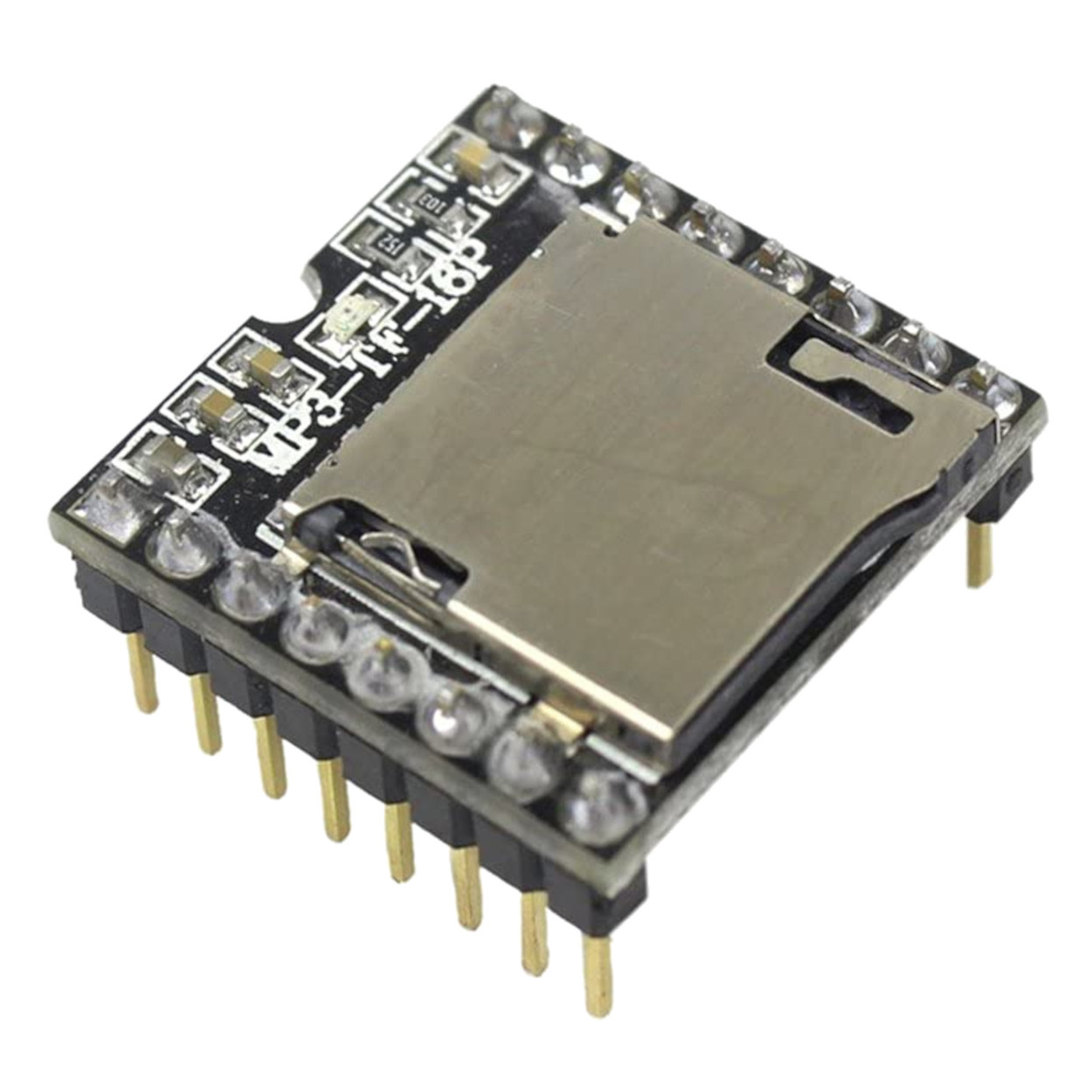

DFPlayer Mini MP3 Player Module - Serial UART Audio Voice Playback for Arduino & ESP32

FREQUENTLY ASKED QUESTIONS (FAQ)

Q: What voltage does the DFPlayer Mini run on? It operates safely between 3.2V and 5.0V DC. If you are powering it with exactly 5V, it is recommended to ensure your power supply is stable, especially if driving a speaker directly.

Q: Why does my microcontroller keep resetting when the audio plays? Driving a speaker takes a significant amount of current. If you power the DFPlayer Mini from the 5V pin of your Arduino/ESP32, the sudden current draw when a loud sound plays can cause a voltage drop, browning out the microcontroller. Always power the DFPlayer from a robust, dedicated power supply if using a speaker.

Q: Why is there a buzzing or popping noise in my audio? This is a common issue caused by UART communication noise on the RX line. To fix this, place a 1k Ohm resistor in series between your microcontroller's TX pin and the DFPlayer's RX pin.

Q: How do I need to format my MicroSD card? The card must be formatted to FAT16 or FAT32. ExFAT or NTFS will not work. 32GB is the maximum supported size.

Q: How should I name my audio files and folders? For reliable UART control, create a folder named mp3 on the root of your SD card. Inside, name your files numerically, starting with 0001.mp3, 0002.mp3, 0003.mp3, etc.

Q: What does the BUSY pin do? The BUSY pin is a highly useful indicator. It outputs a LOW signal while an audio track is currently playing, and returns HIGH when playback stops. You can wire this to an Arduino digital input to trigger actions (like blinking lights) perfectly synchronized to when audio is playing.

Q: Can I use this with an ESP32 or Raspberry Pi Pico (3.3V Logic)? Yes. While the DFPlayer is typically powered at 5V, its serial lines can handle 3.3V logic. However, to be completely safe and reduce noise, use a 1k resistor on the DFPlayer's RX line to step down the voltage, or power the DFPlayer module itself closer to 3.3V if you aren't heavily driving the internal amplifier.

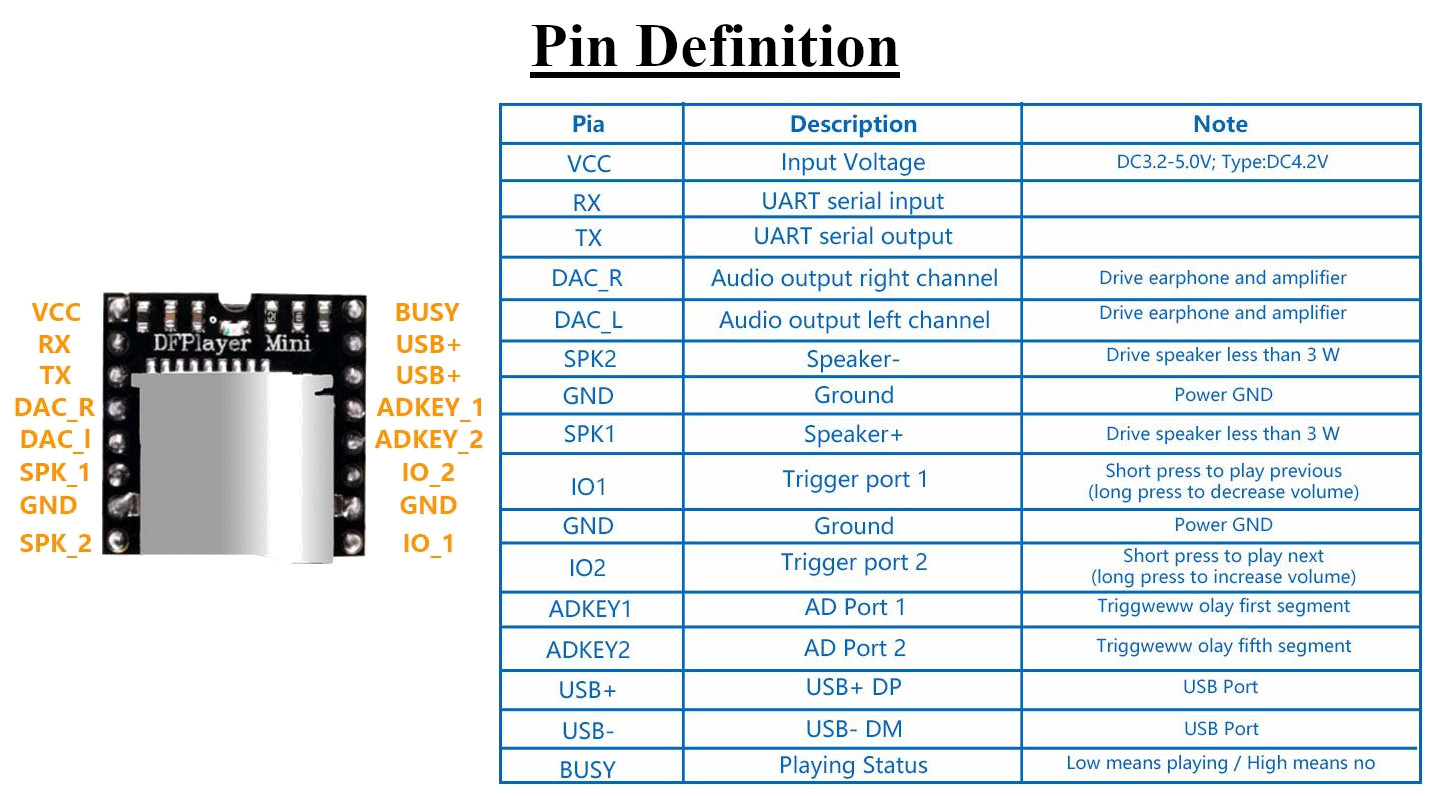

Q: Do I connect my speaker to the DAC pins or the SPK pins? Connect passive 8-Ohm speakers (up to 3W) directly to the SPK1 and SPK2 pins. Do NOT connect a speaker to the DAC pins. The DAC_R and DAC_L pins are low-level outputs meant for headphones or feeding into an external amplifier (like a PAM8403).

Q: What is the baud rate for UART communication? The default and required baud rate for serial communication with this module is 9600 bps.

Q: Can I use this without coding an Arduino? Yes! You can use "I/O Mode" by simply wiring tactile push-buttons from the IO_1 and IO_2 pins to Ground. A short press skips tracks, and a long press adjusts the volume.

Q: What do the USB+ and USB- pins do? These pins allow the DFPlayer to act as a USB mass storage device. If wired to a USB connector and plugged into a PC, you can read and write files directly to the inserted MicroSD card without removing it from the module.

Q: Is it possible to loop a single sound seamlessly? Yes, via UART commands, you can instruct the module to loop a specific track, loop an entire folder, or loop all contents on the SD card indefinitely.
