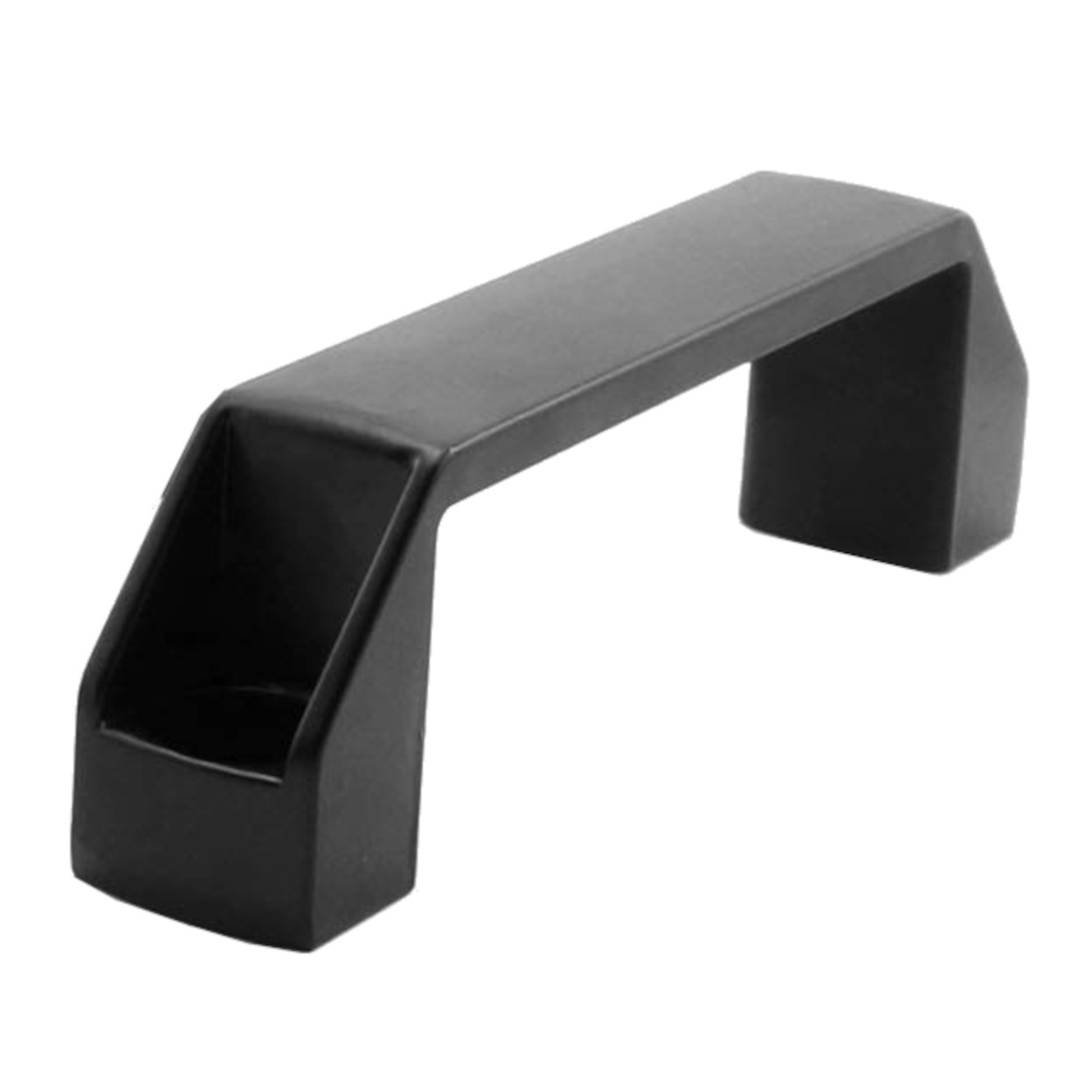

Industrial Aluminum Alloy Handle - 90mm Spacing for Aluminum Profile (3030 Series Compatible)

Specifications

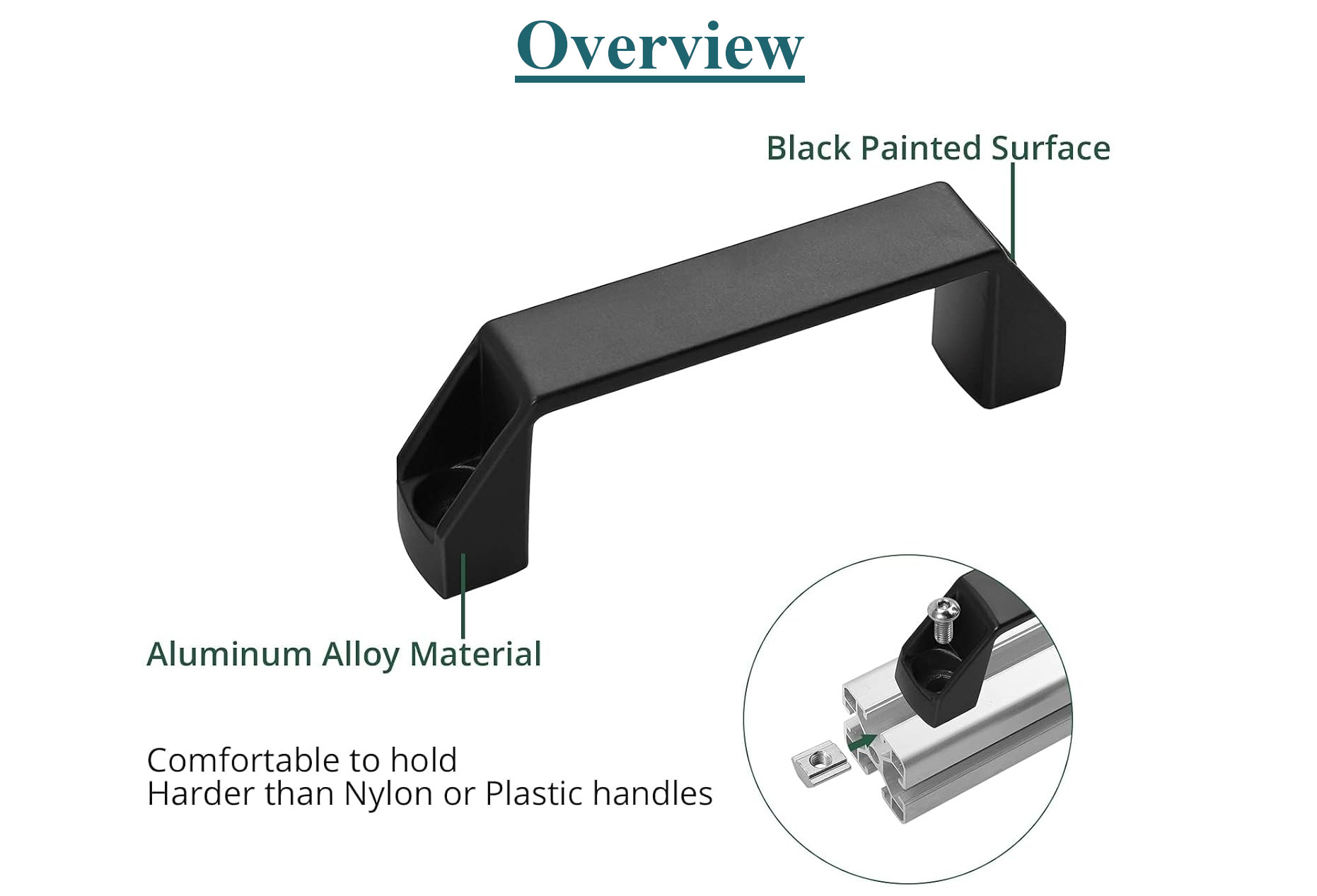

• Material: Solid Aluminum Alloy

• Hole Spacing (Center-to-Center): 90mm

• Total Length: Approx. 106mm

• Mounting Type: Front Mount (Through Hole)

• Hole Diameter: Fits M5 or M6 Screws (Standard for 20/30 series profiles)

• Finish: Industrial Matte/Satin (Silver or Black)

• Load Rating: Heavy Duty (40kg+)

Key Applications

• 3D Printer Hoods: Rigid handles for Voron/RatRig enclosures (heat resistant).

• 3030 Frame Builds: Perfectly proportioned for medium-duty aluminum structures.

• Test Equipment: Rugged carrying handles for portable analyzers.

• Toolboxes: Replacement metal handles for cracked plastic ones.

Virtual Technician: Installation Guide ⚠️

• T-Nut Selection:

  • For 2020 Profile: Use M5 T-Nuts and M5 Socket Head Screws.

  • For 3030 Profile: Use M6 T-Nuts and M6 Socket Head Screws.

• Alignment: Since 90mm is a precise dimension, ensure your T-nuts are positioned correctly in the slot before tightening.

• Screw Type: Always use Socket Head Cap Screws. The handle has counterbored holes designed to hide the cylindrical head of an Allen bolt for a flush finish.

Accessories

• Included:

  • 1 x Aluminum Alloy Handle (90mm)

  • (Mounting Bolts & T-Nuts are NOT included)

• Required (Sold Separately):

  • T-Nuts: (Size M5 or M6)

  • Socket Head Cap Screws: (M5x12mm or M6x16mm typically)

Frequently Asked Questions (FAQ)

1. What is the hole distance?

   • 90mm center-to-center.

2. Is it plastic or metal?

   • Solid Aluminum Alloy (Metal).

3. Will it fit 2020 extrusion?

   • Yes. It is a bit wide for 2020, but fits securely using M5 T-nuts.

4. Does it fit 3030 extrusion?

   • Yes, it fits 3030 profiles perfectly.

5. Does it come with screws?

   • No, you must buy screws based on your panel/profile depth.

6. Is it magnetic?

   • No, aluminum is non-magnetic.

7. Can I use it on a heated chamber?

   • Yes, it is heat resistant (unlike the nylon version).

8. What screw size do I need?

   • M5 or M6 Socket Head Cap Screws work best.

9. Can I use it outdoors?

   • Yes, aluminum is corrosion-resistant.

10. Is the finish smooth?

    • Yes, typically a smooth industrial matte finish.

11. How much weight can it hold?

    • It is very strong (rated 40kg+), limited only by your screws.

12. Can I use countersunk screws?

    • No, the holes are flat-bottomed. Use Socket Head screws.

13. Is it stronger than the nylon one?

    • Yes, significantly rigid and durable.

14. What is the total length?

    • Approx 106-110mm.

15. Can I paint it?

    • Yes, if you prime it first.

16. Is it suitable for lifting?

    • Yes, perfect for lifting handles on cases.

17. Does it fit 4040 profile?

    • Yes, fits easily on the wide 40mm face.

18. Is it hollow?

    • No, typically solid metal.

19. Why use 90mm?

    • It's a compact size that doesn't take up too much rail space.

20. Is it conductive?

    • Yes.
