SpeedyBee F405 V5 55A Stack - 32-Bit ESC, ICM-42688 Gyro with External Clock

FREQUENTLY ASKED QUESTIONS (FAQ)

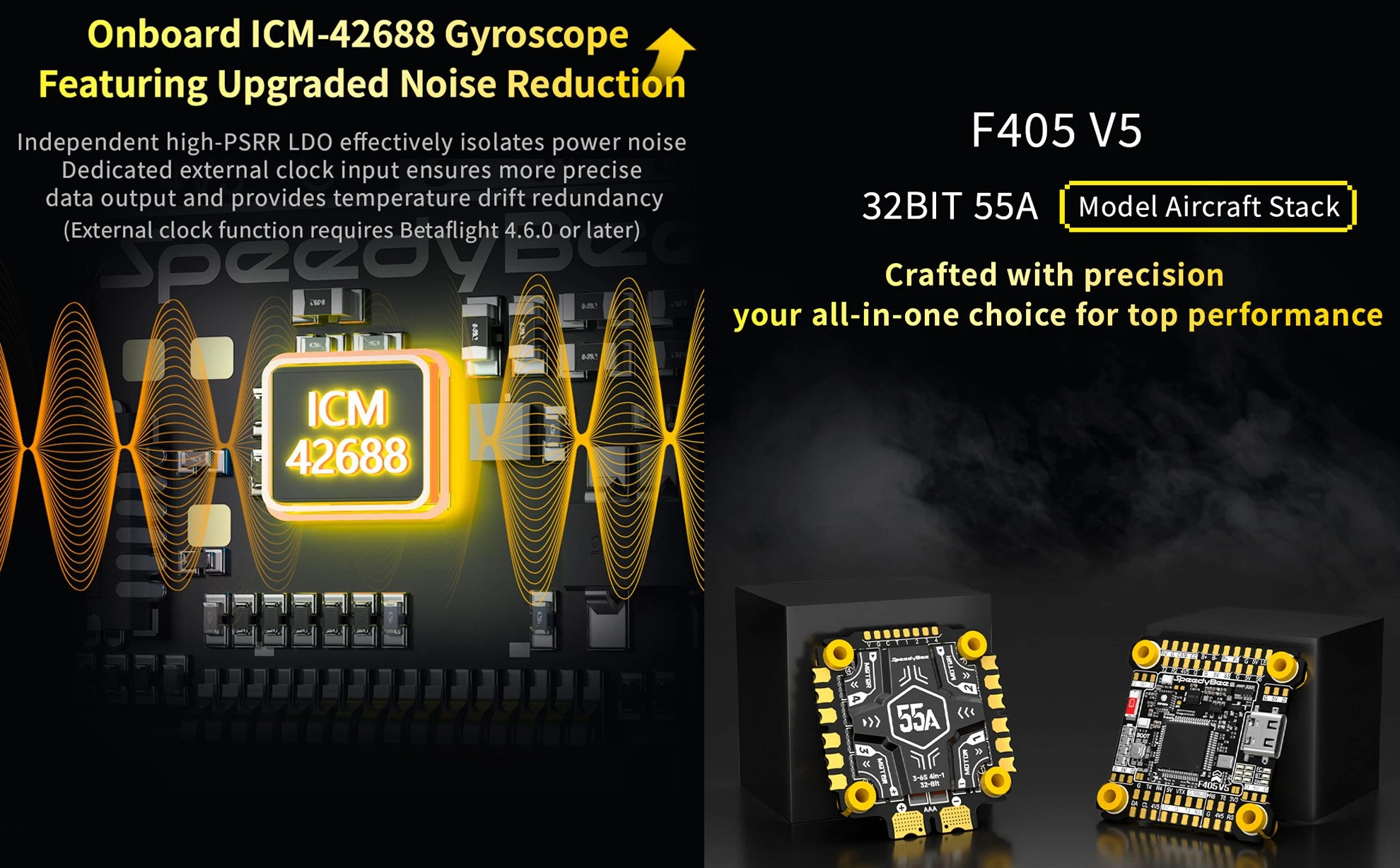

Q: What is the benefit of the external clock input? A: The dedicated external clock ensures highly precise timing for the gyro's data output and prevents temperature-induced frequency drift. This results in much cleaner data reaching the PID loop, minimizing propwash and mid-throttle oscillations.

Q: Do I need a specific Betaflight version to use the external clock? Yes. To utilize the external clock feature on the ICM-42688 gyro, you must be running Betaflight firmware version 4.6.0 or later.

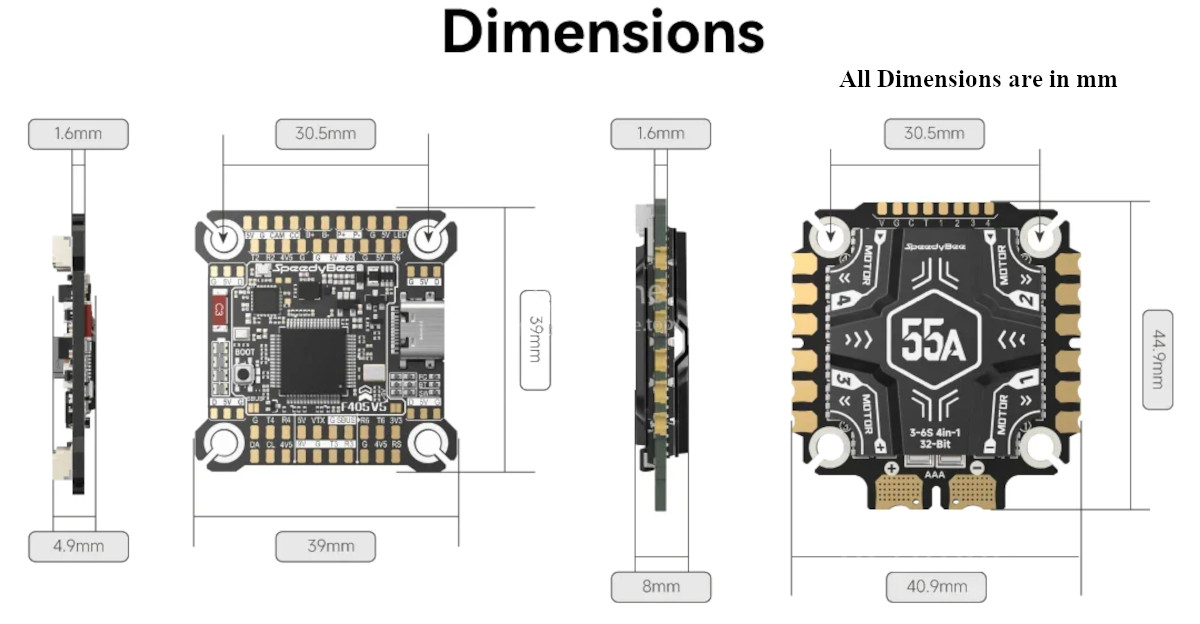

Q: What is the mounting hole pattern for this stack? Both the Flight Controller and the ESC feature the industry-standard 30.5mm x 30.5mm M3 mounting pattern.

Q: What input voltage does this stack support? The ESC and FC are rated to comfortably handle 3S to 6S LiPo battery voltages.

Q: Is the gyro susceptible to electrical noise? SpeedyBee has heavily mitigated noise on the V5 by isolating the ICM-42688 gyro with its own independent high-PSRR (Power Supply Rejection Ratio) LDO, keeping ESC and motor noise away from the sensor.

Q: Can I use this with the DJI O3 Air Unit or Walksnail Avatar? Absolutely. The flight controller features a dedicated 9V BEC and appropriate UART pads to easily power and communicate with modern HD digital video systems.

Q: Does the 55A ESC support Bi-Directional DSHOT? Yes. Because it is a 32-bit ESC, it natively supports Bi-Directional DSHOT, allowing you to use RPM filtering in Betaflight for an incredibly smooth tune.

Q: Do I need to solder the ESC to the flight controller? No, the kit includes an 8-pin modular cable that simply plugs into the ESC and the FC, carrying motor signals, telemetry, and power instantly.

Q: Should I install the included capacitor? Yes! You must always solder the included Low ESR capacitor directly to the main battery input pads on the ESC. It absorbs voltage spikes during crashes or hard braking that could otherwise destroy the electronics.

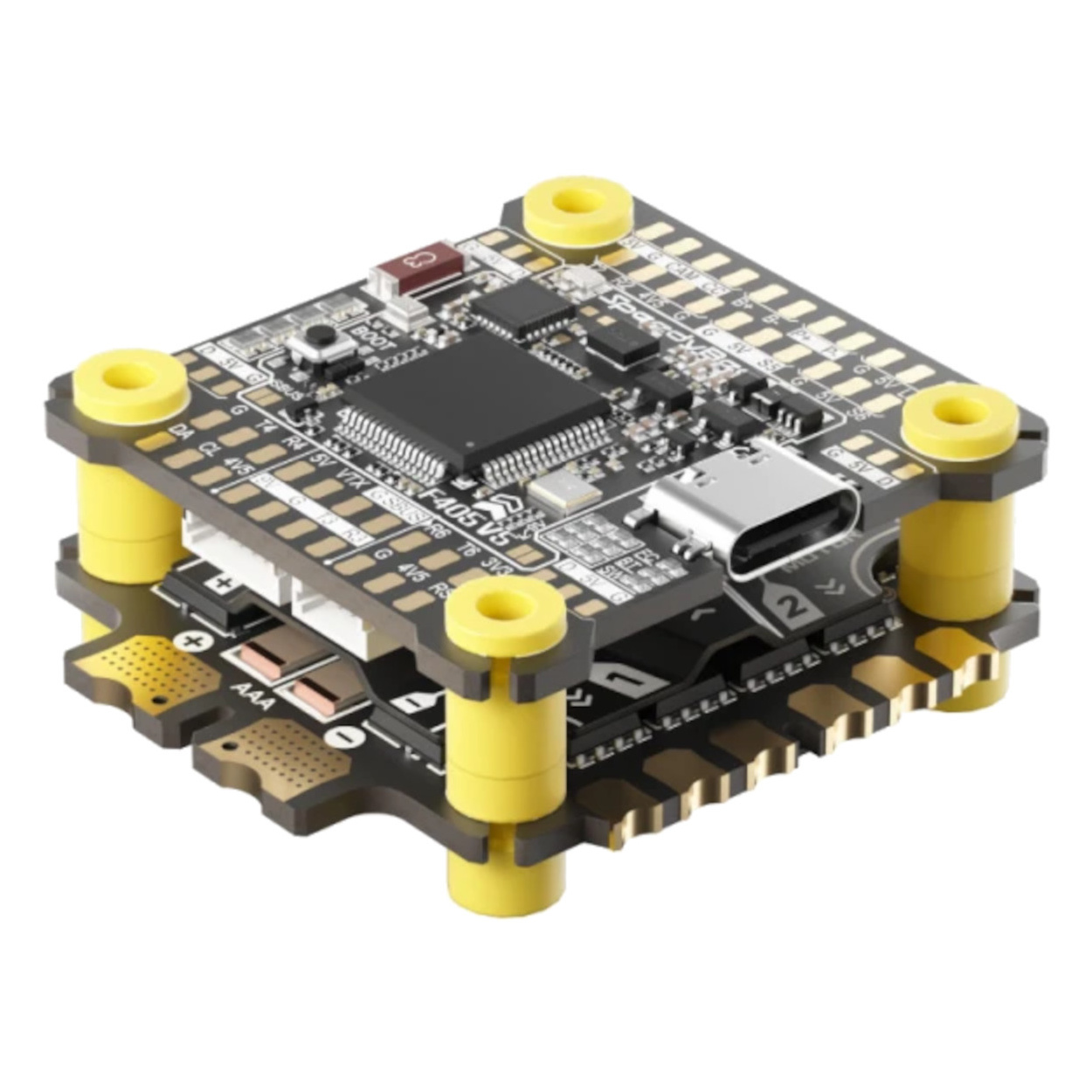

Q: What are the yellow rubber pieces for? Those are anti-vibration grommets. They slide into the mounting holes of the FC and ESC to isolate the delicate gyroscope from the mechanical vibrations generated by the motors and propellers.

Q: Does this FC have a barometer for altitude hold? SpeedyBee F405 stacks traditionally include a barometer (like the BMP280), which is highly useful for GPS Rescue mode in Betaflight.

Q: What type of USB connection does it have? The flight controller utilizes a modern, durable USB Type-C port for connecting to your computer.

Q: How many continuous amps can the ESC handle? The ESC is rated for 55 Amps of continuous current per motor channel, with even higher peak burst capabilities for aggressive maneuvers.

Q: Can I connect an LED strip and a buzzer? Yes, the flight controller features dedicated pads labeled for 5V LED strips and a standard 2-pin active buzzer (BZ+ / BZ-).

Q: Does the FC support I2C devices like a compass? Yes, there are designated SCL and SDA pads to easily wire up an external magnetometer (compass) or other I2C peripherals.
