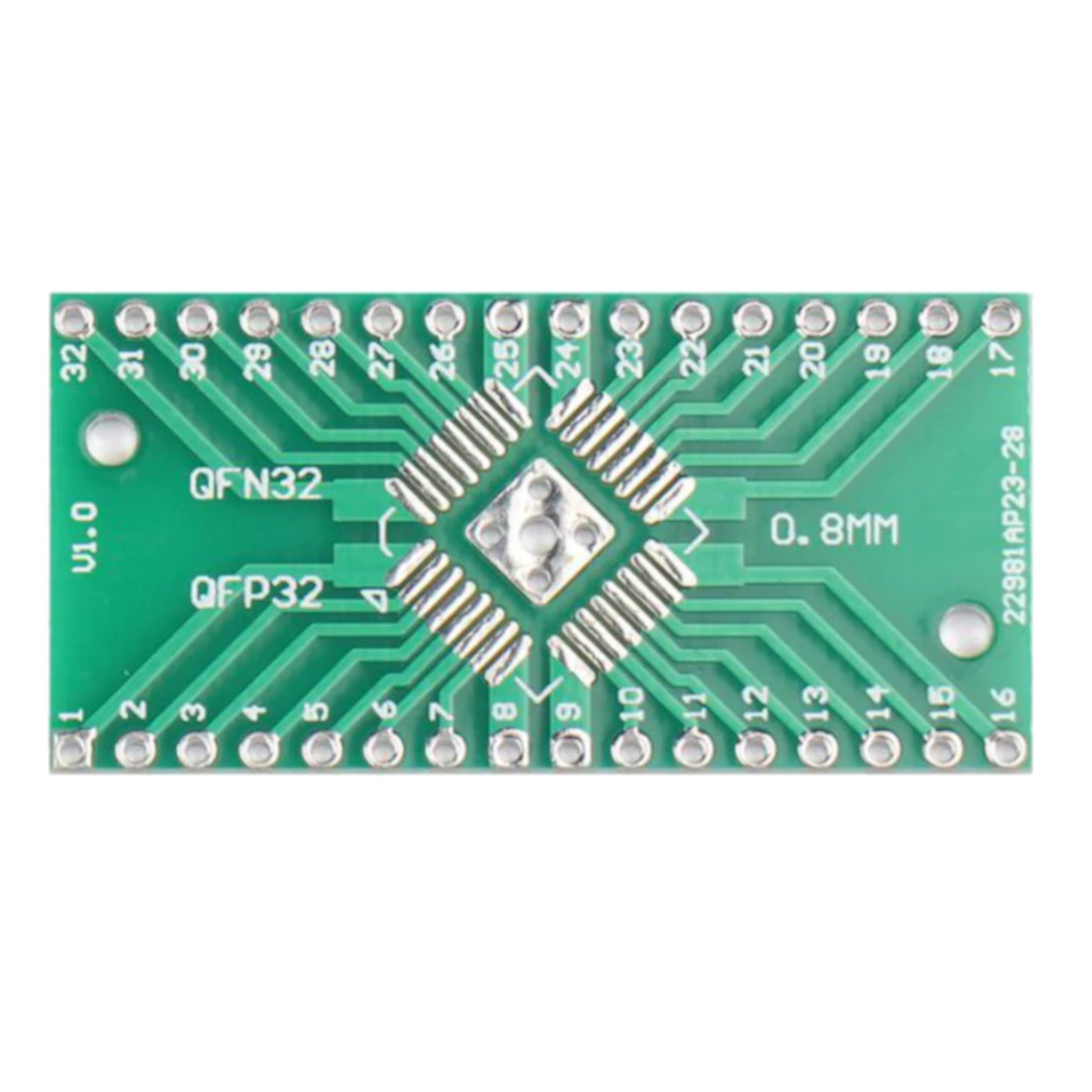

QFN32 QFP32 to DIP32 Adapter PCB - 0.65mm & 0.8mm Double-Sided Converter

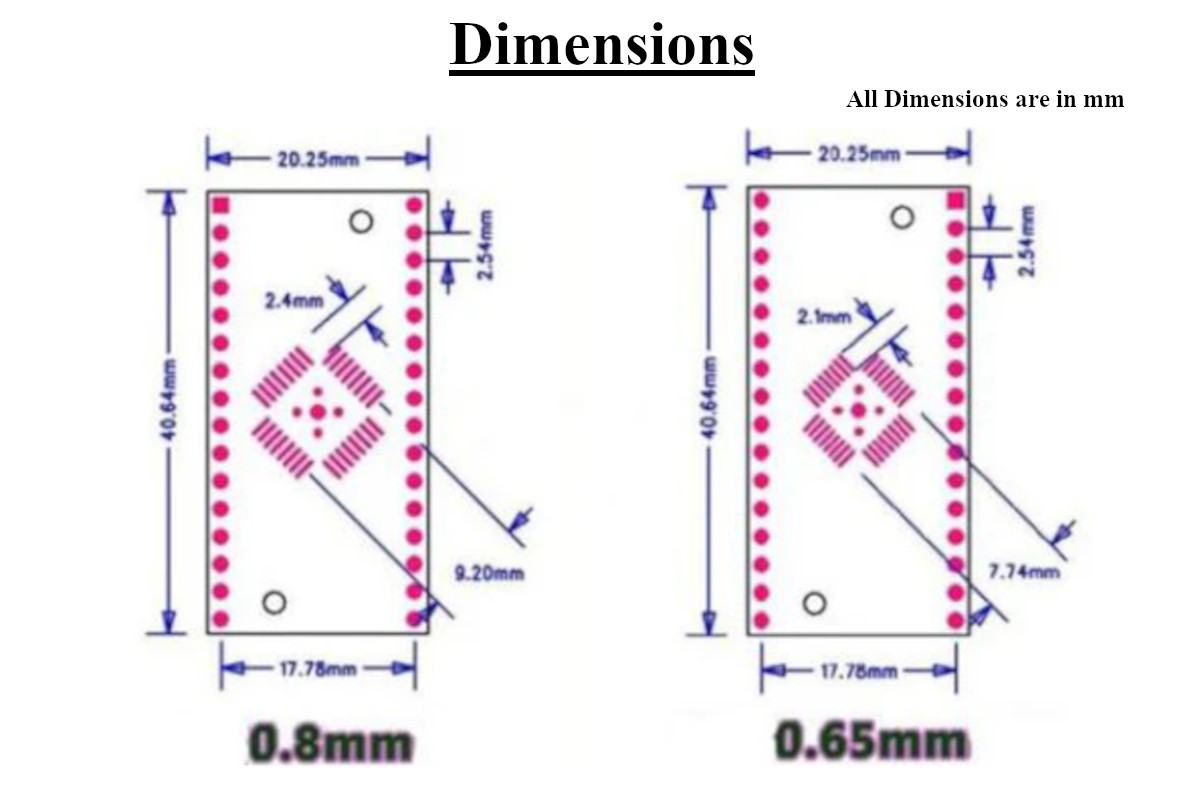

Specifications

• Board Length: 40.64mm

• Board Width: 20.25mm

• Pitch 1: 0.8mm

• Pitch 2: 0.65mm

• DIP Output Pitch: 2.54mm

• DIP Row Spacing: 17.78mm

• Thermal Pad: Integrated center ground pad for heat dissipation

Unlock New Capabilities (Project Evolution)

• Feature Upgrade: The integrated central exposed pad is crucial for modern power-management ICs or high-speed controllers that require a thermal or ground connection to prevent overheating during operation.

• Effort Level: Intermediate to Advanced. Requires fine-tip soldering or hot air rework skills due to the 0.65mm/0.8mm micro-pitch pads.

Package Includes:

• 1 x QFN32 / QFP32 to DIP32 Double-Sided Adapter PCB

FREQUENTLY ASKED QUESTIONS (FAQ)

1. Can I mount components on both sides at once? No, the through-holes for the DIP headers are shared; you should only mount one component per board.

2. What are the lead pitches available? One side is 0.8mm and the other side is 0.65mm.

3. Will this fit a standard breadboard? Yes, it converts the pins to standard 2.54mm spacing for all breadboards.

4. Are the header pins included? No, 2.54mm male header pins are sold separately.

5. What is the length of the board? The PCB measures 40.64mm in length.

6. Does it have a thermal pad? Yes, both sides include a central area for chips requiring a thermal or ground connection.

7. Is it compatible with TQFP32? Yes, the 0.8mm side is designed for standard TQFP32/QFP32 packages.

8. Do I need a special iron for this? A hot air rework station is highly recommended for leadless QFN packages.

9. How do I identify Pin 1? Pin 1 is indicated by a white dot or square pad on the silk screen.

10. What is the row spacing for the DIP output? The two rows are spaced at 17.78mm apart.

11. Are the pads pre-tinned? Yes, the pads feature high-quality plating for easy solder wetting.

12. Can I use this for QFN chips with fewer pins? While possible if the pitch matches, it is specifically optimized for 32-pin packages.

13. What is the board material? It is made from high-quality FR-4 glass fiber.

14. Is the PCB material heat-resistant? Yes, it is rated for standard soldering and hot-air temperatures.

15. What is the diameter of the output holes? They are standard 1mm holes designed for 2.54mm pin headers.

16. Can I use this with a DIP socket? Yes, once headers are attached, it can be plugged into a standard 32-pin wide DIP socket.

17. Is there a version for MSOP? This board is specifically for QFN and QFP; MSOP requires a different adapter.

18. What is the center pad size for the 0.8mm side? It features a 2.4mm clearance for center components.

19. What color is the PCB? The standard board is green with white silk screening.

20. Can I reuse the board? If the component is desoldered carefully with hot air, the PCB can be reused.
