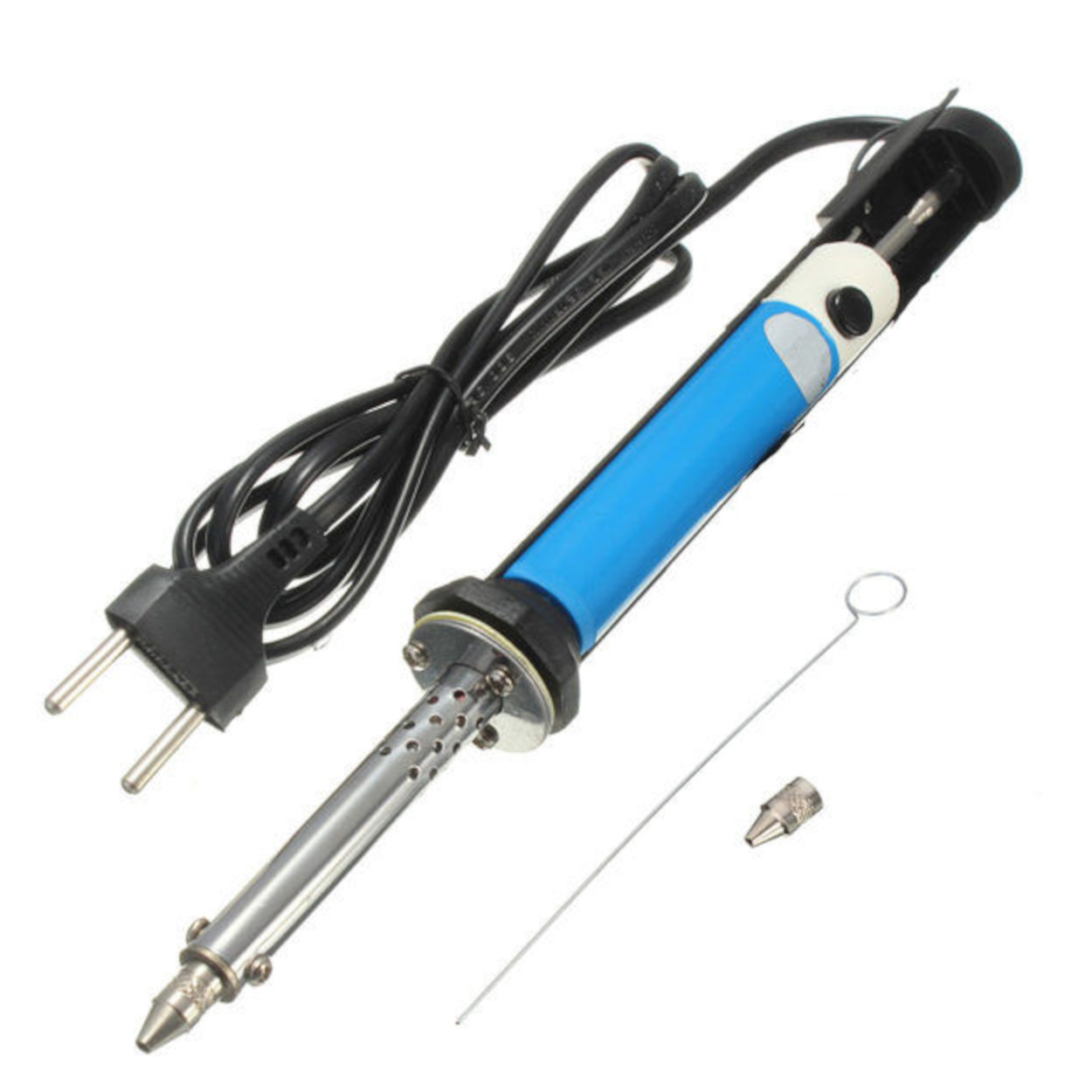

220V AC 30W 2-in-1 Desoldering Iron With Solder Sucker Pump

Specifications:

• Product: Desoldering Nozzle with Pump
• Voltage: 220-240 VAC
• Power: 30W
• Temperature: 400°C
• Suction Capability:>35cm-Hg
• Nozzle: Ø2mm
• Material: ABS Plastic
• Colour: Blue
• Full Length: 270 mm

Features:

• 2-in-1 Design with soldering iron nozzle with Solder Sucker Pump
• Large-sized desoldering Pump,270mm in size
• Boasting a good vacuum capacity for efficient solder removal, with no air leakage.
• Quick and easy self-solder residue clearance
• Compact and lightweight, anti-corrosive plastic housing

Applications:

• Professional Soldering Work, Electronics Repair, Circuit Board Prototyping, DIY Projects

Package Includes: 1 x 2-in-1 220V AC 30W Desoldering Iron With Solder Sucker Pump

Frequently Asked Questions (FAQs)

• How do I clean the desoldering iron?
  Wait for it to cool completely, then unscrew/unlock the barrel assembly. Remove the internal metal rod and shake out the solidified solder flakes.
• Does this work on lead-free solder?
  Yes, but lead-free solder has a higher melting point. You may need to leave the tip on the joint for an extra 2-3 seconds compared to leaded solder.
• Can I replace the nozzle tip?
  Yes, the tip is threaded. However, these are generic tips; we recommend buying a spare unit or standard threaded desoldering tips if available.
• Is this better than desoldering wick?
  For through-hole parts, yes. Wick is better for cleaning surface mount (SMD) pads, but this tool is superior for clearing holes.
• What if the nozzle gets clogged?
  Use a thin metal wire (often included or use a straightened paperclip) to clear the nozzle while it is hot to push out the blockage.
• Does it have temperature control?
  No, this is a fixed-temperature 30W tool designed to maintain a standard soldering temperature (~350-400°C).
• Can I use this as a regular soldering iron?
  Technically yes, but the tip is hollow and wide. It is not precise enough for soldering new components, only for desoldering.
• How long does it take to heat up?
  Allow approximately 3-5 minutes for the tool to reach full operating temperature before the first use.
• Will this damage delicate PCBs?
  If used correctly, it is safer than a manual pump because you don't need to "re-heat" the pad multiple times. Do not hold it on a pad for >10 seconds.
• Why is the suction weak?
  Check the O-ring seal inside the pump cylinder. If it's dry, apply a tiny amount of silicone grease. Also, ensure the barrel is full of debris.
