High-resolution 8 Megapixel camera module featuring the Sony IMX219 sensor. Provides an expansive 130-degree wide-angle field of view and utilises a standard 15-pin MIPI CSI interface for pristine image capture. Includes protective lens cap.
Capture the bigger picture with 8-Megapixel wide-angle vision. The IMX219 130° Camera Module is the proven workhorse for makers who need to monitor large areas without losing critical detail. By utilizing the Sony IMX219 sensor, this module captures stunningly detailed still images at 3280 x 2464 pixels, as well as smooth 1080p30 or 720p60 video. It is the perfect sensor for projects where a wide peripheral view is paramount, such as autonomous rover navigation, smart home security monitoring, or capturing entire 3D printer beds in a single frame.
Expansive Optics and Compact Form Factor This specific module features a 130-degree Field of View (FOV). This wide-angle perspective allows you to monitor entire rooms or broad outdoor landscapes from a single fixed vantage point, though it will introduce some natural barrel distortion (a slight fisheye effect) at the extreme edges. The lens barrel protrudes approximately 14.00mm from the board, and the module thoughtfully includes a custom-fit black protective lens cap to prevent scratches during transport. The camera PCB remains incredibly compact, measuring just 25.00mm by 24.00mm, and includes four pre-drilled mounting holes for easy installation into custom enclosures.
Simple Hardware Integration The camera board features a standard 15-pin MIPI CSI-2 connector located at the bottom edge. This allows it to communicate rapidly with the host microcontroller via dedicated differential data lanes and I2C control lines. While natively plug-and-play with the Raspberry Pi 4B and 3B series using standard cables, it is fully compatible with the new Raspberry Pi 5 and Pi Zero families simply by swapping to a standard 15-pin to 22-pin adapter cable.
Sensor Type: Sony IMX219 Colour CMOS
Resolution: 8 Megapixels (3280 x 2464 pixels)
Field of View (FOV): 130° (Wide-Angle)
Interface: MIPI CSI-2 (15-Pin standard on board)
Operating Voltage: 3.3V to 5V DC
Dimensions: 25.00mm x 24.00mm (Board), 14.00mm (Lens Height)
Mounting Holes: 4 holes (2.2mm diameter)
Compatibility: Raspberry Pi 4B/3B+/3A+ natively; Pi 5 and Pi Zero (requires adapter cable).
Smart Security Cameras: Capturing an entire room or porch from a single corner mount using the expansive 130-degree viewing angle.
Autonomous Drones & Rovers: Giving your robotic vehicle a wider peripheral view to detect obstacles and navigate complex environments safely.
Wide-Format Timelapses: Monitoring large weather patterns, construction sites, or wide garden beds over long periods of time.
Unlock New Capabilities (Project Evolution)
Software Integration: Utilize the native libcamera software stack on your Raspberry Pi OS to unlock advanced manual controls, and use OpenCV libraries to digitally correct the wide-angle barrel distortion in real-time.
Platform Upgrade: Pair this wide-angle sensor with the immense processing power of the Raspberry Pi 5 to run object-detection algorithms across a massive field of view without dropping frames.
Package Includes:
1 x IMX219 8MP Camera Module (130° FOV)
1 x Protective Plastic Lens Cap
1 x 15-Pin CSI Ribbon Cable
What is the maximum resolution of this camera? It features an 8 Megapixel sensor, capable of capturing still images at a maximum resolution of 3280 x 2464 pixels.
Which sensor does it use? It uses the highly acclaimed Sony IMX219 CMOS image sensor.
Is this compatible with the Raspberry Pi 5? Yes, it is fully compatible with the Raspberry Pi 5. However, because the Pi 5 uses a smaller 22-pin CSI port, you will need a 15-pin to 22-pin adapter cable to connect it.
What does "130° FOV" mean? FOV stands for Field of View. A 130-degree angle provides a "wide-angle" perspective, allowing the camera to see much more of the scene horizontally and vertically than a standard lens.
Does a 130-degree lens cause distortion? Yes, because it is a wide-angle lens, it will introduce some barrel distortion (a slight "fisheye" effect) towards the edges of the image. This can be corrected via software if necessary.

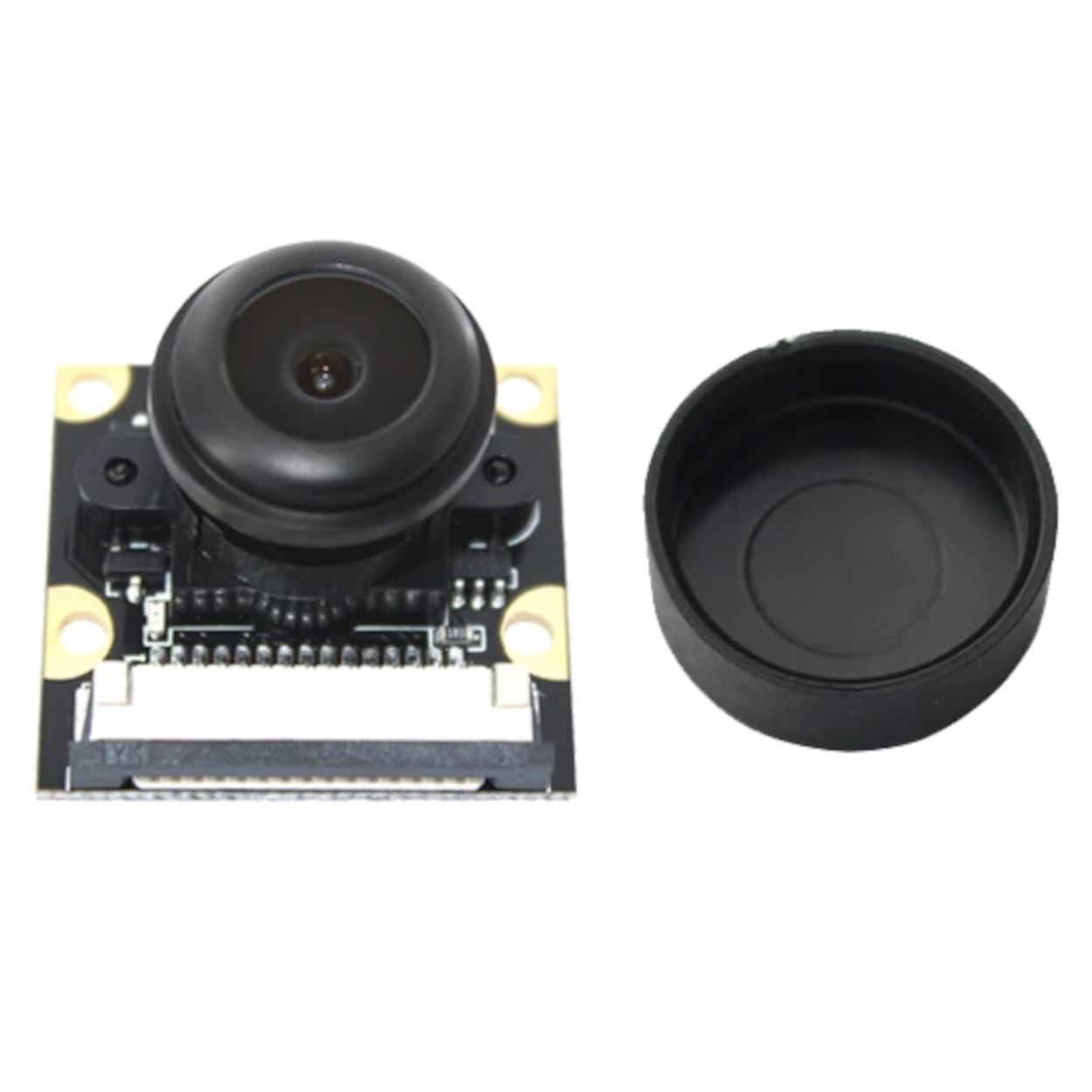

What is the black plastic circle included in the photo? That is a protective lens cap. It slides over the lens barrel to protect the glass from scratches and dust when the camera is not in use.
What are the dimensions of the circuit board? The PCB measures exactly 25.00mm wide by 24.00mm high.
How far does the lens protrude from the board? The lens barrel extends 14.00mm from the surface of the circuit board.
Does it have auto-focus? No, this module features a fixed-focus lens. Wide-angle lenses naturally have an enormous depth of field, keeping almost everything from a short distance away to infinity in sharp focus.
Can I record video with it? Yes, it natively supports video recording at 1080p30, 720p60, and VGA90 resolutions through the Raspberry Pi.
Where does the ribbon cable plug in? It plugs into the 15-pin MIPI CSI-2 connector located at the bottom edge of the camera module.
What are the SDA and SCL pins used for? These are the I2C communication lines used by the Raspberry Pi to control camera settings like exposure, gain, and white balance.
Does this camera capture audio? No, standard MIPI CSI-2 camera modules do not include microphones. You must use a separate USB or I2S microphone for audio capture.
Do I need to install special drivers? No, the Sony IMX219 is natively supported by the Raspberry Pi OS and works perfectly out-of-the-box with the standard libcamera stack.
Does it have night vision? No, this is a standard daylight RGB sensor equipped with an IR-cut filter. It will not see infrared light in the dark.
How do I mount it? The board features four mounting holes (measuring 2.20mm in diameter) spaced appropriately for M2 machine screws.
Can I change the lens? The lens is factory-focused and glued into the housing. While technically threaded, attempting to unscrew it may break the sensor mount and ruin the module.
Why are there so many GND pins on the CSI interface? High-speed differential data signals require excellent grounding to prevent signal corruption and electromagnetic interference.
Can I use this with an Arduino UNO? No, standard 8-bit Arduinos lack the processing power, RAM, and the specific MIPI CSI hardware interface required to handle high-resolution video streams.
Can I extend the ribbon cable? Yes, you can buy longer 15-pin FFC cables, but keeping it under 30cm to 50cm is highly recommended to prevent data degradation and frame dropping.
| Technical Details |
|
|---|---|
| Manufacturer | Generic |
| Sensor Model: | Sony IMX219 |
| Interface: | CSI (15P) |
| Resolution: | 8 MP |
| Cable Length (M): | 150MM |
| Field of View: | 130° |
| Compatible With | RPi 3, RPi 4, RPi 5 |
