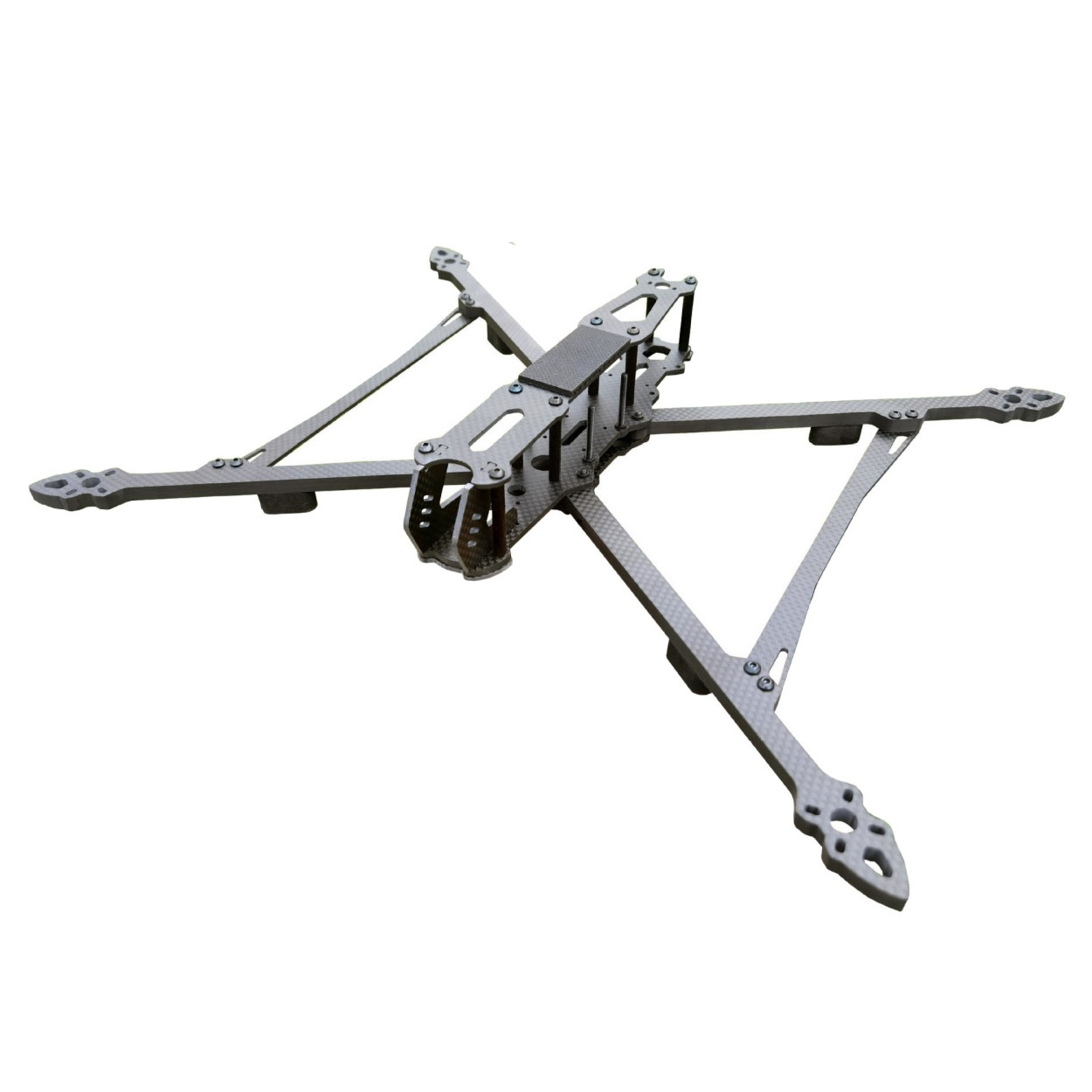

MAK4 V2 8-Inch Carbon Fiber FPV Drone Frame DIY Kit - 367mm Long Range Chassis

Specifications

• Diagonal Wheelbase: 367mm

• Front-to-Back Dimension: 237mm

• Side-to-Side Dimension: 280mm

• Arm Plate Thickness: 6.0mm

• Bottom Plate Thickness: 3.0mm

• Top Plate Thickness: 2.0mm

• Side Plate Thickness: 2.5mm

• Material: 3K Twill Carbon Fiber

Key Applications & Projects

• Long-Range Surveillance: Capable of carrying massive 6S or 4S Li-Ion packs for 20+ minute flight times.

• Heavy-Lift FPV: Rigid enough to mount full-sized cinema cameras on top for high-end cinematic work.

• Industrial Inspection: Stable platform for mounting specialized sensors or thermal cameras.

Unlock New Capabilities (Project Evolution)

• Feature Upgrade: The independent 6mm arm design allows for individual arm replacement in the event of a high-speed crash, ensuring your professional rig stays in the air with minimal downtime.

• Effort Level: Intermediate. Assembly of the thick carbon plates and provided aluminum hardware is required.

Package Includes:

• 4 x 6mm Carbon Fiber Independent Arms

• 1 x 2mm Carbon Fiber Top Plate

• 1 x 3mm Carbon Fiber Bottom Plate

• 1 x Hardware Pack (Aluminum Standoffs & M3 Screws)

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What is the wheelbase of the MAK4 V2 8-inch? The diagonal wheelbase is 367mm.

2. How thick are the arms? The arms are 6mm thick, providing extreme rigidity for 8-inch props.

3. What propeller size is recommended? This frame is optimized for 8-inch propellers.

4. How thick is the bottom plate? The bottom plate is a reinforced 3mm thick carbon fiber.

5. What is the front-to-back motor spacing? It is 237mm.

6. What is the side-to-side motor spacing? It is 280mm.

7. What camera sizes are supported? It standardly supports 19mm and 20mm FPV cameras via the 2.5mm side plates.

8. What is the top plate thickness? The top plate is 2mm thick.

9. Are the arms replaceable? Yes, each 6mm arm is independent and can be replaced individually.

10. Does it fit the DJI O3 Air Unit? Yes, the spacious internal body easily accommodates modern digital VTX systems.

11. What motors are recommended? Large-scale motors like the 2806.5 or 3110 series are ideal for this frame.

12. What stack mounting is available? It supports standard 30.5x30.5mm mounting patterns for heavy-duty flight stacks.

13. Is it suitable for cinematic flying? Yes, the 6mm arms minimize vibration, making it excellent for smooth footage.

14. What material is used? High-quality 3K twill carbon fiber.

15. Does it include standoffs? Yes, a full aluminum hardware kit is included.

16. How much internal space is there? The "H-style" frame offers a long internal deck for multiple electronics boards.

17. Can I use 7-inch props on this frame? Yes, but it is specifically designed to handle the larger 8-inch disk.

18. What is the side plate thickness? The side plates are 2.5mm thick.

19. Does it come with a battery strap? Typical kits include one, but please verify based on current warehouse stock.

20. Is this V2 better than V1? Yes, the V2 features improved arm geometry and thicker plates for better long-range stability.
