A2212 1000KV Brushless Outrunner Motor - Pre-Soldered 3.5mm Banana Plugs with X-Mount & Prop Adapter

Specifications

• Motor Model: A2212

• KV Rating: 1000KV

• Connectors: Pre-welded 3.5mm Banana Male Plugs

• Motor Type: Brushless Outrunner

• Phase Wires: 3 (Yellow, Black, Red heat-shrink indicators)

• Housing Color: Gold and Silver

Key Applications and Projects

• Standard Quadcopters: The absolute go-to motor for DIY F450 and F550 "Four Axis" drone frames running 1045 plastic propellers.

• RC Trainer Airplanes: Providing excellent, reliable thrust for 3D printed, foam board (like FliteTest designs), or balsa wood high-wing trainer planes.

• Hovercrafts and Airboats: Powering DIY surface vehicles where the motor and propeller sit above the water line to push the hull across swamps, snow, or ice.

Unlock New Capabilities (Project Evolution)

• VTOL (Vertical Take-Off and Landing) Aircraft: Don't just build a standard plane or a standard quadcopter—combine them! Because these A2212 1000KV motors are so versatile, you can mount two of them on a tilt-rotor mechanism on a flying wing. Paired with a flight controller running ArduPilot, you can build a VTOL aircraft that takes off straight up like a quadcopter, then tilts the motors forward to fly efficiently like an airplane!

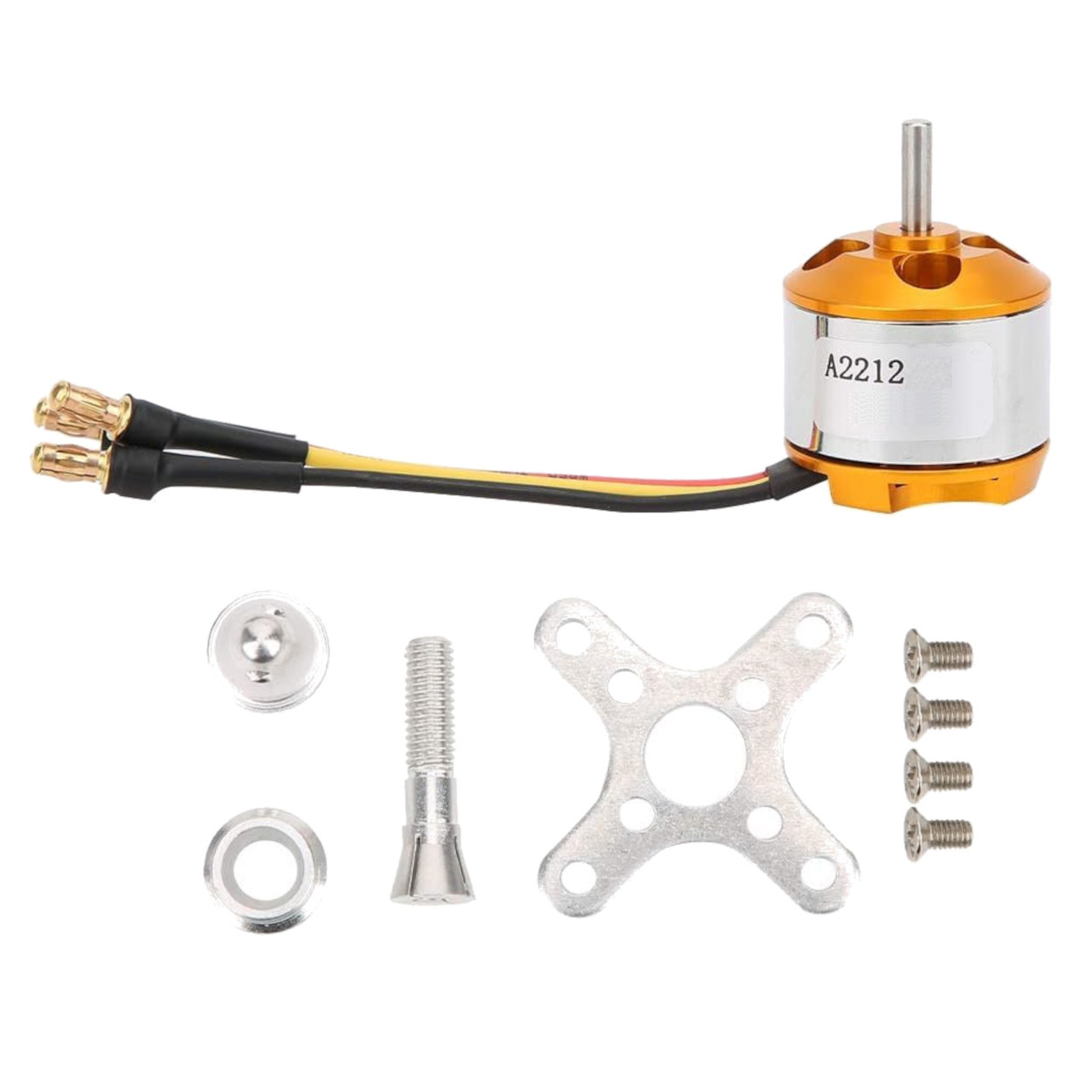

Package Includes:

• 1 x A2212 KV1000 Brushless Motor (with pre-soldered 3.5mm banana plugs)

• 1 x Aluminum X-Mount Bracket

• 1 x Collet-Style Propeller Adapter

• 4 x Countersunk Mounting Screws

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What does "KV1000" mean? KV stands for "Velocity Constant." It means the motor will attempt to spin at 1000 RPM for every 1 volt of electricity applied to it (when no propeller is attached).

2. Is this motor brushed or brushless? This is a 3-phase brushless outrunner motor, which is significantly more efficient, powerful, and durable than older brushed motors.

3. What are the gold connectors on the ends of the wires? They are factory pre-welded 3.5mm male banana plugs (also commonly known as bullet connectors).

4. Do I need to solder anything to use this motor? No! Because the 3.5mm connectors are already installed, you can plug them directly into an ESC that features matching female 3.5mm plugs.

5. What size Electronic Speed Controller (ESC) do I need? A standard 20A to 30A brushless ESC is the perfect pairing for an A2212 1000KV motor.

6. Can I connect this motor directly to my battery? Absolutely not. Brushless motors require a specialized Electronic Speed Controller (ESC) to rapidly pulse power to the three wires in a specific sequence. A direct DC battery connection will instantly melt the internal coils.

7. What is the cross-shaped metal piece used for? That is the aluminum X-mount. It bolts to the bottom of the motor to give you a wider, easier mounting footprint for attaching it to drone arms or a wooden airplane firewall.

8. What are the four small screws for? They are countersunk machine screws utilized specifically to attach the aluminum X-mount tightly to the base of the motor.

9. What is the silver bullet-shaped part? That is a collet-style propeller adapter. It grips the bare motor shaft and provides a threaded post and nut to securely bolt down your propeller.

10. What size battery should I use? This motor is highly optimized for 3S (11.1V) LiPo batteries, though it can also be run efficiently on 2S (7.4V) or carefully on 4S (14.8V) if paired with a much smaller propeller.

11. What size propeller is best for this 1000KV motor? When running a 3S LiPo battery, a 1045 (10x4.5) or 9050 (9x5) propeller provides the best balance of thrust and efficiency without overheating the motor coils.

12. How do I reverse the direction the motor spins? Simply unplug any two of the three banana plug wires connecting the motor to the ESC, and swap their positions. This immediately reverses the electrical phasing and makes the motor spin the opposite way.

13. Does "Four Axis" mean it is only for quadcopters? "Four Axis" is a translated term for quadcopter, indicating it's popular for drones, but this motor is equally excellent for single-motor RC airplanes and flying wings.

14. What does the "A2212" designation mean? It is an industry-standard size class. It generally refers to the internal stator dimensions of the motor (22mm diameter, 12mm height).

15. Is a propeller included in this package? No, the package only includes the motor, the X-mount, the mounting screws, and the prop adapter. Propellers must be purchased separately based on your specific build.

16. Is this motor waterproof? No. The copper coils inside the golden bell are exposed to the air for essential cooling. Submerging it in water while powered will cause a short circuit and destroy the motor.

17. How does the prop adapter stay on the smooth motor shaft? It relies on a collet design. The base of the adapter is split; as you tighten the top nut down against the propeller, it forces the split base to squeeze immensely tight onto the smooth motor shaft.

18. Why are there three wires instead of just a positive and negative? Brushless motors operate using 3-phase AC power generated dynamically by the ESC, requiring three distinct electrical connections to alternate the electromagnets inside the bell and create rotation.

19. What is an "outrunner" motor? It means the outer golden bell (which houses the permanent magnets) spins entirely around the stationary internal copper coils, as opposed to an "inrunner" where the inside shaft spins while the outer case remains still.

20. Can I use this motor to upgrade my RC car? Generally, no. Outrunner motors are designed specifically for aircraft where they receive constant, massive cooling airflow from a propeller. Putting an outrunner inside an enclosed RC car chassis will likely cause it to overheat very quickly.
