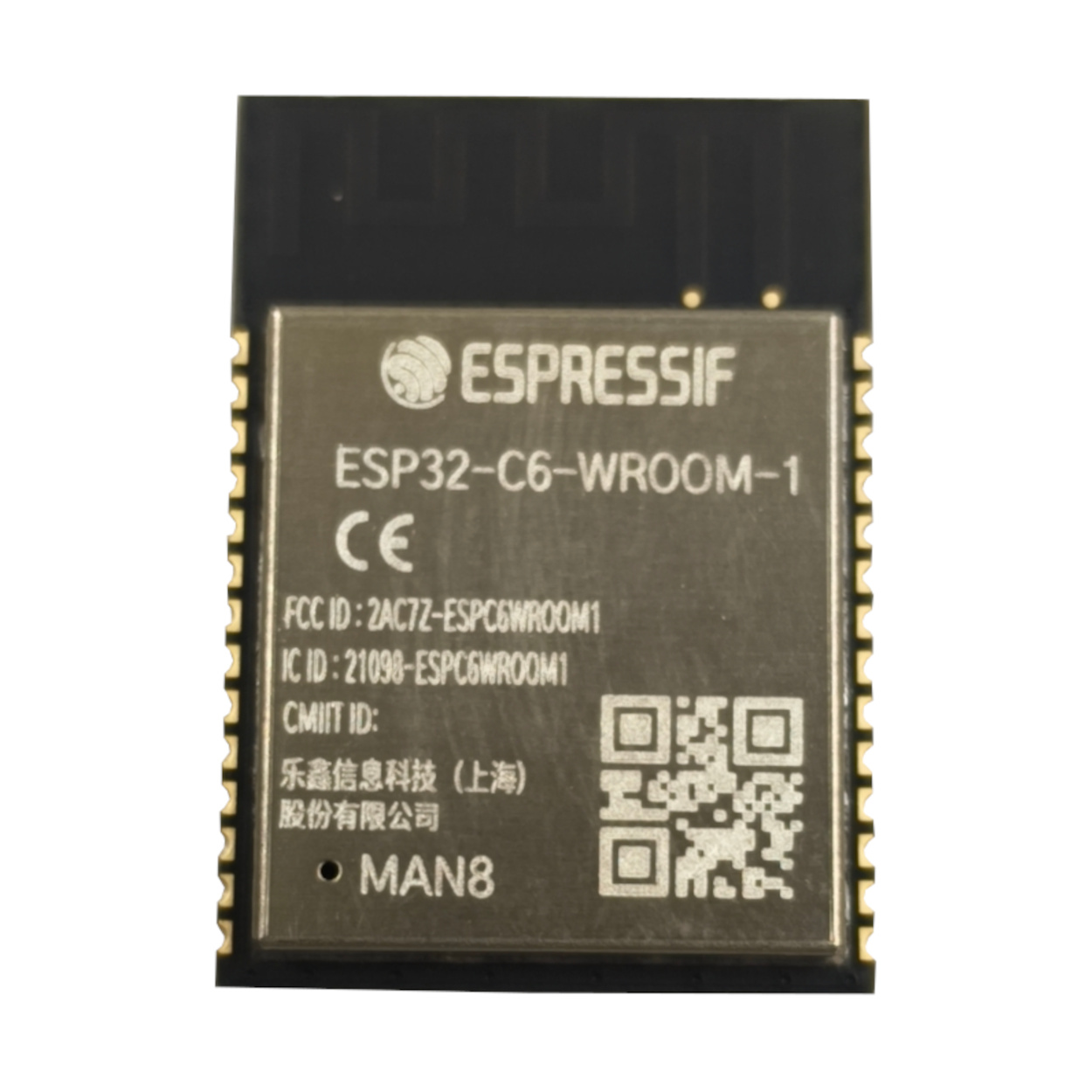

Espressif ESP32-C6-WROOM-1-N8 RISC-V Wi-Fi 6 Bluetooth 5 Zigbee Thread Wireless Module

Specifications:

• Core Architecture: 32-bit RISC-V single-core processor operating up to 160 MHz
• Internal On-Chip Memory: 512 KB SRAM, 320 KB ROM, 16 KB Low-Power Retention SRAM
• Integrated Flash Storage: 8 MB SPI Flash (N8 high-capacity configuration)
• Wi-Fi Subsystem: 2.4 GHz Wi-Fi 6 (802.11ax) supporting 20 MHz bandwidth; fully backwards compatible with 802.11b/g/n
• Bluetooth Subsystem: Bluetooth 5 (LE) supporting 2 Mbps high-speed mode, long-range Coded PHY, and advertising extensions
• 802.15.4 Mesh Radio: Native IEEE 802.15.4 engine running Zigbee 3.0, Thread 1.3, and standard Matter protocol fabrics
• Operating Voltage Range: 3.0V to 3.6V DC
• Power Supply Headroom: 80 mA average operating current; must be backed by a supply capable of delivering 500 mA peak transients during radio bursts
• Antenna Configuration: Pre-matched onboard PCB trace antenna with low-loss transmission paths
• Exposed Peripherals via SMD Pads: 23 accessible GPIOs, 2x 12-bit ADCs, 1x DAC, 3x UART, 2x SPI, 1x I2C, 1x I2S, hardware PWM, and an integrated temperature sensor
• Module Form Factor: Surface-mount SMD package measuring 18.0 mm x 25.5 mm x 3.1 mm

Key Applications

• Matter Border Gateways: Building energy-efficient smart home routers that bridge existing Wi-Fi local networks directly to low-power Thread mesh networks.
• Industrial Monitoring Nodes: Deploying high-density wireless sensor networks inside manufacturing hubs to track environmental states using secure Zigbee routing.
• Smart Grid Metering Infrastructure: Low-latency tracking installations requiring secure, independent communication channels over large industrial locations.
• Popular Project Ideas: Build an open-source Home Assistant Thread border router, a solar-powered remote logging station utilizing Wi-Fi 6 power efficiencies, or a Zigbee 3.0 motorized actuator hub.

Project Evolution

• If you have built your past smart hardware arrays around legacy modules like the standard ESP32-WROOM-32E, you are likely familiar with the high power consumption and the complexity of managing external mesh adapters. Stepping up to the ESP32-C6-WROOM-1-N8 unlocks modern Wi-Fi 6 efficiency features—such as Target Wake Time (TWT) for battery conservation—alongside native IEEE 802.15.4 hardware tools that connect directly to modern, open smart environments.
• Prerequisites: Sound experience working with the official ESP-IDF or Arduino core libraries, combined with safe surface-mount (SMD) reflow or hand-soldering habits.
• Hardware Requirements: A dedicated low-dropout 3.3V voltage regulator circuit with high transient suppression, and an external USB-to-TTL serial adapter for firmware flashing.

Virtual Technician & Pin Mapping Guidelines

⚠️ CRITICAL VOLTAGE WARNING: The ESP32-C6-WROOM-1-N8 is an absolute 3.3V DC logic device. Introducing a 5V power input or exposing any of the structural GPIO pins to a 5V logic line will cause immediate, irreversible thermal destruction of the RISC-V core and compromise the integrated RF shield components.

  Pin Map:

• Module VCC (Pin 2) : Dedicated 3.3V Regulator Rail (Must deliver minimum 500mA continuous overhead)
• Module GND (Pin 1 & Pin 40) : Main Common Ground Rail
• Module TXD0 (Pin 28) / Programming RX : USB-to-TTL Serial Breakout Board RX Pin
• Module RXD0 (Pin 29) / Programming TX : USB-to-TTL Serial Breakout Board TX Pin
• Module EN / Chip Reset (Pin 3) : Connect through a 10k Pull-Up resistor to 3.3V; pull to GND via a tactile switch to trigger a hardware reset
• Module IO9 / Boot Bootstrap (Pin 18) : Connect through a 10k Pull-Up resistor to 3.3V; connect directly to GND during a cold boot to force the module into serial download mode

Package Includes:

1 X Espressif ESP32-C6-WROOM-1-N8 RISC-V Wi-Fi 6 Bluetooth 5 Zigbee Thread Wireless Module

Frequently Asked Questions (FAQ)

1. What is the difference between the ESP32-C6 and standard ESP32 variants?
   The ESP32-C6 features an efficient 32-bit RISC-V single-core design and an expanded 802.15.4 radio engine that introduces native support for Wi-Fi 6, Zigbee 3.0, and Thread.

2. Can I write software for the ESP32-C6-WROOM-1-N8 using the Arduino IDE?
   Yes, the ESP32-C6 is fully integrated into the official Espressif Arduino Core board manager ecosystem for straightforward programming.

3. Does this module support both 2.4 GHz and 5 GHz Wi-Fi connections?
   No, the Wi-Fi radio operates exclusively on the 2.4 GHz wireless band, though it fully implements Wi-Fi 6 (802.11ax) communication efficiencies.

4. What does the 'N8' designation mean in the product model name?
   The 'N8' identifier means the module includes 8 megabytes (MB) of high-speed on-board SPI flash memory to handle large, complex application firmware codebases.

5. Is this bare module drop-in compatible with standard breadboards?
   No, it uses a compact surface-mount layout. You will need to use an SMD adapter plate or interface it with a custom PCB layout to work with standard 2.54mm breadboards.

6. How does Target Wake Time help save battery power in IoT devices?
   TWT allows the ESP32-C6 to schedule specific transmission windows with Wi-Fi 6 routers, letting the module sleep longer and minimizing idle power draw.

7. Can this module connect directly to Apple HomeKit and Amazon Alexa?
   Yes, by using its native Thread and Wi-Fi capabilities to implement the standard Matter communication layer, it can integrate with major smart ecosystems.

8. What type of antenna is used on the ESP32-C6-WROOM-1-N8? The module features a pre-matched, factory-tuned onboard PCB trace antenna optimized for stable 2.4 GHz wireless coverage.

9. How do I manually switch this bare module into its serial bootloader mode?
   Hold the IO9 bootstrap pin low to common ground while cycling power to the module or pulling the EN/Reset line low.

10. What are the power requirements to ensure stable operation during radio use?
    Your power rail must provide a regulated 3.3V output capable of handling peak current spikes of up to 500 mA without dropping voltage.

11. Can I use the on-board Bluetooth system to stream audio?
    No, the integrated Bluetooth 5 engine is designed for Bluetooth Low Energy (BLE) applications, such as data transfers and device provisioning.

12. Does the ESP32-C6-WROOM-1-N8 have built-in hardware security features?
    Yes, it includes on-chip hardware accelerators for AES, SHA, RSA, ECC, secure boot signatures, and random number generation.

13. Can this module run Zigbee and Thread networks at the same time?
    Yes, Espressif's multi-protocol firmware uses time-slicing techniques to manage the internal 802.15.4 radio across multiple mesh setups concurrently.

14. What happens to the module if the power supply drops below 3.0V?
    Operating below 3.0V can cause internal flash read errors or wireless connection drops, frequently leading to unexpected brownout resets.

15. Is MicroPython supported on the ESP32-C6 core?
    Yes, modern MicroPython releases provide official binary support for the RISC-V architecture on the ESP32-C6 chip.

16. What is the standard serial communication speed for the bootloader?
    The module's internal bootloader communicates at a default baud rate of 115200 bps to share startup logs and flash files.

17. Can I connect an external antenna to this module using a U.FL connector?
    No, this specific variant uses a fixed PCB antenna. If your design requires an external antenna connection, use the ESP32-C6-WROOM-1U module instead.

18. How many hardware analog input channels are available on this device?
    The module provides access to two separate 12-bit analog-to-digital converters, split across up to 7 shared GPIO pins.

19. What is the purpose of the 16 KB low-power retention SRAM block?
    This specialized memory block retains critical system states and variables while the main RISC-V processor is in Deep-Sleep mode.

20. Is the physical pin layout identical to older ESP32-WROOM-32D modules?
    No, the dimensions and pin mappings are completely different. You must review the official Espressif footprint specifications before updating an existing hardware layout.
