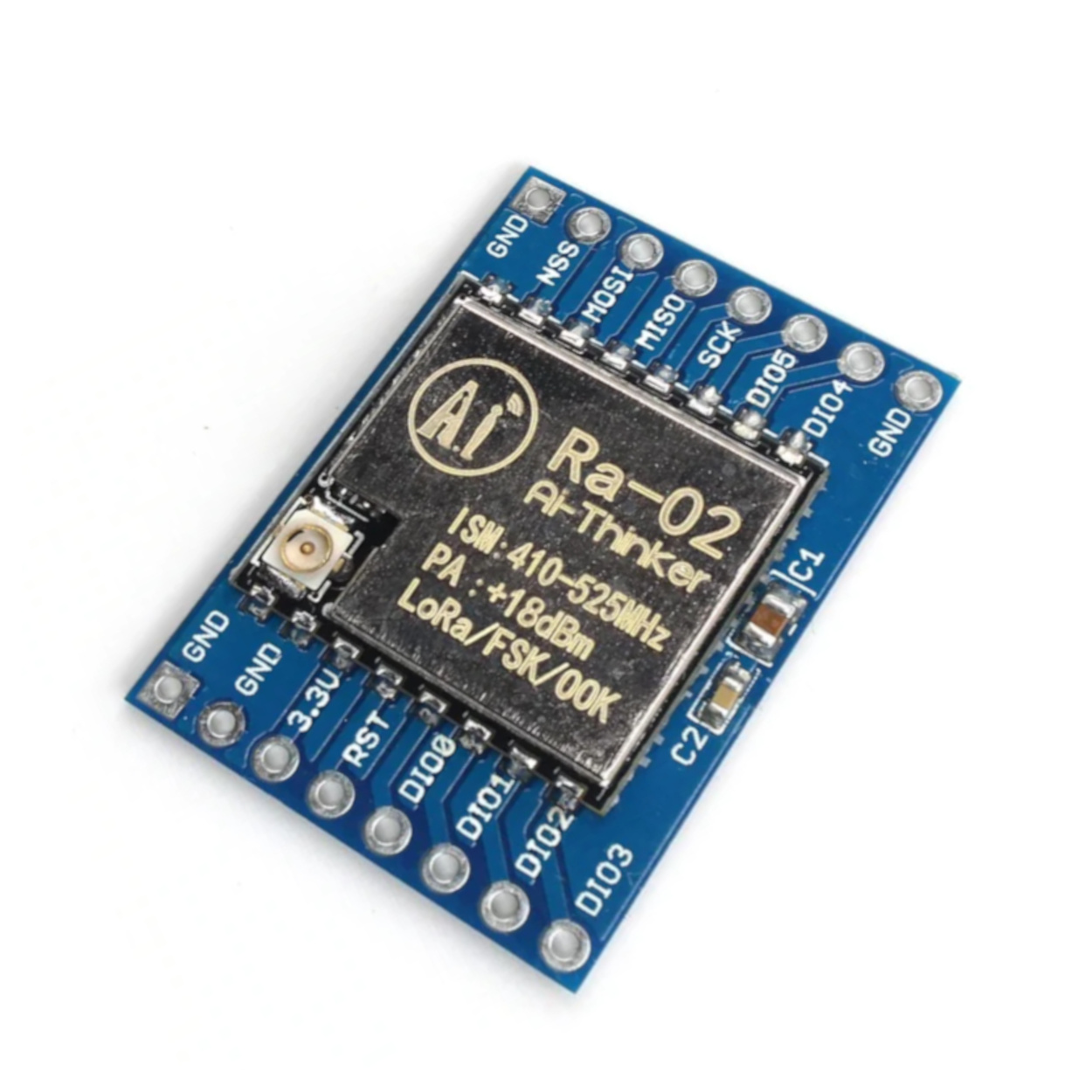

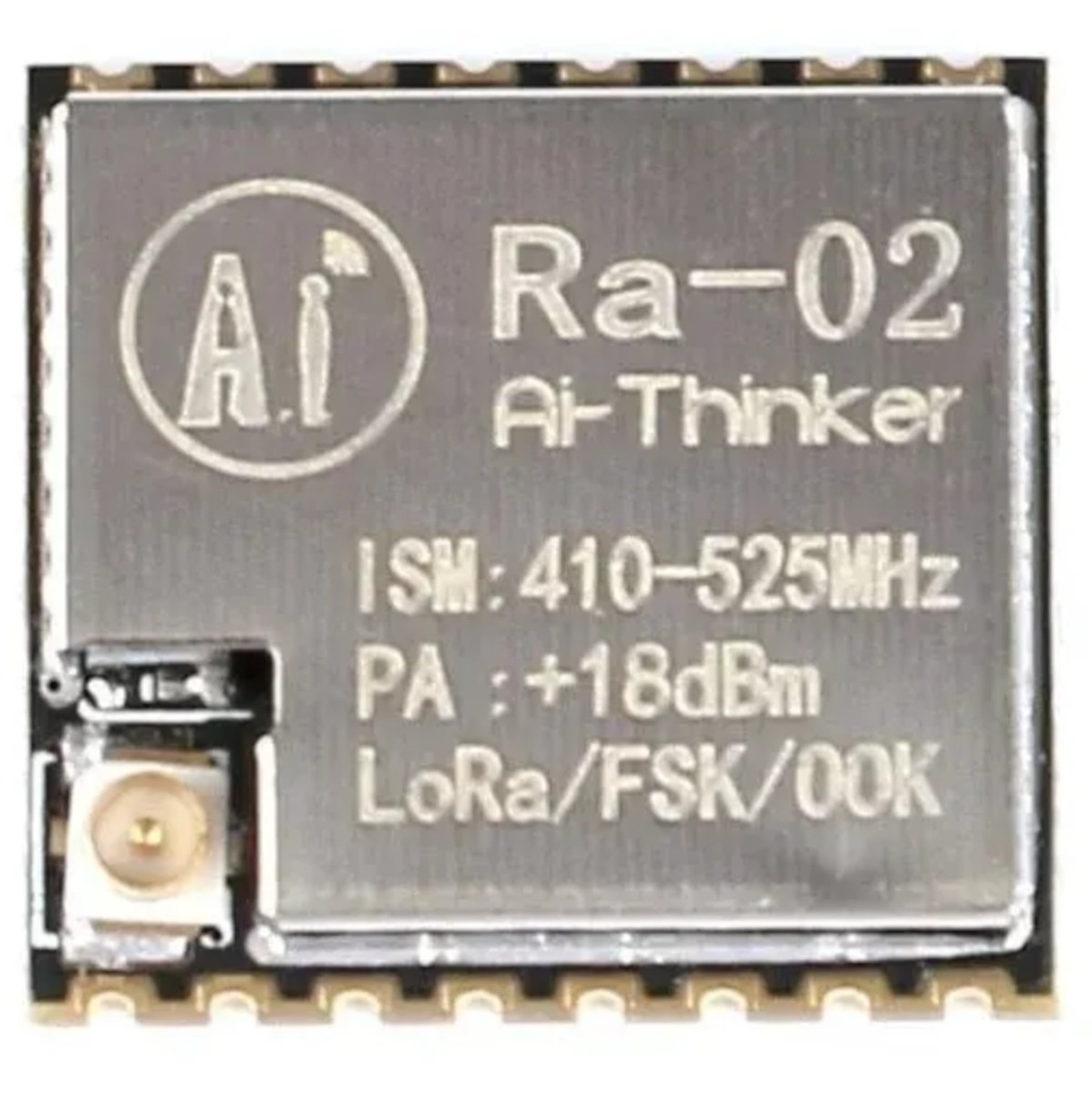

Ai-Thinker Ra-02 LoRa Module SX1278 433MHz IoT Wireless Transceiver with IPEX Antenna

Specifications:

• Module Series: Ai-Thinker Ra-02 (Original)

• Chipset: Semtech SX1278 LoRa® Modem

• Frequency Range: 410MHz to 525MHz (Centered at 433MHz)

• Interface: SPI (Serial Peripheral Interface)

• Max Transmit Power: +20dBm (100mW)

• Receiver Sensitivity: As low as -148dBm

• Modulation: LoRa®, FSK, GFSK, MSK, GMSK, OOK

• Operating Voltage: 2.7V to 3.6V (3.3V Recommended)

• Power Consumption: ~120mA (TX), ~12mA (RX), ~2uA (Sleep)

• Antenna Connector: IPEX (U.FL)


Key Applications

• Agricultural Monitoring: Sensors for soil moisture or cattle tracking across 5km+ farms.

• Smart Utility Meters: Remote reading of water and electricity meters in urban environments.

• Industrial Automation: Wireless PLC communication in noisy factory environments.

• Personal Trackers: Creating off-grid GPS tracking devices for hikers or bikers.

Project Evolution

• Past Projects (Prerequisites): If you've used NRF24L01+ or basic 433MHz OOK modules, you've likely hit the "Distance Wall."

• Feature Upgrade: The Ra-02 replaces "Line of Sight" requirements with "Spread Spectrum" resilience. It allows you to build devices that communicate from inside a basement to a gateway 2km away. This module unlocks the ability to build true "Low Power Wide Area Networks" (LPWAN).

• Effort/Requirements: Advanced. Requires SPI configuration, logic level shifting for 5V Arduinos, and a firm grasp of LoRaWAN or point-to-point LoRa protocols.

Virtual Technician & Wiring

• ⚠️ CRITICAL: The SX1278 is NOT 5V tolerant on logic pins. If using an Arduino Uno/Mega, you MUST use a logic level converter.

• 3.3V: Power Input (Do not use 5V).

• GND: Common Ground.

• MISO/MOSI/SCK: SPI Bus pins.

• NSS: Chip Select.

• DIO0: Mapping for IRQ (Required for most libraries like RadioHead).

• RST: Reset Pin.

• Antenna: Ensure the IPEX antenna is firmly clicked into place before powering on to prevent damage to the power amplifier.

Package Includes:

1x Ai-Thinker Ra-02 Module

1x 433MHz Spring Antenna.

Frequently Asked Questions (FAQ)

1. What is the maximum range of the Ra-02?
   In open fields with the included antenna, you can achieve 2-5km. With high-gain Yagi antennas and line-of-sight, ranges of 10km+ are possible.
2. Is this module compatible with Arduino Uno?
   Yes, but you must use a 3.3V power source and a level shifter for the SPI pins.
3. Does it support LoRaWAN?
   Yes, it can be used as a LoRaWAN Node with libraries like MCCI LMIC.
4. Why do I need the IPEX antenna?
   The IPEX connector allows for flexible antenna placement, which is essential if you are mounting the module inside a metal enclosure.
5. Can I use it at 868MHz or 915MHz?
   No. This specific hardware and antenna are tuned for the 433MHz band.
6. What is the difference between Ra-01 and Ra-02?
   The Ra-01 has a built-in spring antenna or wire hole, while the Ra-02 uses an IPEX connector for external antennas.
7. Does it work through walls?
   Yes, LoRa modulation is highly effective at penetrating concrete and obstacles compared to WiFi or Bluetooth.
8. How many Ra-02 modules do I need for a project?
   You need at least two: one to transmit and one to receive (point-to-point).
9. What is the DIO0 pin used for?
   It is the interrupt pin that tells the microcontroller when a packet has been successfully received or sent.
10. Can it communicate with an E32 LoRa module?
    Yes, as long as both are set to the same frequency, spreading factor, and bandwidth.
11. Is the antenna included in the package?
    Yes, this Probots bundle includes the specific 433MHz spring antenna with an IPEX connector.
12. What is the current draw during sleep mode?
    The Ra-02 is ultra-efficient, drawing only about 2uA in sleep mode, making it ideal for battery-powered sensors.
13. Can I send images or video over LoRa?
    No. LoRa is designed for small packets of data (sensors, GPS coordinates). It is too slow for video.
14. Does it require a license to use 433MHz in India?
    433MHz is part of the ISM band; however, you should always check local WPC regulations for power and duty cycle limits.
15. What library should I use for Arduino?
    The 'LoRa' library by Sandeep Mistry or the 'RadioHead' library are the most stable options.
16. Why is my range only 100 meters?
    Check your antenna connection and spreading factor settings. Lower spreading factors result in higher speed but shorter range.
17. Can I power it from the Arduino 3.3V pin?
    Often no. The 3.3V pin on some Arduinos provides limited current. It is safer to use a dedicated LD1117V33 regulator.
18. Is the module breadboard friendly?
    The module itself is SMD, but it can be used with a breakout board for breadboard prototyping.
19. What is the Spreading Factor (SF)?
    It is a LoRa parameter (SF7 to SF12). A higher SF increases range and sensitivity but decreases the data rate.
20. Can I use a different 433MHz antenna?
    Yes, any antenna with an IPEX/U.FL connector or an IPEX-to-SMA pigtail will work.
