MAX7219 4-in-1 LED Dot Matrix Module - 32x8 Scrolling Display, Green Light

Specifications

• Driver IC: 4x MAX7219 (Cascaded)

• Display Format: 32 Columns x 8 Rows (Four 8x8 Blocks)

• Total LED Count: 256 Pixels

• LED Color: Green

• Communication Interface: 3-Wire SPI (DIN, CS, CLK)

• Operating Voltage: 5V DC

• Max Current Draw: ~1 Amp (All LEDs on full brightness)

• Cascadable: Yes (via DOUT pins)

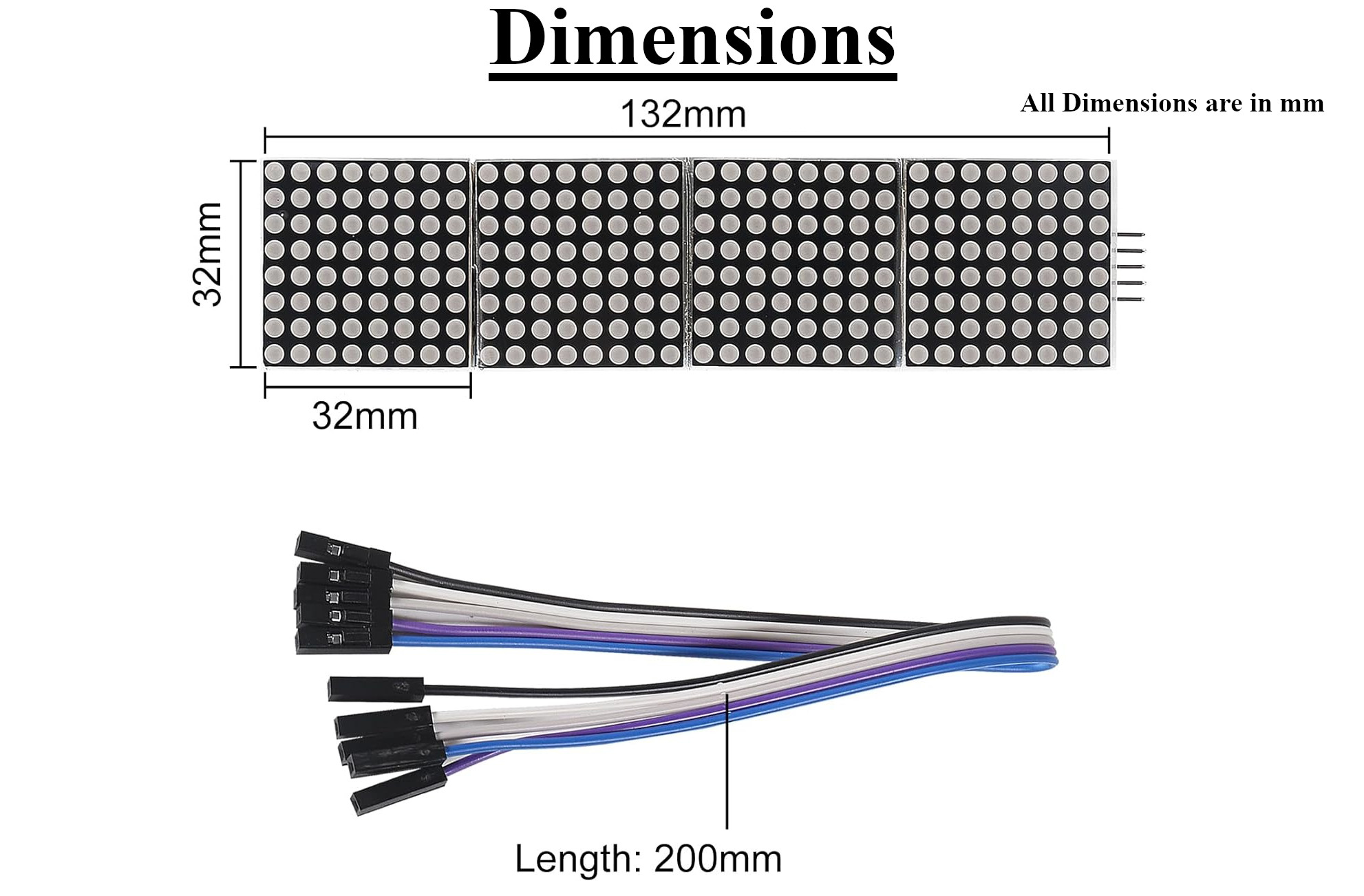

• Module Dimensions: ~132mm (L) x 32mm (W) x 14mm (H)

• Mounting: 4x M3 Holes (One in each corner)

Key Applications and Projects

• Digital Desk Clocks: Pairing the module with a DS3231 Real-Time Clock to display the time, date, and current room temperature in large, retro digits.

• YouTube/Twitch Subscriber Counters: Using an ESP8266 to pull live API data from the internet and update a scrolling subscriber or viewer count.

• Audio Visualizers: Programming an Arduino with an MSGEQ7 audio analyzer chip to create a jumping 32-band graphic equalizer that bounces to your music.

Unlock New Capabilities (Project Evolution) The Live Subway / Bus Arrival Board: Bring the city into your apartment! Connect this display to a Wi-Fi-enabled ESP8266 node. Write a script that hits the open data API of your local transit authority. You can program the matrix to continuously scroll the arrival times of the next train or bus at your specific stop. It turns this simple LED matrix into an incredibly useful, real-time smart home appliance!

PACKAGE INCLUDED

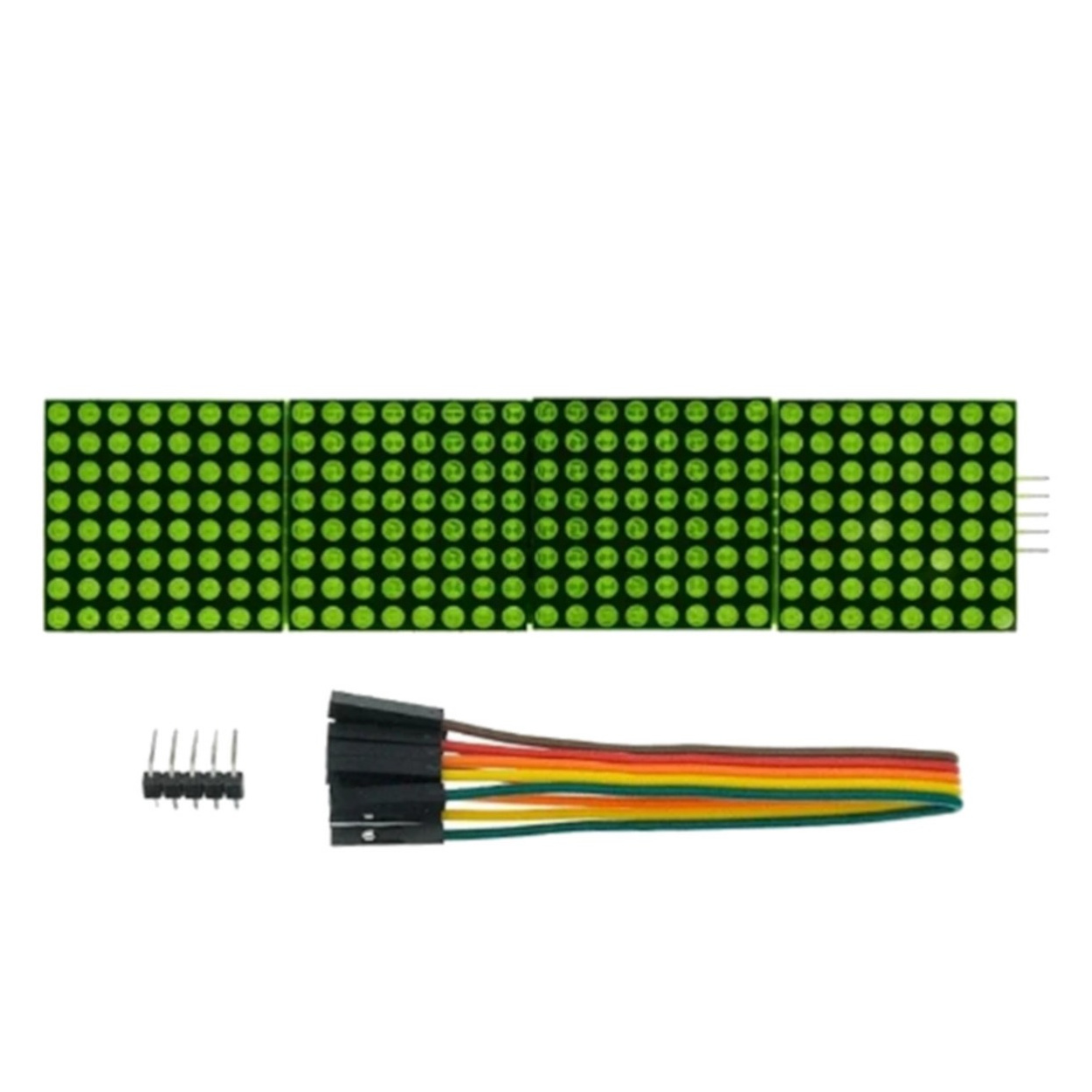

• 1 x MAX7219 4-in-1 Dot Matrix Module (Green)

• 1 x 5-Pin Dupont Jumper Cable (Female to Female, ~200mm)

• 1 x 5-Pin Right-Angle Male Header (for cascading)

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What is the MAX7219 chip? It is a dedicated serial input/output common-cathode display driver. It does all the hard work of rapidly turning the LEDs on and off (multiplexing) so your microcontroller doesn't have to.

2. How many total LEDs are on this board? There are four 8x8 matrices. 8x8 = 64 LEDs per block. 64 x 4 = 256 total LEDs.

3. What does "Cascaded" mean? It means the four driver chips are wired in a chain. The data enters the first chip; when the first chip is full, it overflows the data into the second chip, and so on. This allows you to control all four screens as one long screen.

4. What voltage does this module require? It requires exactly 5V DC.

5. Can I power this directly from the Arduino's 5V pin? If you are only scrolling a few letters at a time, yes. However, if you turn ALL 256 LEDs on simultaneously at maximum brightness, it can pull nearly 1 Amp of current, which will overload and reset a standard Arduino via USB. For full-screen graphics, use an external 5V 2A power supply.

6. Can I use this with a 3.3V board like the ESP32 or Raspberry Pi? The MAX7219 logic technically requires 5V. However, many users successfully drive the DIN, CS, and CLK pins with 3.3V logic signals, provided the VCC pin is supplied with a separate 5V power source. If it glitches, you must use a logic level converter.

7. How do I wire this to an Arduino Uno? Typically: VCC to 5V, GND to GND, DIN (Data In) to Pin 11, CS (Chip Select / Load) to Pin 10, and CLK (Clock) to Pin 13. (These pins can be changed in your software depending on the library used).

8. What Arduino library is best for this? The MD_Parola library combined with MD_MAX72xx is widely considered the absolute best and most feature-rich library for scrolling text, offering dozens of animation effects (wipe, slice, fade). The LedControl library is also good for simpler static graphics.

9. Why is my text displaying backward or mirrored? Not all factory matrix modules are wired the same way internally (some are FC-16, some are generic). If your text is backwards, you simply need to change the hardware definition type in the setup code of your MD_Parola or MD_MAX72xx library from PAROLA_HW to FC16_HW or GENERIC_HW.

10. Can I connect two of these 4-in-1 modules together? Yes! The right side of the board has a 5-pin output header. You can use jumper wires to connect the DOUT of the first board to the DIN of the second board, creating an enormous 64x8 display.

11. Is there a limit to how many modules I can daisy-chain? While you can theoretically chain dozens together, the SPI signal eventually degrades over long wires, and the display update rate will noticeably slow down. Most users max out around 4 to 6 of these 4-in-1 modules per microcontroller.

12. Can I display different colors? No. This is a monochromatic display. Every LED on this specific board is physically manufactured as a green LED.

13. Can I adjust the brightness? Yes. The MAX7219 chip allows for software-controlled brightness adjustment, typically offering 16 distinct levels of intensity (0 to 15).

14. Are the LED blocks removable? Some variants have the 8x8 blocks soldered into female socket headers, allowing them to be pulled off. Others are soldered directly to the PCB. Even if removable, they must remain plugged in for the module to function correctly.

15. What are the physical dimensions? The entire PCB is approximately 132mm long, 32mm tall, and about 14mm thick (including the LED blocks and the chips on the back).

16. How do I mount it inside an enclosure? The PCB features four small M3-sized holes, one in each corner, allowing you to use standoffs to mount it behind a piece of smoked acrylic glass.

17. What is the cable included in the package? It is a 5-pin female-to-female Dupont jumper cable used to easily connect the input pins of the module directly to the header pins of an Arduino Uno or similar dev board.

18. Will this display graphics or just text? It can display anything you program! While it excels at text, you can create custom 8x8 byte arrays to draw space invaders, smiley faces, or custom battery icons.

19. My display occasionally flashes random garbage characters. Why? This is almost always a power issue or a loose wire. Ensure your 5V power supply can handle the current spikes, and ensure your ground wire (GND) is solidly connected between the display and the microcontroller.

20. Can I use the hardware SPI pins on my Arduino? Yes, it is highly recommended. Connecting DIN to MOSI and CLK to SCK allows the Arduino's hardware SPI bus to push data to the screens significantly faster than using standard software "bit-banging" on random digital pins.
