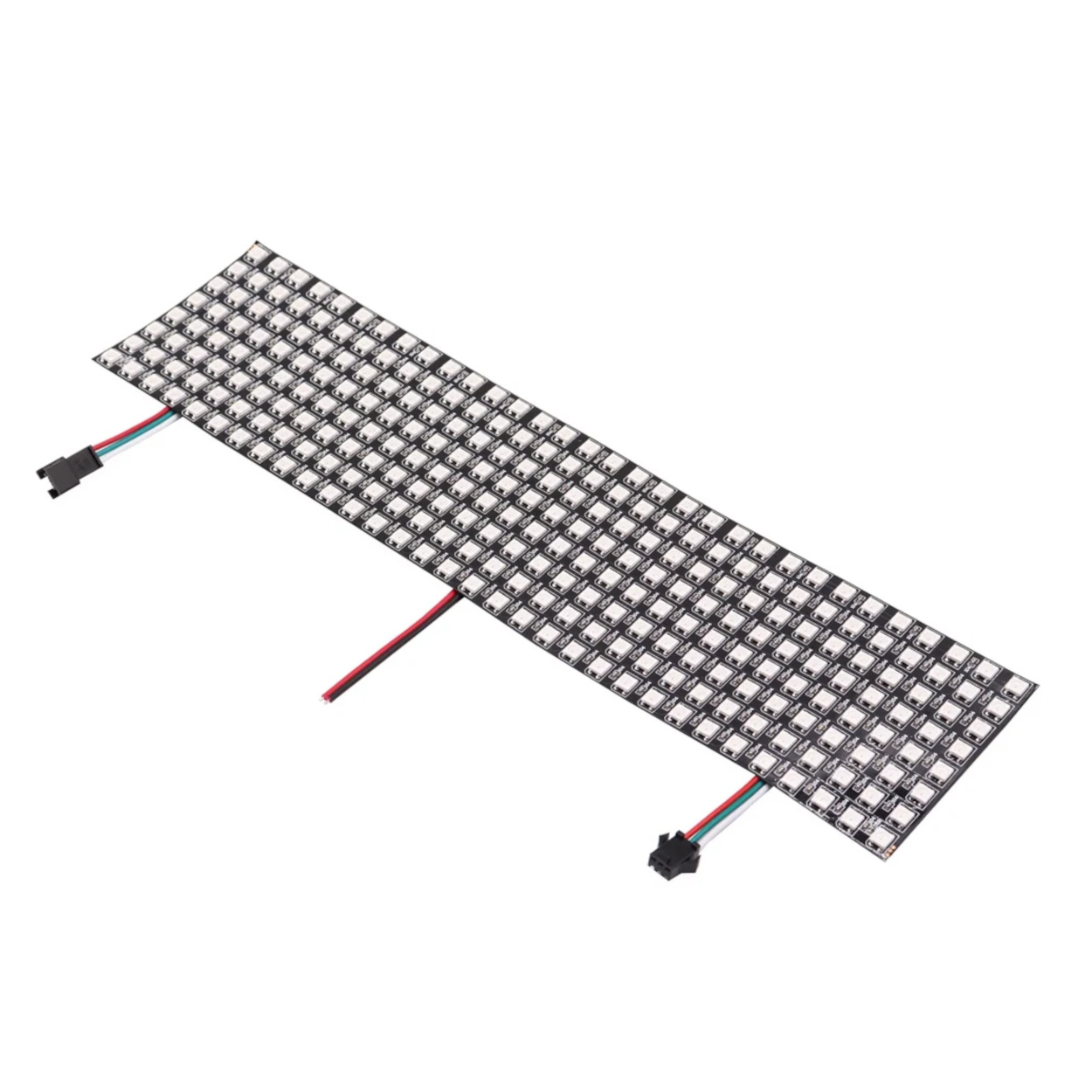

8x32 Flexible WS2812B Addressable RGB LED Matrix - 256 Pixels

Specifications:

• LED Type: WS2812B (Integrated 5050 RGB LED & Driver IC)

• Pixel Count: 256 LEDs (8 Rows x 32 Columns)

• PCB Type: Flexible Copper Foil (Black)

• Operating Voltage: 5V DC

• Current Consumption: ~15A (Full White at 100% brightness), ~3-5A (Average animations)

• Communication Protocol: Single-wire Serial (One-Wire)

• Dimensions: ~320mm x 80mm x 2mm

• Viewing Angle: 120°

• Gray Level: 256 levels per color

• Daisy-chainable: Yes, includes JST-SM connectors for easy expansion.

Key Applications

• Wearable Tech: Create scrolling name badges or reactive light-up jackets.

• Digital Signage: Build ultra-thin scrolling tickers for shop windows or desks.

• Smart Home Dashboards: Integrate behind a smoked acrylic sheet for a hidden "ghost" display.

• Automotive Accents: Custom interior lighting effects or animated brake lights (off-road use).

Project Evolution

• Past Projects (Prerequisites): If you've mastered basic 8x8 matrices or individual LED strips, you're ready for the 8x32 panel.

• Feature Upgrade: This panel unlocks the ability to display full words and smooth scrolling text without the "jumpiness" found on smaller 8x8 displays.

• Effort/Requirements: Intermediate. Requires an external 5V power supply (do NOT power 256 LEDs directly from an Arduino) and basic knowledge of the FastLED or Adafruit NeoPixel libraries.

Virtual Technician & Wiring

• ⚠️ WARNING: 256 LEDs can draw up to 15 Amps at full brightness white. Use a dedicated 5V power supply. Always connect the Ground (GND) of your power supply to the Ground of your microcontroller.

• Red Wire: 5V (External Power)

• White Wire: Ground (GND)

• Green Wire: Data Input (Connect to GPIO with a 330Ω-470Ω resistor)

• Additional Red/White wires: Extra power injection leads to prevent voltage drop.

Package Includes:

1 X 8x32 Flexible WS2812B Addressable RGB LED Matrix - 256 Pixels

Frequently Asked Questions (FAQ)

1. Can I power this matrix from my Arduino's 5V pin?
   No, the Arduino cannot provide enough current; you will damage your board.
2. What is the maximum current draw of the 8x32 matrix?
   Up to 15A at full brightness white, but usually 3-5A for colorful animations.
3. Is the WS2812B matrix compatible with ESP32?
   Yes, but a logic level shifter is recommended for the 5V data signal.
4. Can I cut the matrix into smaller pieces?
   No, the internal traces are complex; cutting will break the circuit.
5. How do I display text on this panel?
   Use the Adafruit_GFX and Adafruit_NeoMatrix libraries for easy text rendering.
6. Can I daisy-chain multiple 8x32 panels?
   Yes, they include connectors to link them together into a 8x64 or larger display.
7. Is this matrix waterproof?
   No, it is IP20 rated. Keep it away from moisture.
8. Does it come with a controller?
   No, you need a microcontroller like an Arduino, ESP32, or Raspberry Pi.
9. What is the refresh rate of the WS2812B?
   It supports up to 30fps depending on the number of LEDs and controller speed.
10. Do I need a resistor on the data line?
    Yes, a 330Ω to 470Ω resistor is recommended to protect the first LED.
11. Why are the LEDs at the end of the panel dimmer?
    This is due to voltage drop; connect power to both ends of the panel.
12. Which side is the input?
    Look for the "DIN" (Data In) label or follow the arrow markings on the PCB.
13. Can I use this with a Raspberry Pi?
    Yes, but it requires specific libraries (like rpi_ws281x) and careful timing.
14. What happens if one LED fails?
    Since they are in series, LEDs after the failure may stop working or flicker.
15. Does the matrix get hot?
    Yes, if run at high brightness for long periods, ensure adequate ventilation.
16. Can I use this with WLED?
    Yes, it is one of the most popular displays for WLED projects.
17. What is the thickness of the flexible PCB?
    It is approximately 2mm thick.
18. Can I wrap this around a cylinder?
    Yes, it is flexible enough for curved surfaces, but avoid sharp 90-degree folds.
19. What color is the PCB?
    This model features a sleek black flexible PCB.
20. Is there a library for MicroPython?
    Yes, the 'neopixel' module is built into most MicroPython builds
