Pro-Grade Digital Servo Tester & ESC Consistency Checker 4-Channel 3-Mode Diagnostic Tool for RC Planes & Cars

Quick Introduction: Tired of stripping gears by manually forcing servo arms, or guessing if your control surfaces are perfectly centred before glueing them? The Pro-Grade Digital Servo Tester is the essential workbench companion that eliminates the guesswork from RC builds. Instead of relying on your radio transmitter and receiver just to centre a servo, this standalone unit powers up to 4 servos instantly, letting you verify smooth operation, check for gear train noise, and find the precise neutral point in seconds.

Detailed Specifications

• Product: Servo Tester
• Model: Pro-Grade Digital
• Input Voltage: 4.8V – 6.0V DC (Strict Limit)

• Output Channels: 4 Synchronised Ports (Test 4 servos at once)

• Output Signal Precision: 2µs (microseconds)

• Pulse Width Range: 800 – 2200µs

• Selectable Signal Modes:

  • 50H: Analog Servos (50Hz frequency, 20µs cycle)

  • 125H: Digital Servos (125Hz frequency, 8µs cycle)

  • 250H: High-Speed Digital Servos (250Hz frequency, 4µs cycle)

• Operational Modes: Manual (Knob), Neutral (Centre), Automatic (Wiper Sweep)

• Dimensions: 75mm x 38mm x 25mm

Quality Advantage & Differentiation: Why choose this unit over cheaper generic testers? Unlike standard "blue box" testers that only output a crude 50Hz signal, this Pro-Grade Digital version is engineered for modern electronics. It features a dedicated Digital Mode Select button, allowing you to safely test high-frequency digital servos (125Hz and 250Hz) without the jitter or overheating issues caused by older analogue-only testers. The potentiometer is high-resistance for smooth, granular resolution, allowing you to detect even the slightest "dead spots" in a servo's potentiometer—a critical safety check before trusting an expensive RC jet or helicopter to a questionable servo.

Key Applications & Usage This tool is indispensable for RC aeroplanes, helicopters, and Car modellers. Use it to centre servos before installing horns (Neutral Mode), stress-test new servos for manufacturing defects (Auto "Window Wiper" Mode), or manually check the full range of motion to ensure linkages don't bind (Manual Mode). It also functions as an ESC Tester, allowing you to spin up brushless motors and check thrust without needing a flight controller or receiver connected—perfect for drone builders testing motor direction.

Popular Project Ideas

• Swashplate Levelling: Connect 3 cyclic servos simultaneously to ensure they move in perfect unison for RC helicopters.

• Thrust Stand Testing: Use the manual knob to act as a throttle for testing brushless motors and propellers safely on a bench.

• Robotic Arm Calibration: Pre-set 4 servos to their exact 90-degree neutral point before assembling complex robotic joints.

Open-Source Compatibility: While this is a standalone hardware tool, it generates standard PWM signals compatible with any component designed for the Arduino Servo Library. It effectively replaces the need for an "Arduino + Potentiometer" breadboard setup, providing a rugged, portable PWM generator for testing DIY mechatronics, robotic grippers, and pan-tilt camera mounts without writing a single line of code.

Helpful Tutorials & Resources

• Video Review: Servo Tester Demo & Review - A complete walkthrough of the manual and auto modes.

• Video Tutorial: How to use Servo & ESC Tester - Guide on connecting brushless motors and ESCs.

• User Manual: Pro-Grade Digital Servo Tester & ESC Consistency Checker_User Manual

CRITICAL SAFETY WARNING: The input voltage limit is 6.0V MAX.

• • DO NOT connect a 2S LiPo battery (7.4V) directly to the input, or you will burn out the tester and connected servos immediately.

  • DO NOT plug an Analogue servo in while the tester is set to "250H" Digital mode, as the high frequency can overheat analogue servo motors.

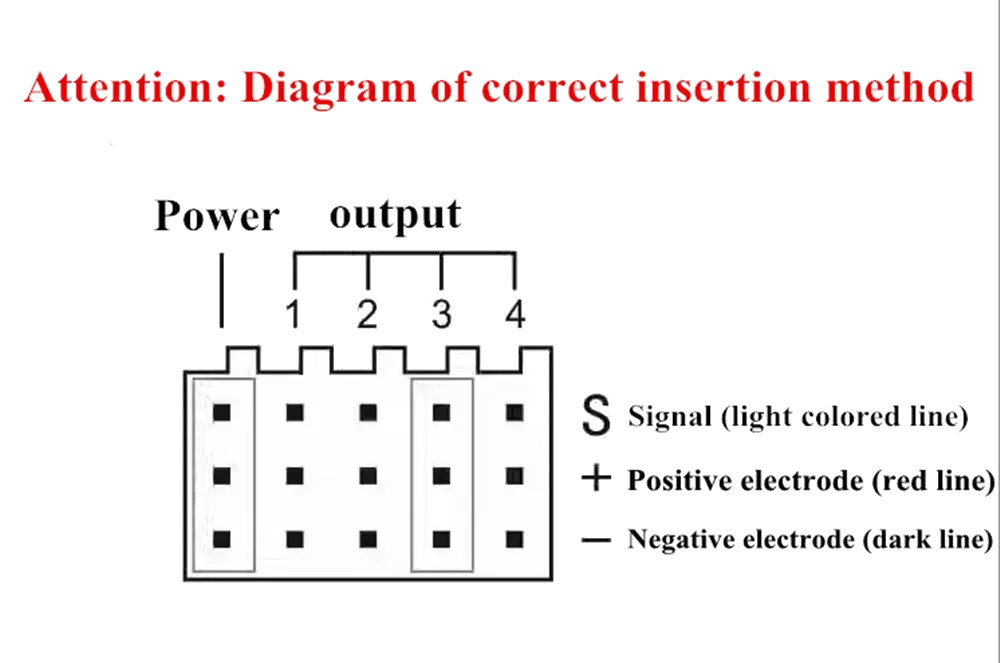

• Wiring Interface Guide:

  • Input Side (Left): Connect your battery/BEC here. (Top pin: Signal/Not Used, Middle: +5V, Bottom: GND/-).

  • Output Side (Right): Connect up to 4 Servos/ESCs here. (Top pin: Signal/White/Orange, Middle: +V/Red, Bottom: GND/Black/Brown).

Package Includes: 1 x Pro-Grade Digital Servo Tester & ESC Consistency Checker
