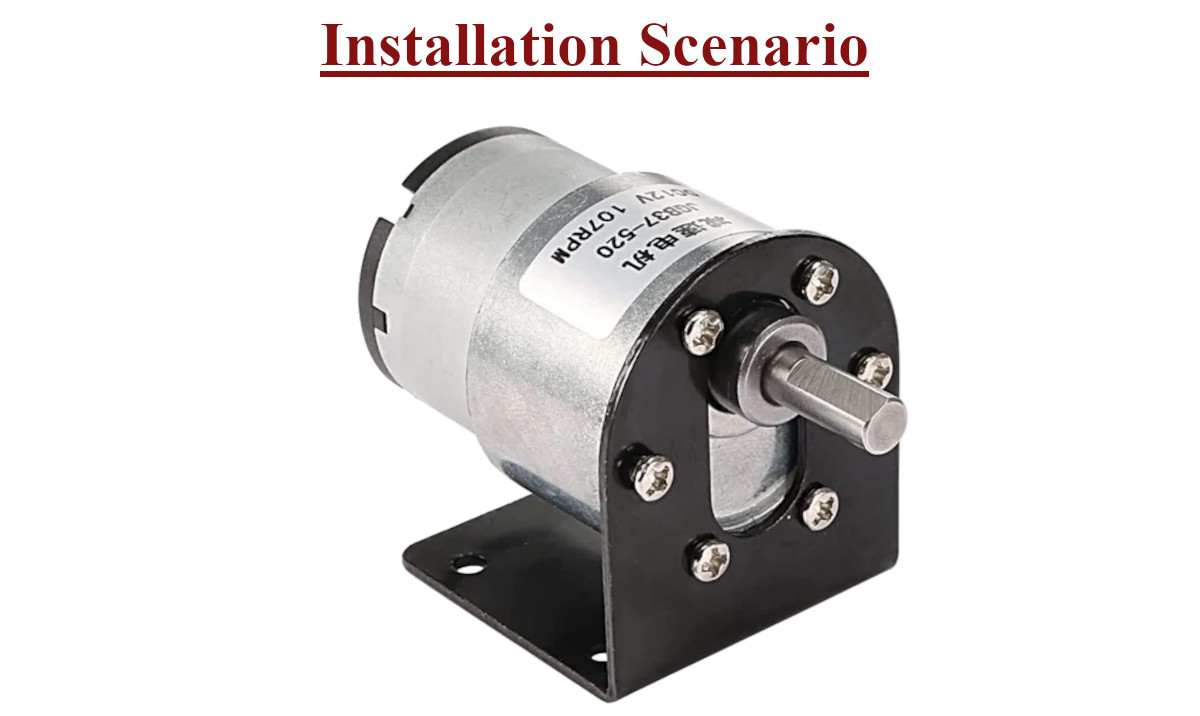

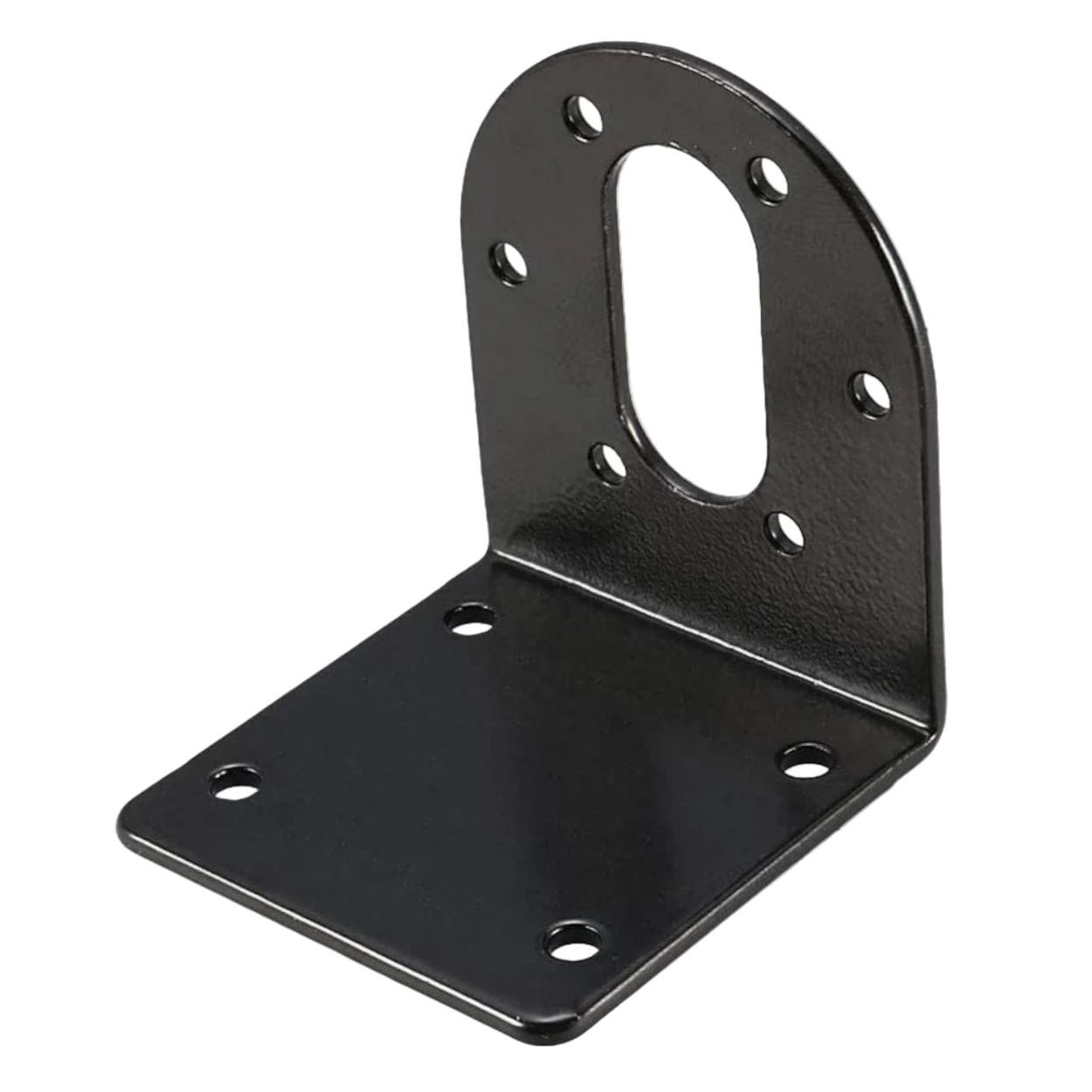

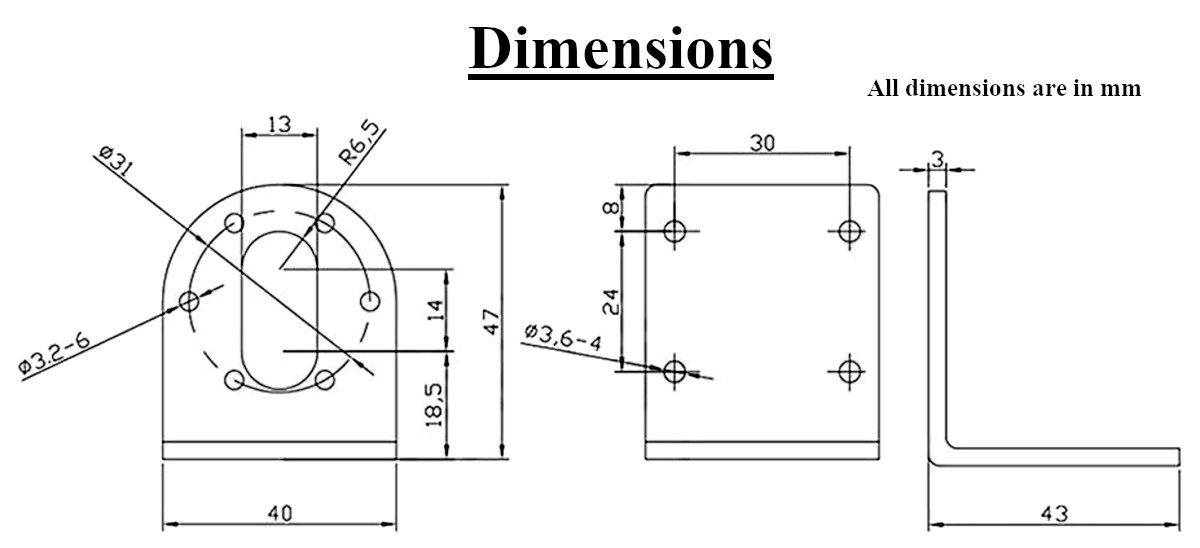

37mm DC Gear Motor L-Shaped Mounting Bracket - Offset Shaft Compatible

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What specific motors drop directly into this bracket? It is perfectly sized for the 37mm gear motor class. The most popular models are the JGB37-520, GB37 series, and standard 37mm diameter cylindrical motors with offset shafts.

2. Why is the center hole oval/elongated instead of perfectly round? 37mm gear motors use a spur gear train that forces the final output shaft to be offset from the center axis of the motor. The elongated hole allows the offset shaft to spin freely without grinding against the bracket.

3. What size screws do I need to attach my motor to this bracket? You will need M3 (Metric 3mm) machine screws.

4. How long should the motor mounting screws be? Ensure they are not too long, or they may protrude through the bracket and grind against the internal gears of your motor! Typically, 4mm to 6mm thread length is ideal.

5. Why are there six small holes around the center instead of just two or four? The six holes correspond to the threaded holes on the faceplate of standard 37mm motors. Having six holes on the bracket allows you to rotate the motor body in 60-degree increments to optimize your wire routing.

6. Will this fit a standard NEMA 17 stepper motor? No. A NEMA 17 stepper motor has a completely different square faceplate (42mm x 42mm) and bolt pattern. This is specifically for 37mm cylindrical DC gear motors.

7. Will this fit a 25mm DC gear motor? No, a 25mm motor (like the JGA25) requires a smaller bracket. The mounting holes on this bracket are spaced too far apart.

8. Can I bend the bracket to a 45-degree angle? It is highly discouraged. The bracket is formed from hardened metal specifically to remain rigid at 90 degrees. Attempting to bend it will likely crack the metal or warp the mounting face.

9. Is the black coating electrically conductive? The black finish is typically a powder coat or anodized layer, which acts as a mild electrical insulator. However, you should never rely on the coating for high-voltage isolation.

10. Does it come with the mounting screws? No, this specific listing is for the bare bracket only. You will need to source your own M3 hardware to bolt the motor to the face, and additional hardware to bolt the base to your chassis.

11. Why are there four holes on the base instead of just two? Using four screws to secure the base to your chassis spreads the mechanical load over a wider area. 37mm motors generate significant torque; the 4-hole base provides "anti-twist" stability so the bracket doesn't pivot.

12. Is it rust-proof? The black coating provides excellent resistance against standard atmospheric oxidation and rust, making it highly durable for indoor and mild outdoor robotics projects.

13. What is the thickness of the metal? The bracket is stamped from heavy-duty alloy steel, typically measuring between 1.5mm and 2.0mm thick to prevent flex under load.

14. Can I mount this bracket upside down (suspended from a top plate)? Yes! The bracket is structurally symmetric in terms of load-bearing. You can easily suspend the motor from an upper chassis deck to increase your robot's ground clearance.

15. Will this bracket fit a JGY370 worm gear motor? It depends on the specific manufacturer's faceplate of the JGY370. Some worm gear motors share the standard 37mm faceplate, but you must verify the mounting hole radius of your specific worm gear motor before purchasing.

16. How do I properly align the offset shaft during installation? Rotate the motor until the offset shaft aligns seamlessly with the elongated cutout portion of the bracket's central bore, then insert the M3 screws into whichever of the 6 outer holes align best.

17. Does the bracket cover the motor's ventilation holes? No, the L-shape design only covers the front faceplate, leaving the entire cylindrical body of the motor exposed to ambient air for excellent thermal cooling.

18. Can I use this bracket to support a free-spinning axle instead of a motor? While possible if you find a flanged bearing that fits the elongated bore, it is not recommended. The elongated hole makes it difficult to center an axle perfectly. It is strictly designed for motors.

19. How much torque can this bracket handle? Because it is made of hardened, thick stamped steel and utilizes a 4-screw base, it can comfortably handle the maximum stall torque of standard 37mm gear motors (often exceeding 20-30 kg.cm) without bending.

20. Can I paint over the black coating? Yes, if you need the bracket to match your robot's aesthetic, you can lightly sand the black coating and apply standard spray paint or enamel.
