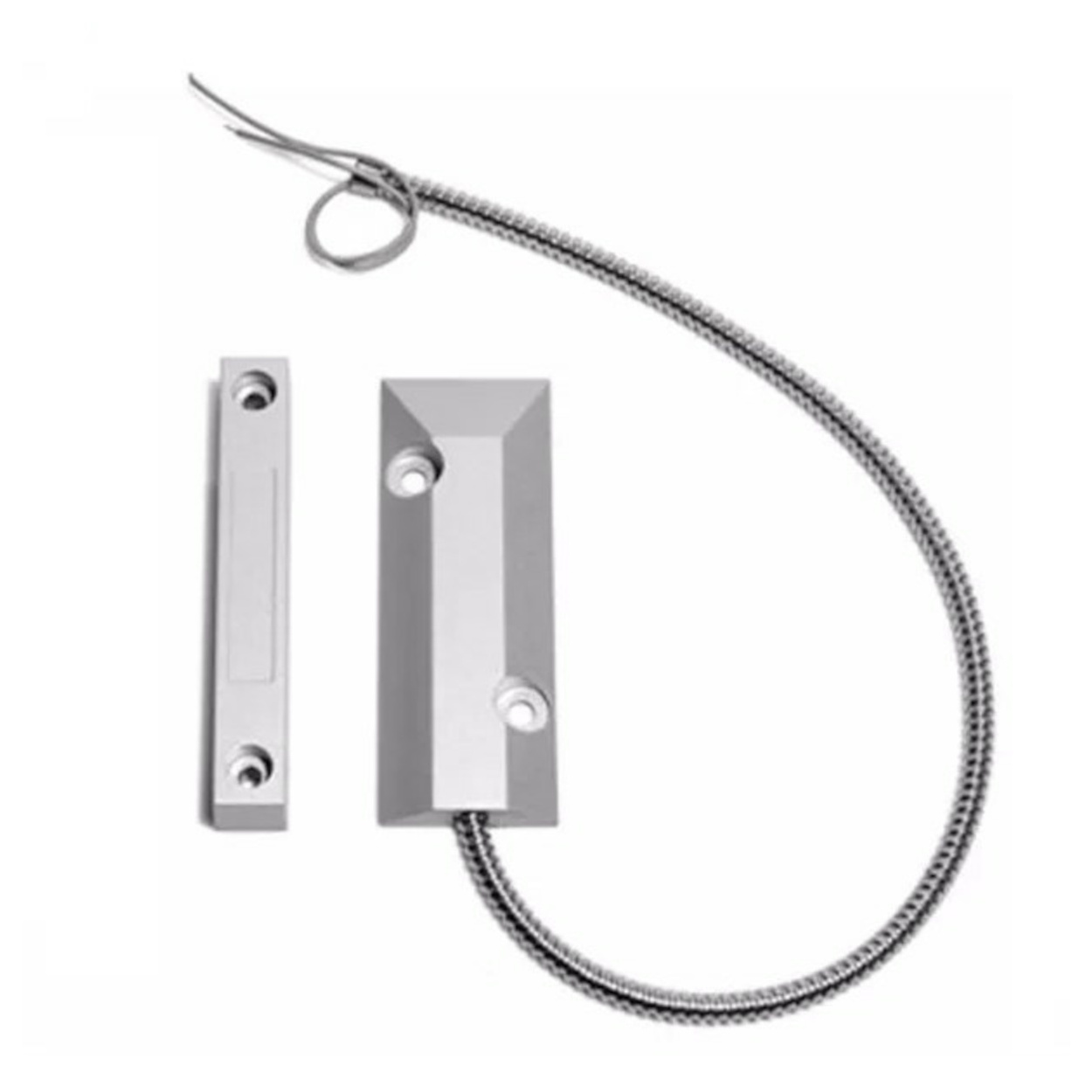

LockIT LMS090-11 Magnetic Sensor for Door NO NC

₹799.00 ₹ 677.12 + 121.88 GST
In stock
SKU
PRO2050

This is a high-quality Magnet Sensor used for Door/Window Status Detection. It consists of 2 parts - a Magnet and a Reed Switch. It indicates the door open/close status through potential free contact output - Common, NC, and NO.

LockIT LMS090-11 Magnetic Sensors is an industrial-grade magnetic contact switch. It is popularly used in door/window status detection. The sensor consists of two parts - a magnet and a reed Switch. The magnet can be secured to the door and the reed sensor to the door frame. When the magnet is within the range of the reed sensor(door closed), the reed sensor detects it and indicates the output by closing the reed switch.

Note:

  1. LockIT Magnet Sensor models are available in 20+ models of different sizes & specifications, from Standard to high-grade Industrial Switches with longer sensing gaps and metal/plastic housings. Check our website & datasheet for all the available models.
  2. We also provide customization options - size, cable length, etc. Contact us directly for more details.

The magnet and reed switch is enclosed in durable Metal Housing and is designed for surface mounting with a screw or adhesive.

It comes with a normally open/close output - the output of the sensor is open/closed with the door open and the output is open/closed with the door closed respectively.

These Magnetic sensors are suitable for a wide range of applications like - access control systems, rolling shutter alarms, window alarms, equipment & control panel door detection, office/home automation, etc. Also Suitable for use in interior doors, cabinets, entrance doors, etc. Outputs can be directly connected to a microcontroller PLC, Controller, Access Control System, etc. Relays/Contactors can be used to directly control loads like - buzzers, hooters, strobe lights, etc without using a controller in between.

Features

  • Non-contact design requires no operating force to actuate the switch
  • Solid state design uses Hall effect technology for long-life operation with no mechanical parts to wear
  • Can be integrated with Automation Systems
  • Suitable for all types of door materials - Wooden doors, stainless steel doors, etc
  • Easy to Install -Screw Mounted /Adhesive
  • High-strength material in anodized aluminum housing
  • High corrosion resistance construction
  • Available in different models based on applications

Applications:

  • Input Sensors to Access Control Systems,
  • Rolling shutter alarms Sensor
  • Window Alarm
  • Industrial Equipment & Control Panel Door Open/Close Detection
  • Office/Home Automation, etc.
  • Also Suitable for use in Interior Doors, Cabinets, Entrance doors, etc

Package Includes:

1 x LockIT LMS090-11 Door Magnetic Sensor Wired C, NO, NC

More Information
Technical Details

Specifications:

  • Brand: LockIT
  • Model: LMS090-11
  • Output: Common, NC, and NO
  • Max. Detection Range: 50-70mm (varies based on application environment)
  • Switch Rating: 0.1A/100V
  • Housing Material: Aluminum
  • Mounting Style: Screw/Adhesive
  • Dimensions :106*38*10mm
  • Preferable Applications: Position sensor, Metal overhead door window, rolling shutters

Product Datasheet: LockIT Magnetic Sensor Lock Datasheet

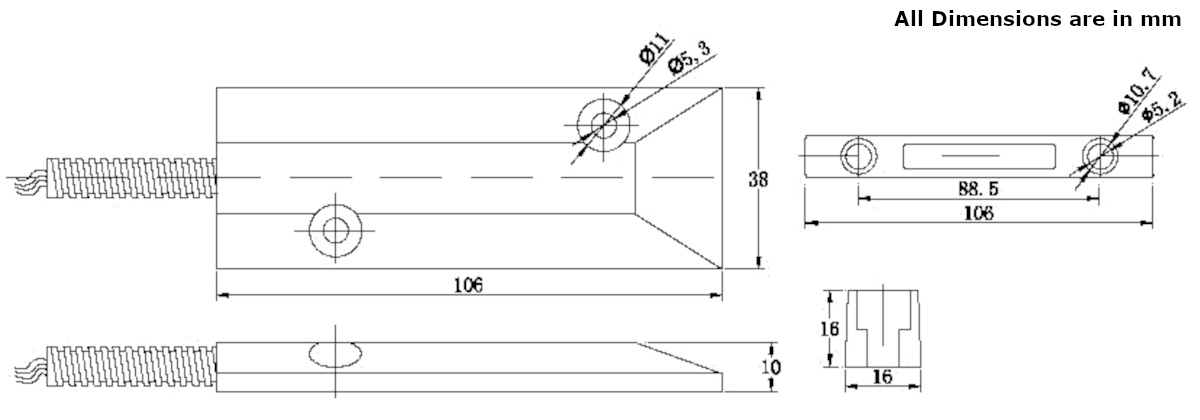

Dimensions:

Dimensions:
