D-Type USB 3.0 Panel Mount Connector - Silver Metal Housing (Female to Female Pass-Through)

Specifications

• Format: D-Type (XLR Standard Chassis).

• Interface: USB 3.0 Type A (Front) <-> USB 3.0 Type A (Rear).

• Type: Feed-Through / Gender Changer.

• Speed: 5 Gbps (SuperSpeed).

• Housing Material: Zinc Alloy (Nickel/Silver Finish).

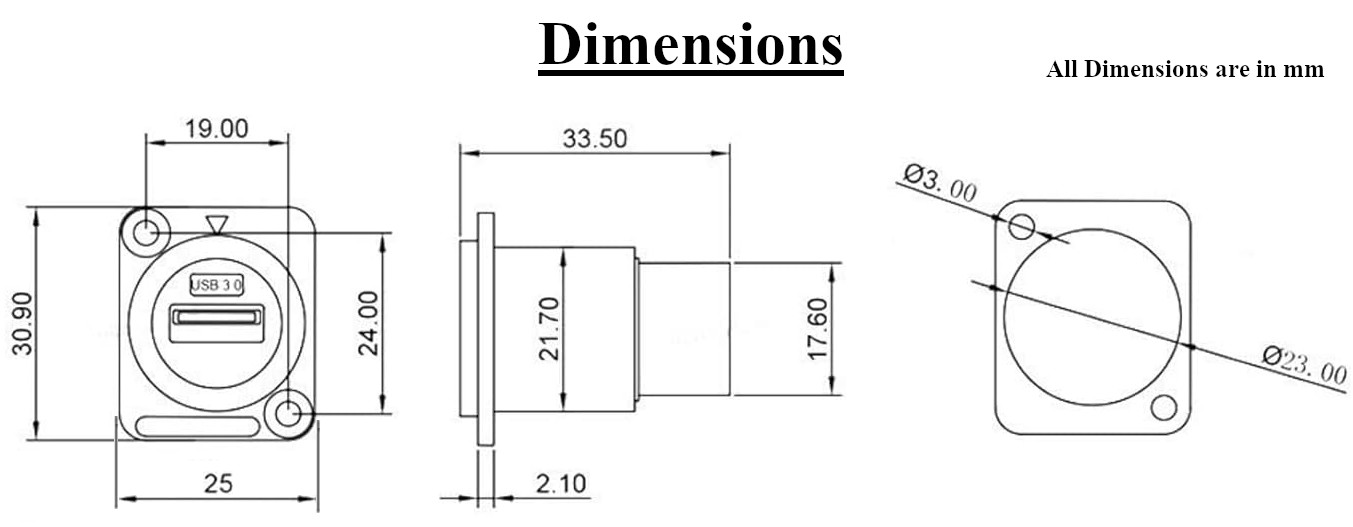

• Mounting Holes: 2 x M3 Countersunk holes (24mm vertical spacing).

• Panel Cutout: 24mm diameter.

Compatibility & Platform Support

• Rack Panels: Fits standard 19" rack panels pre-punched for XLR/Speakon connectors.

• Wall Plates: Compatible with D-Type wall plates for custom studio installations.

• Devices: Works with any USB 3.0 or USB 2.0 device (PC, Mixer, Audio Interface).

Key Applications & Projects

• Studio Racks: Bringing rear USB ports of a computer/interface to the front panel for easy access.

• Flight Cases: Creating a rugged external connection point for equipment inside a transport case.

• Interactive Kiosks: providing a user-accessible USB port while keeping the computer secure.

Virtual Technician: Wiring & Safety ⚠️

• Mounting: Requires two M3 screws (usually included with rack panels, but check your specific panel type).

• Depth: Ensure you have enough clearance behind the panel (approx 30-40mm) for the connector body plus the USB cable plug.

• Orientation: The D-shape is not perfectly round; it has flattened sides to prevent rotation. Ensure your panel cutout matches this shape.

Accessories

• Included in the Package:

  • 1 x D-Type USB 3.0 Panel Mount Connector (Silver)

Frequently Asked Questions (FAQ)

1. Does this fit a standard Neutrik hole? Yes, it uses the standard "D-Size" chassis cutout (24mm hole with 2 screws), same as XLR or Speakon connectors.

2. Do I need to solder wires to it? No. It is a "Pass-Through" coupler. You plug a regular USB cable into the back.

3. Is it USB 3.0 or 2.0? It has Blue insulators, indicating USB 3.0 (SuperSpeed). It works with USB 2.0 devices as well.

4. Is the housing metal or plastic? The housing is Metal (Zinc Alloy) with a silver nickel finish, making it very durable.

5. Can I reverse it (Input at back, Output at front)? Yes, USB Type-A couplers are bidirectional. You can send data in either direction.

6. Does it come with screws? Typically no, as the screw type depends on your specific rack panel (M3, 4-40, or self-tapping).

7. Is it waterproof? No, this is a standard indoor connector. For waterproof needs, look for "IP65" rated covers.

8. Will it charge my phone? Yes, it passes through power and data, so fast charging works if your source cable/port supports it.

9. What is the distance between the screw holes? The standard spacing is approximately 24mm vertically and 19mm horizontally (diagonal mounting).

10. Can I mount it from the rear of the panel? Yes, D-Type connectors can be front-mounted or rear-mounted depending on your panel thickness and aesthetic preference.

11. Why is it Silver? Silver (Nickel) is the traditional finish for audio connectors and matches aluminum rack panels well. Black versions are also available separately.

12. Is the insert reversible? On some expensive Neutrik models (NAUSB3), the insert is reversible (A-B or B-A). On this standard coupler model, it is fixed A-to-A.

13. Does it add latency? No, it is a passive copper connection. It adds zero latency.

14. What is the maximum cable length I can use? USB 3.0 has a total length limit of about 3 meters for passive cables. Since this adds a junction, ensure your total cable run (Computer -> Coupler -> Device) stays under 3m for best performance.

15. Is it shielded? Yes, the metal body provides shielding continuity if you use shielded USB cables.

16. Will it fit in a "Keystone" wall plate? No. Keystone and D-Type are different standards. This fits D-Type/XLR plates only.

17. Can I use it for audio interfaces? Absolutely. It is perfect for bringing the rear USB port of a rack-mounted interface to the front.

18. Does it lock the USB cable? No, standard USB Type-A does not have a locking mechanism. The friction fit is tight enough for most uses.

19. What size drill bit do I need? A 24mm hole saw or step drill is perfect for the main body.

20. Is the "Blue" part visible on the front? Yes, the inner plastic tongue is Blue, indicating USB 3.0 compliance.
