HDMI to HDMI Pass through Silver 24mm Cutout Black

Specifications:

• Connector Type: HDMI to HDMI Female Pass-Through (Standard Type-A)
• Mounting Style: Round Panel Mount / Bulkhead Feed-Through

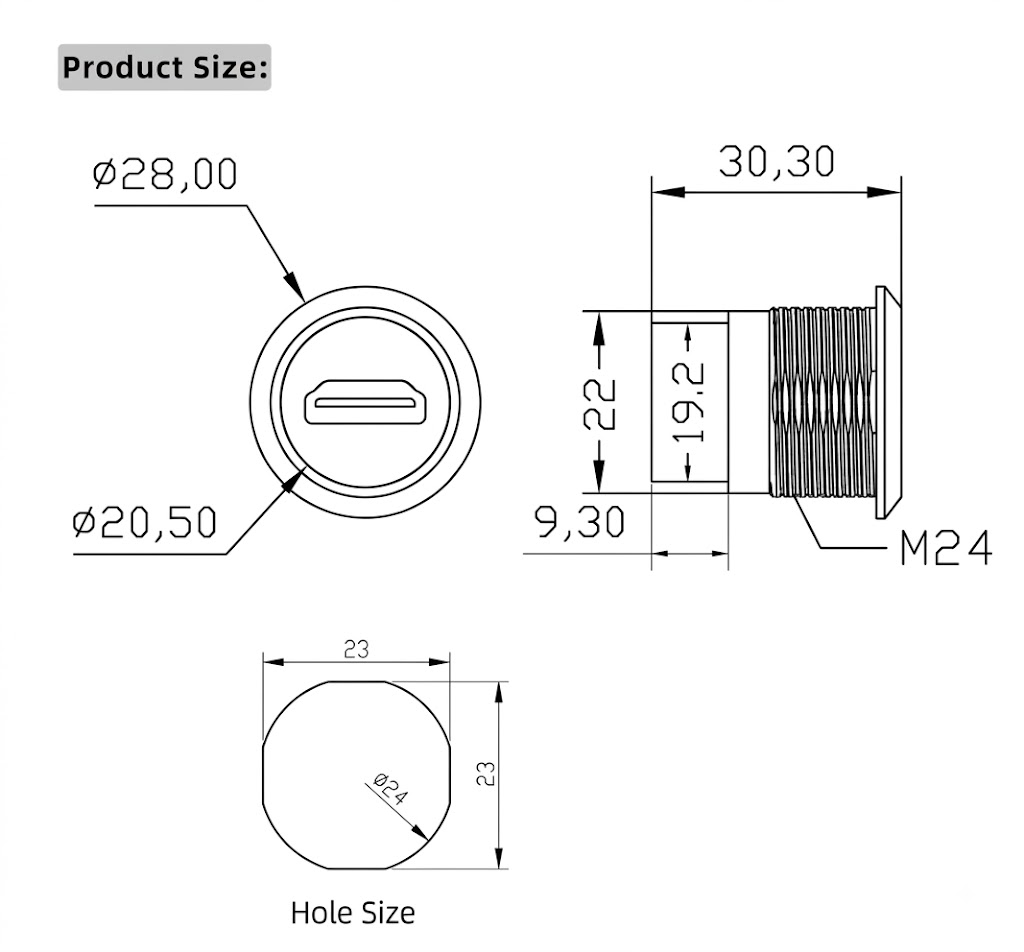

• Required Panel Cutout Diameter: 24mm (Ø24mm circular hole)
• Outer Flange / Bezel Diameter: 28mm
• Body Material: Machined Metal Outer Ring with Durable ABS Housing
• Color / Finish: Silver Anodized Front Bezel with Black Core
• HDMI Compliance: HDMI 2.0 / 1.4 Compatible (4K @ 60Hz Supported)
• Ingress Protection: Rubber Dust Cap Included (IP54 Splash/Dust Resistance when capped)
• Mounting Mechanism: Threaded Body with Rear Hex Retaining Ring

Features:

• Easy to install panel mount
• High-quality connector
• D-Style housing for industry standard panels
• No soldering needed
• Provide reliable connections with repeated mating cycles
• Screw mount for secure installations with Countersunk mounting holes

Application

• Data Acquisition
• PC Peripheral Interconnects
• Test and Measurement
• DIY and Industrial Applications

Package Include :

• 1 x HDMI to HDMI Pass through  Silver 24mm Cutout Black

Frequently Asked Questions

• Is this connector compatible with standard HDMI cables?
  Yes, both the front and rear ports are standard HDMI Type-A female sockets compatible with standard HDMI male cables.
• Does this pass-through coupler support HDMI 2.0 and 4K video signals?
  Yes, the internal high-purity copper traces support high-bandwidth HDMI 2.0 signals, including 4K @ 60Hz and 1080p high-refresh video.
• Can I use this connector with Raspberry Pi microcontrollers and SBCs?
  Yes, simply plug a standard HDMI male cable from your Raspberry Pi's HDMI port into the internal rear socket of the panel coupler.
• Will this fit into standard D-series or XLR panel knockouts?
  This connector requires a 24mm (Ø24mm) round cutout, which is slightly smaller than a standard 24.5mm XLR cutout, but easily mounts in any custom drilled 24mm hole.
• Does this HDMI panel mount coupler require an external power supply?
  No, it is a completely passive feed-through adapter that does not require any active circuitry or external power source.
• Does the pass-through coupler draw any current from the HDMI bus?
  No, it acts as a direct physical bridge between two cables and consumes zero electrical current.
• Does the metallic bezel pose any short-circuit risk to internal electronics?
  No, the outer silver metal ring and threaded barrel are isolated from the internal signal pins by an insulated inner ABS housing.
• Do I need to solder any pins or assemble wires to install this connector?
  No soldering is required; both sides feature plug-and-play female HDMI sockets for direct cable connection.
• What tools are needed to install this coupler onto a panel?
  You only need a 24mm step drill bit or hole saw to create the opening, plus your hands to tighten the rear hex retaining nut.
• What is the maximum recommended panel wall thickness for mounting?
  The long threaded barrel accommodates panel wall thicknesses up to 8mm while allowing full thread engagement for the hex nut.
