| QTY | Unit Price(Inlc. GST) | |
| 25+ | ₹244.02 ₹ 206.8 + 37.22 GST | |
| 50+ | ₹239.04 ₹ 202.58 + 36.46 GST | |
| 75+ | ₹234.06 ₹ 198.36 + 35.7 GST | |
| 100+ | ₹229.08 ₹ 194.14 + 34.95 GST | |
These Magnetic Spring-Loaded pogo pin circular polarised connectors are known for offering quick and easy connections without requiring manual alignment. They are used for any general-purpose connection that requires protection from improper connection or reverse polarity.
These pogo pin connectors offer a versatile selection of circular magnetic pogo pin polarised connectors designed for seamless integration into various electronic devices. The connectors utilise a strong magnetic force to ensure a secure connection between the male (plug) and female (socket) components, allowing for quick mating. This design is highly beneficial in applications where easy connection and disconnection are required, or where traditional mechanical connectors might be prone to damage from repeated insertions. Inside the connector body, gold-plated pogo pins are used for the electrical contacts and three positioning posts that mate with it in only one orientation to protect from improper connection or reverse polarity.
These spring-loaded pins maintain consistent, low-resistance contact, offering superior reliability compared to fixed contacts, especially when subjected to slight misalignments or vibration, and their rugged, metallic shell provides protection and a premium feel. The simplicity of the magnetic connection enhances user convenience and the lifespan of the device by preventing wear and tear on the contacts. With all these features make them suitable for a wide array of uses, including charging ports, data transfer interfaces, medical devices, and industrial equipment.

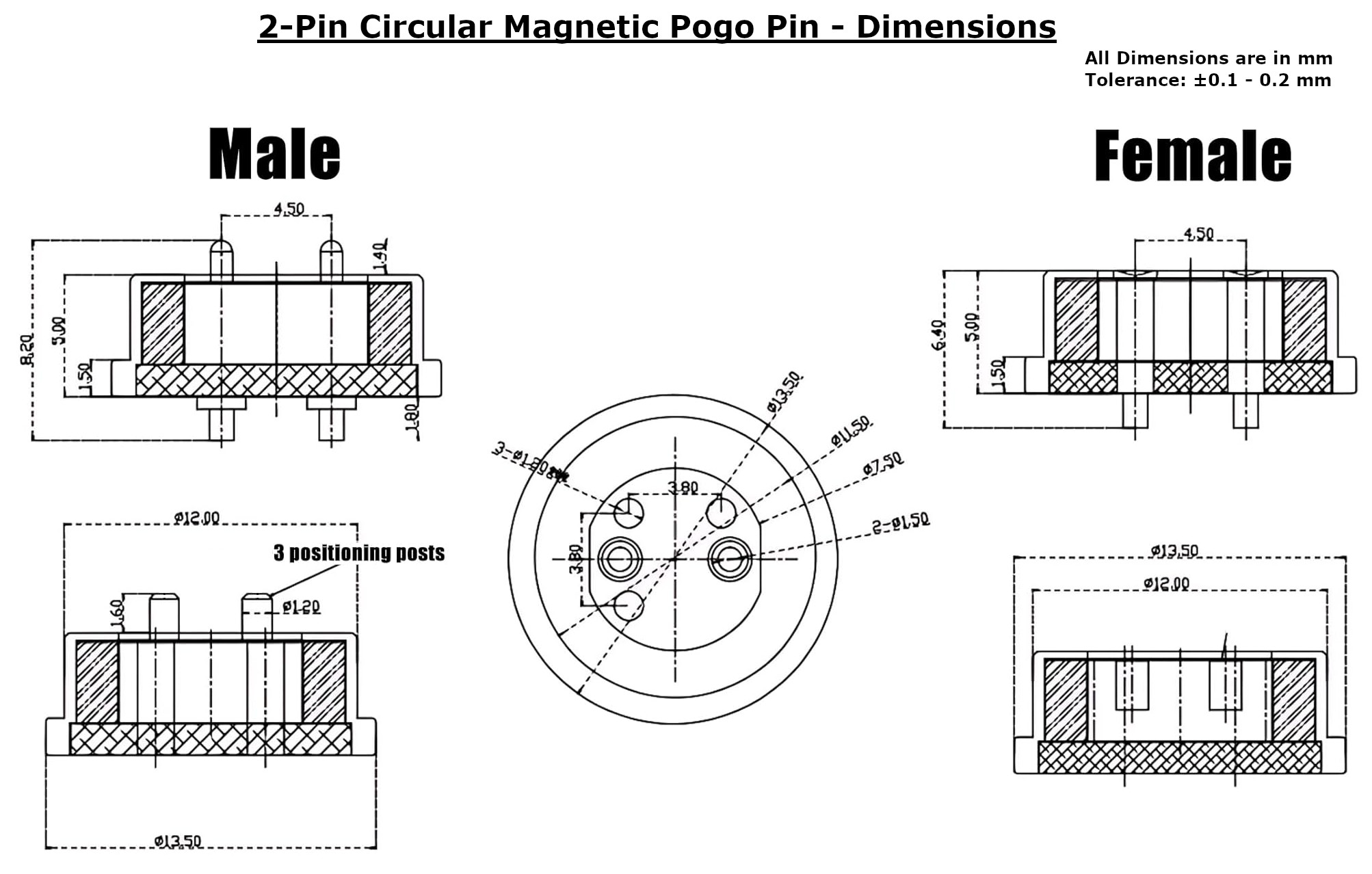

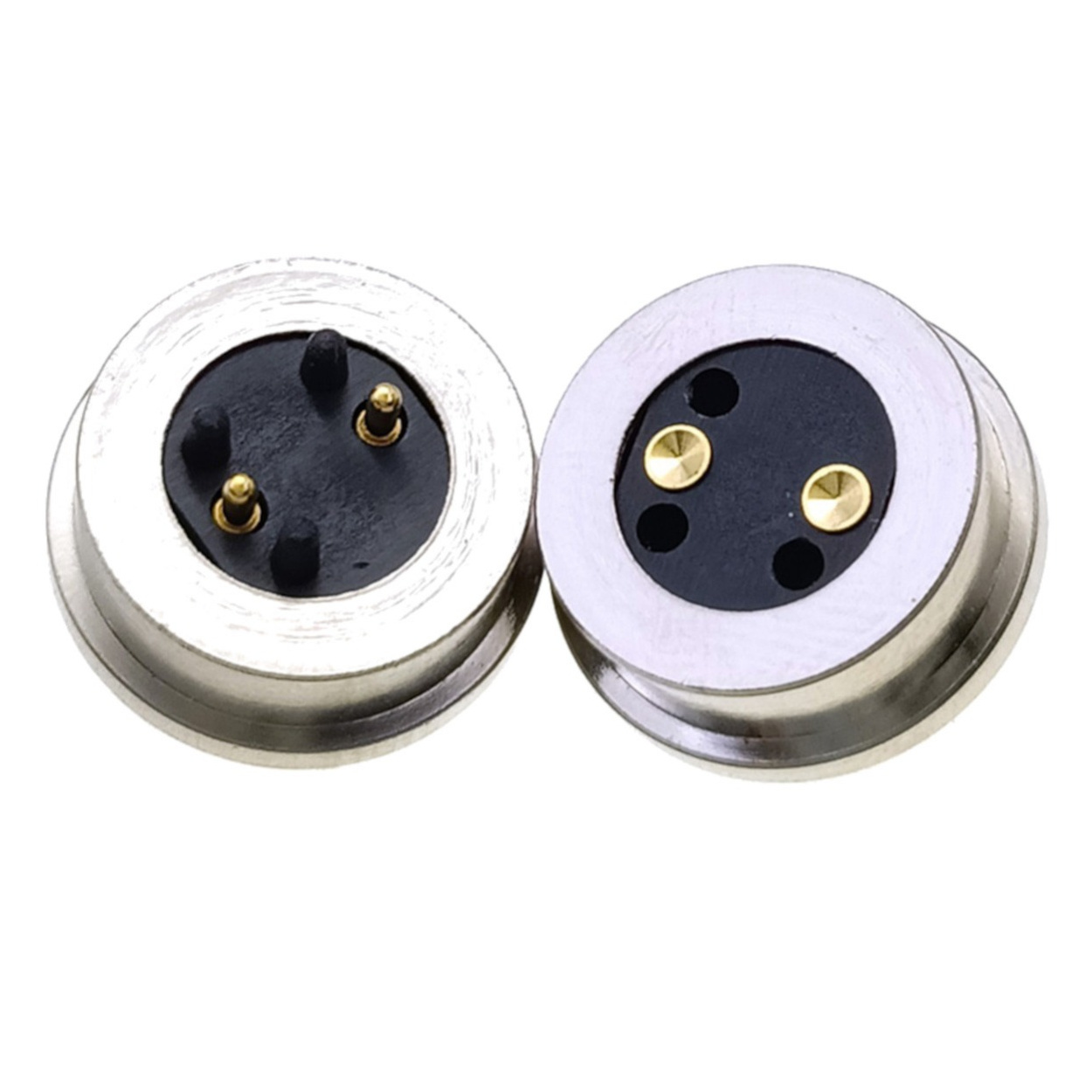

This magnetic spring-loaded pogo pin features a Circular Polarised Connector for male-female with 2 poles of DIP pogo pins on the connector.
Note: Magnetic spring-loaded pogo pins are available in different poles and types. Please check our website for the various available sizes. If you require custom sizes (length, spring action height, diameter, material, force, tip style, etc.), please contact us directly at [email protected], and we will assist you.
Features:
Applications:
Package Includes: 1 x 2P Magnetic Spring Loaded Pogo Pin Circular Polarised Connector Male Female
Specifications:




| Pogo Pin Head Shape | Spherical |
|---|---|
| Connector Type: | Circular |
| Contacts (Poles) | 2 |
| Travel Pin Size(mm) | NA |
| Mount Type | DIP |
| Max Current: | 1 A |
| Pin Spacing | 4.50mm |
