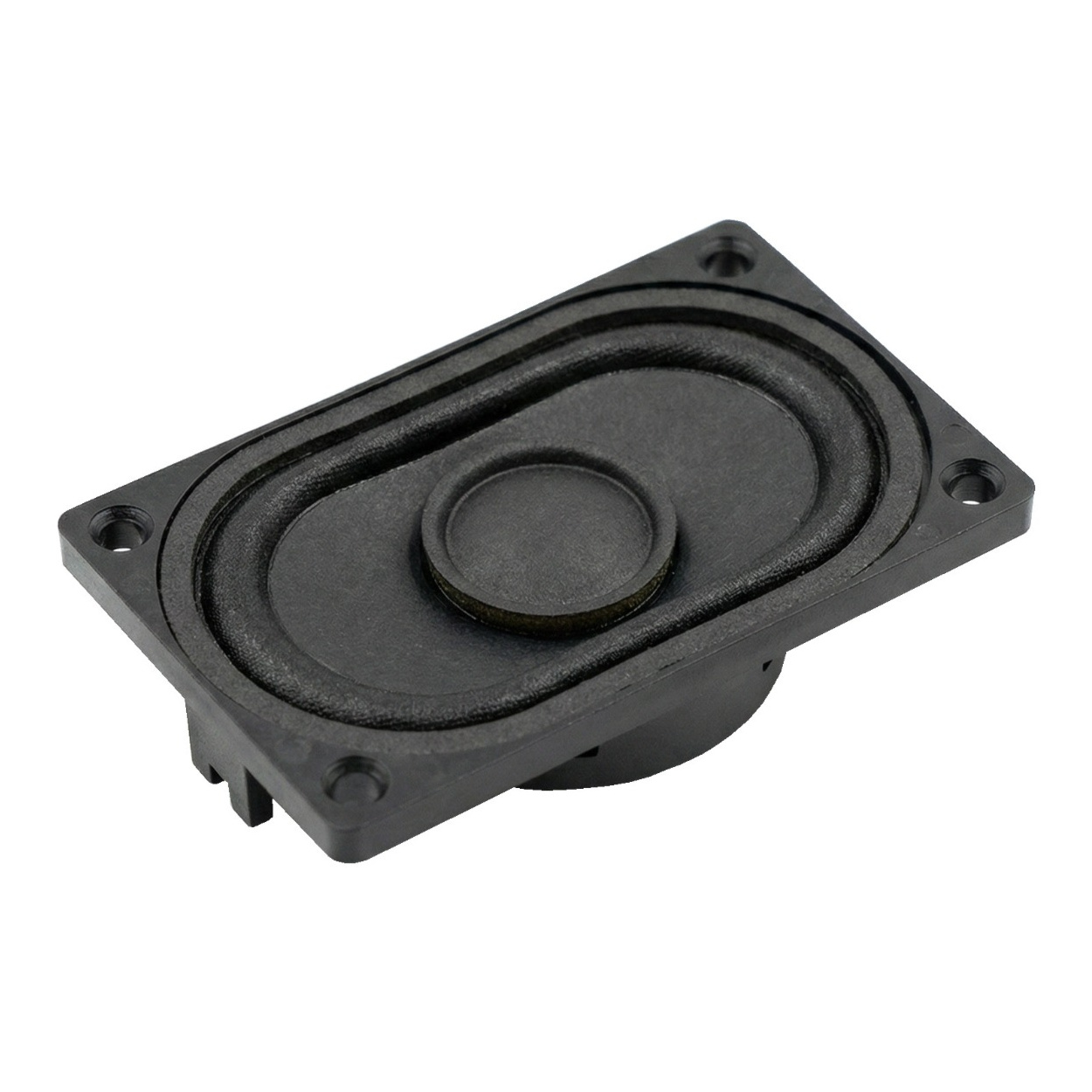

5030 8 Ohm 2W Mini Monitor Speaker - Rectangular Slim Audio Module for IoT & Laptops

Specifications:

• Dimensions: 50mm x 30mm (Rectangular)

• Impedance: 8 Ohm

• Power Rating: 2 Watts (Nominal)

• Type: Passive Internal Magnetic

• Mounting Type: M2/Panel Mount

• Frequency Response: Optimized for clear vocals and mid-range alerts

Key Applications

• IoT Voice Terminals: Add clear audio prompts to ESP32 or Raspberry Pi-based smart home hubs.

• Portable Gaming: The ideal size for custom "Gameboy" style builds or handheld emulators.

• Monitor/Laptop Repair: High-quality replacement driver for small monitors and notebook computers.

• Industrial Alerts: Reliable sound for CNC control panels or diagnostic equipment.


Project Evolution

• Past Projects (Prerequisites): If you’ve used basic 0.25W or 0.5W round speakers and found them too quiet or difficult to mount in slim cases, this is your next step.

• Feature Upgrade: Upgrading to this 2W 5030 driver unlocks louder, richer audio and a much professional-looking flush-mount finish for your enclosures.

• Effort Level: Beginner. Requires basic soldering to the two rear terminals. Pair with a 5V 3W amplifier for best results.

Virtual Technician & Wiring

• ⚠️ Safety Warning: Do not connect this speaker directly to a microcontroller pin (like Arduino or ESP32). You MUST use an audio amplifier module to prevent damaging your controller.
• Polarity: Look for the '+' and '-' markings near the solder pads. While speakers work in both directions, keeping polarity consistent is vital for "in-phase" sound if using two units.

Wiring Guide:

• Speaker Pad (+): Connect to Amplifier Output (+)
• Speaker Pad (-): Connect to Amplifier Output (-)

Package includes:

1 X 5030 8 Ohm 2W Mini Monitor Speaker - Rectangular Slim Audio Module for IoT & Laptops

Frequently Asked Questions (FAQ)

1. Is this speaker compatible with Arduino?
   Only if used with an amplifier module like the PAM8403 or LM386.
2. What are the exact dimensions of the 5030 speaker?
   It measures 50mm in length and 30mm in width.
3. Can I use this with a 4 Ohm amplifier?
   Yes, an 8 Ohm speaker is safe on a 4 Ohm amp, though it will produce slightly less volume.
4. Is it waterproof?
   No, this is an indoor/internal monitor speaker.
5. How do I mount this in my enclosure?
   It is typically mounted using double-sided adhesive foam or a custom 3D-printed bracket.
6. What is the magnet type?
   It uses a high-efficiency internal permanent magnet.
7. Does it come with pre-soldered wires?
   Most batches come with solder pads; please refer to the product photo for the current revision.
8. Can I use two of these for stereo sound?
   Yes, pair two speakers with a 2-channel amplifier.
9. What happens if I exceed 2 Watts?
   The voice coil may overheat, leading to permanent sound distortion.
10. Is this speaker shielded?
    It has minimal magnetic leakage but is generally safe for modern LCD electronics.
11. Will this work with Raspberry Pi?
    Yes, via an I2S DAC or a USB audio adapter with an amp.
12. What is the resonant frequency?
    It is tuned for vocal clarity (mid-range).
13. Is it suitable for high-bass music?
    No, due to its size, it is optimized for alerts and voice rather than heavy bass.
14. How do I identify the positive terminal?
    It is usually marked with a red dot or a '+' symbol on the PCB.
15. Can I use this as a microphone?
    Technically yes, but its sensitivity is optimized for sound output.
16. Is it compatible with ESP32 I2S?
    Yes, when paired with an I2S amplifier like the MAX98357A.
17. What wire gauge should I use?
    Standard 24AWG or 26AWG hookup wire is sufficient.
18. Can I glue the speaker in place?
    Yes, using hot glue on the outer frame (avoiding the diaphragm) is a common DIY practice.
19. What is the thickness of the 5030 speaker?
    It is approximately 10-13mm thick, making it ultra-slim.
20. Is this a ProMax brand product?
    Yes, it is part of our ProMax range of industrial-grade audio components.
