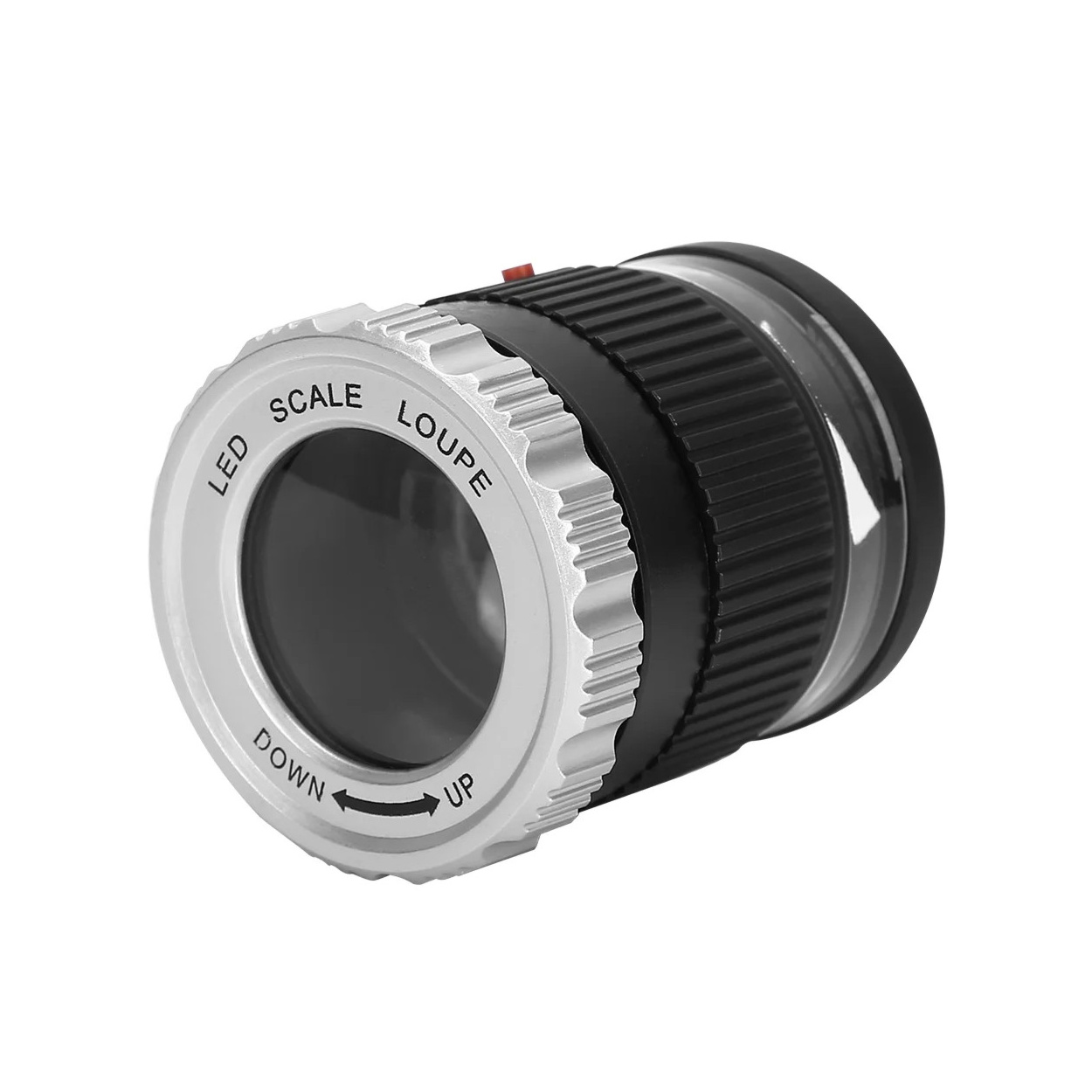

30X Magnifier Loupe LED Illuminated

Quick Introduction: Stop squinting and start analysing. The 30X Illuminated Loupe transforms your vision, allowing you to see microscopic details that are invisible to the naked eye. Whether you are checking the PCB inspection, hallmark on a silver ring, inspecting plant trichomes, or verifying the security strip on a banknote, this tool provides the magnification and illumination you need in a pocket-sized package.

Detailed Specifications

• Magnification Power: 30X

• Lens Material: Optical Glass (Scratch-resistant).

• Lens Diameter: 21mm.

• Lighting System:

  • 3x White LEDs: For general illumination and colour grading.

  • 3x UV LEDs: For fluorescence detection (currency strips, UV-reactive gems).

• Housing Material: Impact-resistant ABS Plastic with a Metal cover shell.

• Dimensions (Folded): Compact pocket size (~5cm x 2.5cm).

• Power Source: 3x LR927 Button Cell Batteries.

• Weight: ~20g (Ultra-lightweight).

Quality Advantage & Differentiation: Why choose this Illuminated Loupe?

1. Dual Spectrum Lighting: Most loupes only have a white light. This model includes UV (Ultraviolet) lighting, which is critical for checking counterfeit bills, analysing gemstone fluorescence, or finding pet stains.

2. Shadow-Free Viewing: The ring of lights surrounds the lens, ensuring the object you are viewing is evenly lit from all angles, eliminating annoying shadows caused by your head blocking the room light.

3. Optical Glass: Unlike cheap plastic lenses that distort the image edges, the glass lens provides a clearer, flatter field of view.

Key Applications & Usage

• Jewellery & Pawn: Read microscopic laser inscriptions on diamond girdles or verify "925" stamps on silver.

• Gardening/Horticulture: Inspect plant leaves for mites, aphids, or check trichome maturity.

• Electronics Repair: Check for cold solder joints or bridged pins on PCBs.

• Currency Verification: Use the UV light to reveal hidden security watermarks on paper money.

What's Included & Required

• Included: 1x 30X LED/UV Loupe, 1x Leatherette Carrying Case (typically included).

• Required: 3x Button Cell Batteries (Usually pre-installed, but requires removing a plastic pull-tab).

The "Virtual Technician" Support Panel

• ⚠️ THE "BLURRY" MYTH (Focal Length):

  • Physics Alert: A 30X lens has a very short focal length (approx. 5mm - 10mm).

  • How to Use: You must hold the loupe right up to your eye (resting on your cheekbone) and then bring the object within 1cm of the lens. If you hold it at arm's length, everything will be upside down and blurry. This is not a defect; it is optical physics.

• ⚠️ BATTERY TYPE:

  • This unit typically runs on LR927 or LR1130 button cells.

  • Note: If the LEDs flicker, the batteries are likely loose. Tighten the battery compartment on the bottom.

• ⚠️ UV LIGHT SAFETY:

  • Do not look directly into the UV LEDs. They are for illuminating objects, not for shining in eyes.
