These Magnetic Spring-Loaded Pogo Pin Connector Sockets are known for offering quick and easy connections without requiring manual alignment. They are used in a wide range of applications, such as Handheld Items, consumer Electronics, Industrial applications, etc.
Magnetic spring-loaded pogo pin connector sockets are contact devices that can establish a connection between two devices. These pogo pin connectors sockets have strong magnets on both male and female sockets arranged with the opposite poles, when both are placed together or nearby they easily lock to make the connections of the pogo pins without requiring manual alignment. This makes secure and stable connections with each circuit to connect devices. Magnetic pogo pin connectors are known for offering quick and easy connections for a wide range of applications like prototyping, and DIY projects. Ideal for use in various devices such as smartphones, tablets, wearable technology and many other consumer products manufacturing. The magnetic connection feature simplifies connecting and disconnecting, providing a quick and hassle-free experience.

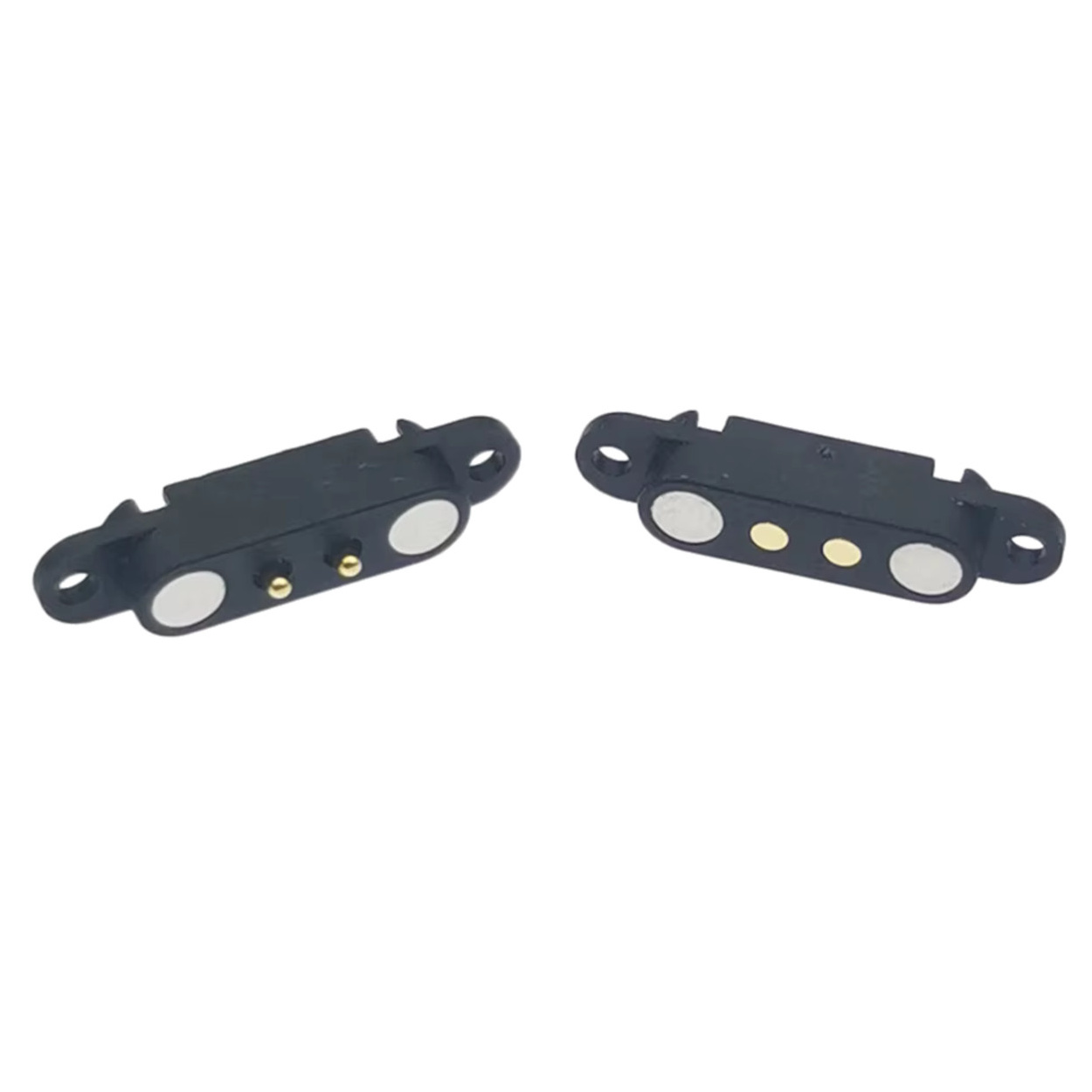

This Magnetic Spring Loaded Pogo Pin Male Female Connector Socket comes with 2 poles single row through holes solder(DIP) pogo pins with 2.54mm pitch pin spacing on the connector and it features with 1.5 mm mounting hole for easy mounting.
Note: Magnetic spring-loaded pogo pin connector sockets are available in different poles, please check our website for the various available sizes. if you require custom sizes - length, spring action height, diameter, material, force, tip style, etc contact us directly at [email protected] and we will help you with it.
Features:
Applications:
Package Includes: 1 x 2P Magnetic Spring Loaded Pogo Pin Male Female Connector With Mounting Hole

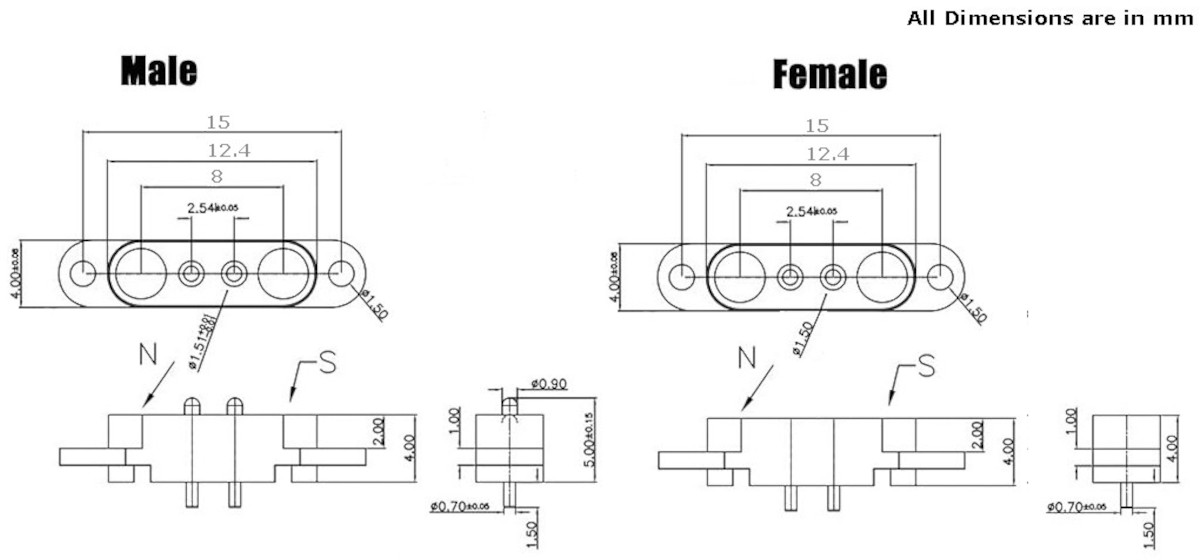

Specifications:




| Pogo Pin Head Shape | Spherical |
|---|---|
| Connector Type: | Square |
| Contacts (Poles) | 2 |
| Travel Pin Size(mm) | NA |
| Mount Type | DIP |
| Max Current: | 1 A |
| Pin Spacing | 2.54mm |
