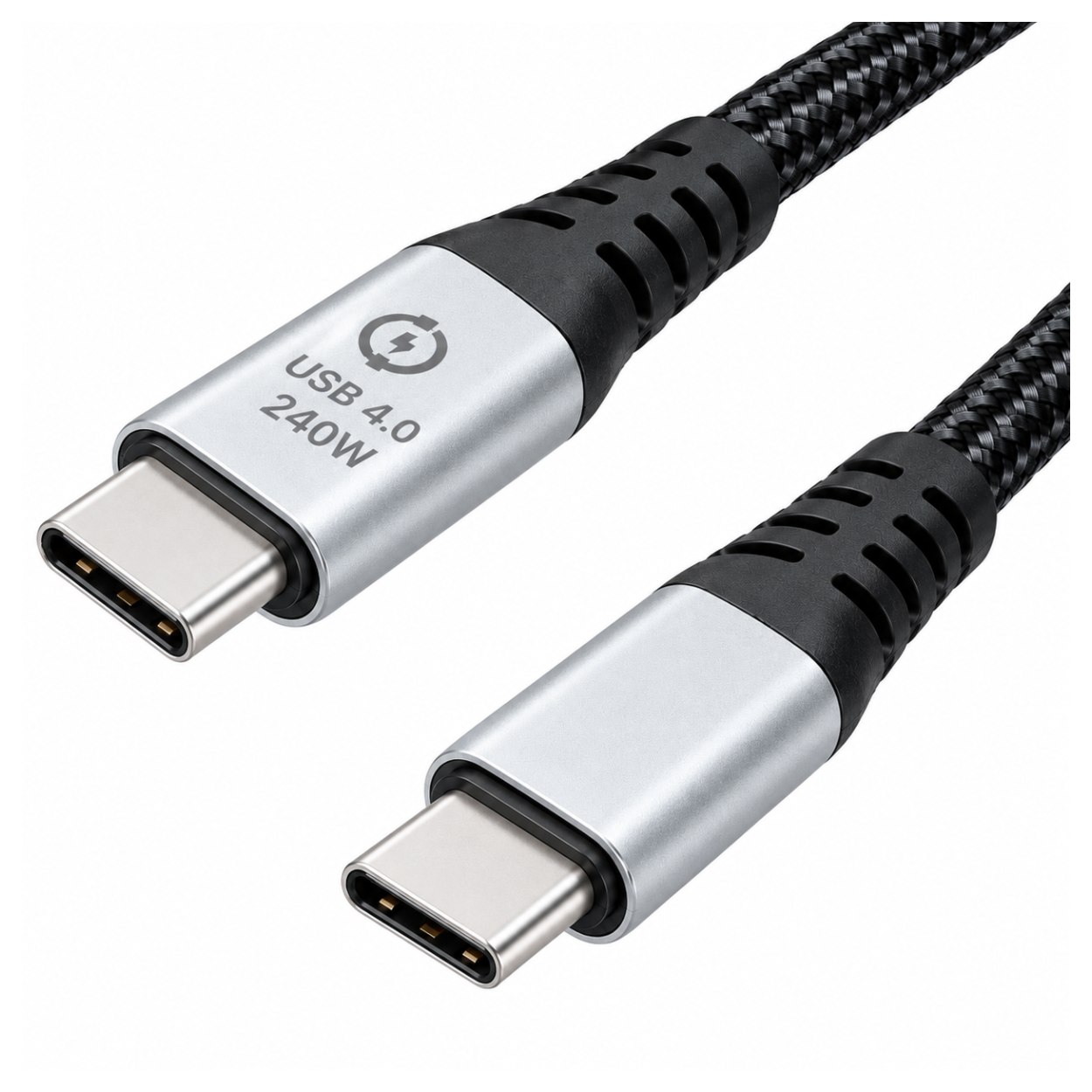

USB Type-C to USB Type-C Male-to-Male Cable – 1 Meter

Specifications:

• Connector A: USB Type-C (Male)
• Connector B: USB Type-C (Male)
• Cable Length: 1 Meter (100 cm)
• Primary Functions: Power Delivery & Data Transfer
• Operating Voltage Range: 5V to 12v
• Compatible Platforms: Raspberry Pi 4, ESP32 (Type-C variants), STM32 boards, standard 5V/9V/12V PD power supplies, and general consumer electronics.

Minimum hardware to get started:

• Target Development Board (e.g., Raspberry Pi 4 or ESP32 Type-C variant) L: to act as the receiver for your data transfer and power delivery.
• USB Type-C Power Adapter or PC/Mac Type-C Port : to source the initial power and data connection for your microcontroller.

Safety Warnings:

• Voltage Matching: Always verify your power supply's output matches your board's required input (e.g., 5.1V for Raspberry Pi). While this cable can carry higher PD voltages, sending 12V to a 5V-only board will instantly destroy it.
• Current Draw: Ensure your power brick can supply the amperage your board demands (minimum 3A recommended for Pi 4).

Accessories
Included in the Box:

• 1× USB Type-C to Type-C Male Cable (1 Meter)

Frequently Asked Questions

• Is this cable compatible with the Raspberry Pi 4?
  Yes, this cable is fully compatible with the Raspberry Pi 4 for providing stable 5V power when connected to an appropriate power supply.
• Can I use this to program an ESP32-S3 board?
  Yes, this cable supports high-speed data transfer, making it perfect for uploading code to modern ESP32 and STM32 development boards.
• Does it work with standard Android smartphones?
  Yes, it can be used for fast charging and data syncing between Type-C Android smartphones and a PC or Type-C charger.
• Is this cable compatible with Apple MacBooks and iPads?
  Yes, it can connect your development boards directly to the Type-C ports on modern MacBooks and iPads for serial communication.
• What is the maximum voltage this cable can handle?
  While designed for standard 5V electronics, a quality Type-C to Type-C cable like this can typically pass through up to 20V for Power Delivery (PD) applications.
• Can it deliver 3A of current for power-hungry boards?
  Yes, the thick internal copper core is designed to handle up to 3A, preventing voltage sag when your Raspberry Pi is under heavy CPU load.
• Does this cable have an e-marker chip inside?
  Standard 3A Type-C cables up to 60W typically do not require an e-marker chip; they rely on the host and device to negotiate power safely.
• Are all the data pins wired in this cable?
  Yes, this is a fully wired data and charge cable, meaning the D+ and D- lines are connected for serial communication and code uploading.
• Does the orientation of the Type-C plug matter?
  No, one of the primary benefits of Type-C is its reversible design; it will provide power and data regardless of which way it is plugged in.
• Can I cut this cable to wire it directly to a custom PCB?
  Yes, you can strip the jacket to access the internal VBUS, GND, D+, and D- wires, though using a dedicated Type-C breakout board is highly recommended.
