RUSHFPV RUSH BLADE V2 30.5mm Stack - F722 Analog FC & Extreme 60A 128K 32Bit ESC

Be the first to review this product
Flight Controller Boards
₹26,999.00 ₹ 22880.51 + 4118.49 GST
In stock
SKU
PRO5950

1-3 Days Express Shipping in India Available

Deliver to
Bulk Pricing
QTYUnit Price(Inlc. GST)
2+ ₹26,459.02 ₹ 22422.9 + 4036.12 GST
4+ ₹26,189.03 ₹ 22194.09 + 3994.94 GST
6+ ₹25,919.04 ₹ 21965.29 + 3953.75 GST
10+ ₹25,379.06 ₹ 21507.68 + 3871.38 GST

Contact us for Higher Quantities.

Contact us for Higher Quantities
Pickup today at Probots - Nagarabhavi (HQ)
  • Express & Standard Shipping Available through India
  • Only the Top Quality Product from reputed Manufacturers
  • Order Online 10,000+ Electronics Parts Online
  • Contact Sales for Bulk & B2B Enquiries
  • Need help for Ordering & Technical Queries?

Built for extreme performance! The RUSH BLADE V2 Stack features an F722 MCU, an ultra-clean ICM42688P gyro, and a fully armored PC casing. The included EXTREME 60A ESC utilizes an F4 200MHz processor to deliver flawless 128K PWM motor control.

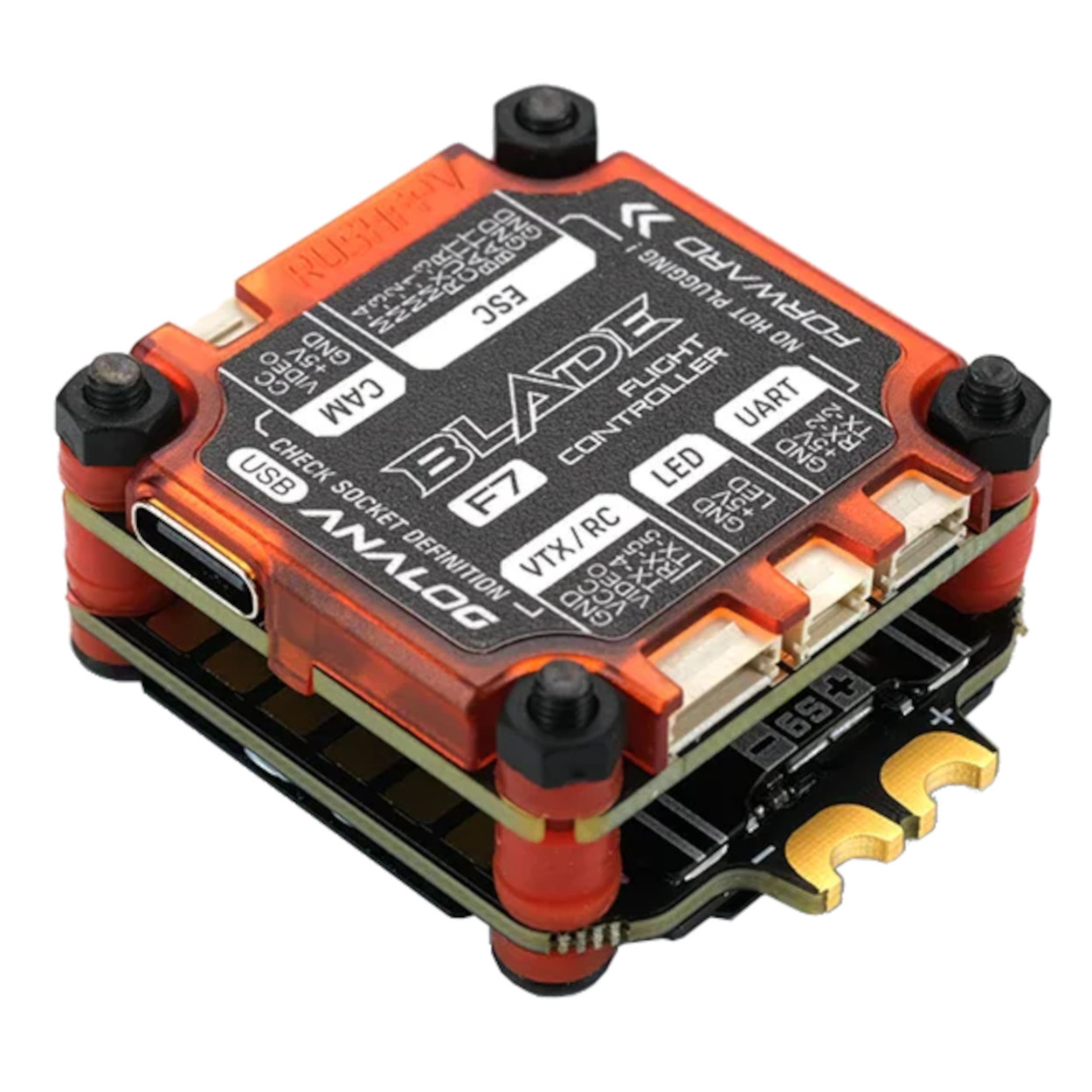

main product photo

Related Products

DC Motor PWM Speed Controller 28V 3A Board Module VariableDC Motor PWM Speed Controller 28V 3A Board Module Variable ₹239.00 400W 40V 10A PWM DC Motor Speed Controller Board Module400W 40V 10A PWM DC Motor Speed Controller Board Module ₹259.00 Simonk 30A Brushless ESC for F330 F450 F550 Drones - Pre-soldered ConnectorsSimonk 30A Brushless ESC for F330 F450 F550 Drones - Pre-soldered Connectors ₹499.00 SCR Speed Controller Dimmers Voltage Regulator Dimming Module AC 220V 2000wSCR Speed Controller Dimmers Voltage Regulator Dimming Module AC 220V 2000w ₹249.00 DC Motor Speed Controller Board Module PWM 48V 20ADC Motor Speed Controller Board Module PWM 48V 20A ₹549.00

Next-Generation Processing & Ultra-Clean Gyro At the heart of the flight controller is the high-performance STM32 F722 MCU, operating at blazing speeds up to 216MHz to guarantee ultra-low loop times. Gyro noise is the enemy of smooth HD footage and tight PID tunes. RUSHFPV utilizes the premium ICM42688P gyroscope, backed by an independent low-noise power supply to ensure pristine rotational data reaches the processor. The 6-layer PCB design physically isolates the sensitive MCU from the heavy electrical interference generated by the ESC below it.

The EXTREME 60A BLHeli_32 Powerhouse Don't let aggressive motor stators or 6S voltage spikes intimidate you. The included EXTREME 60A ESC is designed to handle a continuous 60 Amps per motor, with massive peak bursts up to 80 Amps. Unlike standard ESCs that use older F0 chips, the EXTREME features a dedicated F4 processor running at 200MHz. This allows it to effortlessly handle dynamic PWM frequencies ranging from 24KHz all the way up to 128KHz. This high PWM ceiling results in incredibly smooth, efficient motor operation, virtually eliminating throttle bumps and excessive motor heat.

Armored Design & Modular Architecture The BLADE V2 FC features a hard polycarbonate (PC) case that is highly impact-resistant and easy to disassemble. This shell completely isolates the delicate surface-mount components from conductive carbon fiber dust and wet grass clippings. Connection between the FC and ESC is handled by a highly reliable, locking modular cable, allowing for incredibly fast stack swaps in the field while retaining full-featured direct solder pads on the back for traditional wiring.

Analog vs. Digital Version Difference: This "Analog" edition features a built-in AT7456E OSD chip designed specifically to overlay telemetry directly onto traditional analog video feeds. Conversely, the "Digital" version replaces this analog circuitry with a dedicated plug-and-play connector for seamless, solder-free integration with HD systems like the DJI O3, Caddx Vista, or Walksnail Avatar.

Specifications :

Flight Controller

  • MCU: STM32F722RET6 (Up to 216MHz)

  • Gyroscope: ICM42688P

  • OSD: Built-in AT7456E CVBS OSD

  • BEC: Input 7-36V (3-6S LIPO), Output 5V 3A

  • Blackbox: 16MB Onboard Flash

  • UARTs: 5x UART Ports

  • PWM Ports: 8x Motor/Servo Outputs

  • Firmware Target: RUSH_BLADE_F7

  • Dimensions: 36.5mm x 37mm x 5.2mm (30.5x30.5mm Mounting)

  • Weight: 11g

EXTREME 60A ESC

  • Continuous Current: 60A

  • Peak Burst Current: 80A

  • Input Voltage: 3-6S LiPo

  • Processor: F4 @ 200MHz

  • PWM Frequency: 24K - 128K

  • Firmware: RUSH_BLADE_EXTREME (BLHeli_32)

  • Dimensions: 45mm x 36.5mm x 7.5mm

  • Weight: 16.5g

Key Applications and Projects

  • Heavy-Lift Cinewhoops: Handling the massive current spikes required to push large 8-inch propellers carrying heavy cinema cameras.

  • Bando Freestyle Quads: Providing the robust electrical durability and physical impact armor needed to survive hard crashes into concrete.

  • High-Speed Racers: Delivering ultra-low latency inputs and pristine 128K PWM control for perfectly smooth cornering at maximum throttle.

Unlock New Capabilities (Project Evolution) The 8-Motor Octocopter Cinema Beast: Break away from standard 4-motor builds! The RUSH BLADE V2 flight controller features 8 independent PWM output ports. By upgrading your frame to an X8 configuration (coaxial motors), you can run a secondary 4-in-1 ESC. Connect the first 4 motors to the main EXTREME 60A ESC via the modular harness, and wire the second ESC directly to the M5-M8 pads on the flight controller. You now have a redundant, 8-motor professional camera rig capable of safely returning to home even if an entire motor or propeller fails mid-flight!

Downloads:

Package Includes:

  • 1x RUSH BLADE F722 Analog V2 Flight Controller

  • 1x RUSH BLADE EXTREME 60A 32-Bit ESC

  • 1x 10-Pin FC-to-ESC Modular Connection Cable

  • 1x 35V 470uF Low ESR Capacitor

  • Silicone Wiring Harnesses (VTX, Camera, Receiver)

  • Vibration Isolation Grommets

FREQUENTLY ASKED QUESTIONS (FAQ)

Q: What Betaflight firmware target should I use for this FC? The specific Betaflight firmware target is RUSH_BLADE_F7. The unified target is STM32F7X2.

Q: Does the ESC require throttle calibration? If you are using DSHOT protocols in Betaflight, there is no need to calibrate the throttle. If using standard PWM/Multishot, calibration is required.

Q: What is the maximum voltage this stack can handle? Both the Flight Controller's BEC and the EXTREME 60A ESC are rated to handle up to 36V, making them fully compatible with 3S through 6S LiPo batteries.

Q: What are the UARTs used for? The FC has 5 UARTs. UARTs are used to connect serial devices like SBUS/CRSF receivers, GPS modules, VTX Smart Audio telemetry, and Bluetooth modules.

Q: Do I need to install a capacitor? Yes. It is highly recommended to connect a Low ESR capacitor (35V 470uF or above) in parallel at the XT60 pads to filter out voltage spikes and electrical noise.

Q: How do I put the flight controller into DFU mode for a firmware flash? If it's your first time or it is bricked, short the physical BOOT pad on the FC while plugging it into your PC via USB. You can also select the "activate boot loader / DFU" option in the Betaflight Setup menu.

Q: My PC isn't recognizing the FC in DFU mode. What do I do? You likely need to update the drivers. Download and open the Zadig tool, put the FC in DFU mode, select "STM32 BOOTLOADER" from the device list, set the driver to "WinUSB", and click "Reinstall Driver".

Q: What does the Demag Compensation setting in the ESC do? Demag compensation protects the motor from stalling caused by long winding demagnetization times after commutation. If you experience motor stuttering on quick throttle punches, turning this setting to Low or High can prevent sync loss.

Q: What PWM frequency should I run on the EXTREME 60A ESC? The F4 processor allows programmable frequencies from 24KHz up to 128KHz. Higher PWM frequencies can make motors run much smoother and move disturbing throttle bumps to less sensitive RPM ranges. 48KHz or 96KHz are common starting points.

Q: Does this flight controller support DJI O3 or Walksnail digital video? This specific FC is marked "ANALOG" and features a built-in CVBS analog OSD chip (AT7456E). While you can physically wire a digital VTX to a spare UART for MSP canvas mode, it does not have the dedicated plug-and-play digital connector found on the digital version of this board.

Q: Can I run 8 motors with this flight controller? Yes, the FC breaks out 8 total PWM motor/servo output ports (M1 through M8), allowing for X8 Coaxial or true Octocopter configurations.

Q: How much current can the 5V BEC supply? The onboard synchronous rectifier BEC provides a highly stable 5V output at up to 3 Amps, which is plenty of power for receivers, analog cameras, and GPS modules.

Q: What does the "Brake On Stop" ESC feature do? When enabled, it applies a braking force to the motor when the throttle reaches zero. This is primarily intended for fixed-wing crafts with folding propellers, not standard freestyle quadcopters.

Q: Is there an onboard barometer? Yes, the RUSH BLADE V2 flight controller features a built-in BMP280 barometer for altitude tracking and GPS rescue features.

Q: Does the ESC provide telemetry data? Yes, by wiring the "TELE" pin from the ESC to an open RX UART on the flight controller, the ESC will transmit real-time telemetry including RPM, temperature, and current draw.

Q: Are the motor direction settings configurable without re-soldering wires? Yes, using the BLHeli_32 configurator, you can set the motor direction to Forward, Reverse, Bidirectional, or Bidirectional Reversed entirely through software.
