8mm Hollow Shaft 600 PPR Incremental Rotary Encoder - NPN AB Phase Output (5-24V)

FREQUENTLY ASKED QUESTIONS (FAQ)

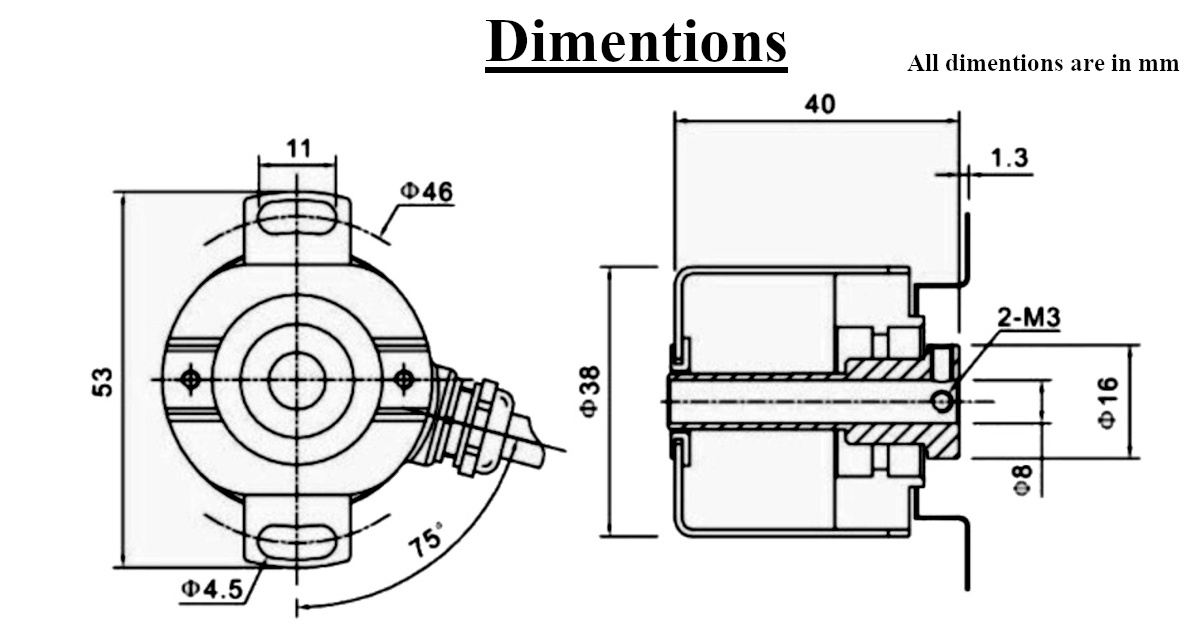

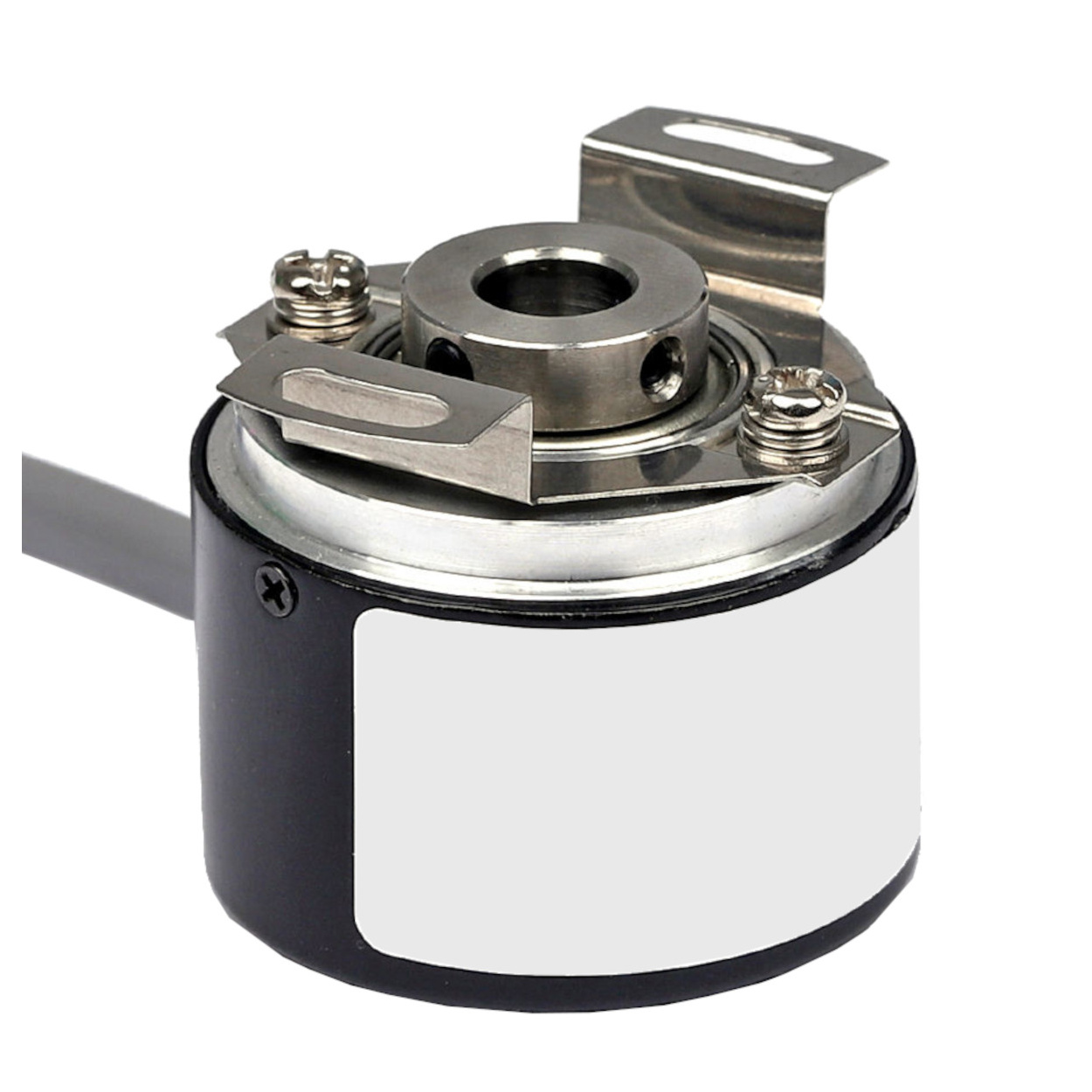

1. What does "Hollow Shaft" or "Blind Bore" mean? Instead of having a metal rod sticking out, the encoder has an 8mm hole through the center. You slide it over an existing shaft on your machine.

2. How does it attach to my motor's shaft? Once you slide it onto your 8mm motor shaft, you tighten the screw on the built-in metal clamping collar. This friction-locks the encoder's internal disk to your shaft.

3. What are the metal wings on the side for? That is the flexible anti-rotation tether. You bolt the slots to your machine's stationary frame. It stops the whole encoder body from spinning with the shaft while allowing slight flex to prevent bearing wear.

4. Do I need a flexible coupling (spider coupling) for this? No. That is the main advantage of a hollow shaft encoder. It mounts directly without the need for an external coupling, saving space and eliminating backlash.

5. What does 600 PPR mean? PPR stands for Pulses Per Revolution. The encoder generates 600 distinct electrical pulses for every full 360-degree rotation of the shaft.

6. What is an NPN output? NPN is a "sinking" output. When the encoder triggers, it internally connects the signal wire to Ground (0V).

7. Do I need a pull-up resistor? Yes. NPN open-collector outputs require a pull-up resistor connected between the signal line and your logic voltage (e.g., 5V) to pull the signal HIGH when the encoder isn't pulling it LOW. Many microcontrollers (like Arduino) have internal pull-up resistors you can enable via code (INPUT_PULLUP).

8. Can I power this with 24V but read it with a 5V Arduino? Yes! Because it is an NPN Open-Collector, the encoder only pulls the signal to Ground. If you power the encoder with 24V, but connect your pull-up resistor to your Arduino's 5V pin, the logic signal will safely toggle between 0V and 5V.

9. What are the A and B phases? The encoder outputs two separate pulse streams (A and B) that are slightly offset (quadrature). By reading which pulse hits first, your controller can determine the exact direction of rotation.

10. Does it have a Z (Index) pulse? No, typical industrial incremental encoders have a Z phase. It outputs exactly one pulse per full revolution, used for finding a "home" position.

11. How fast can I spin this encoder? Industrial hollow-shaft encoders of this type can usually safely track continuous speeds up to 3000-5000 RPM.

12. Why is my microcontroller missing pulses at high speeds? 600 PPR at high RPMs generates thousands of pulses per second. If you use standard polling code in a generic loop, you will miss pulses. You must use "Hardware Interrupts" in your microcontroller code.

13. Is this encoder waterproof? It is highly dust-resistant and splash-proof for factory environments (usually IP54), but it is not submersible.

14. What do the wire colors mean? Typically, Brown is VCC, Blue/Black is GND, Black/Green is Phase A, White is Phase B, and Orange is Phase Z. Always verify the wiring diagram printed on the specific label of your unit.

15. Can I use this on a 6mm or 10mm shaft? No. The rigid internal bore is machined specifically for an 8mm shaft. Forcing it onto a larger shaft is impossible, and using it on a smaller shaft will cause severe off-center wobbling that will destroy the glass disk.

16. Does this measure absolute position? No. This is an incremental encoder. It only tracks movement relative to where it started. If power is lost, it forgets its position.

17. Can I mount the metal tether bracket rigidly without flex? The bracket must have some flex. If you rigidly bolt the encoder body to the frame and rigidly clamp it to the shaft, any microscopic bend in your motor shaft will put immense radial load on the encoder bearings, destroying them quickly.

18. How does 600 PPR equal 2400 counts? By using "4X decoding" in your software (counting the rising and falling edges of both the A and B phases), you can multiply the 600 PPR by 4, giving you 2400 measurable steps per revolution.

19. What is the back of the encoder made of? The rear housing is a solid, sealed aluminum/metal cap to protect the electronics.

20. Can I remove the metal tether bracket? Yes, it is usually held on by a few small screws, but you must replace it with another method to prevent the encoder body from spinning.
