5W High Power UV LED - 395nm Ultraviolet (16mm Aluminum Round PCB)

Specifications:

• Power Rating: 5 Watts
• Peak Wavelength: 395nm
• Forward Voltage (Vf): 3.4V - 3.8V DC
• Forward Current (If): 1000mA - 1200mA (Max)
• PCB Form Factor: 16mm Round (Standard Flashlight Size)
• PCB Material: Aluminum Core

Key Applications & Projects

• Scorpion Detection: The high intensity is perfect for long-range spotting.
• Automotive Leak Detection: Illuminates UV dyes in oil and AC systems brilliantly.
• Pet Stain Detection: Reveals dried urine stains on carpets.
• Resin Curing: Capable of curing hobby resins (slower than 385nm, but effective).
• Glow Effects: Supercharges glow-in-the-dark paints and fishing lures instantly.

Project Evolution

• Prerequisites: A flashlight host (16mm LED slot) and a soldering iron.
• The Upgrade: Remove the stock white LED from your tactical torch and solder this in.
• Effort Level: Intermediate. Requires basic soldering skills to attach wires to the small pads on the 16mm board.

Virtual Technician: Wiring & Safety Guide

⚠️ CRITICAL WARNINGS:

• Heat: The 16mm board has very little thermal mass. It heats up instantly. Thermal Paste is mandatory.
• Eyes: While the light looks like a dim purple, the UV energy is high. Do not stare into the beam.
• Driver: Use a 1.2A driver (e.g., 7135x3 or 7135x4). Do not use a 2.8A driver (7135x8) or Direct Drive, as it will kill the LED.

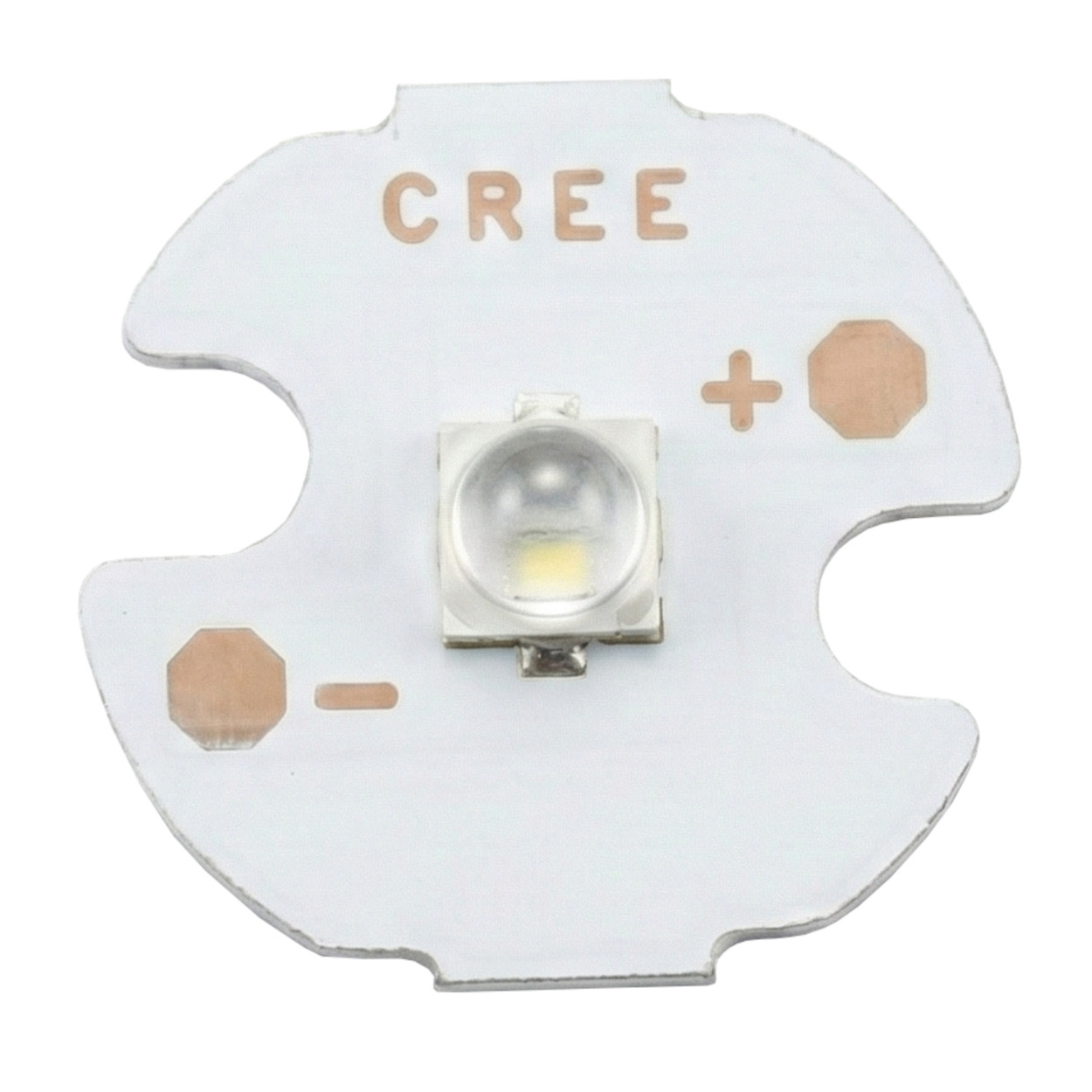

Wiring Pinout:

• (+) Pad: Positive Input.
• (-) Pad: Negative Input.
• Installation: Press firmly against the pill/shelf of the flashlight to minimize air gaps in the thermal paste.

​Packages include:

1 X 5W High Power UV LED - 395nm Ultraviolet (16mm Aluminum Round PCB)

Frequently Asked Questions (FAQ)

1. Is this the same as the ₹649 (365nm) version?
No. This is 395nm. It emits a lot of visible purple light. The ₹649 version is 365nm, which is invisible/stealthy. This one is better for general brightness; the expensive one is better for forensics.

2. Will it fit in a Convoy S2+?
Yes, perfectly. It uses the standard 16mm footprint.

3. Is it brighter than the 3W version?
Yes, significantly. It handles nearly double the current (1200mA vs 700mA), giving you a longer beam distance.

4. Can I cure resin with this?
Yes. It works on most standard UV resins. It is slightly slower than the 385nm version, but for casual use, it is fine.

5. Does it get hot?
Yes. 5W in a small flashlight produces a lot of heat. Do not run it for more than a few minutes at a time unless your flashlight is large (like a C8).

6. Can I use a 12V battery?
No! You need a driver. Connecting 12V directly will explode the LED.

7. Is it good for finding scorpions?
Yes, it is the best. Scorpions glow very brightly under 395nm, and the extra power helps you see them from far away.

8. Do I need special glasses?
We always recommend UV safety glasses. The purple light can be dazzling, and the UV is invisible but strong.

9. Can I use thermal tape?
For 5W, Thermal Paste is much better. Tape acts like an insulator at high power levels.

10. Why is it so cheap ?
395nm chips are the most common UV chips produced globally, so the cost is low compared to the specialized 365nm chips.

11. Is the PCB copper?
No, it is Aluminum.

12. What driver should I use?
We recommend a 1000mA - 1200mA linear driver (like AMC7135 x 3 or x 4).

13. Can I dim it?
Yes, if your driver supports modes (Low/Med/High).

14. Is it waterproof?
No.

15. Can I use it for checking AC leaks?
Yes, the yellow/green dye used in AC systems glows very bright under 395nm.

16. Does it work on banknotes?
It works, but the purple light washes out the details. Use 365nm for banknotes.

17. Can I use it to spot urine stains?
Yes, but again, the purple light reduces the contrast. It works, but 365nm is better.

18. What is the beam angle?
~120 degrees. Your flashlight reflector will focus it.

19. Polarity?
Marked on the board (+ / -).

20. Can I run it on 2x AA batteries?
No. 2x AA is only 3V. You need at least ~3.6V (like a Li-Ion 18650) to light this up fully.
