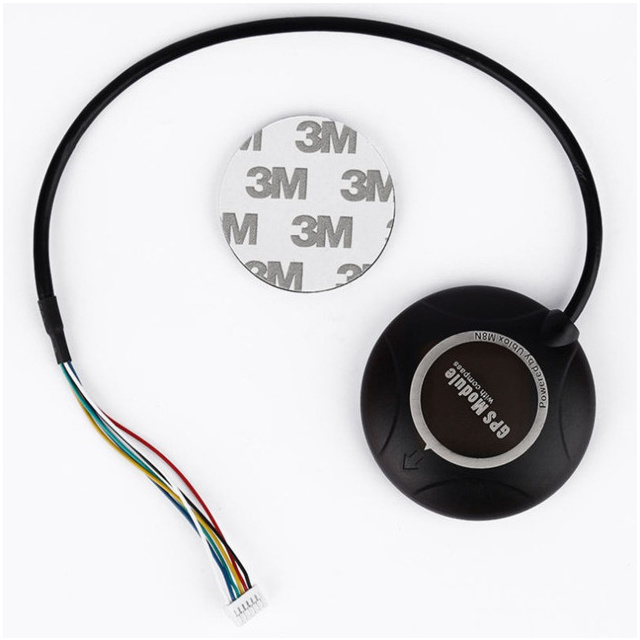

NEO-M8N GPS Module with Serial UART Interface

₹1,399.00 Rs. 1185.59 + 213.41 GST
In stock. 1-7 Day Delivery in India.
SKU
PRO2214

This is a easy and simple to use GPS Receiver. IT is the updated version of the hugely popular NEO6M GPS Receiver. Just power it with 5V and it will start sending GPS output in serial interface. You can then read this data from your microcontroller, Arduino, Raspberry Pi, ESP32 etc. This module can provide latitude and longitude position within 3 seconds of powerup in the ideal conditions!

The NEO-M8N GPS Module GY-NEO8MV2 is optimized for cost-sensitive applications, it provides the best performance and easier RF integration at low power consumption levels. The futureproof NEO-M8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

The module comes with a general purpose patch antenna. This can be replaced by a better quality GPS antenna to increase the performance.

The NEO-M8 series of concurrent GNSS modules are built on the high-performing M8 GNSS engine in the industry-proven NEO form factor.NEO-M8N provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEOM8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

Features :

  1. The ceramic antenna provides a very strong signal
  2. Supply Voltage: 3V to 5V
  3. With LED indicator lamp
  4. The default baud rate: 9600.
  5. With data backup battery.
  6. LED signal indicator.
  7. Compatible with various flight controller modules.
  8. EEPROM save the configuration parameter data when power-down.
  9. Assistance AssistNow GNSS Online
  10. AssistNow GNSS Offline (up to 35 days)
  11. AssistNow Autonomous (up to 6 days)
  12. OMA SUPL & 3GPP compliant
  13. Oscillator TCXO
  14. Built-in RTC crystal
  15. Anti-jamming Active CW detection and removal.
  16. Extra onboard SAW bandpass filter
  17. Memory Flash
  18. Supported antennas Active and passive
  19. Odometer Travelled distance
  20. Data-logger For position, velocity, and time
  21. Antenna size 25*25mm
  22. Module size 25mm*35mm
  23. Mounting aperture 3mm

Package Includes :

1 x  NEO M8N GPS Module.
