| Bulk Pricing | ||
|---|---|---|
| QTY | Unit Price(Inlc. GST) | |
| 2+ | ₹881.02 ₹ 746.63 + 134.39 GST | |
| 4+ | ₹872.03 ₹ 739.01 + 133.02 GST | |
| 6+ | ₹863.04 ₹ 731.39 + 131.65 GST | |
| 10+ | ₹845.06 ₹ 716.15 + 128.91 GST | |

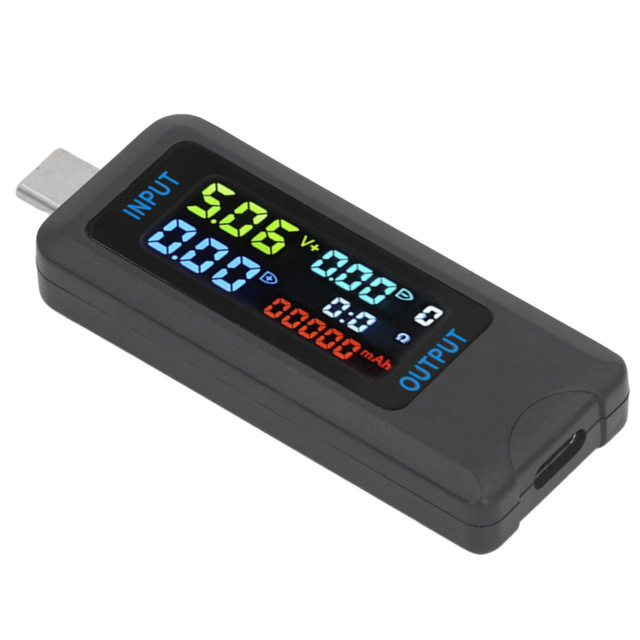

Comprehensive dual-interface power tester featuring 5A high-current USB-A and Type-C ports. Displays up to 150W of power, voltage, current, impedance, and internal temperature on a crisp IPS true color LCD screen.
Unmatched Dual-Interface Versatility Unlike older single-port testers, this 10-in-1 Digital Tester features both standard 8A high-current USB-A (U-INPUT / U-OUTPUT) and Type-C (C-INPUT / C-OUTPUT) interfaces built directly into the housing. This allows you to test everything from legacy 5V wall bricks to modern high-wattage laptop chargers without needing a drawer full of adapter dongles. The unit is designed to handle high-current applications up to 5A safely.
IPS True Color Display & 10 Data Points The tester utilizes an upgraded IPS true color digital LCD screen for exceptional contrast and readability from any angle. It simultaneously tracks and displays ten vital metrics to give you a complete picture of your power delivery:
Voltage & Current: Real-time V and A monitoring.
Power (Wattage): Measures continuous power throughput from 0 to 150W.
Capacity & Energy: Tracks both mAh and mWh to verify power bank sizes.
Impedance: Measures cable resistance from 1 to 999.9 ohms.
Temperature: Monitors internal device heat from 0 to 80°C.
Timing: Records charging sessions up to 999 hours and 59 minutes.
D+ / D- Data Line Voltage: Reads 0 to 2.99V on the data pins for fast-charge protocol diagnostics.
Physical Controls and Compact Design Despite its massive feature set, the tester maintains a compact footprint measuring just 76.9mm long, 38mm wide, and 11mm thick. The side of the unit houses dedicated "Mode" and "On/Off" keys to easily switch between the main display, the 4-wire fast-charge diagnostic interface, and a screen-off rest/standby mode.
Input Interfaces: 5A High-Current USB-A / Type-C
Output Interfaces: Female USB-A / Type-C
Display: IPS True Color Digital LCD
Power Measurement Range: 0 - 150W
Impedance Measurement Range: 1 - 999.9 ohms
Temperature Measurement Range: 0 - 80°C
Timing Capacity: 999 hours and 59 minutes
USB D+ / D- Voltage Range: 0 - 2.99V
Refresh Time: >500mS (approx. 0.5 times/second)
Self-Consumption Current: <0.02A
Dimensions: 76.9mm x 38mm x 11mm
Universal Charger Verification: Using the dual ports to test both old Micro-USB devices (via the USB-A port) and modern laptops (via the Type-C port) to ensure they are pulling the correct wattage.
Cable Resistance Sorting: Utilizing the impedance tracker to find the cables with the lowest internal resistance for maximum charging speeds.
Power Bank Capacity Audits: Passing power through the meter from 0% to 100% to record the exact mAh and mWh capacity of a new battery pack.
Unlock New Capabilities (Project Evolution)
Advanced Thermal Stress Testing: Pair this dual-interface tester with an adjustable USB Electronic Dummy Load module. By forcing a multi-port GaN wall charger or power bank to output its absolute maximum rated current (e.g., exactly 5.0 Amps) for an extended period, you can use the tester's continuous wattage and internal temperature readouts to verify if the charger's thermal throttling and over-current protection actually work properly!
Package Includes:
What does "10-in-1" mean? It refers to the ten distinct data points the device measures: Voltage, Current, Power, Capacity, Energy, Impedance, Temperature, Time, D+ Voltage, and D- Voltage.
Does this have standard rectangular USB-A ports? No, this specific upgraded model utilizes high-current USB Type-C for both the input and output to support modern Power Delivery (PD) devices.
What is the maximum wattage it can measure? It is rated to measure up to 150W of power throughput.
What is the maximum current it can handle safely? The Type-C interface is built to handle high-current applications up to 5A safely.
Can it measure the resistance of my charging cable? Yes, it features an impedance measurement range from 1 to 999.9 ohms (Ω), allowing you to identify cheap, high-resistance cables.
Does it have a color screen? Yes, it features an upgraded IPS true color digital LCD screen for excellent contrast and viewing angles.
What is the maximum time it can record a charge? The built-in timer can track continuous charging sessions up to 999 hours and 59 minutes.
Can it measure temperature? Yes, it has an internal temperature sensor with a measurement range from 0 to 80°C to help monitor thermal loads during high-power fast charging.
What are the D+ and D- voltages used for? Monitoring the 0 to 2.99V range on the USB data lines helps advanced users diagnose whether specific fast-charging protocol handshakes (like QC 3.0 or Apple 2.4A) are occurring.
How often does the screen update? The tester has a refresh rate of >500mS, meaning the values on the screen update roughly twice a second.
Will the tester drain my battery or slow down my charge? No, the tester is incredibly efficient. Its self-consumption current is less than 0.02A (20mA), which is negligible and will not impact high-speed charging.
Does it require external batteries to work? No, it draws its tiny operating power directly from the USB-C source it is plugged into.
Can I use this to test my laptop's USB-C charger? Yes, it is perfect for testing high-wattage laptop chargers (up to 150W limit).
How do I test my power bank's true capacity? Fully deplete the power bank. Plug the tester into a wall charger, and plug the power bank into the tester. Let it charge to 100%. The recorded capacity metric on the screen is your true battery size.
Does it support data transfer if left plugged in? In most cases, the data lines pass through, but for high-speed file transfers (like external SSDs), it is recommended to remove the tester as it may interfere with USB 3.0+ high-speed data protocols.
Is it bidirectional? The ports are typically designed with a specific "Input" and "Output" direction for the power flow to register accurately on the meter. Follow the markings on the casing.
What happens if the temperature exceeds 80°C? You should immediately unplug the device. Temperatures exceeding 80°C indicate a severe fault in your charger, cable, or the device being charged.
Can I use it with older Micro-USB devices? Only if you use physical adapter dongles (USB-C to Micro-USB), as the physical ports on this meter are strictly Type-C.
Will it work with Apple MacBooks and iPads? Yes, any device that uses standard USB-C power delivery can be monitored through this tester.
Is the screen readable in bright light? Yes, the IPS (In-Plane Switching) display technology provides superior brightness and color accuracy compared to standard TFT LCDs, making it highly readable.
