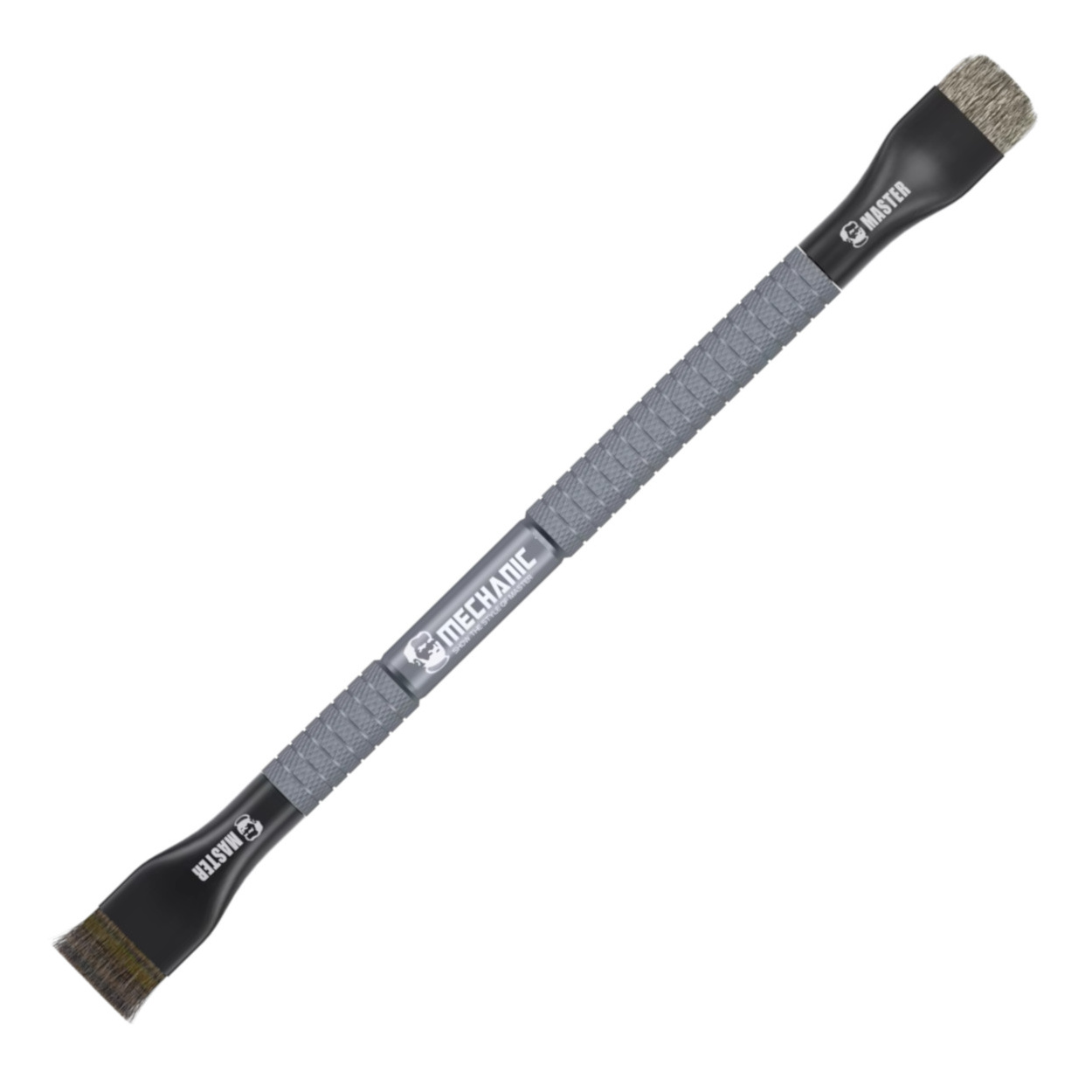

Mechanic Dual-Head Cleaning Brush - Steel Wire & MANE (Pig Hair) for PCB Repair

Specifications

• Brand: Mechanic (Master Series)

• Handle Material: Anti-Static Alloy with Knurled Non-Slip Grip

• Bristle Type 1: Ultra-Fine Steel Wire (Hard/Stiff)

• Bristle Type 2: Pig Hair / Mane (Soft/Flexible)

• Total Length: Approx. 145mm

• Heat Resistance: High (Suitable for cleaning warm boards)

• Application: Degumming, Desoldering, cleaning, Rust removal, Dusting

Key Applications

• IC Glue Removal: Use the Steel side to scrub off the "black glue" (underfill) from BGA pads after chip removal.

• Water Damage Repair: Use the Steel side to clean white corrosion/fungus from capacitors and connectors.

• Final Polish: Use the Mane side with a little IPA to shine up the board and remove flux streaks after soldering.

• Port Cleaning: Use the Mane side to gently clean dust out of USB-C and Lightning ports.

Virtual Technician: Usage Tips ⚠️

• Know Your Sides: Never use the Steel side on optical lenses (cameras) or soft plastic connectors, as it will scratch them. Always flip to the Mane side for delicate parts.

• Magnetic Warning: The Steel bristles are magnetic. Be careful not to accidentally pick up tiny SMD resistors or screws when moving the brush across your mat.

• Solvent Friendly: Both heads are resistant to IPA (Isopropyl Alcohol) and Thinner. Dip the brush head to dissolve sticky flux, but dry the pig hair side well to keep it soft.

Accessories

• Included:

  • 1 x Mechanic Dual-Head Brush (Steel + Mane)

• Required (Sold Separately):

  • Isopropyl Alcohol (IPA)

  • PCB Holder (Fixture)

  • Microfiber Cloth

Frequently Asked Questions (FAQ)

1. What is the "Mane" side made of?

   • It is made of natural Pig Hair (Hog Bristles). This material is chosen because it is naturally anti-static and durable.

2. Will the steel side scratch my PCB?

   • It can if pressed too hard. Use light, circular motions to "scrub" rather than "dig."

3. Is this brush ESD safe?

   • The Mane side is anti-static (ESD safe). The Steel side is conductive metal.

4. Can I replace the heads?

   • On most Mechanic Master series brushes, the heads are threaded and screw in, so they can be replaced if spares are available.

5. Can I use the steel side on a soldering iron?

   • Yes, it works great as a tip cleaner to remove black oxidation.

6. Does it shed bristles?

   • Mechanic is a premium brand with crimped ferrules, so shedding is minimal compared to cheap brushes.

7. Can I clean phone charging ports with it?

   • Use the Mane (Soft) side only. Do not put the Steel side into a charging port as it may short the pins.

8. Is the handle non-slip?

   • Yes, it features a textured "knurled" grip for precise control.

9. Can I use it with Acetone?

   • Yes, the materials are resistant to standard repair solvents.

10. Is this better than a toothbrush?

    • Yes. Toothbrushes generate static and melt easily. This tool is heat-resistant and ESD-safe.

11. How do I clean the brush?

    • Swirl it in a cup of IPA/Thinner and wipe dry with a paper towel.

12. What is the length of the brush?

    • Approximately 14.5 cm (Standard pen size).

13. Can I use the Mane side for thermal paste?

    • Yes, for soft paste. Use the Steel side for dried, hard paste.

14. Is it magnetic?

    • The handle is usually alloy (non-magnetic), but the Steel bristles are magnetic.

15. Does it rust?

    • The steel bristles are stainless/alloy and rust-resistant, but try to keep them dry after using water-based cleaners.

16. Why is Pig Hair used?

    • It is stiff enough to clean but soft enough not to scratch, and holds solvent well.

17. Can I use it on jewelry?

    • The Mane side is excellent for cleaning intricate jewelry.

18. Will it remove conformal coating?

    • The Steel side will scrub through coating. The Mane side will not.

19. Is this the original Mechanic brand?

    • Yes, Probots sells genuine Mechanic tools.

20. Can I use it for BGA reballing?

    • Yes, it is essential for cleaning the BGA pads before placing the new chip.
