Read Article βVL53L1X is an advanced time-of-flight (ToF) laser ranging sensor that is a miniature ToF sensor with an accurate measurement range of up to 4 m and a fast measurement frequency of up to 50 Hz. This is an upgrade version of previously available VL53L0X sensors, which can measure distances up to 2 meters only.
ToF VL53L1X is a proximity distance sensor that can sense obstacles in front of the sensor up to 4 meters. It is a highly accurate sensor with a precision of around 1mm and an accuracy of around +/-5mm. Very few sensors can detect obstacles with this accuracy. Compared to the VL53L0x and VL53l3x, it has a programmable sensor array that can be used to vary the sensor's Field of View(FoV). You can also detect the independent sensor readings. Readings vary slightly with ambient light and object color.
This distance sensor contains a tiny invisible laser source and a matching sensor. It can detect the "time of flight", or how long the light has taken to bounce back to the sensor. Since it uses a very narrow light source, it is good for determining the distance of only the surface directly in front of it. Unlike sonars that bounce ultrasonic waves, the 'cone' of sensing is very narrow. Unlike IR distance sensors that try to measure the amount of light bounced, the VL53L1X is much more precise and doesn't have linearity problems or 'double imaging' where you can't tell if an object is very far or very close.
VL53L1X Laser ToF Flight Time Ranging Sensor Module can be used for easy integration into your devices and basic gesture detection applications.It is available in a miniature reflowable package with integrated SPAD receive array, 940 The nm stealth Class1 laser emitter, physical infrared filters and optics provide optimum ranging performance in a variety of ambient lighting conditions and offer a variety of hood window options. Unlike traditional infrared sensors, the VL53L1X uses STToF technology to measure absolute distances regardless of target color and reflectivity. It is also possible to program the size of the ROI on the receiving array, thereby allowing the sensor FoV to be reduced.
Downloads:
Features:
Applications:

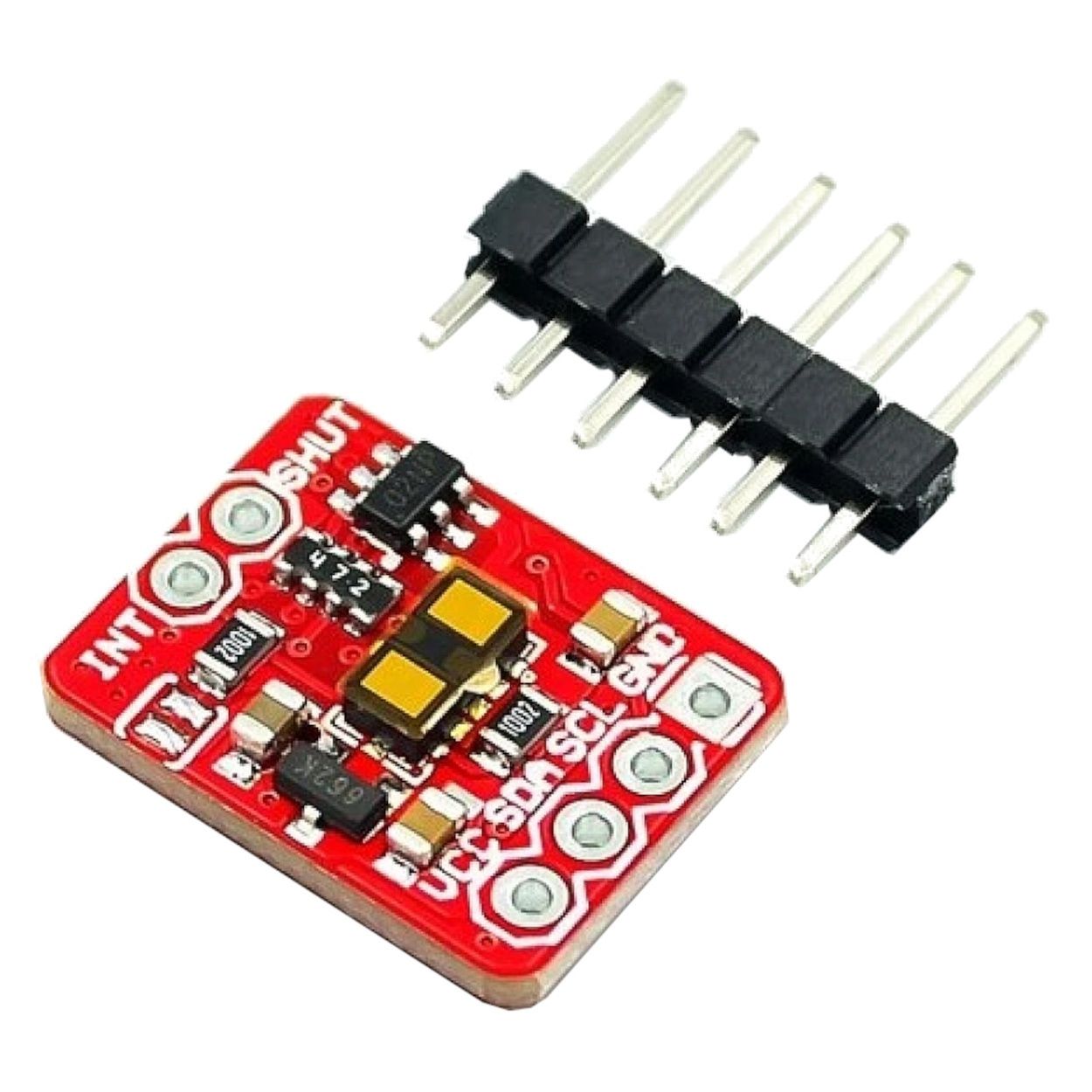

Package includes: 1 x ToF VL53L1X Laser Time-of-Flight Range Finder Distance Sensor Module
Specifications:
Pinouts Definition:


| Sensor Technology | LiDAR / ToF (Time of Flight) |
|---|---|
| Scanning Type | Single-Point (1D) |
| Max Measurement Range | Medium Range (1m to 5m) |
| Output Interface | I2C |
| Operating Environment | Indoor Use |
| Manufacturer | Generic |
