5V 10W Flexible Silicone Heating Pad (50x50mm, Waterproof)

Specifications

• Operating Voltage: 5V DC

• Power Rating: 10W

• Current Draw: ~2.0A

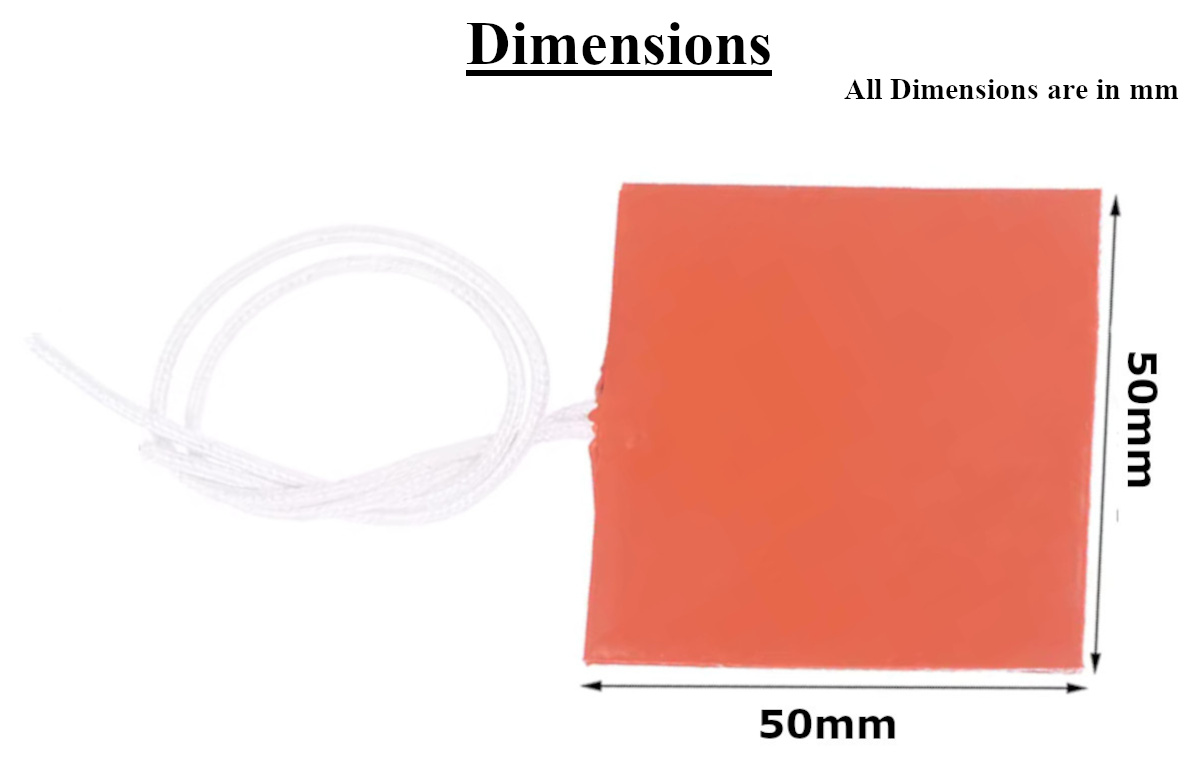

• Dimensions: 50mm x 50mm (5cm x 5cm)

• Material: Silicone Rubber

• Wiring: 2x White wire leads

• Features: Waterproof, flexible, even heat distribution

Key Applications and Projects

• DIY Heated Wearables: Sewing the pads into the lining of jackets or gloves and powering them via a portable 5V 2A USB power bank for winter warmth.

• Astrophotography Dew Heaters: Wrapping the flexible pad around the barrel of a telescope or camera lens to prevent dew and condensation from forming during cold, damp nights.

• Cold Weather Battery Warmers: Placing the pad inside an enclosure for LiPo batteries or drones to keep them at optimal operating temperatures during winter flights.

Unlock New Capabilities (Project Evolution) The Smart Coffee Mug Warmer: Don't just plug the heater into a wall and let it run wild! Pair this 5V heating pad with a microcontroller (like an Arduino Nano), a logic-level N-Channel MOSFET, and a thermistor. Attach the heating pad and thermistor to the bottom of a metal mug using thermal tape. You can program a PID loop on the Arduino to read the temperature from the thermistor and rapidly pulse the MOSFET (PWM) to provide the exact amount of power needed to keep your coffee precisely at 60°C!

PACKAGE INCLUDED

• 1 x Flexible Silicone Heating Pad (50x50mm, 5V 10W) with pre-attached wire leads

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What is the operating voltage of this heating pad? It is designed to operate on exactly 5V DC.

2. How much power does it output? The pad has a power rating of 10 Watts.

3. How much current does it draw? Using Ohm's Law (Power = Voltage * Current), at 5V and 10W, it will draw approximately 2.0 Amps.

4. Can I power this with a standard USB port? Standard PC USB 2.0 ports only provide 0.5A and will overload. You must use a dedicated high-power USB wall charger or a USB power bank capable of outputting at least 2.0A (or 2.4A ideally).

5. Does polarity matter when hooking up the wires? No. The heating pad acts as a simple resistor. You can connect positive to one white wire and negative to the other white wire in either orientation.

6. What are the exact dimensions of the pad? The pad measures 50mm in length and 50mm in width (5x5 cm).

7. Can I cut the pad to fit my project? No. Cutting or puncturing the silicone pad will sever the internal heating traces, completely destroying the pad and potentially creating a short circuit.

8. Is the heating pad waterproof? Yes, the silicone encapsulation makes the pad body waterproof and splash-proof. However, you must properly insulate the area where the wires join your power source if using it in wet environments.

9. Does it come with adhesive on the back? No, this version does not feature an adhesive backing. You will need to use double-sided thermal tape or high-temperature silicone sealant to attach it to your surfaces.

10. How hot does the pad get? The final temperature depends heavily on the ambient temperature and the thermal mass of the object it is attached to. In open air without a heatsink or thermostat, it can reach over 60-80°C and potentially degrade the silicone over time.

11. Does it have a built-in thermostat? No, it is a "dumb" heating element. It will continue to generate heat as long as 5V power is applied.

12. How do I control the temperature? You can use a PWM signal via a logic-level MOSFET from a microcontroller, or use an off-the-shelf digital temperature controller module (like a W1209) paired with a temperature probe.

13. Can I run this pad on 12V? Absolutely not. Applying 12V to a 5V pad will cause it to draw massive amounts of current (upwards of 57W), which will instantly burn out the heating element and pose a severe fire hazard.

14. What material is the pad made of? It is manufactured from highly flexible, thermally conductive orange silicone rubber.

15. Can the pad be bent around corners? Yes, the pad is very flexible and can easily conform to the outside of a cylinder or a curved enclosure.

16. Can I fold the pad completely in half? No. While it can bend around smooth curves, sharply folding or creasing the pad will break the internal wire traces.

17. Is this safe for direct skin contact? While 5V electricity is harmless to humans, the pad generates significant heat. Prolonged direct skin contact without a cloth buffer or a thermostat controlling the temperature could result in minor burns.

18. What is the internal resistance of the pad? Based on its 5V and 10W rating, the internal resistance is approximately 2.5 Ohms.

19. How long are the attached wires? The pad comes with a short length of flexible white wire leads pre-attached to the edge.

20. Can I connect multiple pads together? Yes, you can wire multiple pads in parallel (connecting all positive wires together and all negative wires together). Just remember that adding a second pad will double the current requirement to 4.0A.
