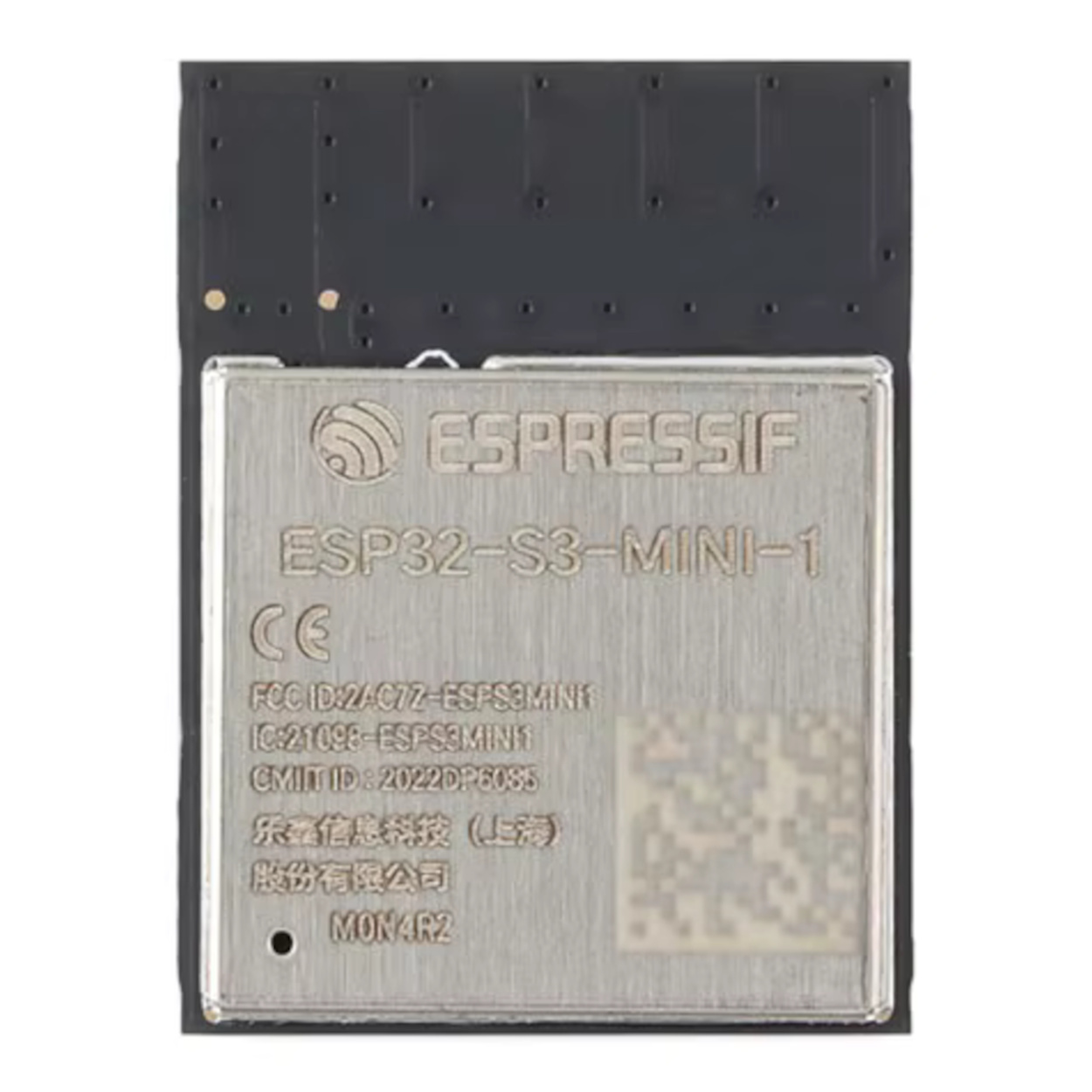

Espressif ESP32-S3-MINI-1-N8 Wi-Fi BLE 5.0 Dual Core Microcontroller Module 8MB Flash

Specifications:

• Core Processor: Dual-core 32-bit Xtensa LX7 microprocessor running up to 240 MHz
• Flash Memory: 8 MB SPI Flash (N8 Configuration)
• ROM: 384 KB
• SRAM: 512 KB internal SRAM
• Wi-Fi Connectivity: 2.4 GHz Wi-Fi (802.11 b/g/n), up to 150 Mbps bandwidth
• Bluetooth Low Energy: Bluetooth 5.0 LE and Bluetooth Mesh networking capabilities
• Form Factor: Surface Mount Device (SMD) stamp-hole module
• Antenna Type: Built-in high-efficiency PCB trace antenna
• Peripherals: 45 pins breakdown offering access to GPIO, SPI, LCD interface, Camera interface, UART, I2C, I2S, Pulse Counter, TWAI® (CAN Bus compatible), and native USB 1.1 OTG

Key Applications

• Industrial IoT Gateways: Compact edge computing modules reading and parsing industrial sensors.
• Edge AI & TinyML Deployment: Micro-scale keyword spotting, audio processing, and localized gesture recognition.
• Smart Home Devices: Ultra-small smart switches, smart lighting controls, and hidden secure nodes.
• Wearable Robotics: Compact controllers for micro-drones, exoskeletons, or localized sensor hubs.

Project Evolution

• Past Projects: If you have successfully built prototypes using large ESP32-WROOM-32E breakout boards or standard Arduino architectures...
• Feature Upgrade: ...the ESP32-S3-MINI-1 upgrades your production game by unlocking extremely small form factor enclosures, hardware-level neural network operations, and native USB peripheral emulation.
• Effort & Requirements: Advanced Level. This is a raw surface-mount module. To deploy this successfully, you require custom PCB design skills, a hot-air rework station or reflow plate, premium solder paste, and a dedicated external USB-to-UART hardware programmer.

Virtual Technician & Pin Mapping Guidelines

⚠️  CRITICAL VOLTAGE WARNING: The ESP32-S3-MINI-1 runs strictly on 3.3V VCC. Applying 5V directly to power or any I/O pin will cause instantaneous silicon breakdown and void your warranty.

 Assembly Pin Map:

• Module VDD: Stable +3.3V Power Source (capable of 500mA transient spikes)
• Module GND: Common System Ground (Power & Logic)
• Module TXD0: RXD pin of your external USB-to-UART bridge
• Module RXD0: TXD pin of your external USB-to-UART bridge
• Module IO0 (Boot): Connect to a tactile switch to Ground (pull low during reset to enter download flashing mode)
• Module EN (CHIP_PU): Connect to 3.3V through a 10kΩ pull-up resistor (tie via switch to Ground for manual system reset)

Package Includes:

1 X Espressif ESP32-S3-MINI-1-N8 Wi-Fi BLE 5.0 Dual Core Microcontroller Module 8MB Flash

Frequently Asked Questions (FAQ)

1. What is the precise flash capacity of the ESP32-S3-MINI-1-N8?
   The module contains exactly 8 MB of high-speed onboard SPI flash memory directly integrated into the package casing.

   2. Does this specific mini module support integrated PSRAM?
   No, the ESP32-S3-MINI-1-N8 variant is flash-only. If your software requires external pseudo-static RAM, you must layout an external PSRAM chip on your baseboard or utilize a larger WROOM-series module.

   3. What is the safe operating voltage range for this module?
   The module is designed to operate safely between 3.0V and 3.6V DC. Standard 3.3V is optimal.

   4. How much peak current does it draw during active Wi-Fi transmission?
   Under peak 2.4GHz Wi-Fi transmission bursts, the module can draw up to 500mA. Ensure your power supply regulator can handle these rapid current steps without dropping voltage.

   5. What type of antenna is integrated into the ESP32-S3-MINI-1 footprint?
   It features a high-performance, factory-tuned PCB trace antenna built right onto the tip of the module board layout.

   6. Can I compile code for the ESP32-S3-MINI-1 using the Arduino IDE?
   Yes. Install the official ESP32 Arduino Core from Espressif and select "ESP32-S3 Dev Module" as your primary compilation target.

   7. How do I put this module into firmware downloading mode manually?
   Hold down the BOOT button (pulling GPIO 0 to GND), toggle the EN/Reset button to Ground and release it, then release the BOOT button. The module will now accept flashing protocols via UART0.

   8. Does this module feature built-in hardware security primitives?
   Yes. The ESP32-S3 architecture includes dedicated hardware accelerators for AES-128/256, RSA, ECC, alongside Secure Boot and Flash Encryption routines.

   9. What is the pad-to-pad pitch between the SMD pins of this module?
   The module features a high-density 0.8 mm pin pitch layout along its perimeter edges.

   10. Is the module backwards compatible with classic Bluetooth audio or legacy accessories?
   No. The ESP32-S3 chip supports modern Bluetooth 5.0 Low Energy (BLE) and Bluetooth Mesh protocols exclusively. It does not support Bluetooth Classic.

   11. Can I execute MicroPython or CircuitPython on this hardware?
   Yes, the S3 architecture is fully compatible with MicroPython and CircuitPython. You simply flash the generic ESP32-S3 firmware image using the esptool utility.

   12. What are the specific processing architectures inside the module?
   It utilizes dual 32-bit Xtensa LX7 microprocessors capable of scalar operations and vectorized computational execution.

   13. Can this module run local TinyML machine learning models efficiently?
   Yes. The LX7 cores incorporate specialized instructions designed specifically to speed up vector math, neural networks, and digital signal processing algorithms.

   14. How many configurable GPIO pins are physically routed out to the external pads?
   The module maps out a total of 24 usable General Purpose Input/Output lines depending on which interfaces (like flash pins) are excluded.

   15. What operating temperature range is this industrial module rated for?
   It is built to operate under harsh conditions across a wide range of -40°C to +85°C.

   16. Does the ESP32-S3-MINI-1 provide native USB OTG connections?
   Yes. It features pins routed specifically for USB 1.1 Full Speed protocols, allowing direct connection as a USB Host or USB Device without requiring an external bridge IC.

   17. What should I troubleshoot if the module experiences a brownout loop during boot?
   Check that your 3.3V trace thickness is sufficient and confirm that your regulator can support 500mA spikes. Place a 10uF tantalum capacitor directly adjacent to the module’s VDD entry pin.

   18. Are any of the digital input/output pins 5V tolerant?
   No. All IO pins match the CMOS standard 3.3V logic level. Supplying higher voltages will cause physical destruction of the pin architecture.

   19. Can I utilize Espressif's native ESP-IDF framework to develop applications?
   Yes, Espressif’s official ESP-IDF development environment fully supports the S3 platform and provides the most comprehensive feature and power control optimization.

   20. How is this module safely shipped to avoid transit damage?
   To ensure delicate surface mount pads and PCB trace components remain immaculate, every module is wrapped and insulated via Probots™ Secure-Transit ???? procedures with anti-static shielding bags.
