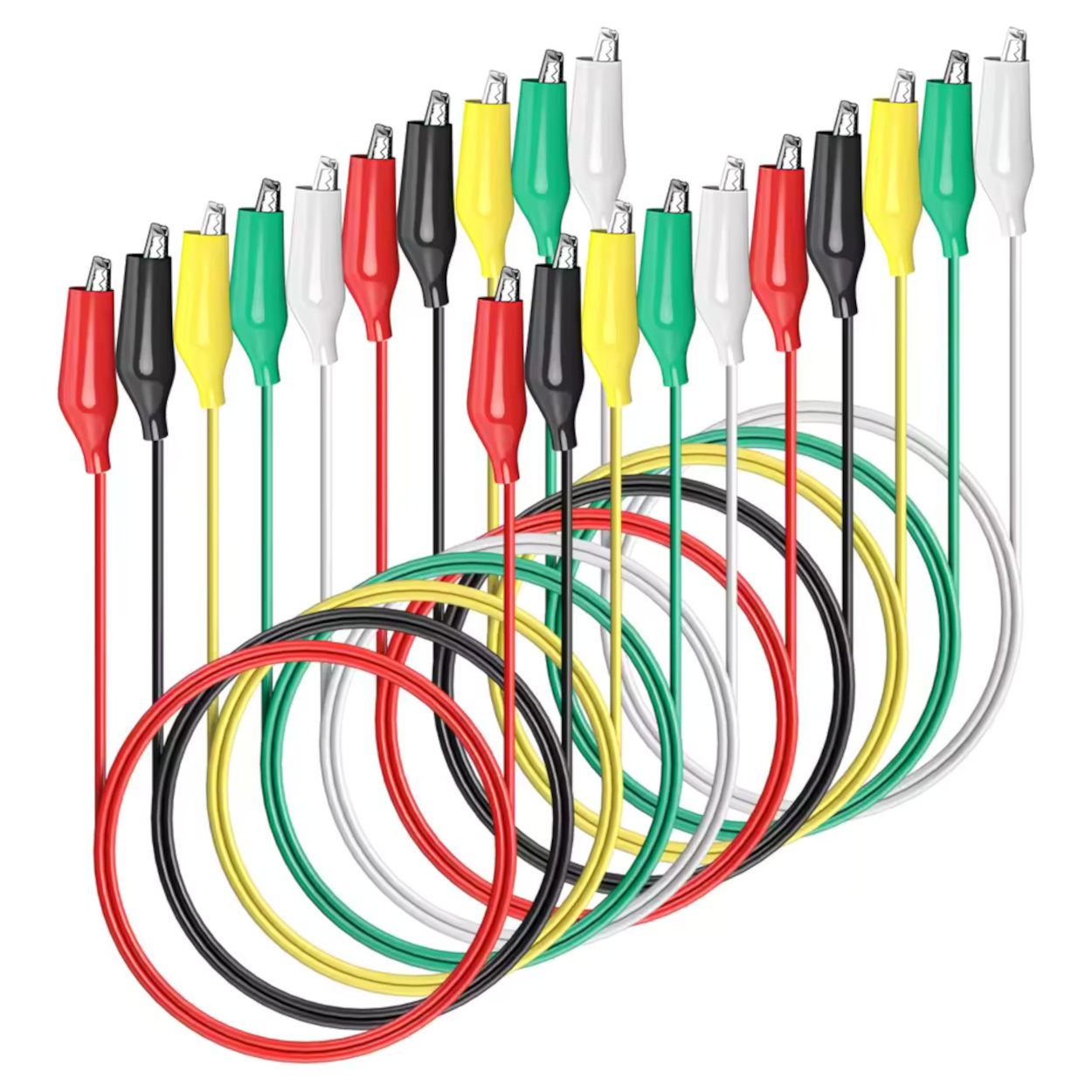

Double Ended Alligator Crocodile Clip Electrical DIY Test Leads 10pcs

Specifications

• Connector Type: Double-ended Alligator / Crocodile Clips
• Clip Material: Nickel-plated steel with strong spring mechanism
• Insulation: Soft, flexible vinyl covers (Removable for soldering)
• Total Length: 50cm (approx. 19.5 inches)
• Cable Length: 42cm (wire only)
• Wire Gauge: 22-24 AWG (Low resistance for signal/low-power applications)
• Current Rating: 3A - 5A Max (Suitable for logic and low-power DC)
• Colors: 5 Distinct Colors (Red, Black, Green, Yellow, White)
• Quantity: 10 Pieces (2 of each color)
• Jaw Opening: Max 8mm - 10mm

Applications

• Rapid Prototyping: Quickly patch jumper wires between breakout boards, motors, and battery packs.
• Multimeter Extensions: Clip onto multimeter probes to create hands-free measurement points.
• Educational Labs: Essential for school physics experiments involving batteries, bulbs, and switches.
• PCB Repair: Bridge broken traces or inject signals directly into component legs for troubleshooting.
• Wearable Tech: Temporarily connect conductive thread or fabric sensors before permanent sewing.

Virtual Technician: Safety & Wiring Guide

• Voltage Warning: These are designed for Low Voltage DC (under 30V) applications. Do not use them for AC mains (110V/220V) testing.
• The "Slipping" Hazard: The vinyl covers can sometimes slide over the jaw if pulled hard. Always grip the metal clip through the cover when opening, not the wire tail.
• Resistance Check: For high-precision current measurements, remember that all test leads add a small amount of resistance. For sensitive sensor data, keep the leads as straight as possible.

      Pin Mapping:

• Red: Positive / VCC / Power
• Black: Negative / GND / Ground
• Green/Yellow/White: Signals / Data lines

Package includes:

• 10 x Double-sided Alligator Clips(2 of each color)

Frequently Asked Questions (FAQ)

• What is the maximum current these alligator clips can handle?
  These are rated for approximately 3A to 5A. They are suitable for testing LEDs, motors, and logic circuits, but not for high-power loads like car batteries.
• Are the wire covers removable?
  Yes, the soft vinyl sleeves can be slid back to expose the solder joint if you need to repair or modify the connection.
• Can I solder these clips to other wires?
  Absolutely. You can cut the wire in half to create two pigtails, or slide the cover back to desolder the existing wire and solder your own.
• What is the wire gauge of these test leads?
  The internal wire is typically around 22-24 AWG, standard for general-purpose prototyping leads.
• Do these clips fit on standard breadboard jumper wires?
  Yes, the alligator jaws can easily grip the metal pins of standard male-to-male jumper wires.
• Can I use these for AC mains voltage testing?
  No. These are not rated for high voltage or mains electricity. Use them for low voltage DC electronics only.
• How wide do the alligator jaws open?
  The jaws open approximately 8mm to 10mm, wide enough to grip battery terminals, component legs, and thick wires.
• Are the springs strong enough to hold heavy wires?
  The springs are designed to hold the clip's own weight and typical circuit wires securely. Heavy gauge power cables might cause them to slip.
• What is the total length of the lead including clips?
  The total length from tip to tip is approximately 50cm (19.5 inches).
• Is the wire copper or aluminum?
  The conductive wire is typically copper-clad aluminum (CCA) or tinned copper, designed for flexibility and cost-effectiveness.
• Why are there five different colors?
  The colors help you color-code your circuit (e.g., Red for power, Black for ground) to prevent accidental short circuits.
• Can I use these to charge a LiPo battery?
  Yes, but ensure the charging current does not exceed 3A. Always monitor connections for heat.
• Do these work with Banana Plugs?
  You can clamp the alligator clip onto the metal part of a banana plug, but they do not plug into a banana socket directly.
• What is the resistance of these cables?
  They have negligible resistance for general use, but for high-precision milliohm measurements, you should use specialized 4-wire Kelvin clips.
• Are the clips magnetic?
  The clips themselves are usually made of nickel-plated steel, so they are magnetic.
• Can I use these for automotive diagnostics?
  They are useful for low-current signal testing in cars (12V), but do not use them for starter motors or high-amp circuits.
