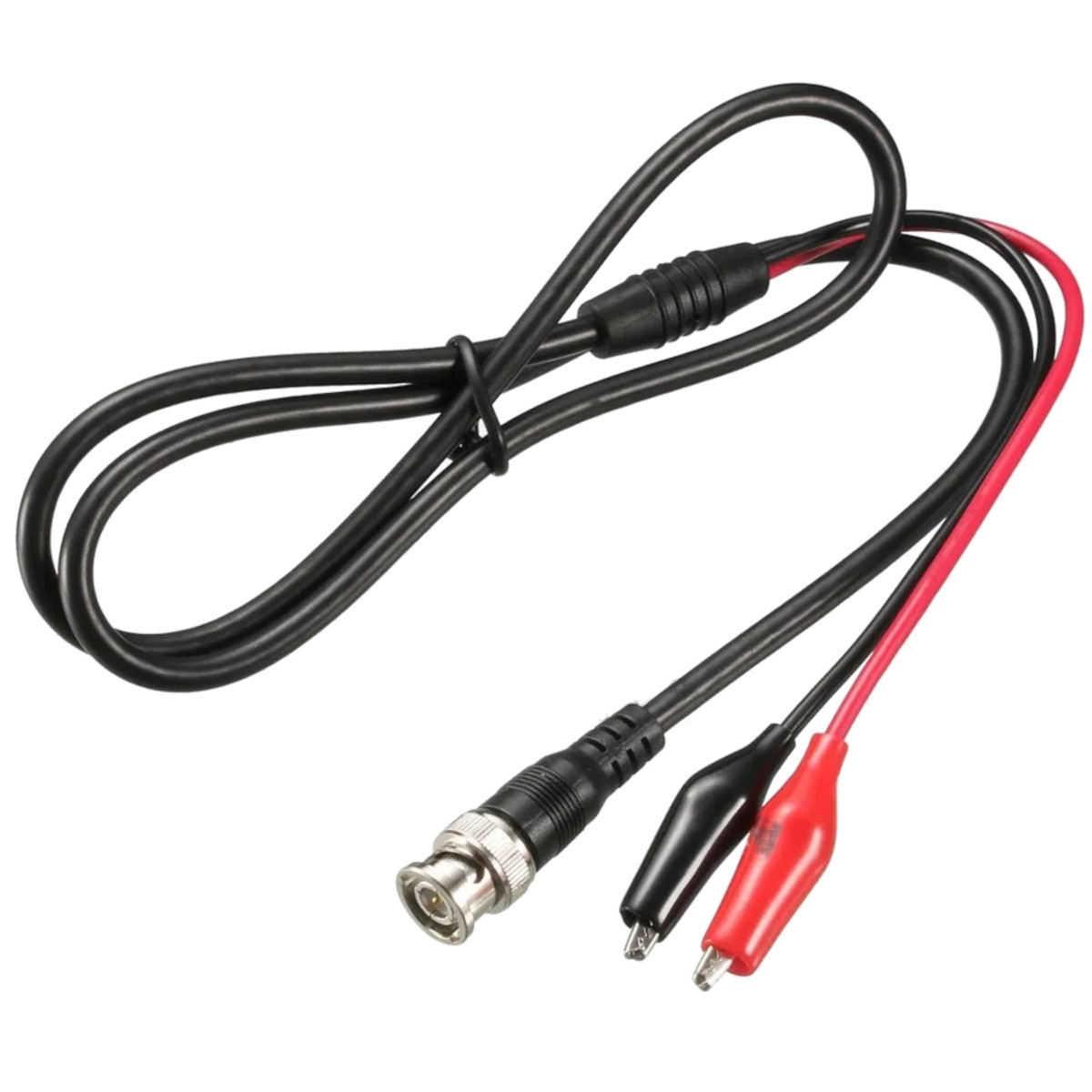

Oscilloscope Probe With Crocodile Clip Connector BNC to crocodile Probe

Specifications

• Product Type: Oscilloscope Test Cable
• Connector Type (Instrument End): BNC
• Connector Type (Circuit End): Red and Black Crocodile Clips
• Cable Configuration: BNC to Two Clip Leads
• Clip Colours: Red and Black
• Signal Connection: Via BNC centre conductor and associated lead
• Reference Connection: Via BNC outer conductor and associated lead
• Cable Type: Flexible insulated test cable

Features:

• Length of cable : Around 1M.
• 1 BNC male to  2 Alligator Clip(1 Red + 1 Black).
• Coaxial Cable BNC Male to Dual Alligator Test Clip.
• Easy connect to test.

Applications

• Oscilloscope signal measurement
• Electronic circuit troubleshooting
• Signal tracing in analog circuits
• Testing low-voltage electronic boards
• Educational electronics experiments
• Engineering laboratory measurements
• DIY electronics projects
• Testing signal outputs from electronic modules

Package Includes:

• 1X Oscilloscope Probe With Crocodile Clip Connector BNC to crocodile Probe

Frequently Asked Questions (FAQs)

• Q1. What is a BNC-to-crocodile clip oscilloscope cable?
  It is a test cable with a BNC connector on one end and crocodile clips on the other, used to connect compatible test equipment to electronic circuits.
• Q2. What is this cable used for?
  It is used for signal testing, waveform observation, circuit troubleshooting, and electronics experiments.
• Q3. Is this cable compatible with oscilloscopes?
  It is compatible with oscilloscopes that have a matching BNC input, provided the cable's electrical characteristics are suitable for the measurement.
• Q4. What connectors are provided?
  The pictured cable has one BNC connector and two crocodile clips, one red and one black.
• Q5. What is the purpose of the red clip?
  The red clip is commonly used for the signal or positive measurement connection, depending on the circuit and instrument configuration.
• Q6. What is the purpose of the black clip?
  The black clip is commonly used for the reference or ground connection. Confirm the instrument's grounding arrangement before connecting it.
• Q7. Can this cable measure DC signals?
  It can be used to observe compatible DC voltage levels and changes when the cable and instrument are suitable for the signal and voltage range.
• Q8. Can it measure AC signals?
  It can be used to observe suitable AC waveforms within the cable's verified electrical and frequency limits.
• Q9. Does this cable provide 10:1 attenuation?
  The pictured cable does not establish a 10:1 attenuation ratio. Verify the manufacturer's specifications before assuming any attenuation.
• Q10. Is this a standard compensated oscilloscope probe?
  It appears to be a BNC-to-crocodile clip test cable rather than a conventional compensated probe with a probe tip and attenuation switch.
