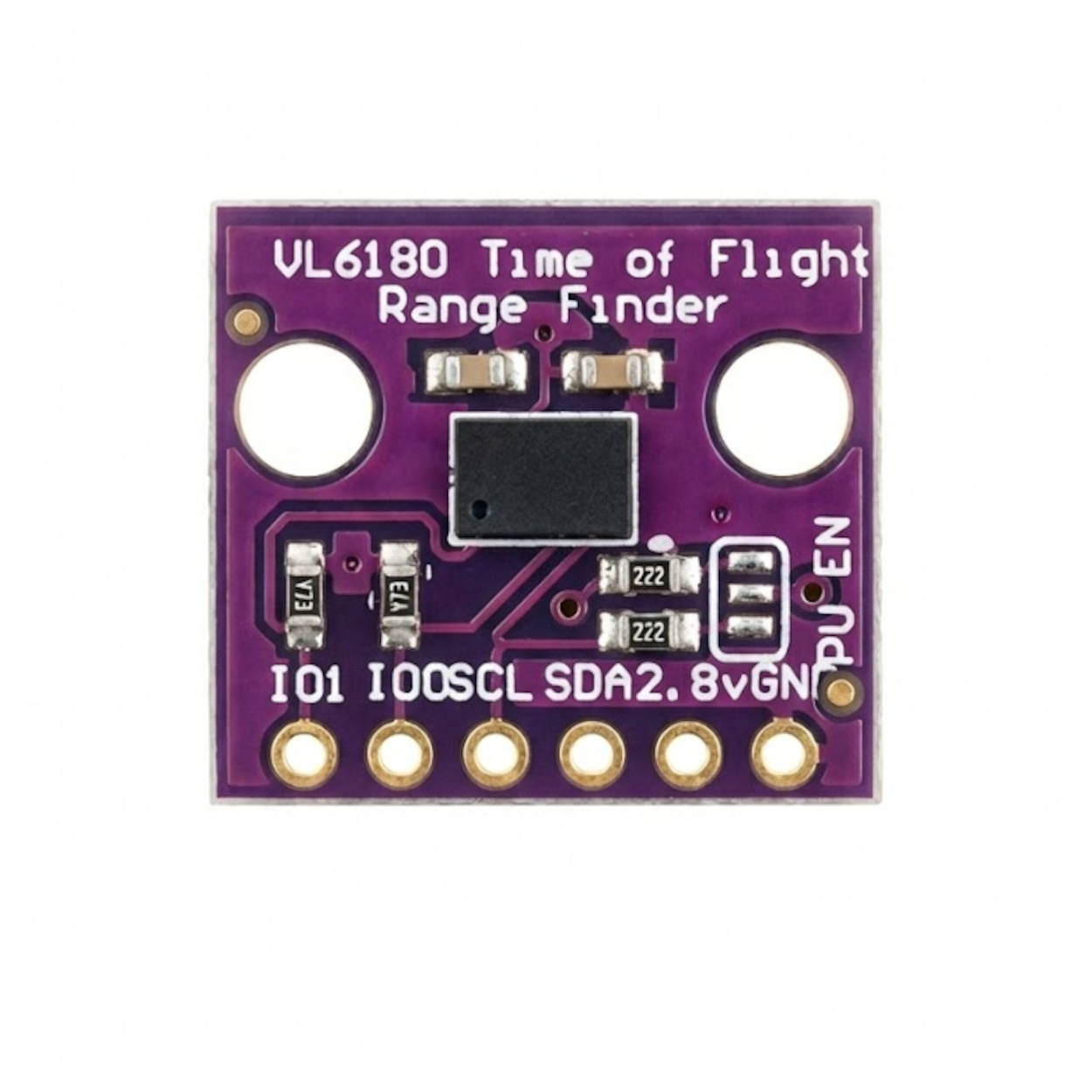

VL6180 Time of Flight Distance Sensor Module

Specifications

• Sensor Chip: VL6180 (Time-of-Flight technology)
• Module Type: 2-in-1 (Proximity Sensor + Integrated IR Emitter)
• Ambient Light Sensor (ALS): NOT Included (Optimized for pure distance/gesture sensing)
• Measurement Range: 0 to 100mm (Up to 400mm with extended software range configurations)
• Communication Interface: I2C (Standard 400kHz Fast-mode)
• Default I2C Address: 0x29 (Configurable via software)
• Light Source: 850nm VCSEL (Vertical Cavity Surface-Emitting Laser) - Class 1 Eye Safe
• Operating Voltage: 3.3V to 5V (Board includes voltage regulator)
• Logic Level: 3.3V / 5V Tolerant
• Dimensions: Ultra-compact form factor for tight enclosures

Applications

• Robotics: Precision wall-following, cliff detection, and micro-obstacle avoidance for small rovers.
• Smart Home & IoT: Touchless gesture recognition (swipe to turn on lights), smart soap dispensers, and presence detection.
• Industrial Automation: Conveyor belt object counting and liquid level monitoring in small tanks.
• 3D Printing: High-precision Z-axis bed leveling and filament run-out detection.

Unlock New Capabilities

• Past Projects: If you've mastered basic obstacle detection using the bulky HC-SR04 Ultrasonic Sensor or cheap IR obstacle modules, you know they struggle with narrow gaps, acoustic noise, and varying surface colors.
• The Upgrade: The VL6180 unlocks true optical precision. Instead of relying on sound waves or crude IR light reflection, it calculates distance by measuring the exact time it takes for photons to bounce back. This means a much narrower field of view (FoV) and immunity to target color/reflectance.
• Effort Level: Intermediate. You will need to install an I2C library (like Adafruit_VL6180X) and understand basic I2C communication on your microcontroller.

Virtual Technician & Wiring Guide

• ⚠️ Warning: While the breakout board generally supports 5V power, we are Probots Logic-Safe and highly recommend using a 3.3V power supply and logic levels (like on an ESP32, STM32, or Raspberry Pi Pico) for maximum lifespan and stability. If using a 5V Arduino UNO, ensure your module's specific breakout board has the onboard level-shifter.

Standard Pin Mapping:

• VIN: Connect to 3.3V (or 5V if your board has a regulator)
• GND: Connect to System Ground
• SCL: Connect to Microcontroller I2C Clock (e.g., A5 on Arduino UNO)
• SDA: Connect to Microcontroller I2C Data (e.g., A4 on Arduino UNO)
• GPIO: Optional. Interrupt output (useful for indicating when an object crosses a specific distance threshold).

Package Contents:

• 1 x VL6180 Time-of-Flight Distance Sensor Module

Frequently Asked Questions (FAQ)

• What is the maximum distance the VL6180 can measure?
  Natively, it is optimized for high precision up to 10cm (100mm). However, by adjusting the timing budget and using extended range software configurations, it can measure up to 40cm (400mm) in ideal conditions.
• Does this specific module measure ambient light?
  No. This is a specialized 2-in-1 module featuring only the proximity sensor and IR emitter. The Ambient Light Sensor (ALS) is intentionally omitted for cost-effective distance-only applications.
• What is the default I2C address of the VL6180?
  The default hardware I2C address is 0x29.
• Can I change the I2C address to use multiple sensors?
  Yes. You can use multiple VL6180 sensors on a single I2C bus by wiring the GPIO0/CE pin to a digital pin on your microcontroller. Hold all sensors in reset on boot, then wake them up one by one and assign a new I2C address via software.
• Is the VL6180 an ultrasonic sensor?
  No. It is a Time-of-Flight (ToF) optical sensor. It uses an 850nm invisible laser to measure the time light takes to bounce back, rather than using sound waves.
• Is this sensor eye-safe?
  Yes, the internal VCSEL (Vertical Cavity Surface-Emitting Laser) operates as a Class 1 laser product, meaning it is safe under all conditions of normal use.
• Does the color of the target object affect the reading?
  Unlike traditional IR sensors that rely on signal strength, Time-of-Flight sensors are largely immune to target color and surface reflectance.
• Can the VL6180 measure distance through glass or water?
  No. ToF sensors struggle with transparent materials. The laser will likely reflect off the glass surface, giving you the distance to the glass rather than the object behind it.
• Will this sensor work outdoors in bright sunlight?
  Heavy ambient infrared light (like direct sunlight) can introduce noise, significantly reducing the maximum range and accuracy of the sensor. It is best suited for indoor applications.
• What is the field of view (FoV) of the sensor?
  The field of view is relatively narrow, typically around 25 degrees, allowing for pinpoint accuracy.
• Is this compatible with a 5V Arduino UNO?
  Yes, most standard breakout boards include a 3.3V voltage regulator and level shifting, making it tolerant to 5V logic. However, checking your specific breakout circuitry or using a logic level converter is always the safest approach.
• Is it compatible with ESP32 and Raspberry Pi?
  Yes, it works perfectly with 3.3V logic devices like the ESP32, ESP8266, Raspberry Pi, and Pico via standard I2C.
• What library should I use for Arduino?
  We recommend the Adafruit_VL6180X library or the Pololu VL6180X library, both of which are readily available in the Arduino IDE Library Manager.
• What does the GPIO pin do?
  The GPIO pin can be configured as a hardware interrupt. You can program the sensor to pull this pin low only when an object comes within a specific distance, saving your microcontroller from constantly polling the sensor.
• How fast can the VL6180 take measurements?
  The measurement speed depends on your configured "timing budget." It can measure up to 100Hz (100 times per second) for fast-moving objects, though higher speeds may slightly reduce absolute accuracy.
• Why am I getting inconsistent readings or zeros?
  Ensure your power supply is stable, I2C pull-up resistors are present (usually on the module), and that no smudges or dust are blocking the tiny sensor aperture.
• What is the difference between the VL6180 and VL53L0X?
  The VL6180 is optimized for extremely precise, very short-range measurements (up to 10-40cm). The VL53L0X is a longer-range sensor capable of measuring up to 2 meters.
