A2212 2200KV High-Speed Brushless Outrunner Motor - Pre-Soldered 3.5mm Banana Plugs with X-Mount & Prop Adapter

Specifications

• Motor Model: A2212

• KV Rating: 2200KV (High Speed)

• Connectors: Pre-welded 3.5mm Banana Male Plugs

• Motor Type: Brushless Outrunner

• Phase Wires: 3 (Pre-soldered and heat-shrink wrapped)

• Housing Color: Gold and Silver

Key Applications and Projects

• Flying Wings / Delta Wings: Providing the screaming high pitch-speed required to push foam-board or EPP flying wings to speeds exceeding 60mph.

• Park Jets (Pusher Configuration): Ideal for mounting on the back of 3D-printed or foam fighter jet profiles.

• High-Speed RC Hovercrafts: Powering DIY surface vehicles where the high-RPM motor acts as a massive ducted fan to push the hull quickly across smooth floors or ice.

Unlock New Capabilities (Project Evolution)

• The 100mph Speed Build: Because this 2200KV motor spins so fast, it is incredibly power-hungry. Evolve your standard foamie airplane by pairing this motor with a heavy-duty 40A ESC and an aerodynamic Carbon Fiber 5x5 Propeller. By reinforcing your airplane's wings with carbon fiber spars to handle the immense G-forces, this motor will easily push a lightweight airframe to 100mph speeds, turning a lazy Sunday park flyer into an adrenaline-pumping rocket!

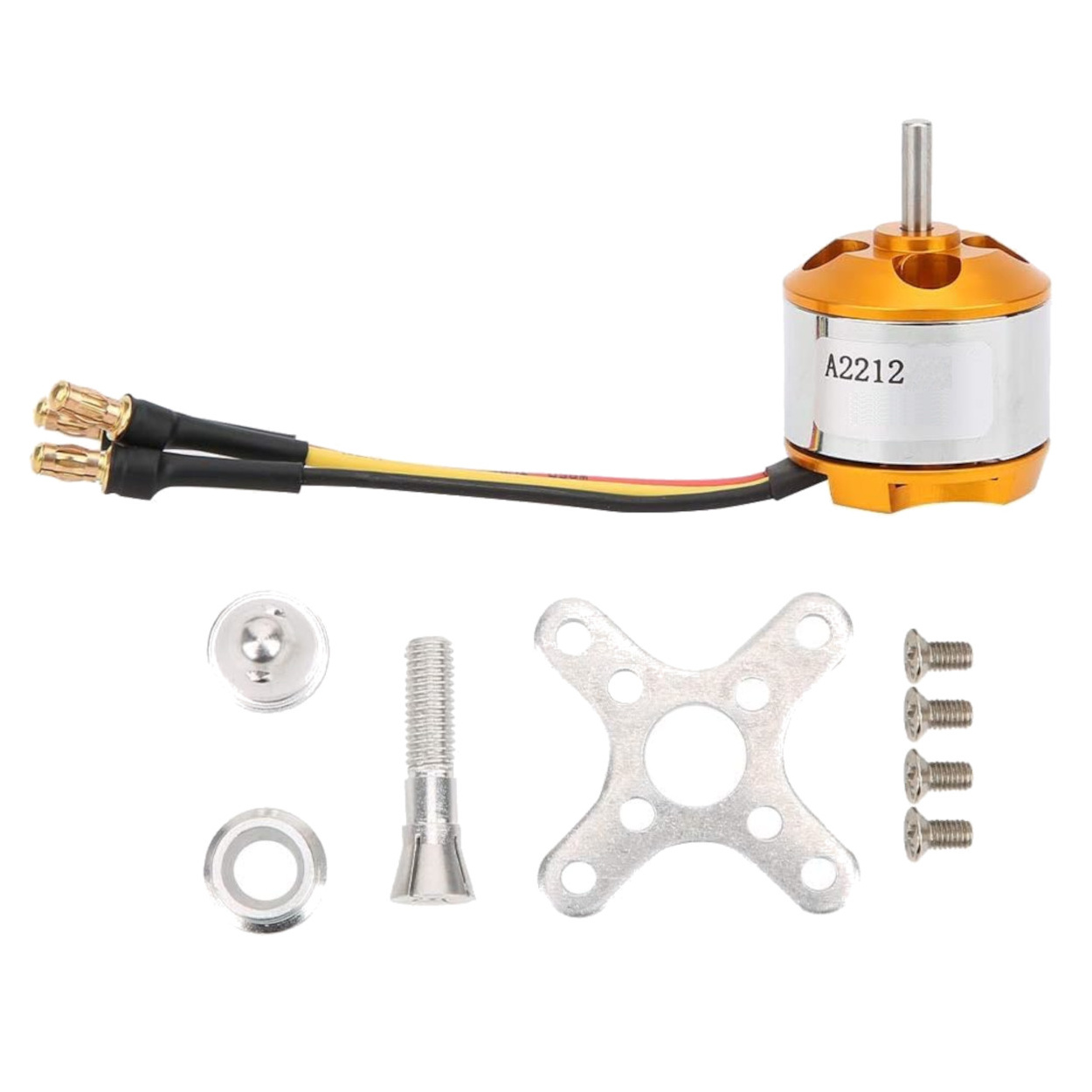

Package Includes:

• 1 x A2212 KV2200 Brushless Motor (with pre-soldered 3.5mm banana plugs)

• 1 x Aluminum X-Mount Bracket

• 1 x Collet-Style Propeller Adapter

• 4 x Countersunk Mounting Screws

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What does "KV2200" mean? KV stands for "Velocity Constant." It dictates that the motor will attempt to spin at a very fast 2200 RPM for every 1 volt of electricity applied to it when unloaded.

2. Is this motor brushed or brushless? This is a modern 3-phase brushless outrunner motor. It requires no maintenance brushes and operates with incredible efficiency.

3. What are the gold connectors attached to the wires? They are factory pre-welded 3.5mm male banana plugs (often called bullet connectors).

4. Do I need to solder anything to use this motor? No! Because the 3.5mm connectors are already installed and wrapped in heat shrink, you can plug them directly into an ESC that has matching female 3.5mm plugs.

5. What size Electronic Speed Controller (ESC) do I need? Because the 2200KV motor spins much faster and pulls significantly more current than lower KV versions, a 30A to 40A brushless ESC is highly recommended to prevent overheating.

6. Can I connect this motor directly to a battery? No. Brushless motors require an Electronic Speed Controller (ESC) to turn the DC battery power into 3-phase AC power. Connecting it directly to a battery will instantly fry the copper coils.

7. What is the cross-shaped metal piece used for? That is the aluminum X-mount. It provides a wider, stable 4-hole mounting footprint for bolting the motor securely to your drone arms or an airplane firewall.

8. What are the four small screws for? They are countersunk machine screws used to bolt the aluminum X-mount tightly to the threaded holes on the bottom of the golden motor casing.

9. What is the silver bullet-shaped part? That is a collet-style propeller adapter. It grips the bare motor shaft and provides a threaded post and washer to securely lock down your propeller.

10. What size battery should I use? This motor is optimized for 3S (11.1V) LiPo batteries for high-speed performance.

11. What size propeller is best for the 2200KV version? Because it spins so incredibly fast, you must use a small propeller to avoid overloading the motor. A 5-inch or 6-inch prop (like a 5030, 6040, or 6x4E) is ideal for a 3S setup. Do not use 10-inch props on this motor!

12. How do I reverse the direction the motor spins? Simply unplug any two of the three banana plug wires connecting the motor to the ESC, and swap them. This reverses the electrical phasing and changes the rotation direction instantly.

13. Does "Four Axis" mean it only works on quadcopters? "Four Axis" refers to a quadcopter (drone). While you can use this on very small, fast racing drones, it is arguably most popular on single-motor fixed-wing RC airplanes like Delta wings and park jets.

14. What does "A2212" mean? It is an industry-standard size class, referring to the internal dimensions of the motor (22mm stator diameter, 12mm stator height).

15. Is a propeller included in this package? No, the package only includes the motor, the X-mount, the mounting screws, and the collet prop adapter.

16. Is this motor waterproof? No. The copper coils inside the housing are entirely exposed to allow for crucial air cooling. Submerging the motor while it has power will cause an immediate electrical short.

17. How does the prop adapter stay on the smooth motor shaft? It utilizes a compression collet design. The base of the adapter is slotted; as you tighten the top nut down onto your propeller, it forces the slotted base to squeeze tightly onto the smooth motor shaft.

18. Why are there three wires? Brushless motors operate using 3-phase power dynamically generated by the ESC. The three wires sequence power to the electromagnets inside the bell to create a spinning magnetic field.

19. What does "outrunner" mean? It means the outer golden bell (which holds the permanent magnets) spins around the stationary internal copper coils. This design provides excellent torque.

20. Can I use this 2200KV motor to power an RC car? It is heavily discouraged. Outrunner motors are designed for aircraft where they receive constant, massive cooling airflow from a propeller. Using it inside an enclosed RC car chassis will quickly cause it to overheat and fail.
