5mm DIP Spherical Head Tip Pogo Pin for PCB Testing Connector

Rating:
95%
DIP Pogo Pins
β‚Ή199.00 β‚Ή 168.64 + 30.36 GST
In stock
SKU
PRO4962

1-3 Days Express Shipping in India Available

Deliver to
Bulk Pricing
QTYUnit Price(Inlc. GST)
50+ β‚Ή196.02 β‚Ή 166.12 + 29.9 GST
100+ β‚Ή194.03 β‚Ή 164.43 + 29.6 GST
150+ β‚Ή191.04 β‚Ή 161.9 + 29.14 GST
200+ β‚Ή189.05 β‚Ή 160.21 + 28.84 GST

Contact us for Higher Quantities.

Contact us for Higher Quantities
Pickup today at Nagarbhavi

Spring Loaded Test Pin for use in Test Jigs. Use them to make connections to PCB Test Pads and Holes for quick testing and production.

This is a round-tip pogo pin designed to be soldered to a PCB. It is spring loaded test pin. Dip pogo pins with positioning pins on the bottom of the barrel. Hard to move after soldering on a PCB.  Good performance on the positioning. Pogo pins provide a highly reliable, precision-made connection solution ideal for several demanding applications in the fast-moving world of electronic connectors. These DIP Pogo Pins can be used to build PCB Test Jigs and Fixtures, PCB to PCB Connections, Connectors, Temporary Test Points, etc. Round tips ensure that the contact PCB is not damaged by leaving behind test marks.

Note: DIP Pogo Pins are available in different sizes and lengths, please check our website for the various available sizes. if you require custom sizes - length, spring action height, diameter, material, force, tip style, etc contact us directly at info@probos.co.in and we will help you with it.


Specifications:

  • Model: 5H
  • Head Type: Spherical Head
  • Tip Length: 1.5mm
  • Tip Travel: 1mm
  • Tip Dia: 0.9mm
  • Full Stroke: 1.5mm
  • Current: 1A
  • Resistance: 30mΩ
  • Spring Pressure: 120g
  • Colour: Gold Plated
  • Mount: DIP
  • Compatible Platforms: Custom PCB Testing Jigs, Programming Fixtures

Features:

  • Pogo pins are less likely to damage the device they are connecting to than other types of connectors.
  • They are small, rugged, and can be used in high-density applications.
  • Pogo pins can also be used to create a temporary connection, which is helpful for testing purposes.
  • Pogo pins are relatively inexpensive compared to other connectors.
    They are designed to withstand repeated connecting and disconnecting.

Applications:

  • Pogo pins are spring-loaded connectors becoming increasingly popular as a convenient connection solution.
  • They are the perfect choice for applications that require reliability, such as medical devices.
  • Pogo pins can also be used in industrial applications, where they can help reduce the bulk of the wiring required.
  • In consumer electronics, Pogo pins can be used for charging batteries and PC board connection with audio and video components.

Package Includes: 1 x 5mm DIP Spherical Head Tip Pogo Pin


Frequently Asked Questions

  • Can I use this 5mm DIP pogo pin for testing surface-mount (SMD) pads?
    Yes, the spherical head is excellent for making contact with flat SMD pads, test points, or through-hole rings.
  • Is this pogo pin suitable for high-frequency RF testing?
    No, standard pogo pins introduce inductance and capacitance; they are best suited for DC power, low-speed digital logic, and standard programming interfaces.
  • Can I use these pins to test an ESP32 or STM32 custom board?
    Absolutely, they are perfect for flashing firmware or testing GPIO connections on standard 3.3V microcontroller boards.
  • Will this pogo pin fit into a standard 2.54mm pitch perfboard (Zero PCB)?
    Yes, the DIP (through-hole) tail is designed to easily slot into and be soldered onto standard 2.54mm pitch prototyping boards.
  • What is the maximum current rating for this 5mm pogo pin? It can safely handle between 1A and 2A of continuous current, making it suitable for powering small modules during testing.
  • Can I run 5V or 12V through this test pin?
    Yes, the pin acts as a passive physical conductor and easily supports standard logic and DC power voltages up to 24V.
  • Does the spring mechanism add electrical resistance to my circuit?
    Yes, but the contact resistance is very low (typically under 50mΩ) and will not affect standard logic signals or power delivery.
  • How do I mount this pogo pin to my test jig base?
    The base pin (tail) should be inserted through the hole in your Zero PCB or custom test bed and soldered securely on the underside.
  • Can I solder wires directly to the tail of the pogo pin?
    While possible, it is highly recommended to mount the pin to a rigid PCB first to ensure proper alignment and prevent mechanical stress.
  • Do I need a special receptacle to use this pogo pin?
    A receptacle is not strictly required but is recommended so you can swap out worn pins without desoldering them from your test jig.
  • Do I need any specific software library to use this pogo pin?
    No, pogo pins are purely passive electromechanical components and do not require any software or libraries to function.
  • How do I write code to verify the pogo pin connection?
    You can write a simple continuity check script on your microcontroller that reads a digital pin pulled high or low when the pogo pin makes contact.
  • Can I use these pins to flash Arduino sketches to bare chips?
    Yes, building a programming jig with these pins allows you to route SPI, I2C, or UART signals directly from your programmer to the target chip's pads.

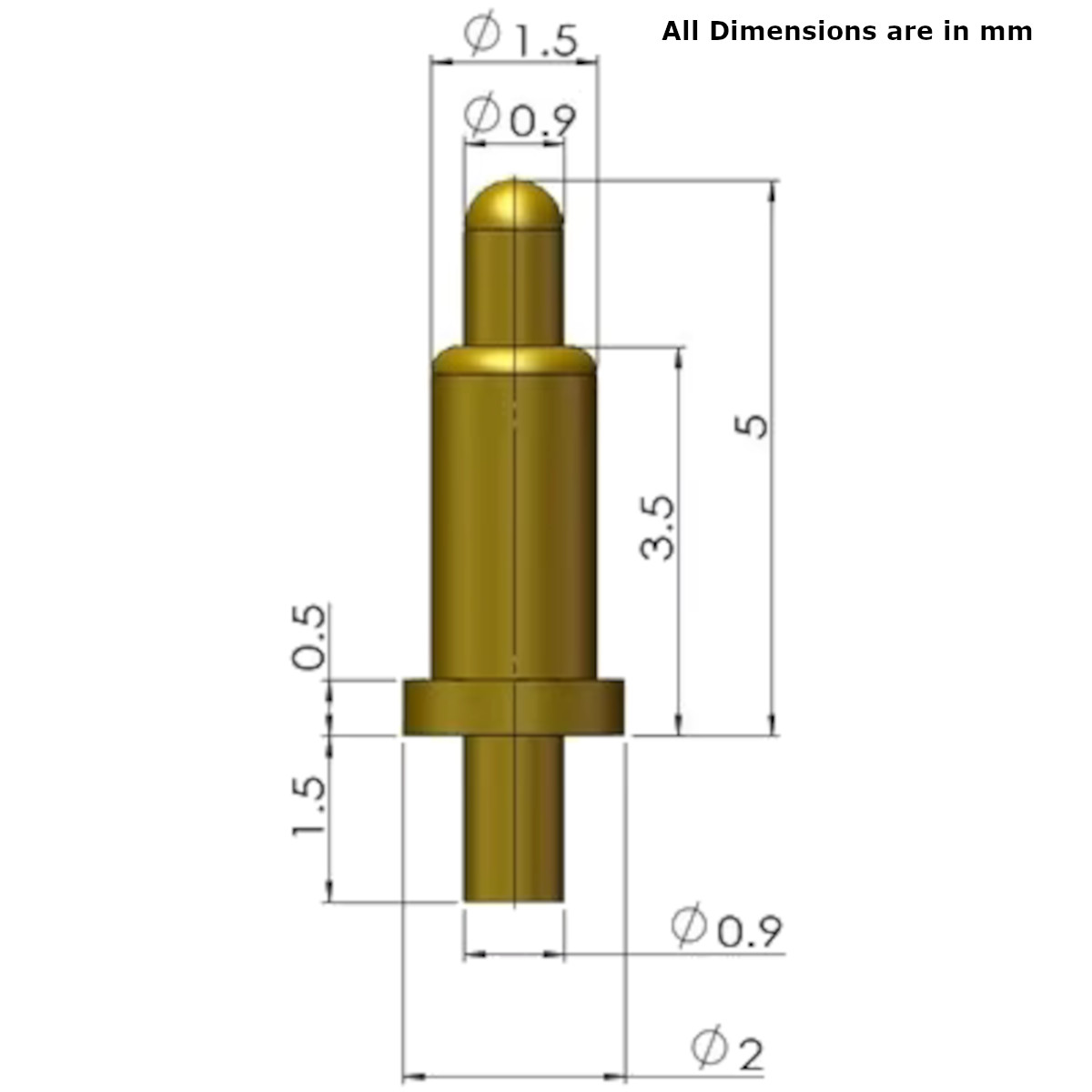

Dimensions
More Information
Pogo Pin Head ShapeSpherical
Contacts (Poles)NA
Travel Pin Size(mm)1
Mount TypeDIP
Max Current:1 A
