| QTY | Unit Price(Inlc. GST) | |
| 25+ | ₹146.02 ₹ 123.75 + 22.28 GST | |
| 50+ | ₹143.04 ₹ 121.22 + 21.82 GST | |
| 75+ | ₹140.06 ₹ 118.69 + 21.36 GST | |
| 100+ | ₹137.08 ₹ 116.17 + 20.91 GST | |
Industrial-grade precision flexible coupler used for building smooth transmission mechanisms. Used to extend servo and stepper motor shafts, connecting shaft to leadscrews, loads, gear assemblies, etc. Flexible movement allows for misalignment in assembly without transferring the stress to the motor or shaft.

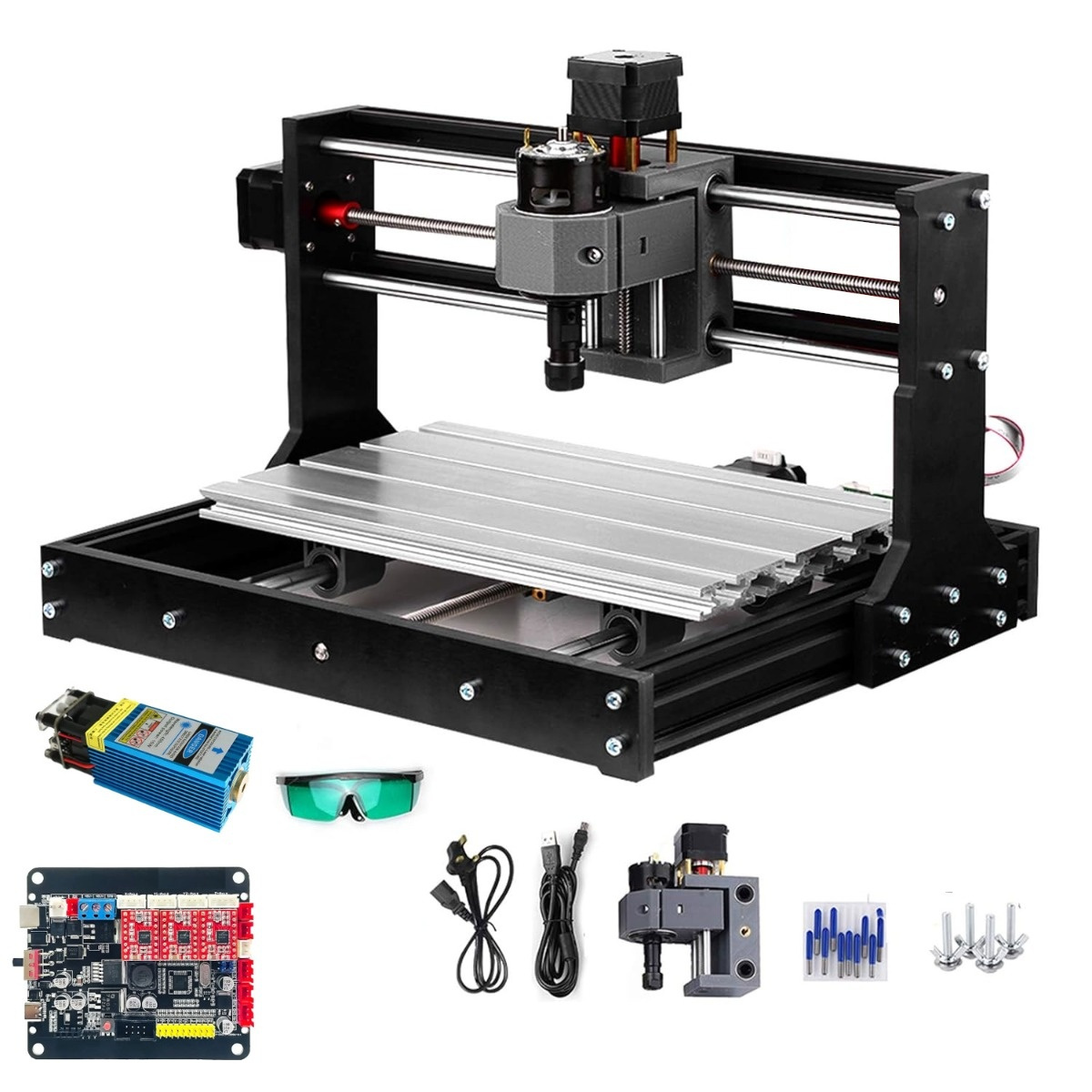

3018 Pro Desktop CNC Router & 5.5W Laser Engraver - 2-in-1 DIY Kit ₹38,999.00
MACH3 CNC Interface Driver 5 Axis Controller Board Machine ₹1,499.00

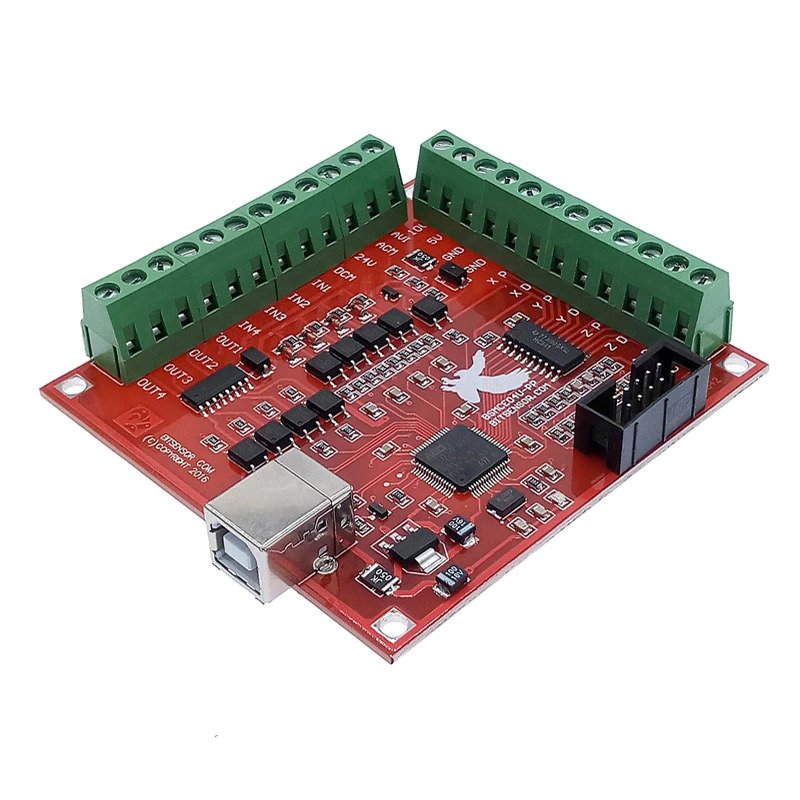

MACH3 CNC USB Interface Driver 4 Axis Controller Board Machine ₹2,799.00
3018 Pro Desktop CNC Router & 15W Laser Engraver - High Power 2-in-1 DIY Kit ₹42,999.00

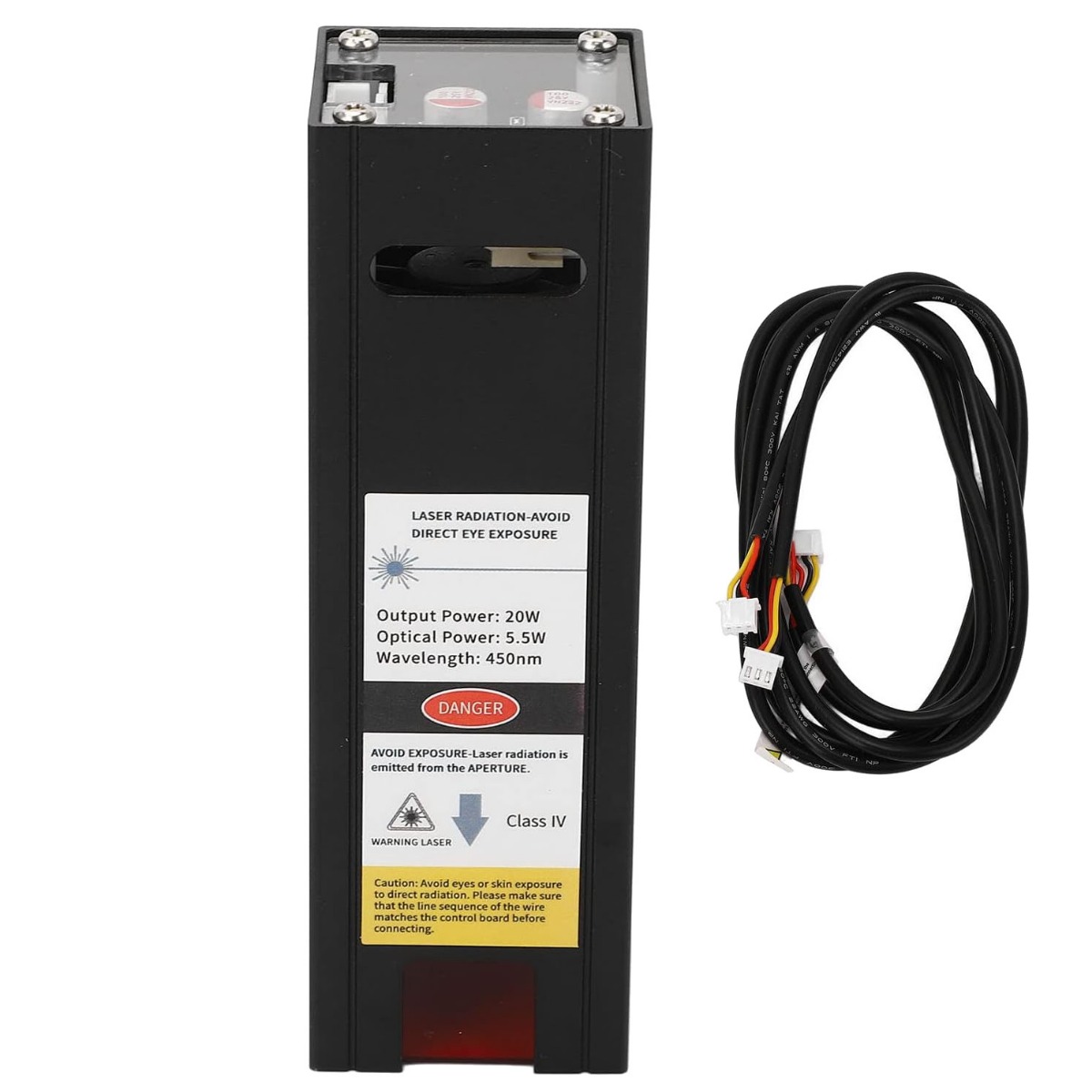

20W Diode Laser Module - 5.5W Optical Power 450nm Wavelength for CNC Engraving ₹22,999.00 Use these couplers to connect a 4mm Shaft to an 8mm Shaft. These couplers are made of machined aluminum and have a spiral cut that makes them slightly flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce binding effects. The way they're cut, they're a little springy in the X Y & Z linear axis but not in the rotational axis. That means that you won't get increased backlash - so they're suitable for precision CNC work.
This coupler will connect a 4mm diameter shaft to an 8mm diameter shaft. A perfect add-on for our stepper motors. Comes with two sets of double set-screws (two per side) for secure attachment.
In the simplest of terms, a coupling’s purpose is to transfer rotational movement from one shaft to another. Reality is somewhat more complicated, though, as flexible shaft couplings have also to compensate for misalignment between two shafts. This ability must be balanced with the need to be pliable in the planes of misalignment while still having the torsional strength to carry out the coupling’s main function. This is known as the Compliance mechanism where compliance is the capacity for allowing relative displacement. Several factors should always be taken into consideration when looking to specify flexible shaft couplings. These are torsional stiffness, backlash, torque, life, and attachment system. All of these have a bearing on coupling selection.
Flexible couplings are usually used to transmit torque from one shaft to another when the two shafts are slightly misaligned. They can accommodate varying degrees of misalignment up to 1.5° and some parallel misalignment. They can also be used for vibration damping or noise reduction.
Specification:
Package Includes:
1 X 4mm to 8mm Flexible Coupler for 3D Printer CNC Shaft Metal
Applications:
| Technical Details |
Dimensions |
|---|---|
| Coupler Type | Flexible |
| Mounting Type: | Shaft-Shaft |
| Shaft Bore Size-Side A (mm) | 4 |
| Shaft Bore Size-Side B (mm) | 8 |
