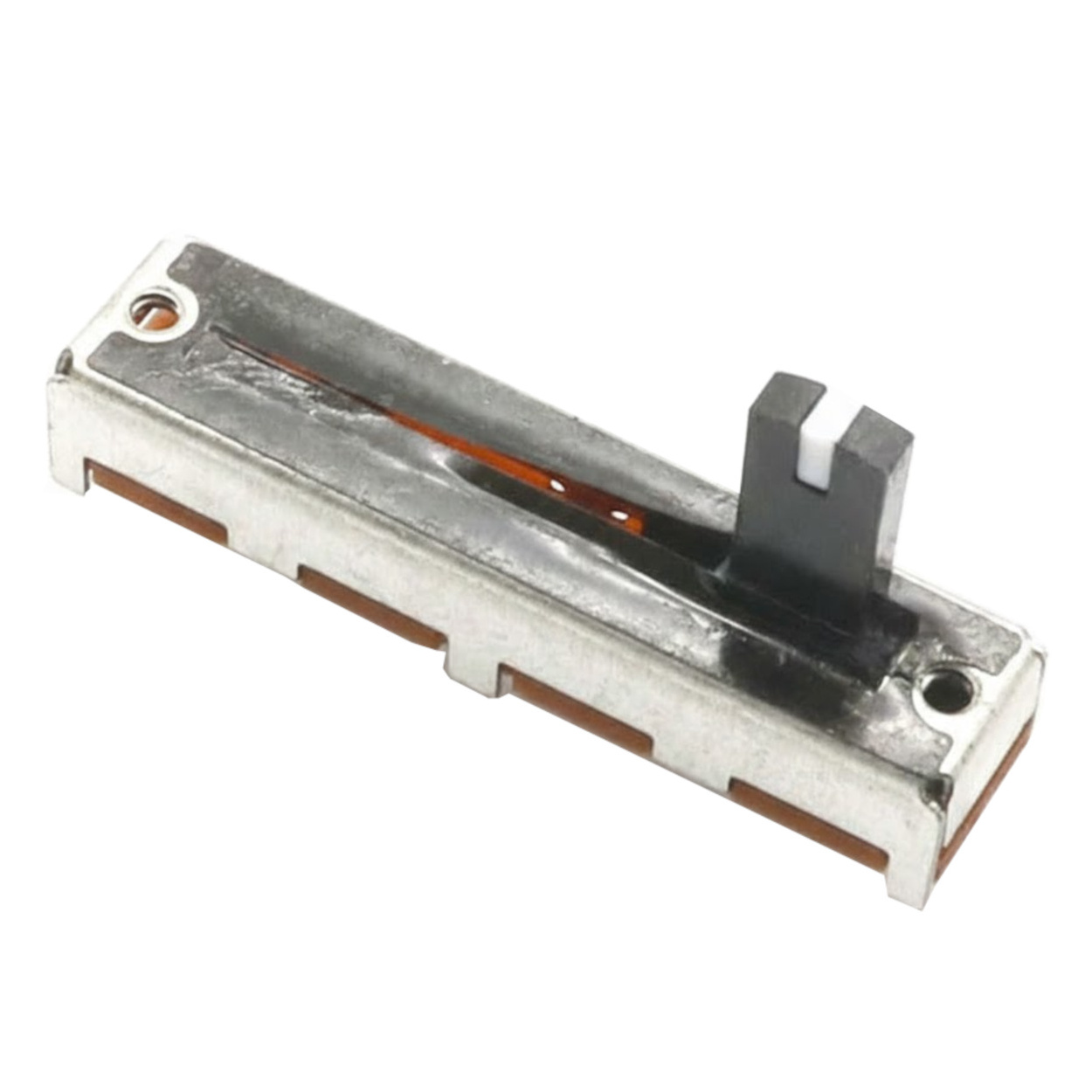

35mm Slide Potentiometer B10K - 10mm Travel with Midpoint Detent

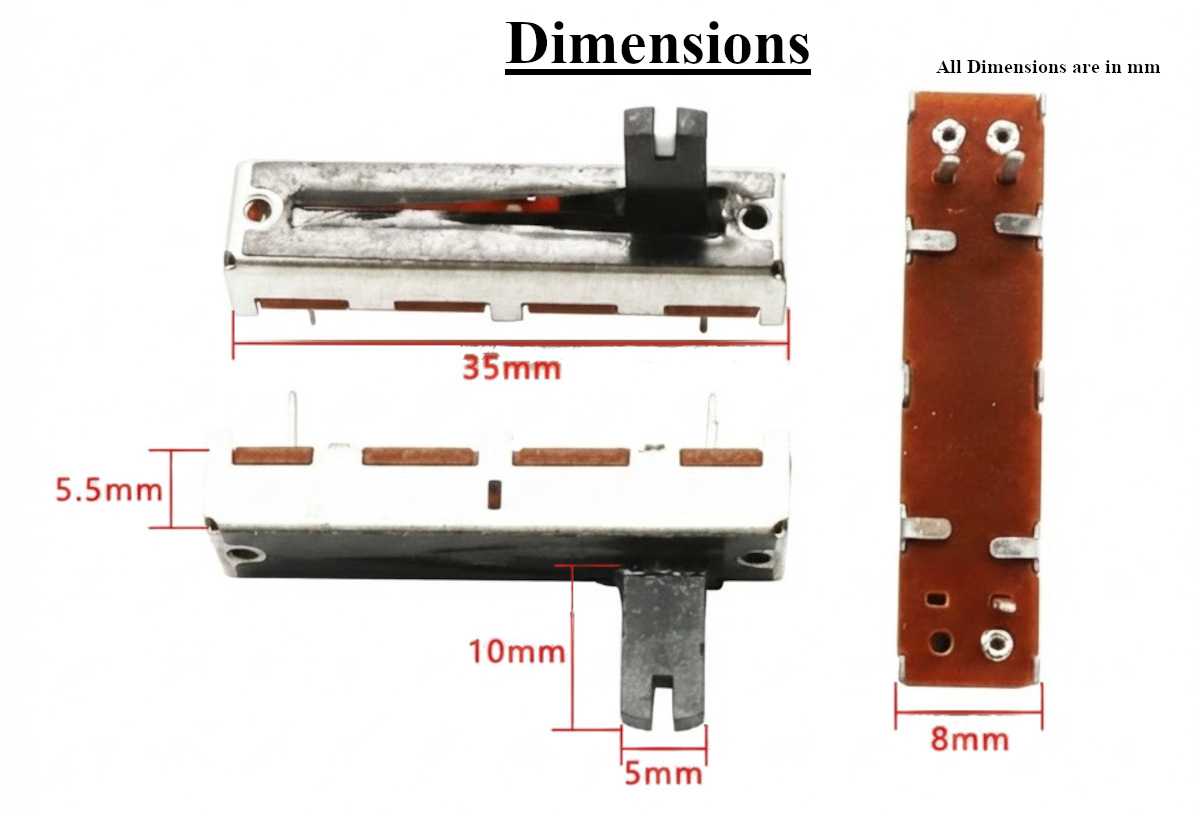

Specifications

• Total Length: 35mm

• Travel Distance: 20mm

• Resistance Value: 10k(B10K)

• Resistance Taper: Linear (Type B)

• Lever Height: 10mm

• Lever Width: 5mm

• Base Width: 8mm

• Housing Height: 5.5mm

• Terminal Type: Solder Pins (4 main pins)

Key Applications & Projects

• Audio Equipment: Ideal for DIY mixers, equalizers, and balance controls in audio interfaces.

• Control Interfaces: Perfect for joystick-like linear control in specialized gaming or industrial controllers.

• Educational Electronics: A standard component for learning about variable resistance and analog-to-digital (ADC) inputs.

Unlock New Capabilities (Project Evolution)

• Feature Upgrade: The $10\text{ mm}$ lever height is compatible with standard fader knobs, allowing for professional aesthetics and improved ergonomics on custom control surfaces.

• Effort Level: Beginner. Easily interfaces with Arduino or other microcontrollers using standard analog input pins.

Package Includes:

• 1 x 35mm Straight Slide Potentiometer (B10K) with Midpoint

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What does B10K stand for? "B" indicates a Linear taper, and "10K" means 10,000 Ohms of total resistance.

2. What is a Midpoint Detent? It is a physical notch felt when the slider is exactly in the center (5mm mark).

3. How long is the actual sliding travel? The slider moves a total of 10mm from end to end.

4. Can I use this for volume control? Yes, but note that volume is usually Logarithmic (Type A); this Linear (Type B) slider is better for balance or brightness.

5. What are the four pins for? Typically two for the ends of the resistive track and two for the wiper and ground/mounting stability.

6. Will this fit in a breadboard? No, the pins are flat-blade solder terminals and do not fit standard breadboard holes without jumpers.

7. What is the lever material? It is made of high-strength, low-friction composite plastic.

8. What is the total length of the component? The outer metal frame is 35mm long.

9. How tall is the slider lever? The lever stands 10mm high above the slider body.

10. Is this a Mono or Stereo potentiometer? This is a single-channel (Mono) component.

11. Does it include a plastic knob? No, knobs are sold separately to allow for custom color or style matching.

12. Can it handle high power? No, it is a low-power signal level component.

13. Is it dust-proof? No, it is a standard open-slot design; avoid using in highly dusty or wet environments.

14. How do I mount it? It is designed for through-hole soldering on a PCB (Printed Circuit Board).

15. Can I use it with an Arduino? Yes, it is perfect for Analog-to-Digital (ADC) input testing.

16. What is the resistance tolerance? Industry standard is typically plus or minus 20 percent.

17. Can the midpoint detent be turned off? No, it is a physical part of the internal housing structure.

18. What is the lever mounting width? The tip of the lever is 5mm wide, compatible with standard slide-on knobs.

19. What is the frame width? The body of the potentiometer is 8mm wide.

20. Is this compatible with 3.3V logic? Yes, it can be used with 3.3V or 5V logic levels for controllers.
