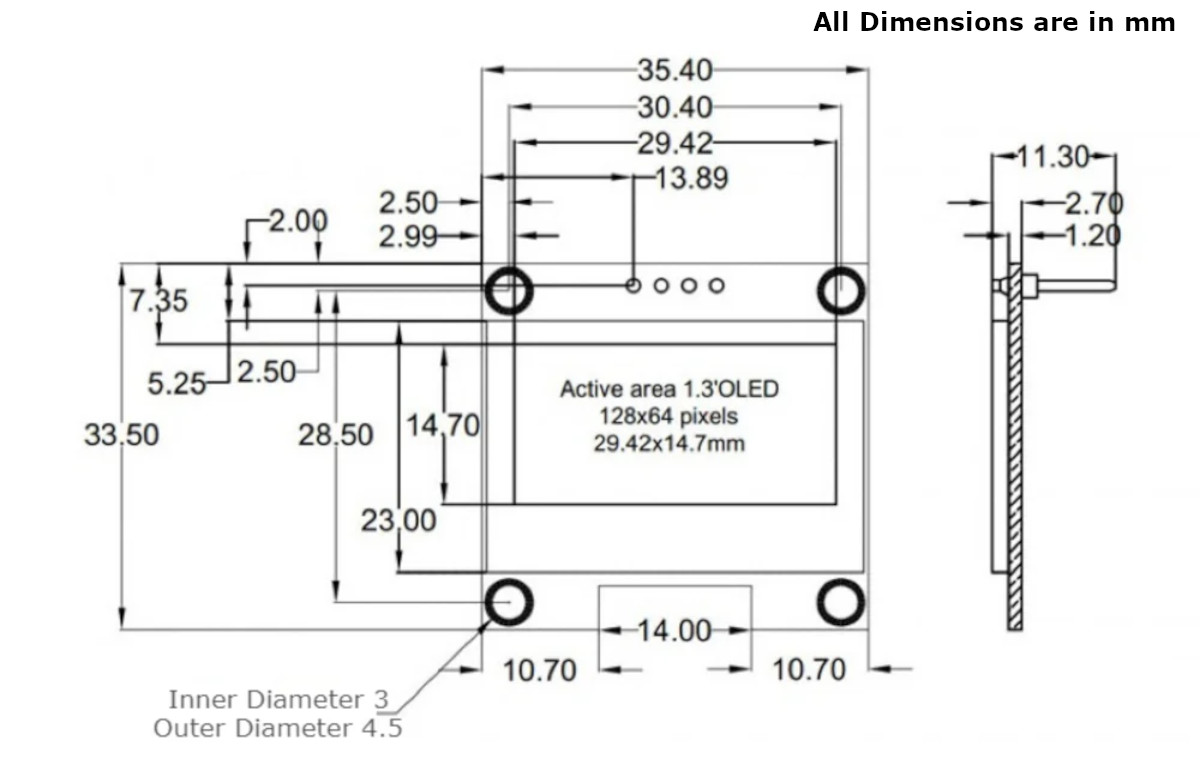

1.3" 128x64 OLED Display Module - Blue Pixels, SH1106 Controller, 4-Pin I2C

FREQUENTLY ASKED QUESTIONS (FAQ)

1. The title says "SPI I2C", but there are only 4 pins. Which is it? This specific module is strictly I2C. A true SPI OLED requires 6 or 7 pins. We group the terms in titles to help makers find the listing, but rest assured, you only need 4 wires (VCC, GND, SCK, SDA) to run this!

2. What is the difference between this and the 0.96" OLED? The primary differences are the physical size (1.3" is much larger and easier to read) and the controller chip. The 0.96" uses the SSD1306, while this 1.3" uses the SH1106.

3. Will my SSD1306 Arduino code work on this screen? Mostly, but not perfectly. Because the SH1106 has a slightly different memory map, using an SSD1306 library often results in the image being shifted 2 pixels to the right, leaving "snow" on the edge. You should use a dedicated SH1106 library.

4. What library do you recommend for Arduino? We highly recommend the U8g2 library for complex fonts and graphics, or the Adafruit_SH110X library for general-purpose drawing.

5. What voltage does it require? It features an onboard voltage regulator, meaning it works perfectly and safely on both 3.3V and 5.0V systems.

6. Do I need a backlight for this? No. OLED stands for Organic Light Emitting Diode. Every individual blue pixel generates its own light, so no backlight is needed.

7. Why is the screen completely black when it's off? Because there is no backlight panel behind the glass, the screen blends perfectly into the black PCB when the pixels are unpowered.

8. What does SCK and SDA stand for? SCK (sometimes labeled SCL) is the Serial Clock line. SDA is the Serial Data line. These are the two standard communication pins for the I2C protocol.

9. How do I wire this to an Arduino Uno? Connect VCC to 5V, GND to GND, SDA to Analog Pin 4 (A4), and SCK to Analog Pin 5 (A5).

10. What is the default I2C address for this module? The default I2C hex address is typically 0x3C.

11. Can I run two of these screens on the same Arduino? Yes, but they cannot share the exact same I2C address. Look at the resistors on the back of the board; by desoldering and moving a specific resistor, you can change the address from 0x3C to 0x3D, allowing two screens on one bus.

12. Will this work with a 3.3V Raspberry Pi? Yes, absolutely. It handles 3.3V logic and power perfectly.

13. Does it consume a lot of battery power? No, OLEDs are incredibly power-efficient. They only draw current for the pixels that are actually lit up. A typical text display might only draw 10mA to 20mA.

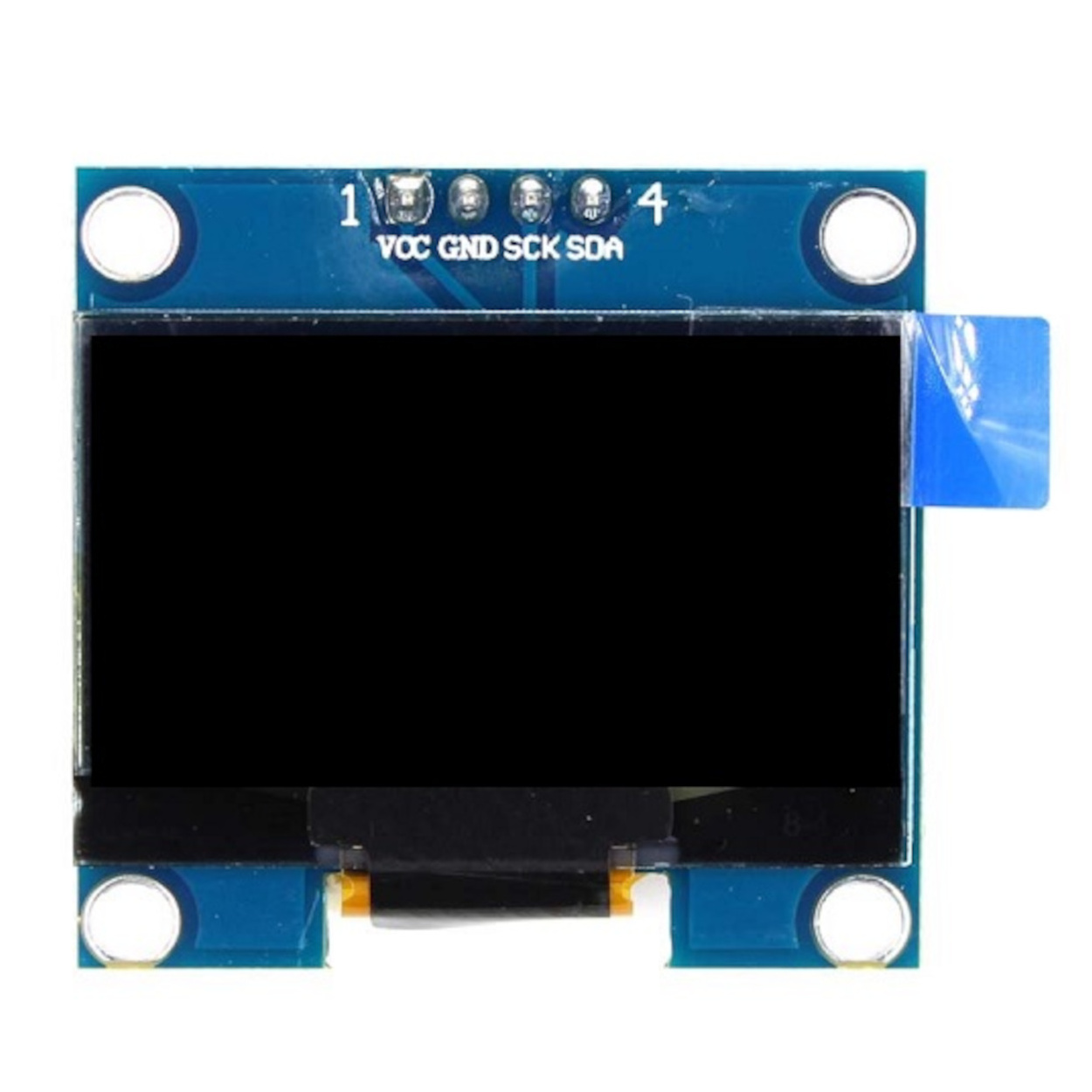

14. What is the blue tab on the side of the screen? That is a pull-tab attached to a clear, protective plastic film. You peel it off before mounting the screen in your project to reveal the pristine glass underneath.

15. Can it display different colors? No, this is a monochrome display. Every pixel is blue.

16. Can it display photos? Yes! You can convert small black-and-white bitmap (.bmp) images into a byte array (using free online tools like "image2cpp") and draw them onto the screen using your code.

17. Is it susceptible to screen burn-in? Like all OLEDs, if you leave the exact same static text at maximum brightness on the screen for months at a time, those pixels will eventually dim faster than the rest, causing burn-in.

18. How can I prevent burn-in? If your project runs 24/7, program a screensaver into your code. Either have the text bounce around the screen every few minutes, or program the display to turn off after 60 seconds of inactivity.
