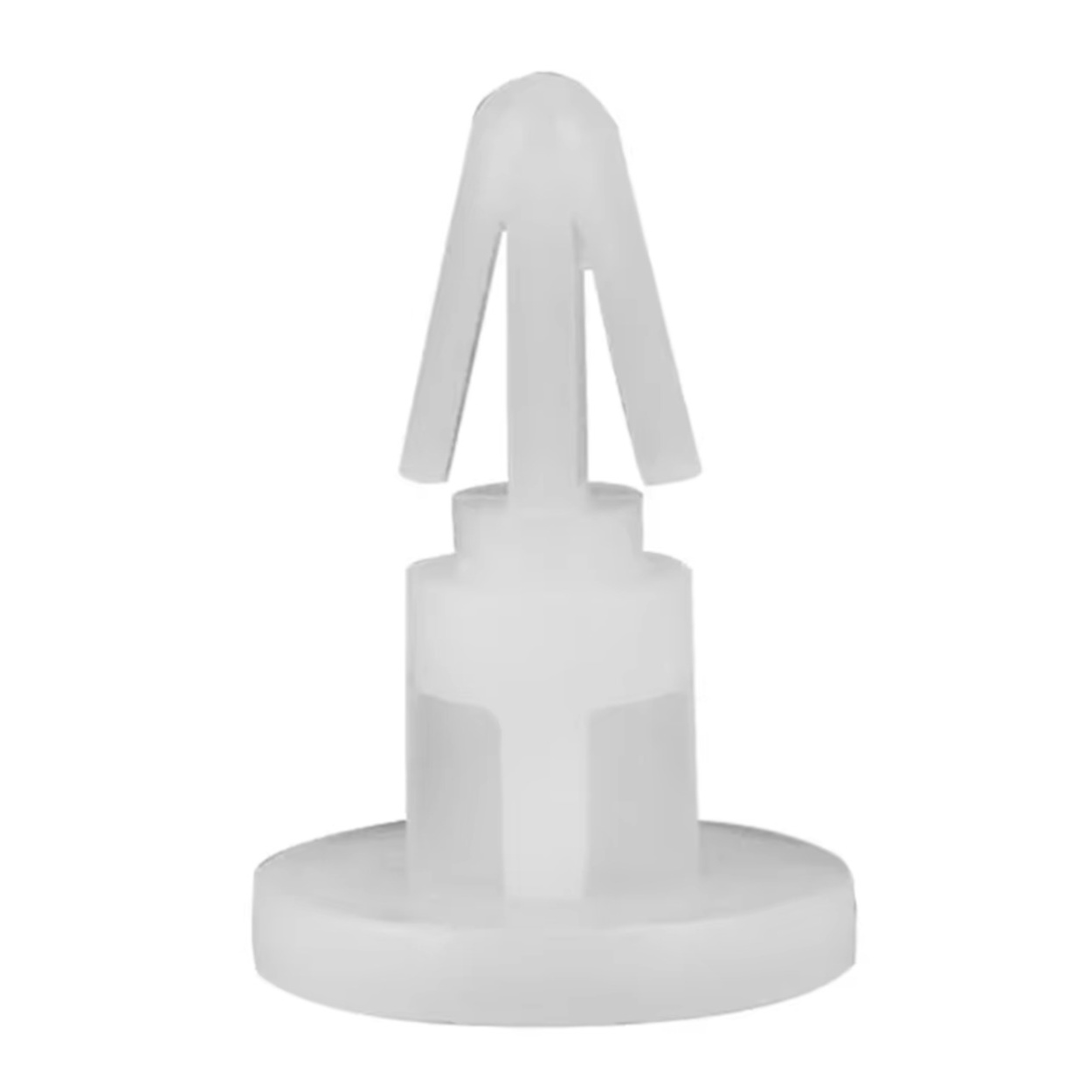

5mm Nylon Reverse-Mount PCB Standoff Spacer - Non-Conductive Circuit Board Pillar Support

Specifications:

• Product Type: Reverse-Mount Locking PCB Spacer
• Material: Nylon
• Color: White
• Standoff Height: 5mm
• Mounting Type: Snap-in / Reverse Lock
• Required Panel Hole Diameter: 4.0mm – 4.5mm
• PCB Thickness Compatibility: 1.0mm – 1.8mm
• Dielectric Strength: Excellent Insulation Properties
• Chemical Resistance: Resistant to oils, grease, and most common solvents

Key Applications:

• Industrial Control Panels: Securely mount PCBs to metal backplanes without conductive paths.

• Consumer Electronics: Ideal for compact enclosures where screw access is limited.

• Automotive Prototypes: High-vibration resistance makes these perfect for under-the-hood electronics.

• Project Ideas: Use them to stack multiple sensor boards in a "tower" configuration or to mount an Arduino/ESP32 inside a custom 3D-printed case.

Project Evolution

• Past Projects (Prerequisites): If you have previously used adhesive pads or standard hex standoffs that required tedious screwing, you know the struggle of maintenance.

• Feature Upgrade: Switching to these reverse-mount spacers unlocks Rapid Prototyping. You can snap a board in and out in seconds for firmware updates or hardware swaps without searching for a screwdriver.

• Effort Level: Beginner. No tools required. Minimum hardware needed: A chassis/panel with a 4.5mm hole.

Virtual Technician & Wiring

•  Installation Tip: Always press the spacer into the chassis before mounting the PCB. Ensure the "wings" of the spacer have fully expanded on the underside of the panel.

• Safety Warning: While these are non-conductive, ensure no high-voltage traces are directly touching the nylon pillar to prevent heat deformation over long-term use in high-power applications.

Package Includes:

1 X 5mm Nylon Reverse-Mount PCB Standoff Spacer - Non-Conductive Circuit Board Pillar Support

Frequently Asked Questions (FAQ)

1. What is a reverse-mount PCB spacer?
   It is a standoff that snaps into a chassis hole from the bottom or back, allowing the PCB to be pushed onto it from the top.
2. What is the mounting hole size for a 5mm nylon spacer?
   Most require a 4.0mm to 4.5mm hole in the chassis.
3. Can I reuse these spacers?
   Yes, the nylon wings are flexible and can be pinched for removal and reuse.
4. Is nylon conductive?
   No, nylon is an excellent insulator, making it safe for electronics.
5. What weight can these spacers support?
   They are designed for standard PCBs; for heavy components like large transformers, use at least 4-6 spacers.
6. Will these fit an Arduino Uno?
   Yes, if the Uno mounting holes are drilled to ~4mm.
7. Are these spacers heat resistant?
   They are rated for standard operating temperatures up to 85°C.
8. Do I need screws for this standoff?
   No, these are toolless snap-in connectors.
9. What is PA66 Nylon?
   It is a high-strength, flame-retardant engineering plastic.
10. How do I remove a snap-in spacer?
    Use a pair of needle-nose pliers to compress the locking wings from the underside.
11. Can I use these on a metal chassis?
    Yes, they are specifically designed to isolate the PCB from metal surfaces.
12. Are these UV resistant?
    They have moderate UV resistance but are best suited for indoor applications.
13. What is the total height of the spacer?
    The standoff distance (gap) is 5mm.
14. Do these work with 1.6mm thick PCBs?
    Yes, this is the standard thickness they are designed for.
15. Can I use these in high-vibration environments?
    Yes, the snap-fit is more vibration-resistant than loose-fitting screws.
16. Why choose nylon over brass standoffs?
    Nylon is lighter, non-conductive, and cheaper for most hobbyist and commercial applications.
17. What happens if my hole is too big?
    The spacer will be loose; ensure your drill size matches the 4.0-4.5mm requirement.
18. Are these RoHS compliant?
    Yes, our nylon spacers meet standard environmental compliance.
19. Can I paint these spacers?
    While possible, it is not recommended as paint may affect the snap-fit tolerances.
20. Do these come in different colors?
    We currently stock these in the natural white/semi-transparent nylon finish.
