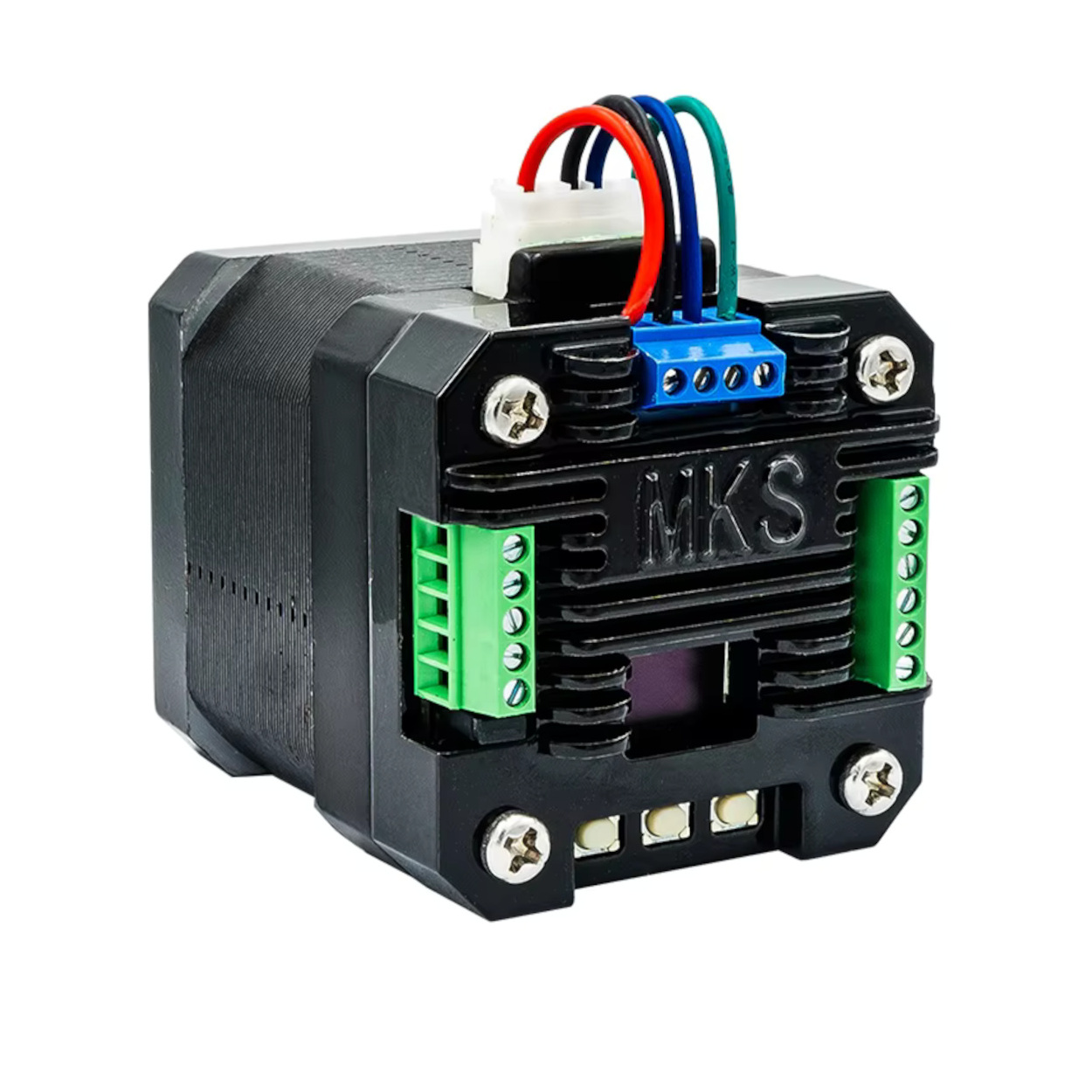

MKS SERVO42D NEMA17 Closed Loop Stepper Motor Driver Kit - CAN Bus Version With 40mm Motor

Specifications

• Motor Size: NEMA 17 (40mm Length)
• Driver Type: MKS SERVO42D (Integrated PCB)
• Microprocessor: 32-bit ARM Cortex-M4 (160MHz)
• Control Method: FOC (Field Oriented Control) Vector Control
• Feedback System: 14-Bit High-Precision Magnetic Encoder (16384 resolution)

      Communication Interfaces:

• CAN Bus: Supports daisy-chaining and high-speed telemetry.
• RS485: For industrial MODBUS control.
• Pulse/Direction: Drop-in replacement for standard stepper drivers (Enable/Step/Dir).
• Max Speed: 3000 RPM
• Holding Torque: ~480mN.m (4.8 kg.cm)
• Input Voltage: 12V - 24V DC
• Max Current: 3000mA (Software adjustable)
• Display: Onboard OLED menu for calibration and parameter tuning (no PC needed).

Minimum hardware

• 12V or 24V DC power supply rated for your motor count  the driver needs 12-24V DC, and running multiple motors on CAN Bus means sizing your supply for the combined current draw, not just one motor

• A mainboard or controller with Step/Dir output (RAMPS, SKR, etc.) for basic operation, OR a CAN Bus-compatible controller/hat if you want to use the daisy-
• chain feature
  Basic wiring skills  connecting the Enable/Direction/Step/GND pins correctly is straightforward, but getting polarity and pin mapping wrong can cause erratic motor behavior

Applications

• High-Speed 3D Printing: Essential for Voron, RatRig, and CoreXY builds to prevent layer shifts at >500mm/s.
• Robotic Arms: Provides the closed-loop precision required for accurate pick-and-place operations.
• CNC Plotters: Ensures perfect line closure and prevents "drifting" during long jobs.
• Camera Sliders: Silent FOC operation makes it ideal for video production rigs.

Project Evolution

• Prerequisites: If you have mastered basic NEMA 17 Steppers and A4988 Drivers, you know the frustration of "tuning" pots and guessing current limits.
• The Upgrade: This SERVO42D unit unlocks "Error-Free Motion Control". You no longer need to over-dimension motors just to be "safe" against skips. You can run closer to the physical limit of the motor without fear of failure.
• Effort Level: Intermediate. Requires 12V-24V power and basic wiring skills. CAN bus features require a compatible controller (like a specialized hat or mainboard).

Virtual Technician & Wiring ⚠️

• Voltage Warning: This device operates on 12V-24V DC. Do NOT connect the motor power input to 5V — it will not generate proper torque and may cause erratic behavior

• Logic Level Note: Signal pins (Enable/Dir/Step) are compatible with both 3.3V and 5V logic, so this is safe to use with ESP32/STM32-based boards as well as classic 5V Arduino-based boards

• Encoder Interference Warning: Keep strong external magnets away from the rear of the motor — the 14-bit magnetic encoder can be thrown off by nearby magnetic fields, causing position errors.

       Pin Mapping (Pulse Mode):

• PE (Enable): Connect to MCU Enable Pin.
• PD (Direction): Connect to MCU Dir Pin.
• PS (Step): Connect to MCU Step Pin.
• GND: Common Ground.

Package Contents:

• 1× MKS SERVO42D CAN Motor Unit
• 1× MKS APT (adapter board)
• 1 x Cable XH2.54-6Pin 100cm (single end tinned 5mm)
• 1 x Mini jumper 2.0 PINHD-2X1 (Closed,Height 5.0MM)

Frequently Asked Questions (FAQ)

• Does the MKS SERVO42D prevent layer shifting in 3D printers?
  Yes, the closed-loop feedback detects lost steps and corrects the motor position immediately to prevent layer shifts.
• What is the advantage of the CAN version over the standard version?
  The CAN version allows for daisy-chaining motors, significantly reducing wiring complexity and cable weight on moving gantries.
• Can I use this as a drop-in replacement for a standard NEMA 17?
  Yes, in Pulse/Dir mode, it accepts standard Step/Dir signals from any 3D printer board (like RAMPS or SKR).
• Do I need a computer to configure the motor parameters?
  No, the onboard OLED screen and buttons allow you to set current, steps, and calibrate the motor directly on the unit.
• What is the holding torque of the SERVO42D package?
  The included 40mm motor typically offers around 4.8 kg.cm (480 mN.m) of holding torque.
• Does this motor support FOC (Field Oriented Control)?
  Yes, the Cortex-M4 processor runs a vector control algorithm for silent, efficient, and smooth operation.
• What is the maximum speed this motor can achieve?
  The driver supports speeds up to 3000 RPM, which is significantly faster than standard open-loop steppers.
• Is the magnetic encoder sensitive to external magnets?
  Yes, keep strong external magnets away from the rear of the motor to avoid interfering with the 14-bit encoder.
• Can I control this motor with an Arduino?
  Yes, you can use the standard Stepper libraries or send commands via RS485/CAN if you have the appropriate shield.
• Does it support 3.3V logic?
  Yes, the signal inputs are compatible with both 3.3V (ESP32/STM32) and 5V (Arduino Uno) logic levels.
• How do I calibrate the motor after installation?
  Enter the menu using the onboard buttons, select "CAL" (Calibration), and the motor will perform a self-test routine.
• Does it get hot during operation?
  Closed-loop control is more efficient than open-loop, so it generally runs cooler, but the driver MOSFETs can get warm under high current.
• What is the default microstepping setting?
  The default is usually 16 microsteps, but it can be adjusted up to 256 via the menu.
• Can I use this for a high-speed Voron build?
  Absolutely. It is a popular upgrade for Voron Switchwire and Trident builds for the X/Y axes.
• Does the package include the CAN bus cable?
  Yes, a basic connection cable is usually included, but you may need longer custom cables for large printers.
• How does the "Anti-Stall" feature work?
  The driver monitors the encoder. If the error between target and actual position exceeds a threshold, it boosts current or triggers an alarm.
• Is this compatible with Klipper firmware?
  Yes, Klipper can control it via Step/Dir or via CAN bus (if using a supported CAN bridge).
• What happens if the motor is physically blocked?
  The driver will attempt to correct the position. If it cannot, it will trigger a "Stall" error to protect the motor and mechanics.
• Can I turn off the closed-loop mode?
  Yes, the menu allows you to switch between Open-Loop and Closed-Loop modes for testing.
• Why is the "D" version better than the "C" version?
  The "D" version uses a faster Cortex-M4 processor (vs M0), supports higher speeds, and includes CAN/RS485 native support.

• How many SERVO42D motors can I daisy-chain on one CAN Bus line?
  Practically, most builders run 4-6 motors per CAN Bus segment before signal degradation or addressing conflicts become a concern — check your specific mainboard's CAN controller limits for the hard ceiling.



• Do I need to set a unique CAN ID for each motor in a daisy chain?
  Yes, each SERVO42D on the same CAN Bus needs a unique node ID configured via the onboard OLED menu, otherwise multiple motors will respond to the same commands simultaneously.

• Can I mix SERVO42D and SERVO42C motors on the same CAN Bus?
  This isn't recommended without verifying firmware protocol compatibility between the two — the "D" and "C" variants use different processors and CAN Bus implementations that may not interoperate cleanly.
