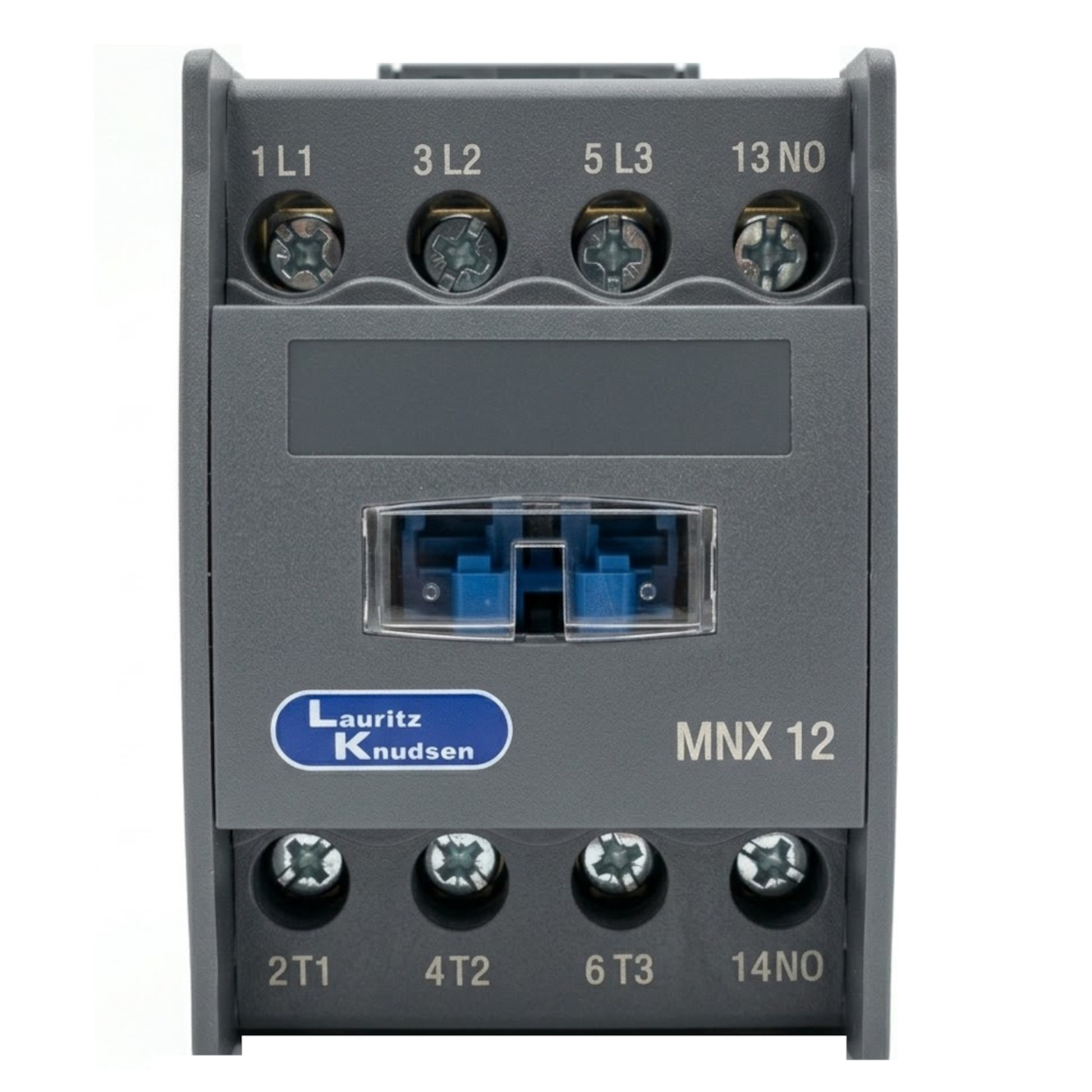

L&T Larsen & Toubro MNX 12 Power Contactors 220-240V AC, 3 Pole

Specifications

• Model Series: MNX 12
• Coil Voltage: 220 - 240V AC (50/60 Hz)
• Rated Current (AC-3): 12 Amps
• Main Poles: 3 Pole (Normally Open - NO)
• Mounting: Standard 35mm DIN Rail Mount or Screw/Panel Mount
• Terminal Type: Heavy-duty screw terminals for secure wire clamping

Applications

• Motor Control Centers (MCC): Ideal for starting and stopping 3-phase induction motors.
• HVAC Systems: Switching large air conditioning compressors and exhaust fans.
• Agricultural Automation: Controlling heavy-duty irrigation pumps and greenhouse heaters.
• Industrial Automation Panels: Acting as the primary power switch controlled by PLCs.

Unlock New Capabilities:

• Past Projects: If you've mastered controlling basic appliances using 5V or 12V relay modules hooked up to your Arduino or ESP32...
• The Upgrade: The MNX 12 unlocks true industrial automation. You can now use a smaller pilot relay (or a solid-state relay) to trigger the 220V coil of this contactor, which in turn can safely switch massive 3-phase industrial motors or factory-scale lighting banks.
• Effort Level: Intermediate to Advanced. Working with this requires a solid understanding of AC mains safety, panel wiring, and control logic.

Virtual Technician: Wiring & Safety Guide

• ⚠️ CRITICAL SAFETY WARNING: This device switches lethal AC mains voltages. Ensure all power is disconnected at the breaker before wiring. Use properly rated insulated wire and crimped bootlace ferrules for all connections.
• Coil Terminals (A1 & A2): Apply your 220-240V AC control signal here. Energizing these terminals pulls the contactor closed.
• Main Terminals (L1/T1, L2/T2, L3/T3): These are the high-power input (Line) and output (Load) terminals. They switch simultaneously when the coil is energized.

Package Included:

• 1 X  L&T Larsen & Toubro MNX 12 Power Contactors 220-240V AC, 3 Pole

Frequently Asked Questions (Technical FAQs)

• What does the '12' in MNX 12 mean?
  It signifies the contactor's rated operational current of 12 Amps under an AC-3 utilization category (typical for induction motors).
• Can I control the coil directly from an Arduino or ESP32?
  Absolutely not. The coil requires 220-240V AC. You must use a 5V/3.3V relay module to switch the 220V AC that feeds the contactor's coil.
• What is the difference between a relay and a contactor?
  Contactors are essentially heavy-duty relays designed specifically for switching high power and inductive loads, featuring arc suppression capabilities and heavier contacts.
• Is this for 1-phase or 3-phase power?
  It has 3 main poles, so it is perfect for switching 3-phase power. However, it can also be used to switch 1-phase power by wiring through just one or two of the poles.
• Does it have built-in auxiliary contacts?
  The base MNX 12 typically requires an add-on auxiliary contact block (like 1NO or 1NC) if you need feedback signals for your PLC or panel lights.
• Can I mount this on a standard DIN rail?
  Yes, it snaps directly onto a standard 35mm symmetrical DIN rail.
• What is the operating voltage of the coil?
  The coil in this specific model is rated for 220-240V AC.
• Can I use DC voltage on the coil?
  No, applying DC to this specific AC coil will cause it to draw excessive current and burn out.
• What wire size should I use for the main terminals?
  This depends on your load, but the terminals can generally accept up to 4 sq. mm or 6 sq. mm stranded wire. Always use insulated ferrules.
• Why does it hum loudly when turned on?
  A loud hum usually indicates dirt on the magnetic pole faces, low coil voltage, or a misaligned armature. A faint, steady hum is normal for AC coils.
• Do I need a snubber circuit across the coil?
  If you are driving the coil via a delicate electronic switch or a smaller relay, adding an RC snubber across the A1/A2 terminals helps protect the pilot switch from inductive kickback.
• What does the AC-3 rating mean?
  AC-3 is an IEC utilization category that means the contactor is rated for starting and switching off squirrel-cage induction motors during normal operation.
• Is it waterproof?
  No, it has an IP20 rating. It must be installed inside an electrical enclosure or control panel.
