IP67 Waterproof USB 2.0 Female to Female Panel Mount Socket Connector

Specifications

• Connector Type: USB 2.0 (Compatible with USB 3.0 physical plugs at 2.0 speeds)
• Configuration: Female to Female (Pass-through / Receptacle)
• Mounting Style: Panel Mount (Front Nut Fixing)
• Waterproof Rating: IP67 (When mated or capped)
• Locking Mechanism: Bayonet Lock (1/4 turn to lock)
• Number of Pins: 4-Pin
• Rated Current: 1.5A
• Operating Voltage: 5V DC
• Contact Resistance: < 30 mΩ
• Insulation Resistance: > 500 MΩ
• Housing Material: High-performance engineering plastics (Zinc alloy components)

Applications

• Outdoor IoT Gateways: Easily extract data or flash firmware to weather-station microcontrollers without opening the waterproof enclosure.
• Industrial Control Panels (PLCs): Provide a rugged, accessible USB port on factory machinery for diagnostics and HMI interfaces.
• Marine & RV Electronics: Create reliable charging or data hubs that won't succumb to humidity.
• Custom Robotics: Perfect for adding external programming ports to fully sealed underwater ROVs or rugged autonomous rovers.

Unlock New Capabilities

• Past Projects: You’ve likely built basic enclosures using hot glue and standard USB extensions to route ports to the outside, which eventually broke or leaked.
• Feature Upgrade: This connector unlocks the ability to build Professional-Grade, Weather-Sealed hardware. It upgrades your DIY box into a commercial-ready product.
• Effort Level: Beginner. No soldering or complex wiring required. Simply drill a hole, tighten the front nut, and plug in a standard USB cable on the inside!

Virtual Technician & Wiring Guide

• ⚠️ Safety & Handling Warning: The IP67 rating is only valid when the USB cable (specifically designed with a matching bayonet ring) is securely locked in, or when the included protective dust cap is fully secured. Do not leave the port uncapped in wet environments.
• Wiring: No wiring guide is needed! This is a pure hardware pass-through. Plug your internal microcontroller's USB cable into the back of the socket, and your external cable into the front.

Package Includes:

• 1x IP67 Waterproof USB 2.0 Female to Female Panel Mount Socket Connector

Frequently Asked Questions (FAQ)

• What is the waterproof rating of this USB connector?
  It is rated IP67, meaning it is protected against dust ingress and temporary immersion in water (up to 1 meter for 30 minutes) when properly capped or mated.
• Does it support USB 3.0 data transfer speeds?
  No, this specific model features a 4-pin USB 2.0 core, limiting speeds to standard USB 2.0 rates (up to 480 Mbps), though it will physically accept USB 3.0 Type-A plugs.

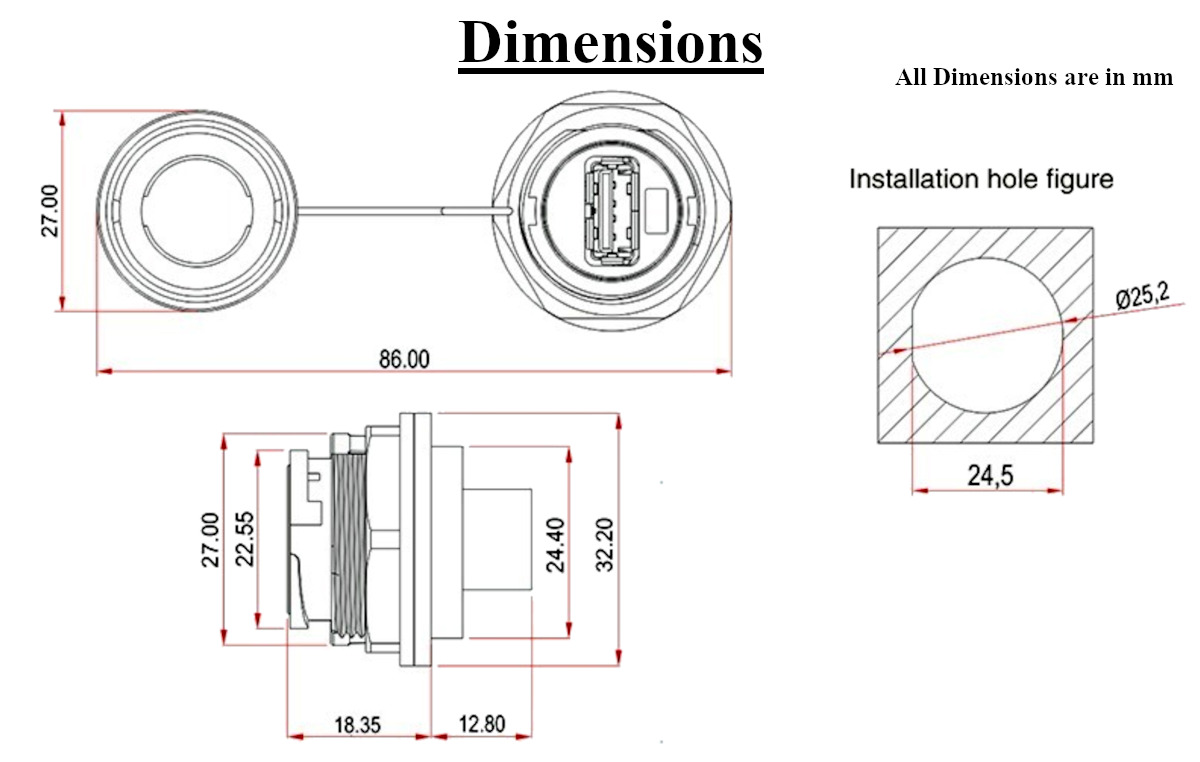

• What is the required panel cutout diameter for mounting?
  This typically requires a standard LP-16 or LP-24 series cutout (please refer to the exact datasheet diagram once available, typically ~24mm for standard USB bulkheads).
• Is soldering required to connect cables to this socket?
  No soldering is required. It is a female-to-female pass-through receptacle. You simply plug a standard USB male cable into the rear.
• How does the bayonet locking mechanism work?
  It features a quick-disconnect 1/4 turn system. Push the compatible male plug in and twist slightly to lock it securely into place.
• Can I use this for power delivery as well as data?
  Yes, it can handle up to 1.5A at 5V, making it suitable for powering basic microcontrollers and charging standard devices.
• What is the maximum current rating for this USB 2.0 connector?
  The maximum rated continuous current is 1.5 Amps.
• Is the connector waterproof when the cap is removed?
  No. If there is no mated plug and the cap is off, the internal USB contacts are exposed to the environment.
• Does this fit into standard D-type panel cutouts?
  No, This circular connectors use their own specific circular cutout dimensions, not the standard XLR/D-Type footprint.
• What material is the outer shell made of?
  It is constructed from high-performance industrial engineering plastics with UV resistance and high-impact strength.
• Is it compatible with standard off-the-shelf USB Type-A cables?
  Yes, standard USB Type-A cables will plug into both the front and back. However, standard cables will not latch onto the bayonet lock or provide an IP67 seal on the outside.
• What is the operating temperature range for this connector?
  It operates reliably in extreme environments ranging from -40°C to +80°C.
• Does the package include the protective dust cap?
  Yes, a tethered waterproof rubber/plastic dust cap is included to seal the port when not in use.
• Can this be used in marine environments?
  Yes, the IP67 rating and corrosion-resistant materials make it highly suitable for boat dashboards and marine electronics.
• How thick can the mounting panel be?
  The front-nut design generally accommodates panel thicknesses from 1mm up to 4mm.
• Are the internal contacts gold-plated?
  Yes, the internal copper pins feature gold plating to prevent oxidation and ensure reliable data transmission.
