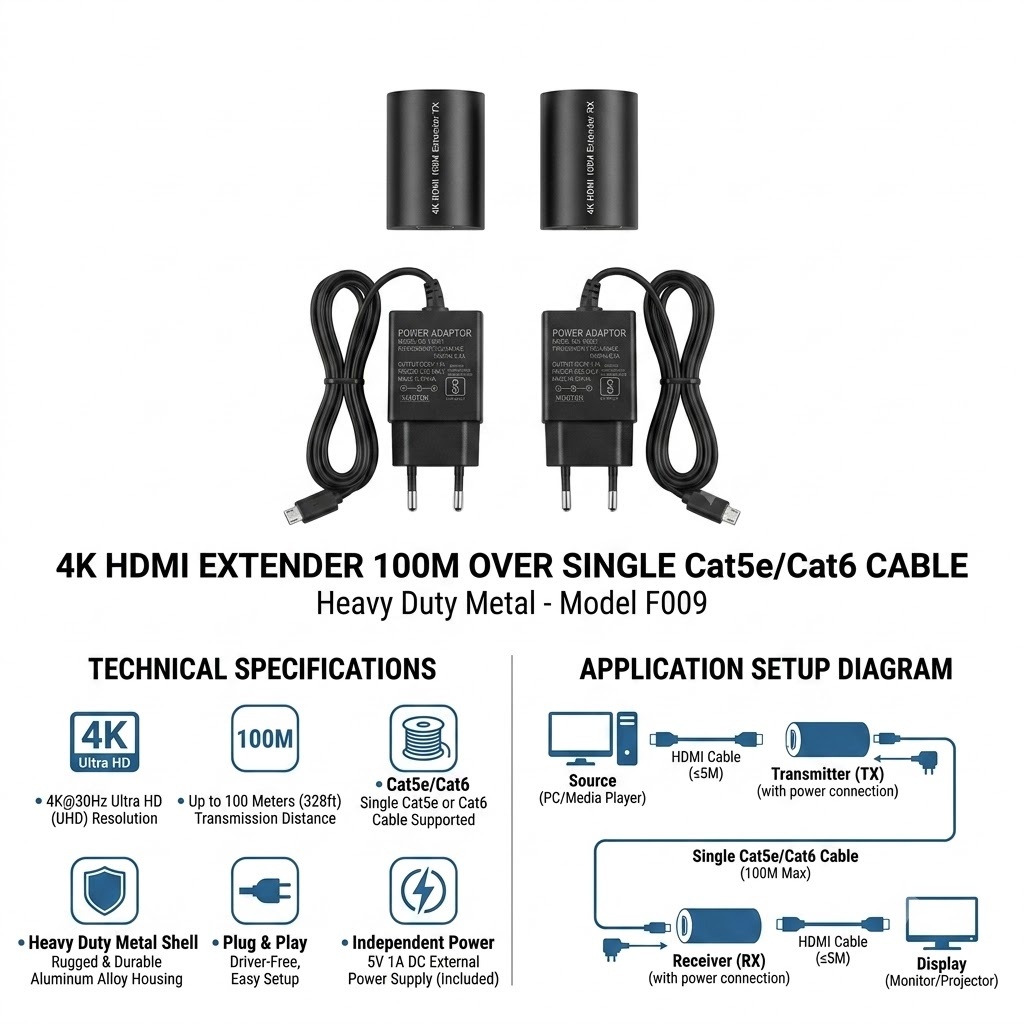

4K HDMI Extender 100M Over Single Cat5e Cat6 Cable Heavy Duty Metal

• Specifications:
• Operating Voltage: 5V DC (via included power adapters)
• Communication Interface: HDMI (Input/Output) to RJ45
• Supported Cable Types: Cat5e / Cat6 Ethernet (Cat6 recommended for max distance)
• Maximum Video Resolution: 4K (Ultra HD) @ 30Hz / 1080p @ 60Hz
• Maximum Transmission Distance: 100 Meters
• Audio Format Support: DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD
• Enclosure Material: Heavy-duty industrial metal alloy

Minimum hardware to get started:

• Cat5e or Cat6 Ethernet Cable: to carry the high-bandwidth signal between the Transmitter (TX) and Receiver (RX) units (pure copper Cat6 is highly recommended to achieve the full 100M distance at 4K).

• 2× High-Speed HDMI Cables:  one to connect your source (PC/NVR) to the TX, and one to connect the RX to your display.

• Power Supply: to power both the TX and RX active processing chipsets (typically provided via the included 5V DC adapters).


Accessories Included in the Box:

• 1× F009 HDMI Transmitter (TX) Unit
• 1× F009 HDMI Receiver (RX) Unit
• 2× 5V DC Power Adapters

Frequently Asked Questions

• Is the F009 HDMI Extender compatible with standard 1080p monitors?
  Yes, it is fully backwards compatible and will automatically downscale to output 1080p if a 4K display is not detected.
• Can I use a Cat5e cable instead of a Cat6 cable for this extender?
  Yes, but Cat5e will significantly reduce the maximum stable distance and may drop 4K signals at ranges beyond 50 meters.

• Will this work to extend the signal from my NVR or DVR security system?
  Absolutely, it is highly recommended for securely beaming NVR feeds to remote monitoring stations across a large building.

• Can I connect the receiver to a network switch or router?
  No, this is a point-to-point transmission system and must not be plugged into standard LAN networking equipment.
• What voltage do the F009 transmitter and receiver require?
  Both the TX and RX units require a dedicated 5V DC power supply to operate effectively.
• Are the 5V power adapters included in the box?
  Yes, the kit includes two standard 5V DC adapters, one for each unit.
  Can I power the receiver unit via Power over Ethernet (PoE)?
  No, this specific model requires its own dedicated 5V wall adapter and does not support PoE delivery.
• How do I connect the HDMI cables to the transmitter?
  Connect a short, high-quality HDMI cable directly from your video source into the HDMI IN port on the TX unit.

• Do I need to use straight-through or crossover ethernet cables?
  You must use a standard straight-through (T568B standard) ethernet cable for the connection between the two units.
• Does the direction of the ethernet cable matter?
  While the wire itself is bidirectional, you must ensure it connects the TX RJ45 port directly to the RX RJ45 port without any intermediate hardware.
• Are there any drivers required to use the F009 extender with a Windows PC?
  No drivers are needed, as it operates entirely at the hardware level and acts as a standard plug-and-play monitor.
• Where can I find the exact EDID specifications for this extender?
  The unit handles EDID pass-through automatically based on the connected screen, negotiating the best resolution without manual software.
• Is there a specific software required to adjust the video resolution?
  No, the resolution is negotiated automatically by your source device and the connected display based on standard HDMI handshakes.
