M18 I-Type Proximity Switch Sensor Metal Bracket Straight Holder Approach Support βΉ69.00 This is a non-contact liquid level sensor that works on capacitive sensing technology. These non-contact sensors can be mounted on the outside of a liquid tank to measure the liquid level inside it. The sensor outputs a digital HIGH signal when the liquid level is above the sensor and a LOW signal when the liquid level is below it. It can sense through walls of non-metallic tanks with a wall thickness of up to 5mm. This sensor does not require you to drop sensors inside the tank or draw wires inside it. It works from the outside, offering easy installation and mounting.

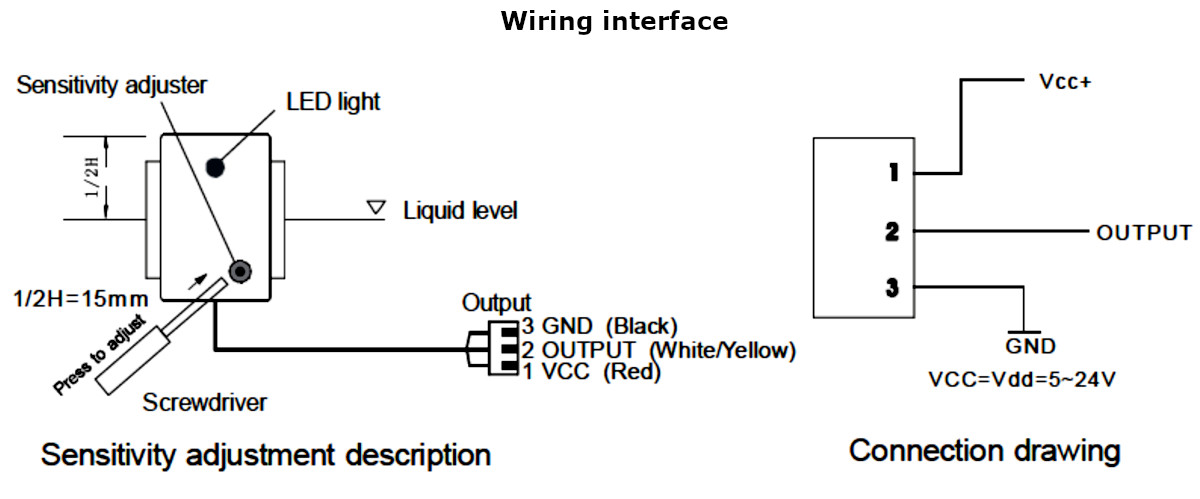

The sensor comes with clamps for easy mounting. Can be pasted onto the tank. Sensitivity can be adjusted to different liquid and tank materials by turning an onboard potentiometer. An LED light on the sensor indicates the liquid level status. Can be connected to Microcontroller digital input pins, PLC, Controllers, etc
This non-contact liquid level sensor adopts advanced signal processing technology and a high-speed signal processing chip, and it won't be influenced by the container wall thickness when detecting the liquid level in a tank/container. The liquid level sensor is installed outside the container (high level and low level). It can detect liquid levels of various toxic substances, acid, alkali, and all kinds of liquids in high-pressure airtight containers. It can be widely used and has no special requirement for the liquid medium and material of the container(as long as it is non-metallic).
Features:
Applications:
Package Includes:
Specifications:




This Video Describes the Working of WS-03 Non Contact Liquid Level Sensor With Surface Mount Bracket
