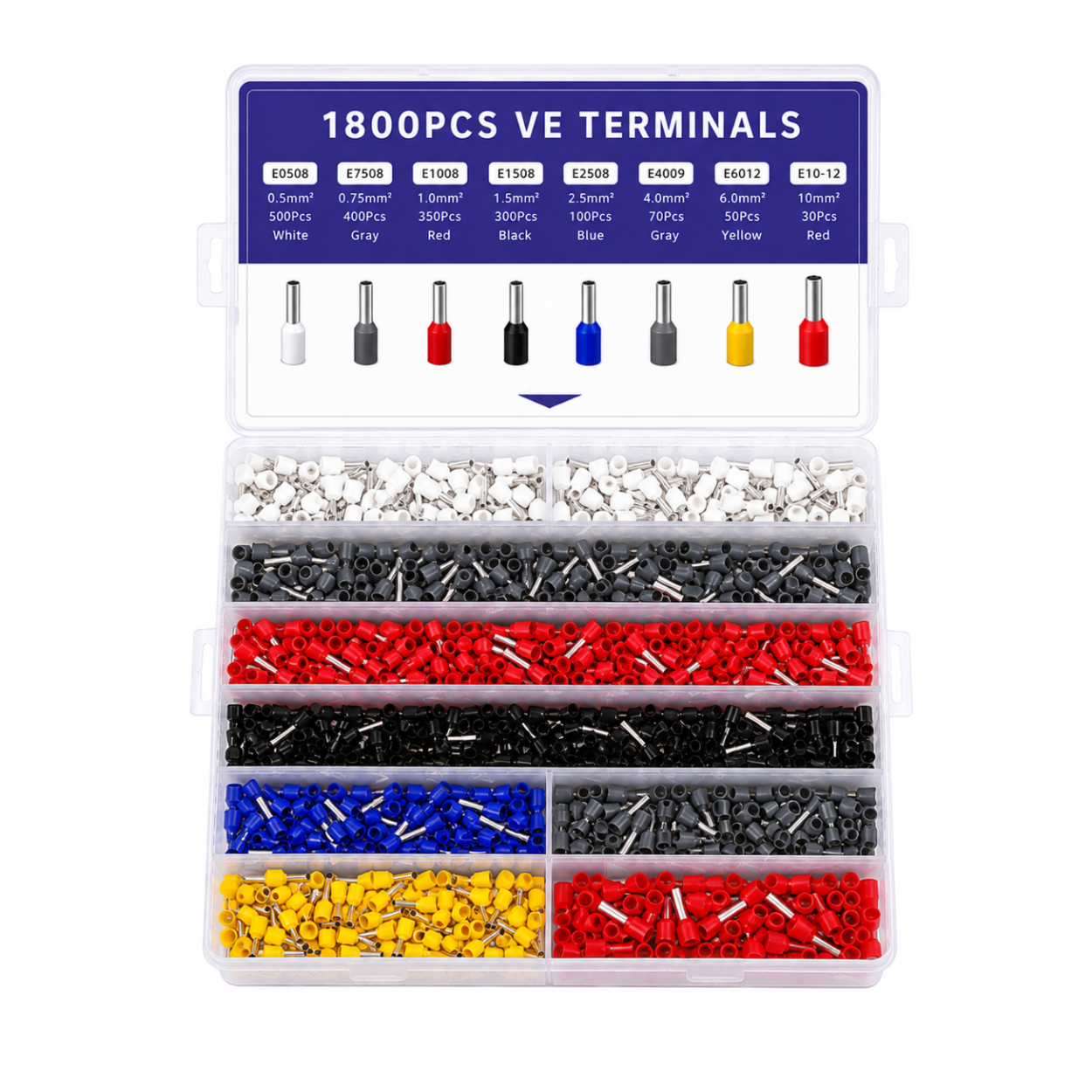

Wire Ferrule Crimping Assorted Kit E0508-E1012 1800PCS with Storage Box

 Specifications

• Connector Type: Insulated wire ferrule (bootlace/cord-end terminal)
• Kit Contents: 1800 pieces total, 8 sizes
• E0508: 22 AWG, 0.5mm², White, 500pcs, 8mm pin / 14mm insulation
• E7508: 20 AWG, 0.75mm², Gray, 400pcs, 8mm pin / 14.5mm insulation
• E1008: 18 AWG, 1.0mm², Red, 350pcs, 8mm pin / 14.5mm insulation
• E1508: 16 AWG, 1.5mm², Black, 300pcs, 8mm pin / 14mm insulation
• E2508: 14 AWG, 2.5mm², Blue, 100pcs, 8mm pin / 15.3mm insulation
• E4009: 12 AWG, 4.0mm², Gray, 70pcs, 9mm pin / 17mm insulation
• E6012: 10 AWG, 6.0mm², Yellow, 50pcs, 12mm pin / 20.5mm insulation
• E10-12: 7 AWG, 10mm², Red, 30pcs, 12mm pin / 22mm insulation
• Material: Electrolytic copper with electro-tin plating, insulated nylon sleeve
  Voltage Rating: Up to 600V
• Packaging: Compartmentalized transparent plastic storage box

Minimum hardware

• Ferrule crimping tool  a self-adjusting or multi-size crimping tool is strongly recommended given this kit spans 8 different sizes; a single fixed-size crimper won't handle the full range
• Wire strippers  to expose bare stranded wire before inserting into the ferrule, matched to each specific ferrule size's pin length
• Appropriately gauged wire per application  this kit's 8 sizes cover 22 AWG signal wire up to 7 AWG power wire, so match the ferrule size to your actual wire gauge

Safety Warnings

• Crimp Quality Warning: A poorly crimped ferrule can loosen under vibration just like bare wire would  always use a proper crimping tool rated for the specific ferrule size, not pliers
• Size Mismatch Warning: Using a ferrule sized larger than your actual wire gauge results in a loose, unreliable crimp  always match the ferrule to your wire's actual cross-sectional area, not just what's on hand
• Color-Coding Note: This kit follows standard color-to-size convention (confirmed from box labeling)  always verify the printed size code (e.g., E1508) rather than relying on color alone, since color standards can vary slightly between manufacturers

Accessories Included in the Box

• 500× E0508 (0.5mm², White)
• 400× E7508 (0.75mm², Gray)
• 350× E1008 (1.0mm², Red)
• 300× E1508 (1.5mm², Black)
• 100× E2508 (2.5mm², Blue)
• 70× E4009 (4.0mm², Gray)
• 50× E6012 (6.0mm², Yellow)
• 30× E10-12 (10mm², Red)
• 1× Compartmentalized Plastic Storage Box

Frequently Asked Questions

• Are these ferrules compatible with standard DIN rail terminal blocks?
  Yes, ferrules are specifically designed to terminate stranded wire for insertion into DIN rail terminal blocks, screw terminals, and similar connection points.

• Can I use the larger sizes (E6012, E10-12) for AC mains wiring?
  These ferrules are rated for standard control panel and low-voltage wiring applications  always verify the specific voltage and current rating against your local electrical code before using them for mains-level power wiring.

• Will these work with solid core wire, or only stranded?
  Ferrules are specifically designed for stranded wire  solid core wire doesn't have the fraying issue ferrules solve and typically doesn't need one.

• Are these compatible with a standard fixed-size crimping tool, or do I need a special one?
  Since this kit spans 8 different sizes, a self-adjusting or multi-die crimping tool is strongly recommended  a single fixed-size crimper will only properly handle one or two sizes in this range.
• How do I know which ferrule size matches my wire?
  Match the ferrule's mm² rating to your wire's actual cross-sectional area  using a ferrule too large results in a loose crimp, while one too small won't fit the wire strands properly.

• Do I need to strip a specific length of wire for each size?
  Yes, strip length should match each ferrule's pin length  8mm for the four smallest sizes, 9mm for E4009, and 12mm for E6012 and E10-12.

• Can I crimp these with regular pliers if I don't have a ferrule tool?
  Pliers produce an inconsistent, unreliable crimp  a proper ferrule crimping tool with the correct die size is strongly recommended for connections you'll depend on.
• Why does my ferrule feel loose after crimping?
  This usually means the crimping tool's die didn't match the ferrule size, or the wire gauge doesn't match the ferrule  recheck both before recrimping.

• Why are individual wire strands still visible outside the ferrule after crimping?
  The wire wasn't stripped to the correct length for that ferrule's pin size  restrip to match the specified length and recrimp.

• Can a bad ferrule crimp cause intermittent connections in a control panel?
  Yes, this is one of the most common causes of intermittent panel wiring issues  recheck the crimp and terminal screw tightness if you're seeing inconsistent behavior.

• Why won't the ferrule fit into my terminal block's screw terminal?
  Check that you selected the correct ferrule size for your terminal block's rated wire gauge  an oversized ferrule won't seat properly in a terminal designed for smaller wire.
