Silicone Tire Wheel for N20 Micro Metal Gear Motors

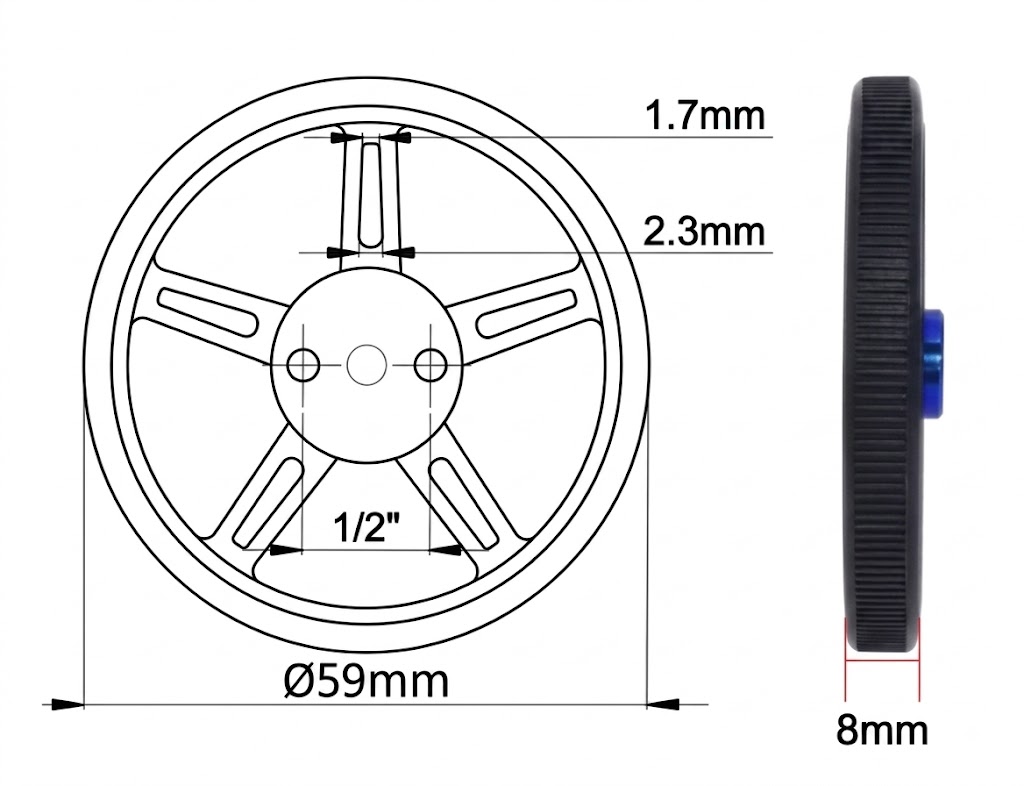

Specifications

• Wheel Diameter: 59mm (Ø59mm outer diameter)
• Tire Width: 8mm
• Tire Material: High-Grip Silicone Tread Ring
• Rim Material: Reinforced Polycarbonate Rim (5-Spoke Design)
• Shaft Compatibility: Direct press-fit D-Shaft for N20 Micro Metal Gear Motors
• Center Hub Hole Spacing: 1/2" (12.7mm) mounting hole center-to-center spacing
• Spoke Slot Widths: 1.7mm and 2.3mm alignment slots
• Color: Matte Black Rim with Black Tread Ring
• Operating Temperature Range: -10°C to +80°C

Past Projects

• If you've already experimented with basic DC motors, L298N motor drivers, or built a simple line-following robot chassis using standard plastic yellow gear motors, you already understand motor speed control and directional logic. Upgrading to micro-sized precision mechanics is the logical next step for building compact, high-performance competitive bots.
• Feature Upgrade (What This Unlocks)
  This 5908 Series Silicone Tire Wheel unlocks competitive-grade traction for mini-sumo bots, high-speed line followers, and micro maze-solving robots. Standard rubber tires easily slip on smooth arena acrylic or polished wood, wasting precious motor torque. The custom silicone compound on this wheel maximizes ground friction, allowing rapid acceleration, sharp cornering without drift, and instant braking without wheel spin.
• Effort Level & Minimum Hardware
• Effort Level: Beginner

Minimum hardware to get started:

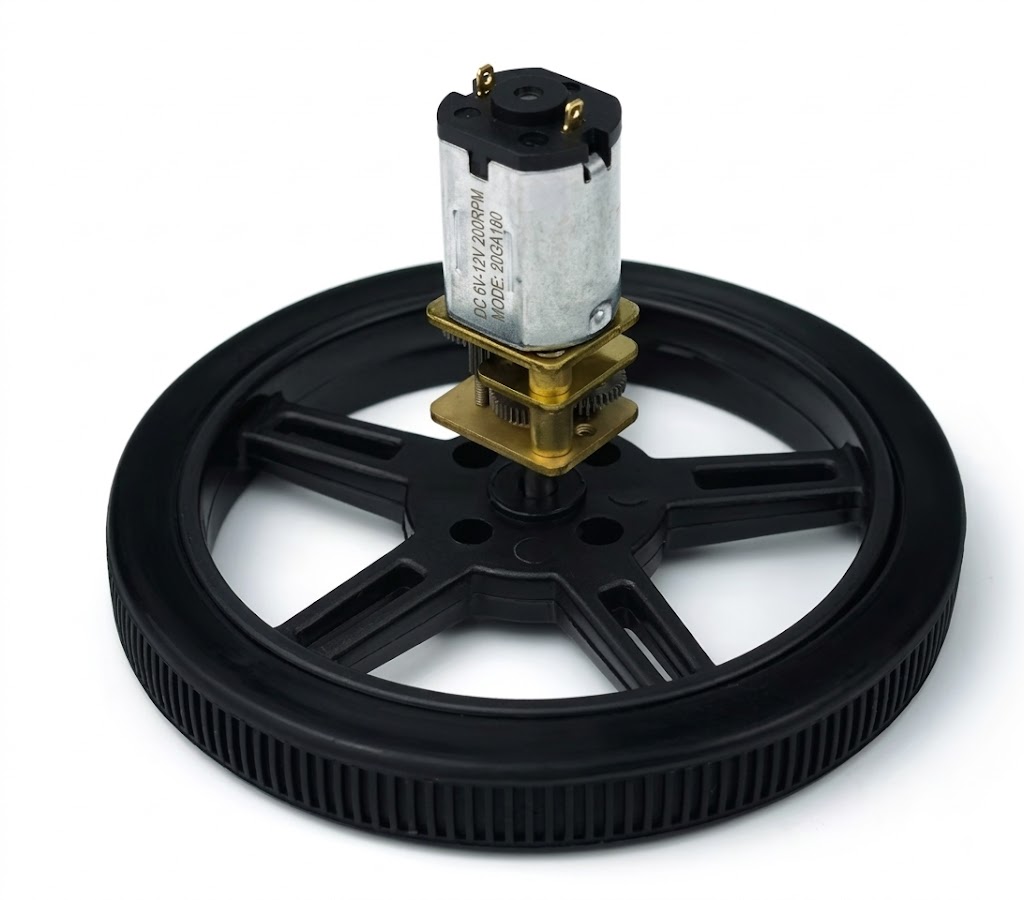

• N20 Micro Metal Gear Motor: the center hub is engineered specifically for direct press-fit installation onto the N20 D-shaped output shaft.
• Motor Mounting Brackets: required to secure the N20 motor securely to your robot frame so torque transfers directly to the wheel.
• Motor Driver (e.g., TB6612FNG or DRV8833): needed to switch direction and regulate current to the motor, as microcontrollers cannot drive motors directly.

Included in the Box:

• 1 x Silicone Tire Wheel for N20 Micro Metal Gear Motors

Frequently Asked Questions

• Are these wheels compatible with standard N20 micro metal gear motors?
  Yes, the center hub features a precision D-shaped cutout engineered for direct press-fit installation onto standard 3mm D-shaped N20 motor output shafts.
• Can I use these wheels with BO motors or standard DC yellow gear motors?
  No, BO motors use a much larger rectangular output shaft (typically 5.3mm × 3.6mm) and will not fit this N20-specific hub.
• Are these wheels suitable for line-following robots?
  Yes, the Ø59mm diameter and high-traction silicone tread provide excellent grip on smooth competition tracks, allowing for sharp cornering and rapid acceleration.
• Can I use these wheels in mini-sumo or combat robotics builds?
  Yes, the soft silicone outer ring delivers superior friction compared to hard plastic wheels, helping your robot maintain traction during pushing matches.
• Do these wheels require any electrical power or wiring?
  No, these are purely mechanical components and do not connect electrically; power is supplied entirely to the N20 motor driving them.
• Will heavy loads affect the wheel's performance on the motor shaft?
  Excessive payloads exceeding the stall torque capacity of your N20 motor can cause the motor to stall while the friction-fit hub remains secure.
• Do high operating temperatures affect the silicone tire material?
  The high-grade silicone compound maintains flexibility and grip across standard operating temperatures from -10°C to +80°C.
• Do I need screws or set-screws to mount the wheel onto the motor shaft?
  No, the hub is designed for a secure friction press-fit onto the D-shaft, eliminating the need for tiny set-screws or hex keys.
• How do I ensure correct alignment when pushing the wheel onto the motor?
  Align the flat side of the motor's D-shaft with the flat edge inside the wheel's center hub before applying steady, even pressure.
• Should I apply glue or adhesive to keep the wheel on the shaft?
  Adhesive is generally not recommended as a tight press-fit is sufficient; glue can make future maintenance or gearbox replacement difficult.
• Are there any software libraries needed to use robot wheels?
  No software libraries are required for mechanical wheels; motor control code is handled entirely through your motor driver and microcontroller.
• Why is the wheel wobbling when the motor spins?
  This usually happens if the wheel was pressed onto the D-shaft at an angle; pull it off carefully and press it back on straight, aligning the D-cut precisely.
• What should I do if the wheel slips on the motor shaft during high torque?
  Ensure the motor shaft is clean and free of oil or grease; if wear occurs over time, a tiny drop of retaining compound can secure a loose fit.
