2S 3A 7.4V/8.4V 18650 Lithium Battery Protection Board (BMS)

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What does "2S" mean? "2S" stands for "2 Series". It means this board is designed for a battery pack that has exactly two lithium cells wired end-to-end (in series), bringing the total nominal voltage to 7.4V (3.7V + 3.7V).

2. What does "3A" mean? 3 Amps is the maximum continuous current this board will allow your device to draw before the over-current protection kicks in and shuts the power off.

3. Can I use this with 3S (11.1V) or 4S (14.8V) packs? No. This BMS is strictly programmed for the voltage limits of a 2S pack. Using it on larger or smaller packs will result in failure or fire.

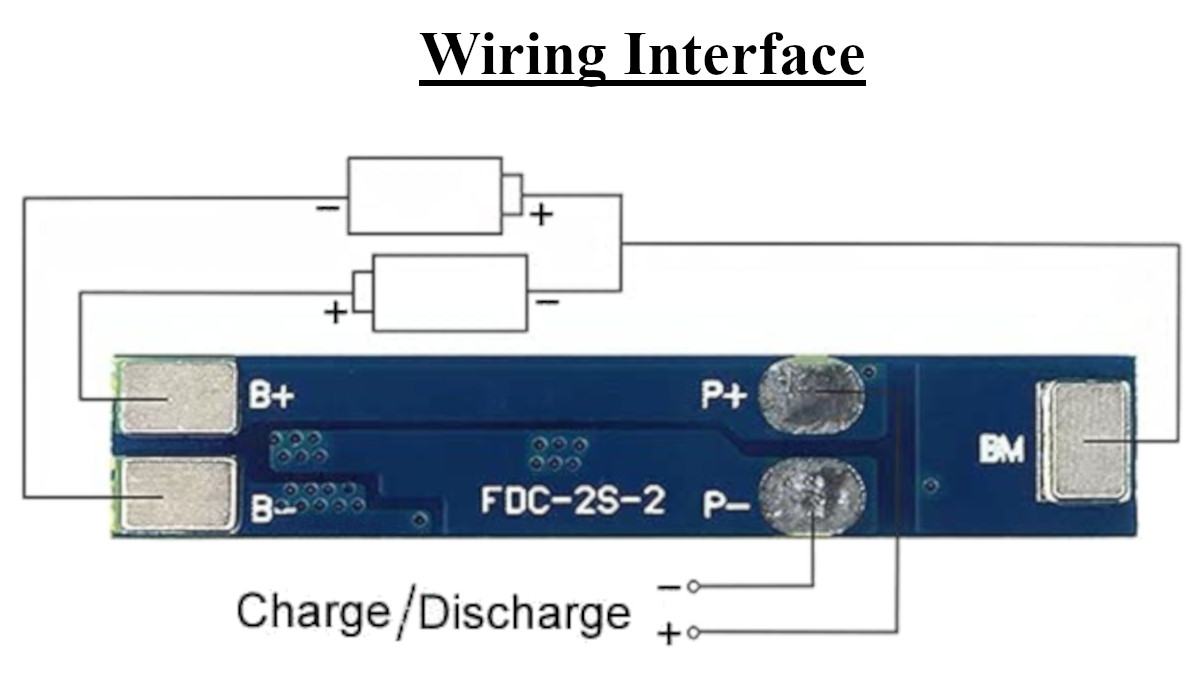

4. What is the "BM" pad for? BM stands for Battery Mid-point. Because this board monitors both cells individually to ensure neither one overcharges, it needs a connection to the metal bridge that links the positive of Cell 1 to the negative of Cell 2.

5. Does this module actively balance the cells? No. Standard 3A BMS modules like this only protect the cells (cutting power if one drops too low or goes too high). They do not have the bleeding resistors required to actively balance them. Always use cells that are at the exact same voltage when building your pack.

6. Where do I connect my motors or lights? You connect your load to the P+ and P- pads. Never connect your load directly to the B+ and B- pads, as this bypasses the protection completely!

7. Where do I plug in the charger? You also connect your charger to the P+ and P- pads. The charge and discharge ports are shared on this board.

8. What kind of charger do I need? You must use a dedicated lithium-ion charger designed for 2S packs, which outputs exactly 8.4V.

9. Can I charge this with a standard 5V USB phone charger? No. 5V is not enough voltage to push power into a 7.4V/8.4V battery pack.

10. Can I use this with LiFePO4 batteries? No. LiFePO4 batteries have different chemistry and lower voltage limits (3.2V nominal). This board's 4.25V cut-off will severely overcharge and ruin LiFePO4 cells.

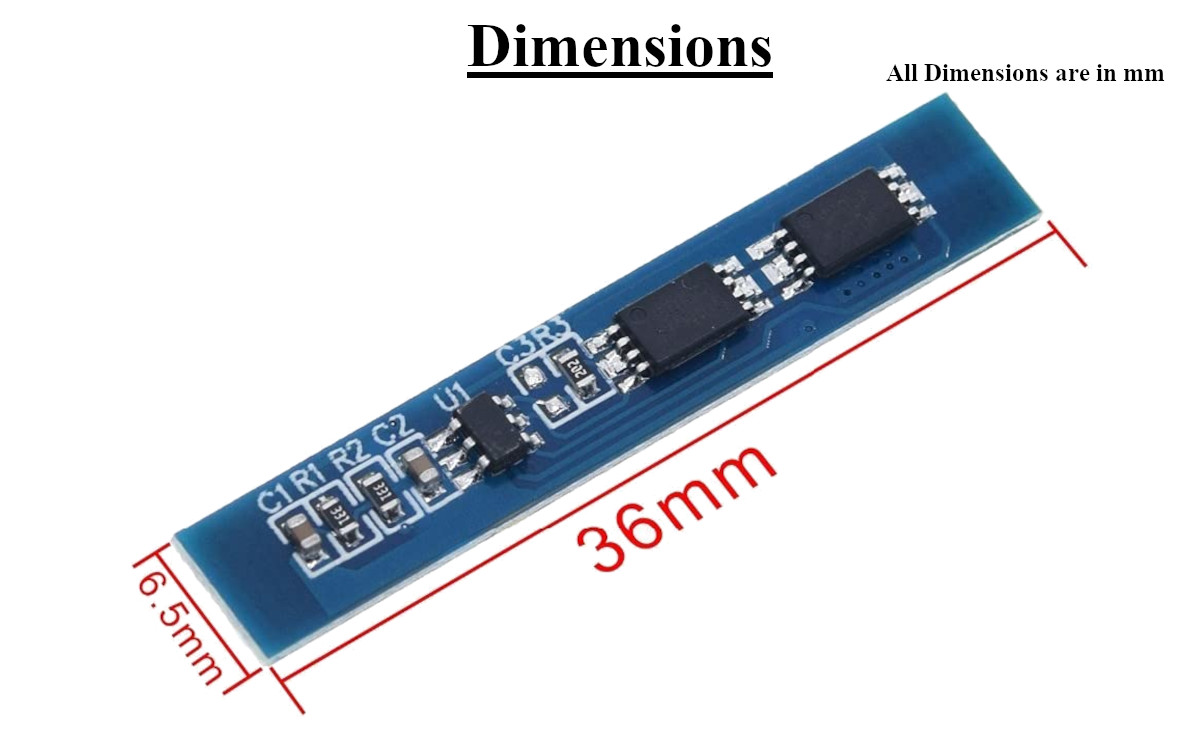

11. What is the exact size of the board? It is extremely small, measuring 36mm long by 6.5mm wide.

12. Why isn't there power at the P+ and P- pads after I soldered everything together? This is a common safety feature. Most BMS boards go into a "sleep" or "lock" mode after being disconnected from power (or during initial soldering). To wake it up, apply your 8.4V charger to the P+ and P- pads for a single second.

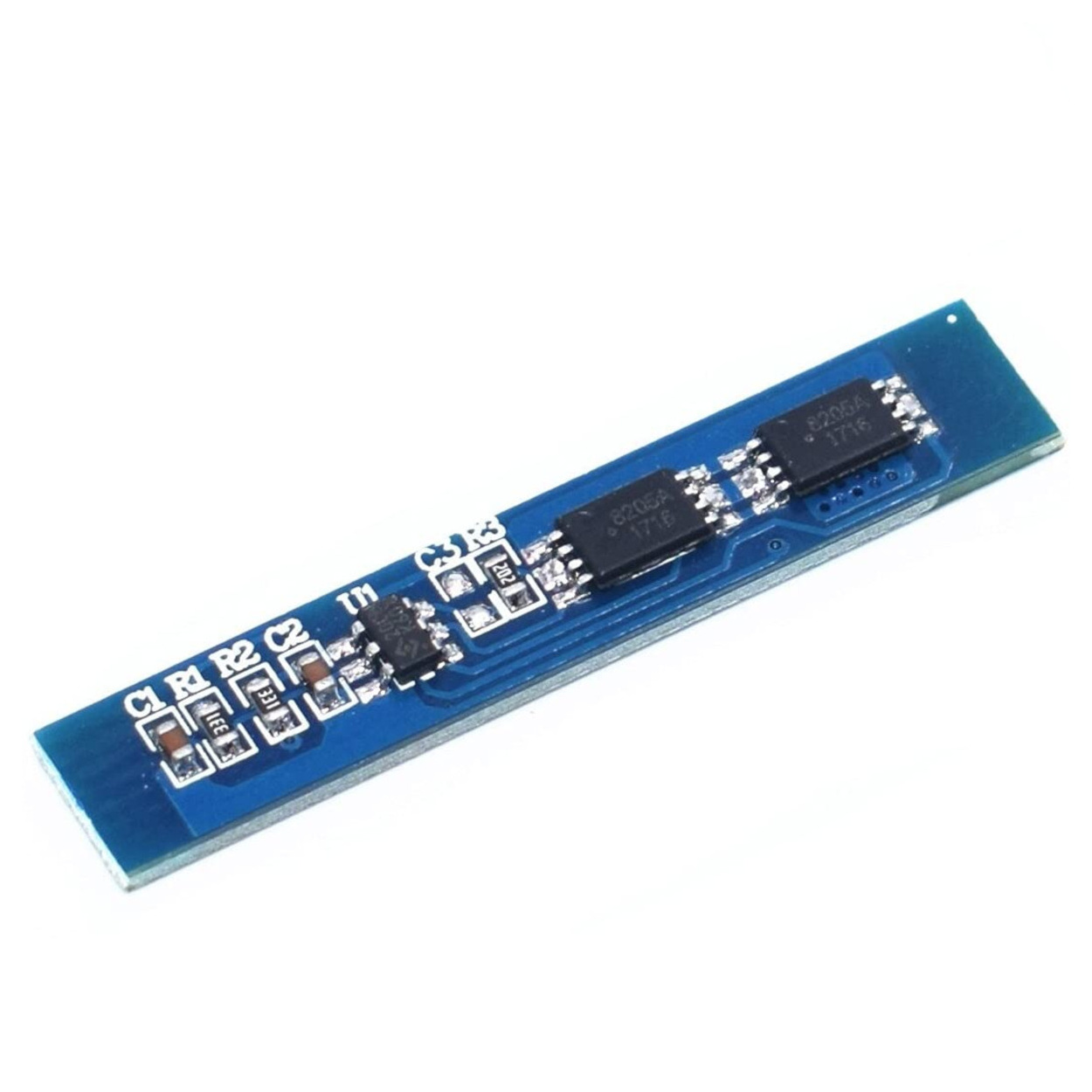

13. What are the black chips on the back? The two identical chips are 8205A MOSFETs. They act as the electronic gates that quickly open and close to allow or stop the flow of electricity during a fault.

14. Can I run a fast RC car or drone with this? Likely not. High-speed RC motors draw massive bursts of current (often 10A to 30A), which will instantly trigger the 3A over-current protection on this board and stall your vehicle.

15. What happens if the positive and negative output wires touch? The short-circuit protection will detect the massive spike in current and instantly cut the output power, preventing the batteries from melting or venting.

16. How does the board reset after a short circuit? Once you remove the short circuit or the heavy load, the board should auto-recover. If it does not, plug it into your 8.4V charger for a moment to reset the protection IC.

17. At what voltage will it cut off power to save my battery? It will sever the connection when it detects that either cell has dropped to approximately 2.9V.

18. Can I solder wires directly to my 18650 cells? While possible, it is highly discouraged. The heat from a soldering iron can quickly damage the internal chemistry of the battery. It is always safer to use a spot welder with nickel strips, or use spring-loaded plastic battery holders.

19. Do I need one of these boards per battery? No. This single 2S BMS board handles the entire 2-cell battery pack.

20. Can I put multiple 18650s in parallel to make a larger pack (like 2S2P)? Yes! If you wire two cells in parallel, the BMS treats them as one single, large-capacity cell. A 2S2P pack (4 batteries total) will work perfectly with this BMS, provided your total load still doesn't exceed 3 Amps.
