J151 Door Exit Push Button Switch Access Control Release Button

Lock Controllers
β‚Ή129.00 β‚Ή 109.32 + 19.68 GST
In stock
SKU
PRO6287

1-3 Days Express Shipping in India Available

Deliver to
Bulk Pricing
QTYUnit Price(Inlc. GST)
100+ β‚Ή126.42 β‚Ή 107.14 + 19.28 GST
200+ β‚Ή123.84 β‚Ή 104.95 + 18.89 GST
300+ β‚Ή121.26 β‚Ή 102.76 + 18.5 GST
400+ β‚Ή118.68 β‚Ή 100.58 + 18.1 GST

Contact us for Higher Quantities.

Contact us for Higher Quantities
Pickup today at Nagarbhavi

Standard J151 wall-mountable door exit switch for access control systems. Features a durable ABS plastic housing and Normally Open (NO) contacts for triggering electric locks and access controllers.

The J151 Door Exit Switch unlocks direct manual release control for electronic locking systems. It allows you to trigger 12V electromagnetic locks, solenoid bolt locks, or access control keypads directly without needing complex programming, giving users inside a room an immediate way to unlatch doors.

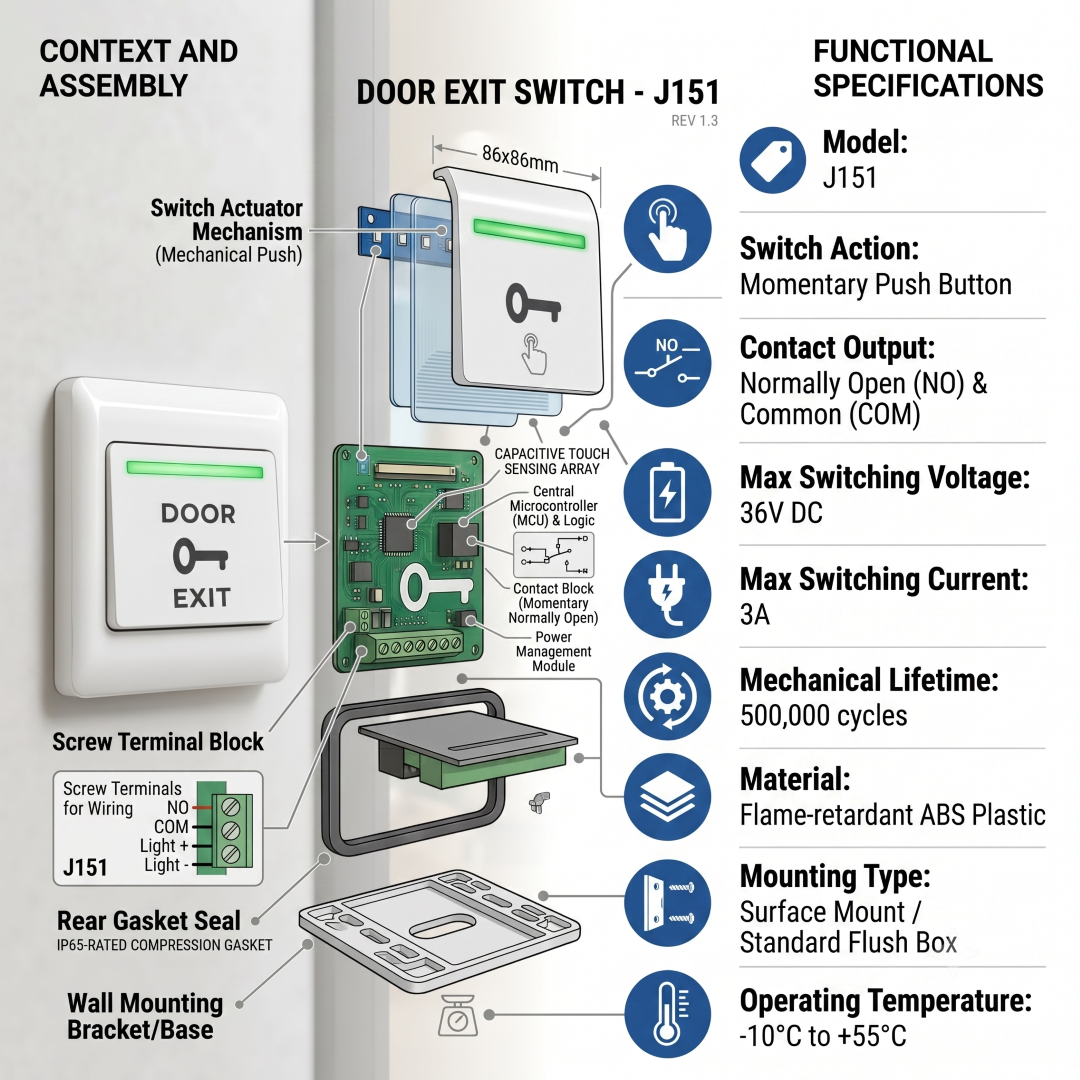

Specifications

  • Model: J151
  • Switch Action: Momentary Push Button
  • Contact Output: Normally Open (NO) & Common (COM)
  • Max Switching Voltage: 36V DC
  • Max Switching Current: 3A
  • Mechanical Lifetime: 500,000 cycles
  • Material: Flame-retardant ABS Plastic
  • Mounting Type: Surface Mount / Standard Flush Box
  • Operating Temperature: -5°C to +40°C

Minimum hardware

  • 12V DC Power Supply : required to supply operating current to the electronic lock connected through the switch contacts.
  • Electric Door Lock (Solenoid Lock or Electromagnetic Lock) : required to provide the mechanical or magnetic latching for the door.
  • 2-Core Connecting Wire : required to run power from the supply through the J151 switch terminals to the lock.

Safety Warnings

  • Current and Voltage Limits: Do not exceed 36V DC or 3A across the J151 internal contacts. Exceeding these ratings can weld the contacts together, causing the door lock to stay permanently unlocked or locked.
  • Inductive Flyback Protection: When controlling inductive loads like solenoid locks or maglocks directly, always install a flyback diode (such as a 1N4007) across the lock terminals to prevent high-voltage spikes from damaging your power supply or switch contacts.

Accessories Included in the Box

  • 1× J151 Door Exit Push Button Switch Panel
  • 2× Mounting Screws

Frequently Asked Questions

  • Is the J151 exit switch compatible with 12V electromagnetic locks?
    Yes, it works directly with standard 12V and 24V maglocks and solenoid locks.
  • Can I use this switch with a fingerprint access control board?
    Yes, you can wire it to the manual release input terminals of most biometric controllers.
  • Does this switch work with smart home relays like Sonoff or Shelly?
    Yes, it can trigger smart relays that accept a dry contact momentary input.
  • Can I use multiple J151 switches on the same door?
    Yes, you can wire multiple switches in parallel to unlock the door from different locations.
  • What is the maximum voltage this switch can handle?
    It is rated for a maximum switching voltage of 36V DC.
  • How much current can safely pass through the contacts?
    The internal contacts are rated to safely handle up to 3A of current.
  • Does the switch itself require power to operate?
    No, it is a passive mechanical switch that only routes power when pressed.
  • Which terminals do I use to unlock a standard fail-secure lock?
    Wire your circuit through the Common (COM) and Normally Open (NO) terminals.
  • Does this switch have a Normally Closed (NC) terminal?
    The standard J151 primarily features NO and COM contacts for basic push-to-make circuits.
  • Do I need to use a flyback diode when wiring this to a magnetic lock?
    Yes, installing a diode across inductive lock terminals prevents voltage spikes from damaging the switch.
  • How do I read this switch using an Arduino?
    Connect it to a digital pin and use the digitalRead() function to detect when the circuit closes.
  • Do I need a pull-up resistor if connecting it to an ESP32?
    Yes, you should enable the internal pull-up resistor in your code to prevent floating pin readings.
  • Is there specific software required to use this switch?
    No, it operates purely on hardware mechanics and requires no specialized software or libraries.
  • Why doesn't the door unlock when I press the button?
    Check your wiring connections and verify that your power supply is outputting the correct voltage.
  • Why does the switch feel stuck when pressed?
    The front plate may be screwed into the wall box too tightly, causing the plastic housing to bind.
  • Why is my Arduino registering multiple button presses from one push?
    This is mechanical switch bounce, which can be fixed by adding a small delay or debounce logic in your code.
  • Why did the switch stop working after a few days?
    You may have exceeded the 3A current limit, causing the internal contacts to melt or weld together.
